Woofer

Woofer

REMOVAL

1. SEDAN MODEL

NOTE: harman/kardon(R) audio system only.

1. Disconnect the ground cable from battery.
2. Remove the rear shelf trim.
3. Remove the woofer.

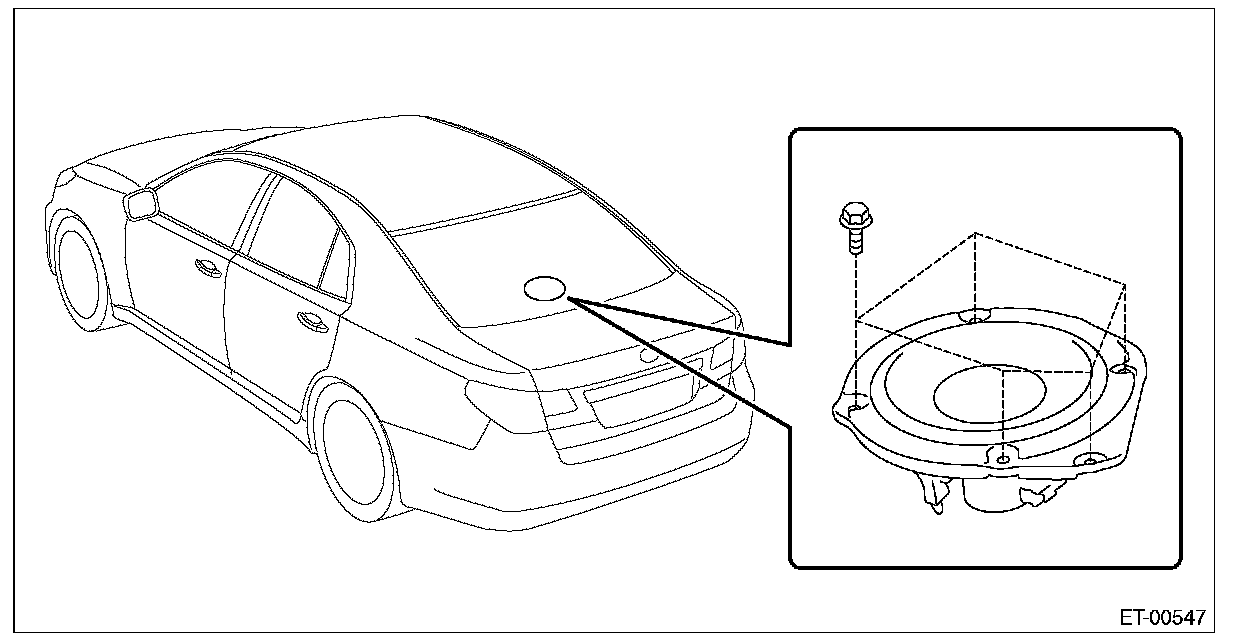

1. Remove the screws.
2. Disconnect the harness connector and remove the woofer assembly.






2. OUTBACK MODEL

NOTE: harman/kardon(R) audio system only.

1. Disconnect the ground cable from battery.
2. Remove the rear quarter trim LWR.
3. Remove the woofer.

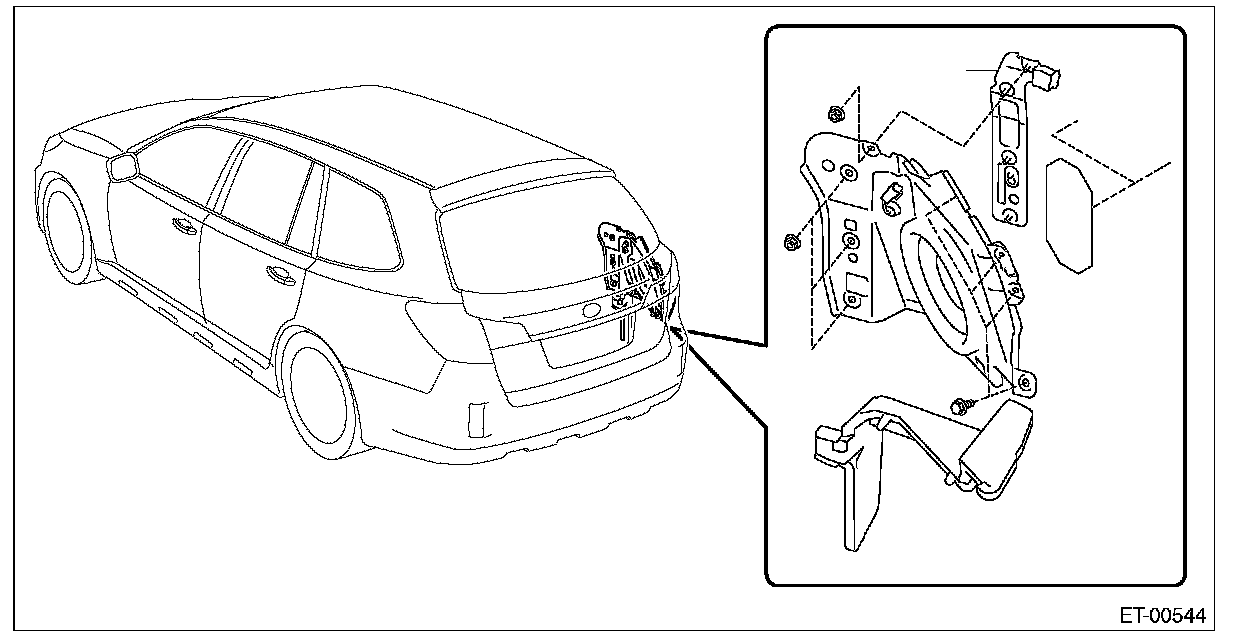

1. Remove the woofer bracket mounting clips and screws, then remove the woofer bracket.
2. Disconnect the harness connector and remove the woofer assembly.






INSTALLATION
Install each part in the reverse order of removal.

Tightening torque: 7.5 N.m (0.76 kgf.m, 5.5 ft.lb)
