Rear Speaker

Rear Speaker

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the door trim assembly.
1. Open the cover and remove the screw.
2. Remove the clips in the order of (A) to (H) and remove the door trim assembly from the door panel.

CAUTION: When removing the door trim, be sure to remove the clips in the correct order. Forcibly removing clips may damage the door panel assembly.






NOTE: Insert a plastic clip remover into the slit at the bottom edge of the door trim and lift the door trim.

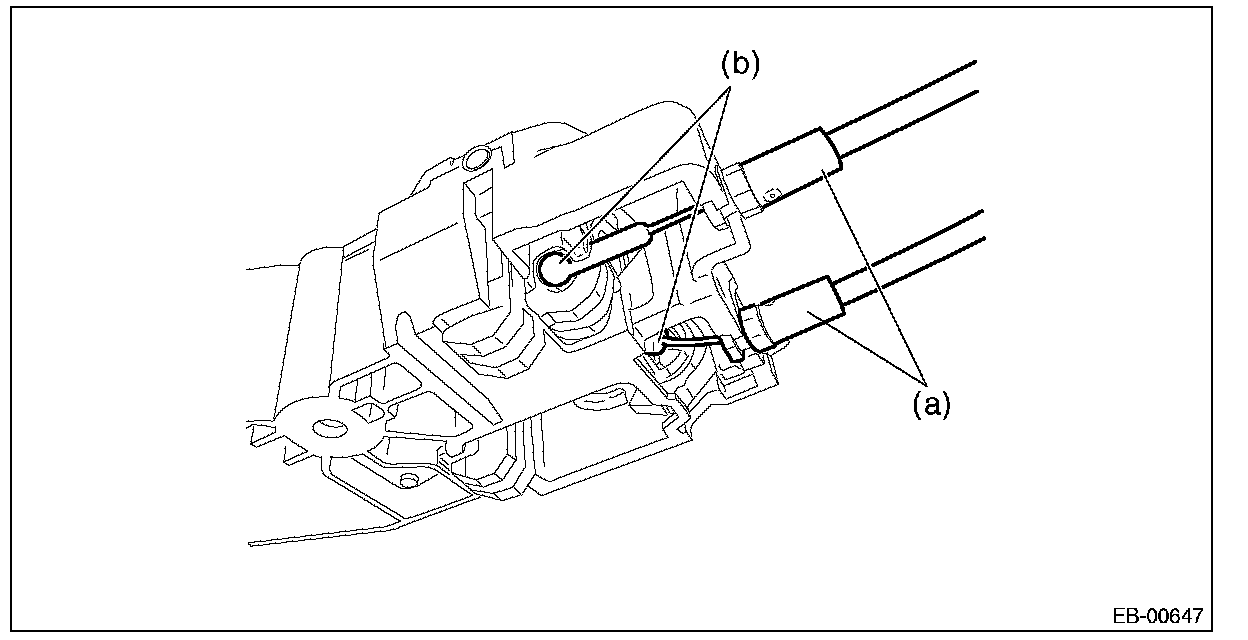

3. Remove the cables (a) and (b) from the cable holder of inner remote.






4. Disconnect the harness connector and remove the door trim.

3. Remove the rear speaker assembly.

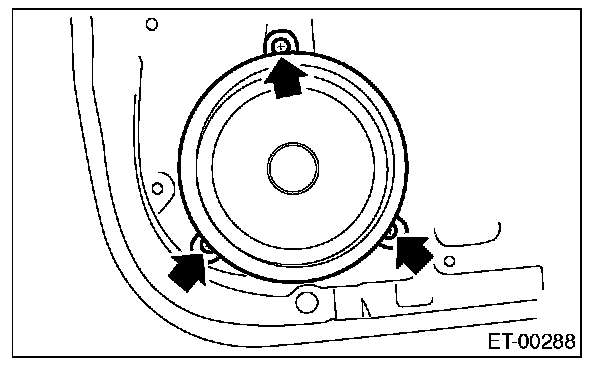

1. Remove the screws.
2. Disconnect the harness connector and remove the rear speaker assembly.






INSTALLATION
Install each part in the reverse order of removal.
