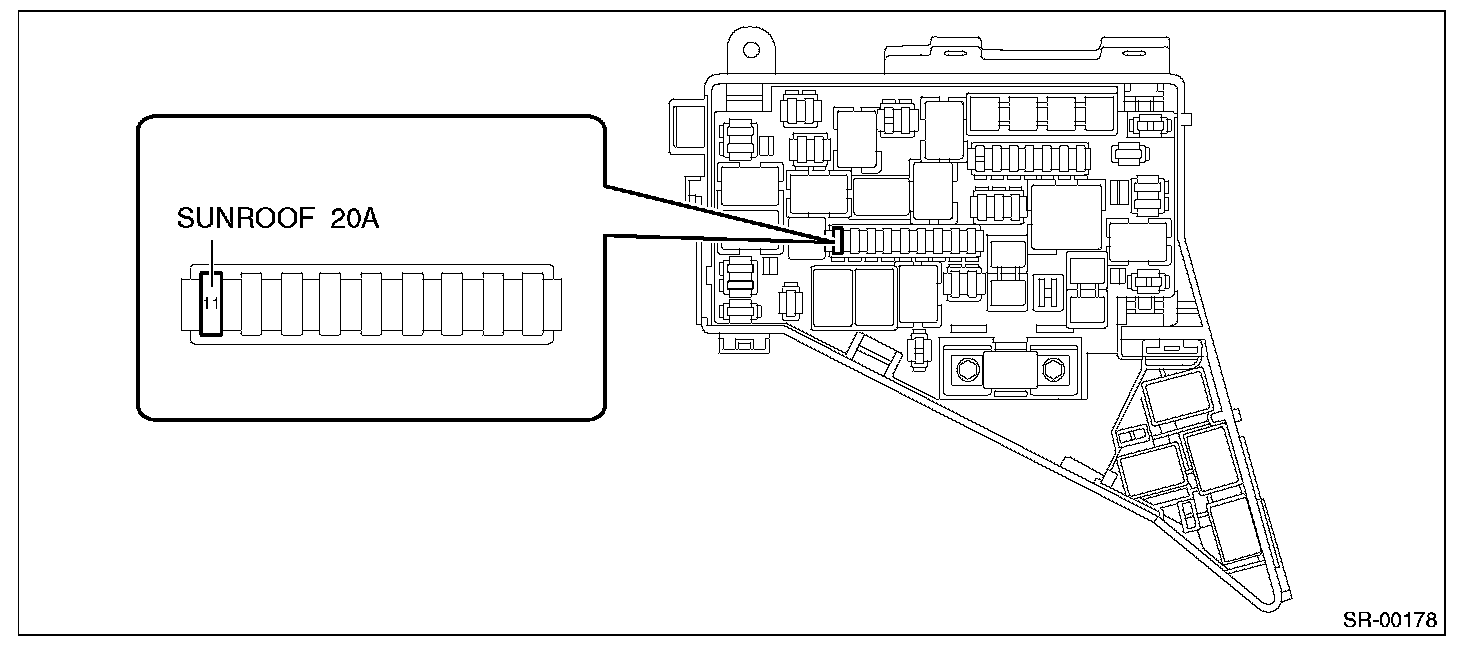

Sunroof / Moonroof Relay: Locations
Relay and FuseNOTE: For other related fuses, refer to the wiring diagram. Power Supply Circuit
Inspection
1. CHECK FUSE
1. Remove the fuse and check visually.
2. If the fuse is blown out, replace the fuse.
NOTE: For other related fuses, refer to the wiring diagram. Power Supply Circuit
Inspection
1. CHECK FUSE
1. Remove the fuse and check visually.
2. If the fuse is blown out, replace the fuse.
