Output Shaft Oil Seal

Oil Seal

REPLACEMENT

1) Remove the collector cover. (turbo model)
2) Lift up the vehicle.
3) Remove the front under cover.
4) Clean the transmission exterior.

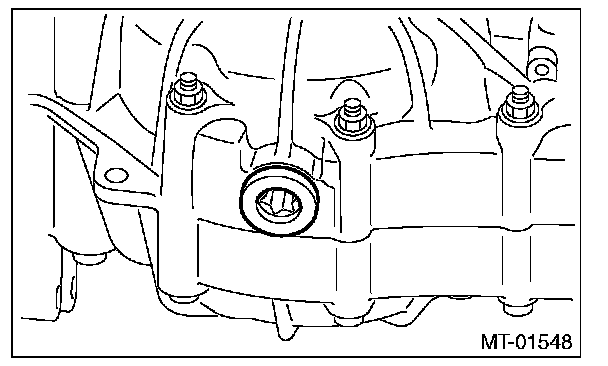

5) Using the TORX(R) bit T70, remove the drain plug, and drain the transmission gear oil completely.
6) Using the TORX(R) bit T70, tighten the transmission gear oil drain plug.

NOTE:
Use a new gasket.

Tightening torque:
44 Nm (4.5 kgf-m, 32.5 ft-lb) (Aluminum gasket silver)
70 Nm (7.1 kgf-m, 51.6 ft-lb) (Copper gasket brown)
70 Nm (7.1 kgf-m, 51.6 ft-lb) (Metal gasket black)





7) Remove the center exhaust pipe. (non-turbo model)
8) Remove the center exhaust pipe. (turbo model)
9) Remove the heat shield cover.





10) Remove the propeller shaft.

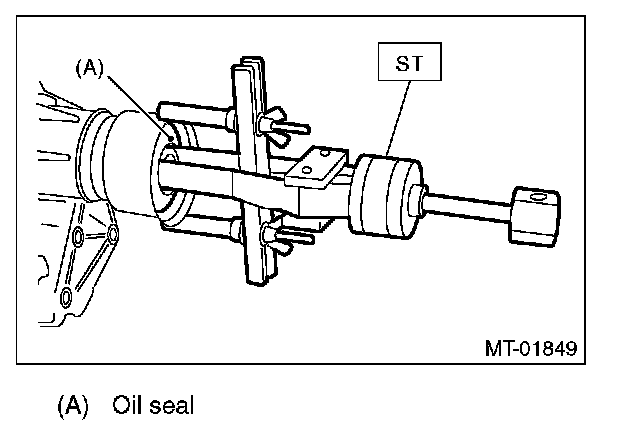

11) Using the ST, remove the oil seal.
ST 398527700 PULLER ASSY

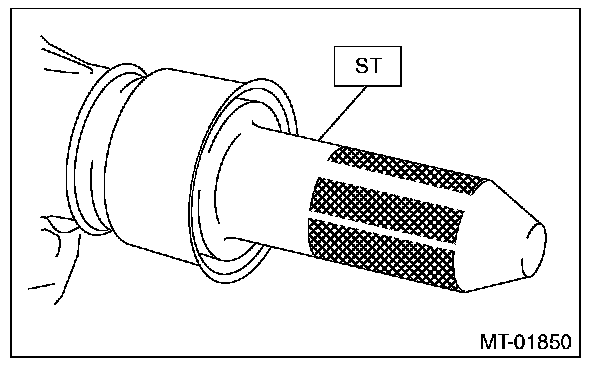

12) Using the ST, install the oil seal.
ST 498057300 INSTALLER





13) Apply transmission gear oil to the oil seal lips.
14) Install the propeller shaft.
15) Install the heat shield cover.
16) Install the center exhaust pipe. (non-turbo model)
17) Install the center exhaust pipe. (turbo model)
18) Install the front under cover.
19) Lower the vehicle.
20) Pour in transmission gear oil and check the oil level.
21) Install the collector cover. (turbo model)
