General Diagnostic Table

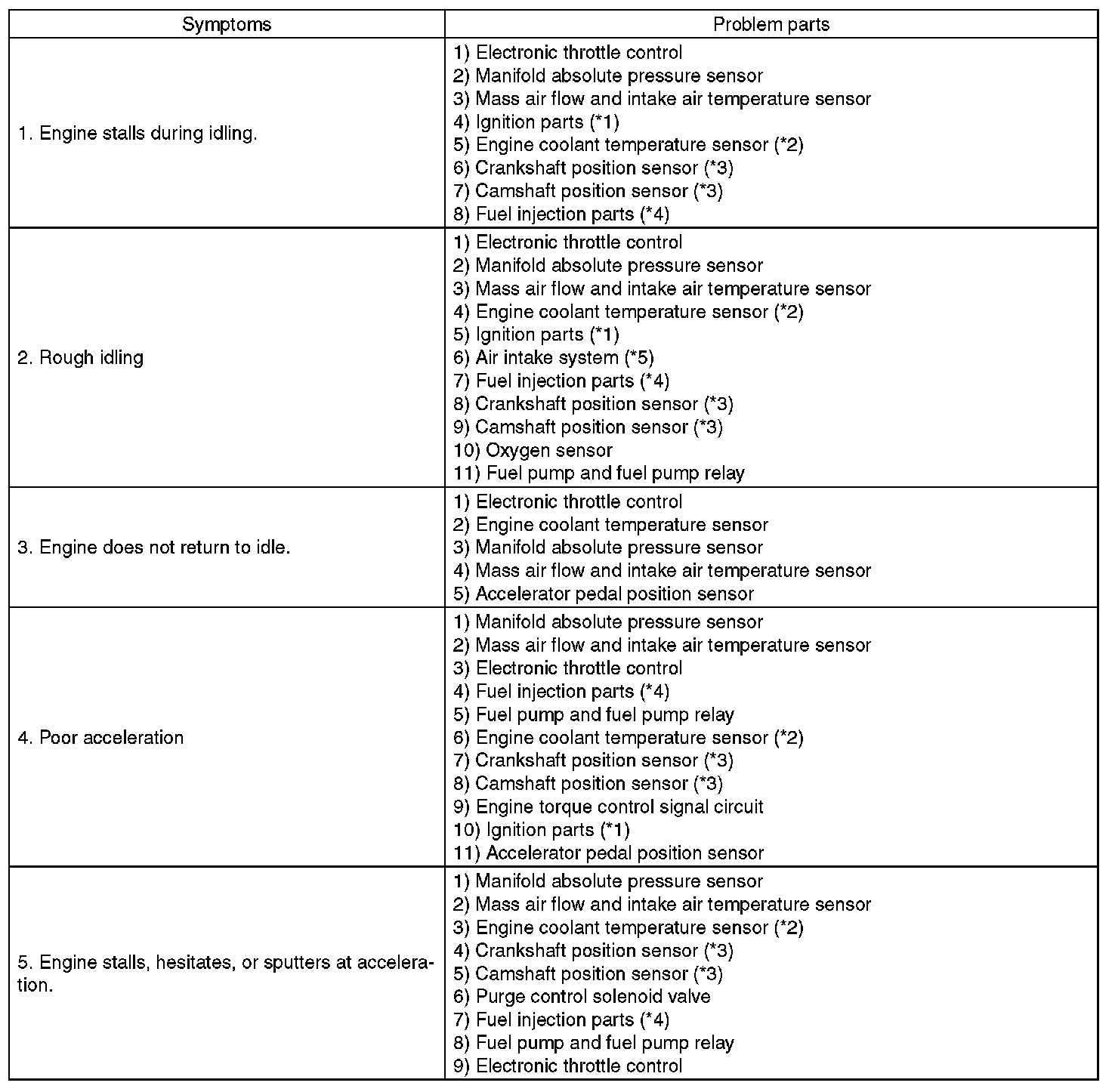

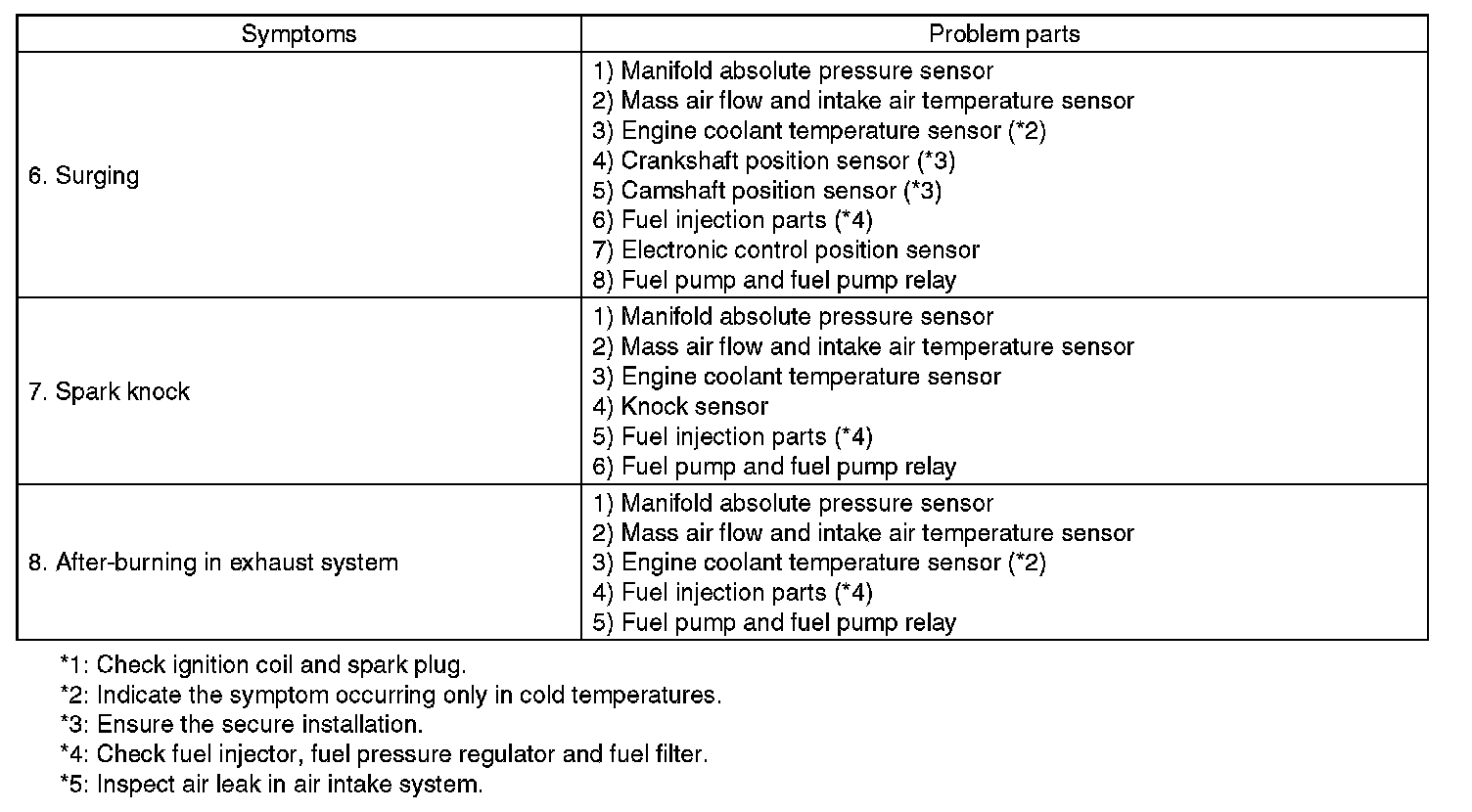

General Diagnostic Table

INSPECTION

ENGINE

NOTE: Malfunction of parts other than those listed is also possible. Refer to Engine Trouble in General.

Engine Trouble In General
