Radiator Sub Fan

RADIATOR AND RADIATOR FAN





Radiator Sub Fan and Fan Motor

REMOVAL

1) Remove the collector cover.

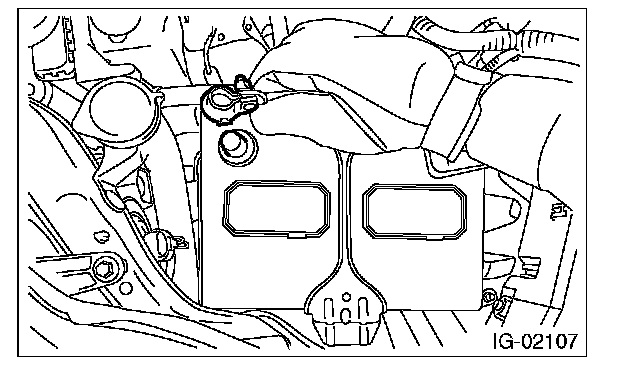

2) Disconnect the ground cable from battery.





3) Remove the air intake duct.

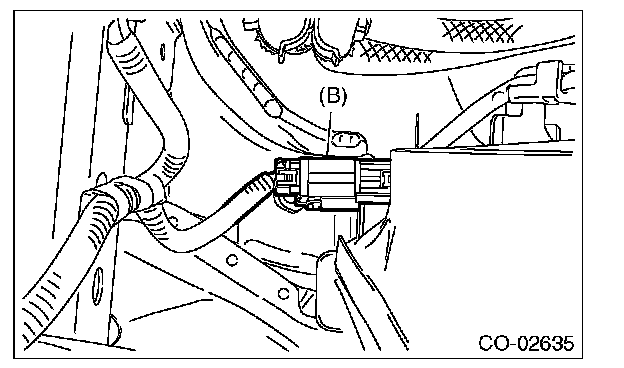

4) Disconnect the sub fan motor connector (B).

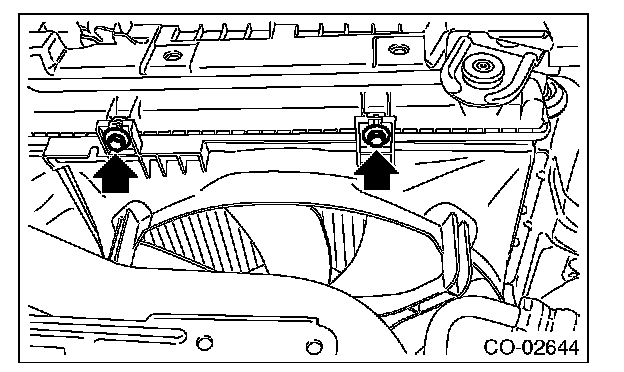

5) Remove the bolts that secure the radiator sub fan motor assembly.





6) Remove the radiator sub fan motor assembly from the upper side of the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:
Confirm that the radiator hose is securely connected.

Tightening torque:
7.5 Nm (0.8 kgf-m, 5.5 ft-lb)





DISASSEMBLY

1) Remove the sub fan motor connector and sub fan motor harness from the radiator sub fan shroud.

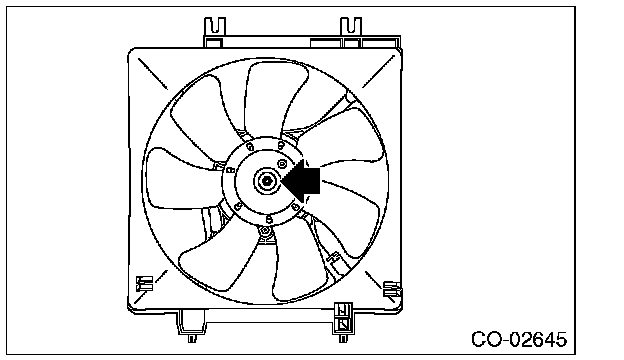

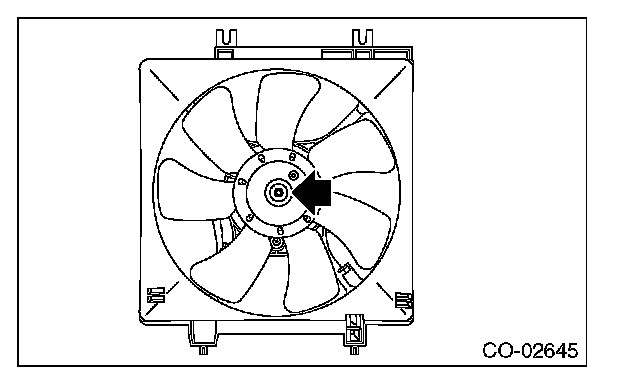

2) Remove the radiator sub fan from the sub fan motor.

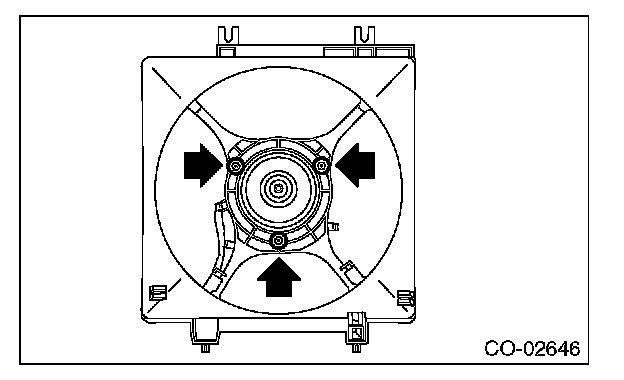

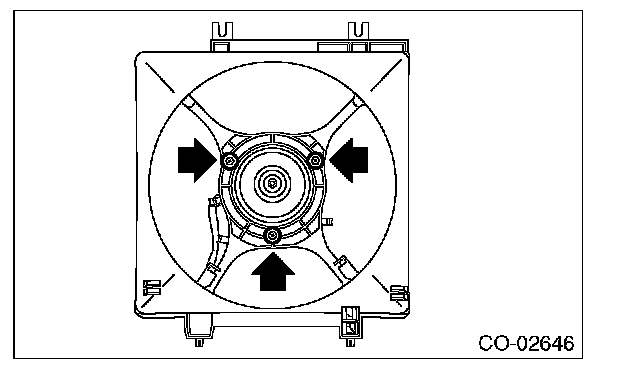

3) Remove the sub fan motor from the radiator sub fan shroud.





ASSEMBLY

Assemble in the reverse order of disassembly.

Tightening torque:
5 Nm (0.5 kgf-m, 3.7 ft-lb)





Tightening torque:
3.4 Nm (0.3 kgf-m, 2.5 ft-lb)





INSPECTION

Check that the radiator sub fan, radiator sub fan shroud and sub fan motor do not have deformation, cracks or damage.
