System Diagram

COMPONENT

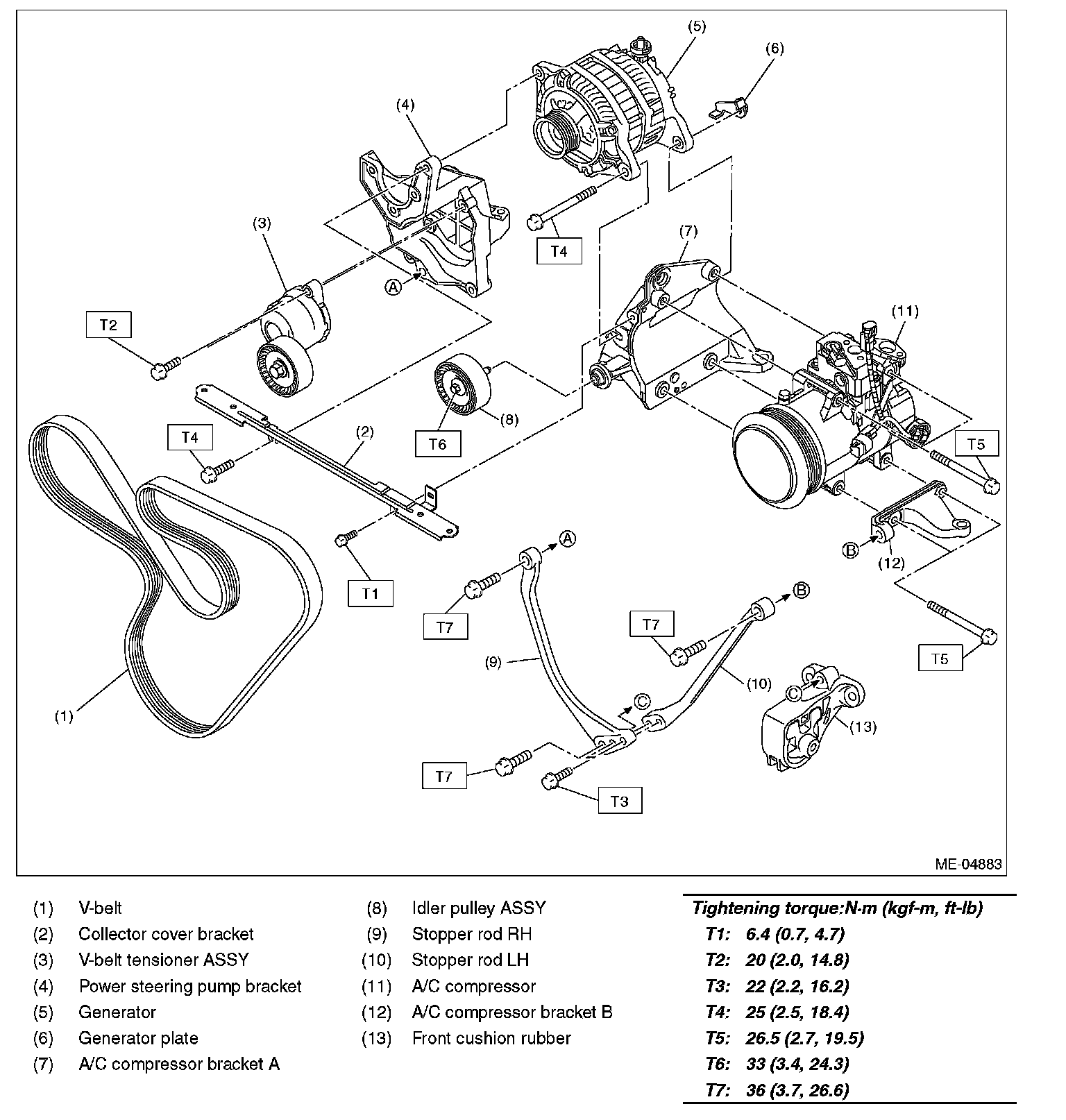

V-BELT





TIMING BELT

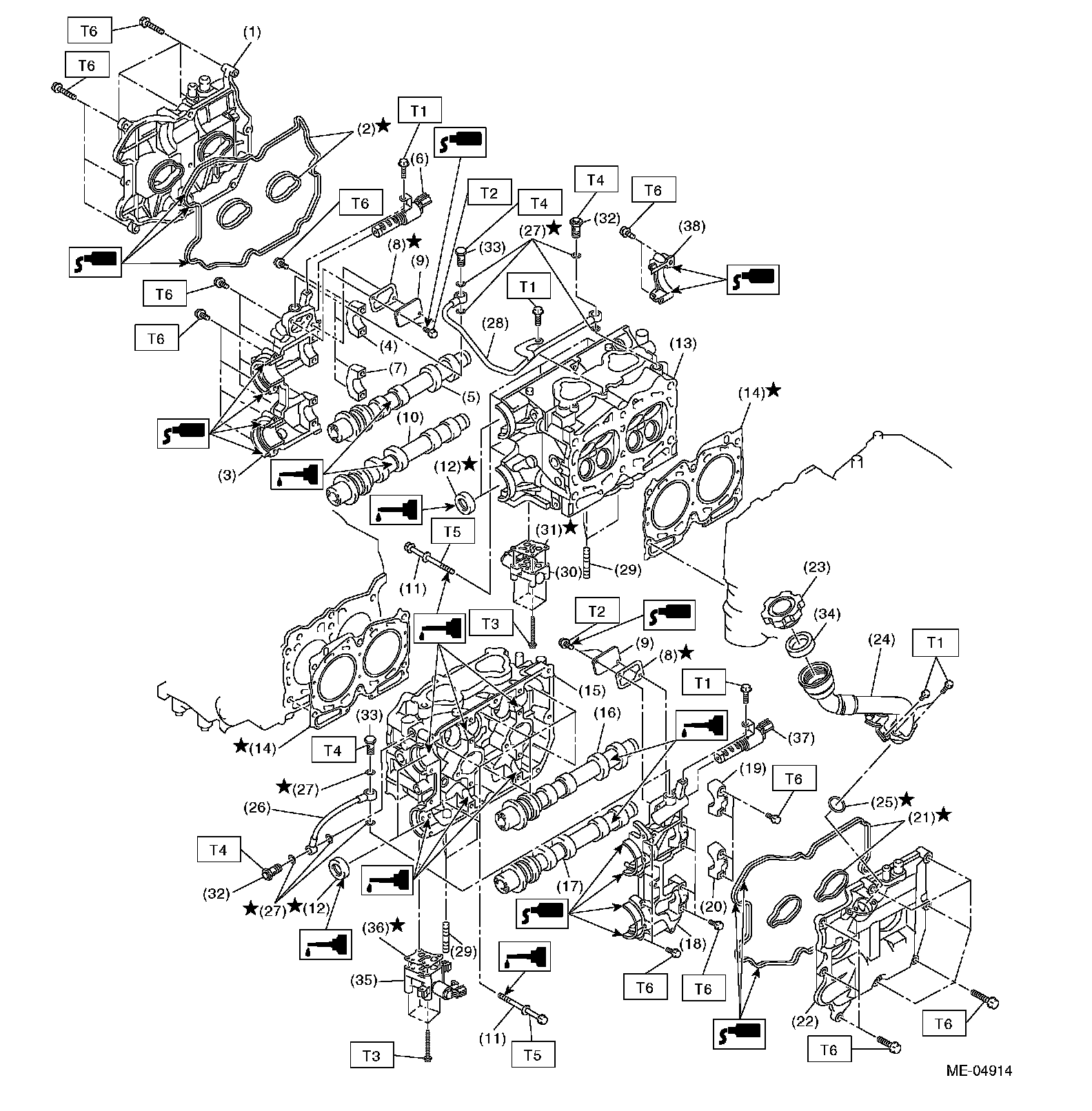

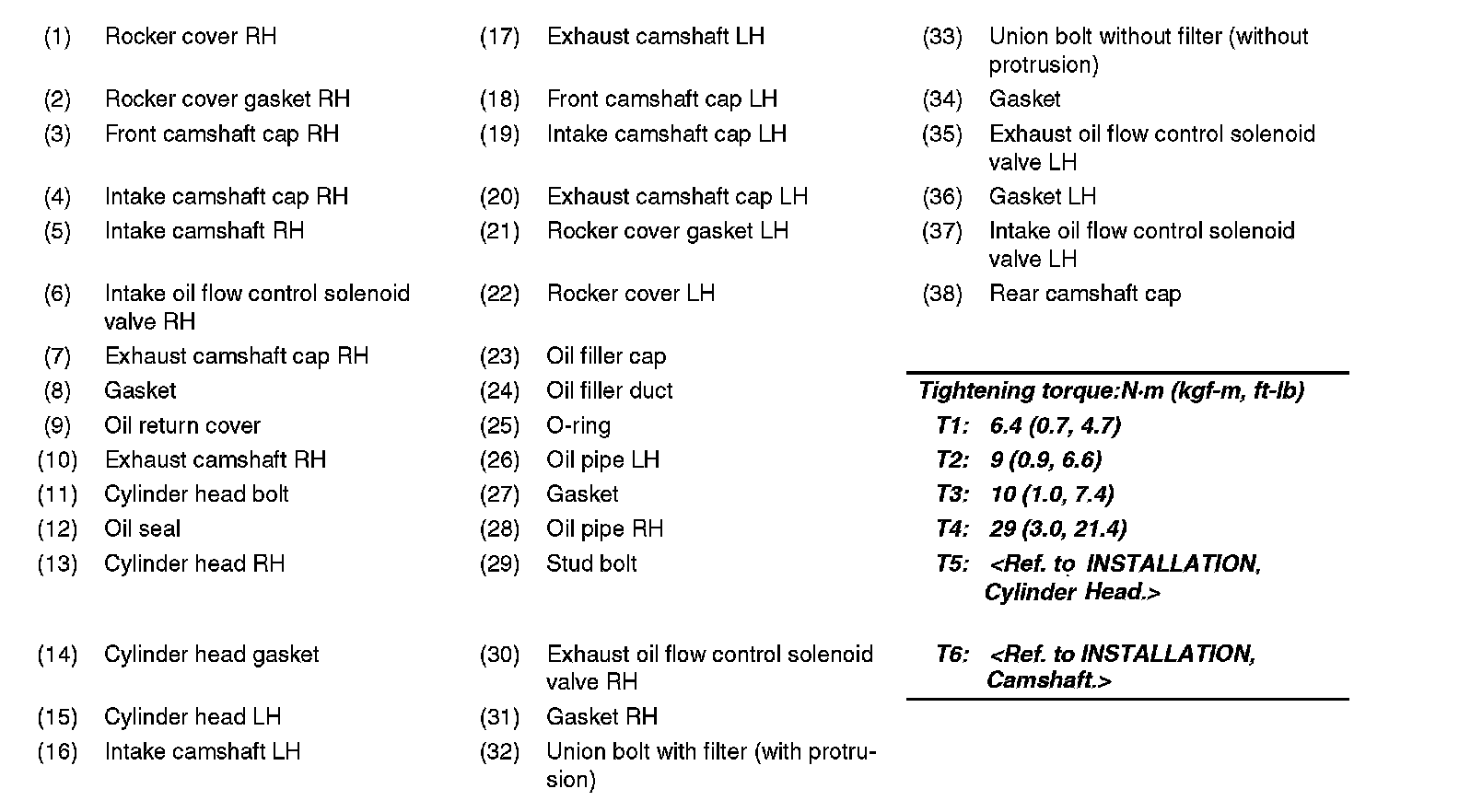

CYLINDER HEAD AND CAMSHAFT

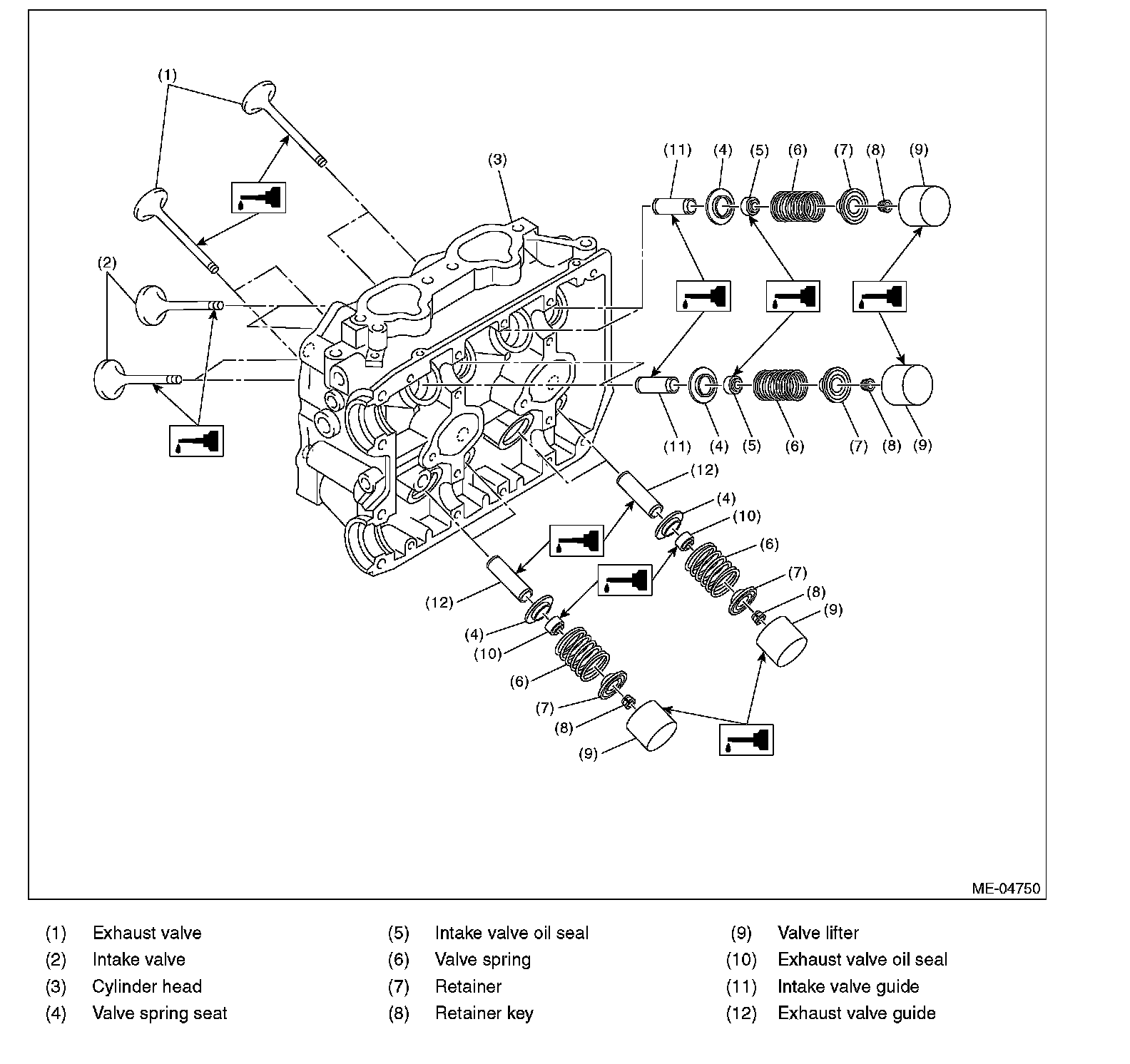

CYLINDER HEAD AND VALVE ASSEMBLY

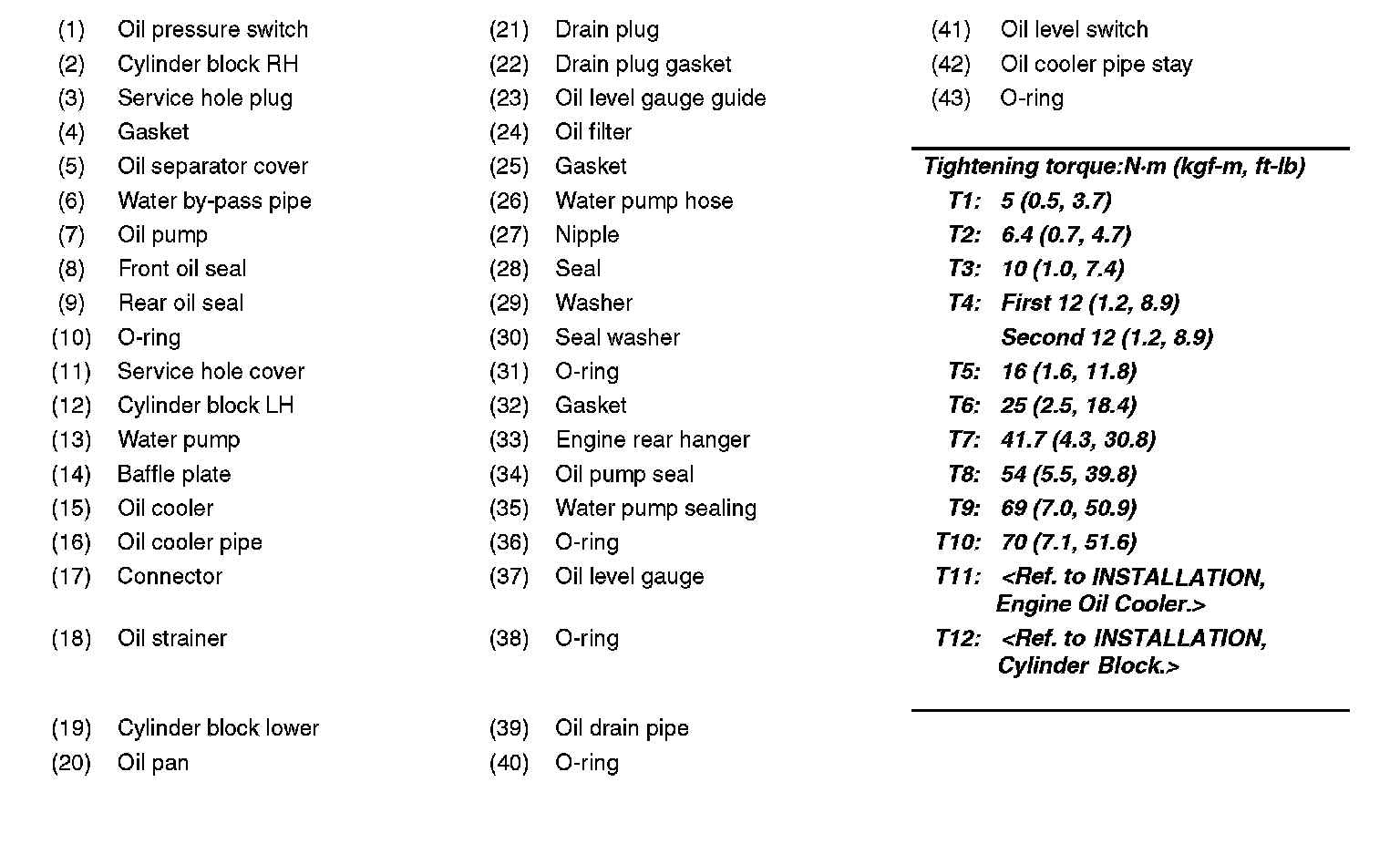

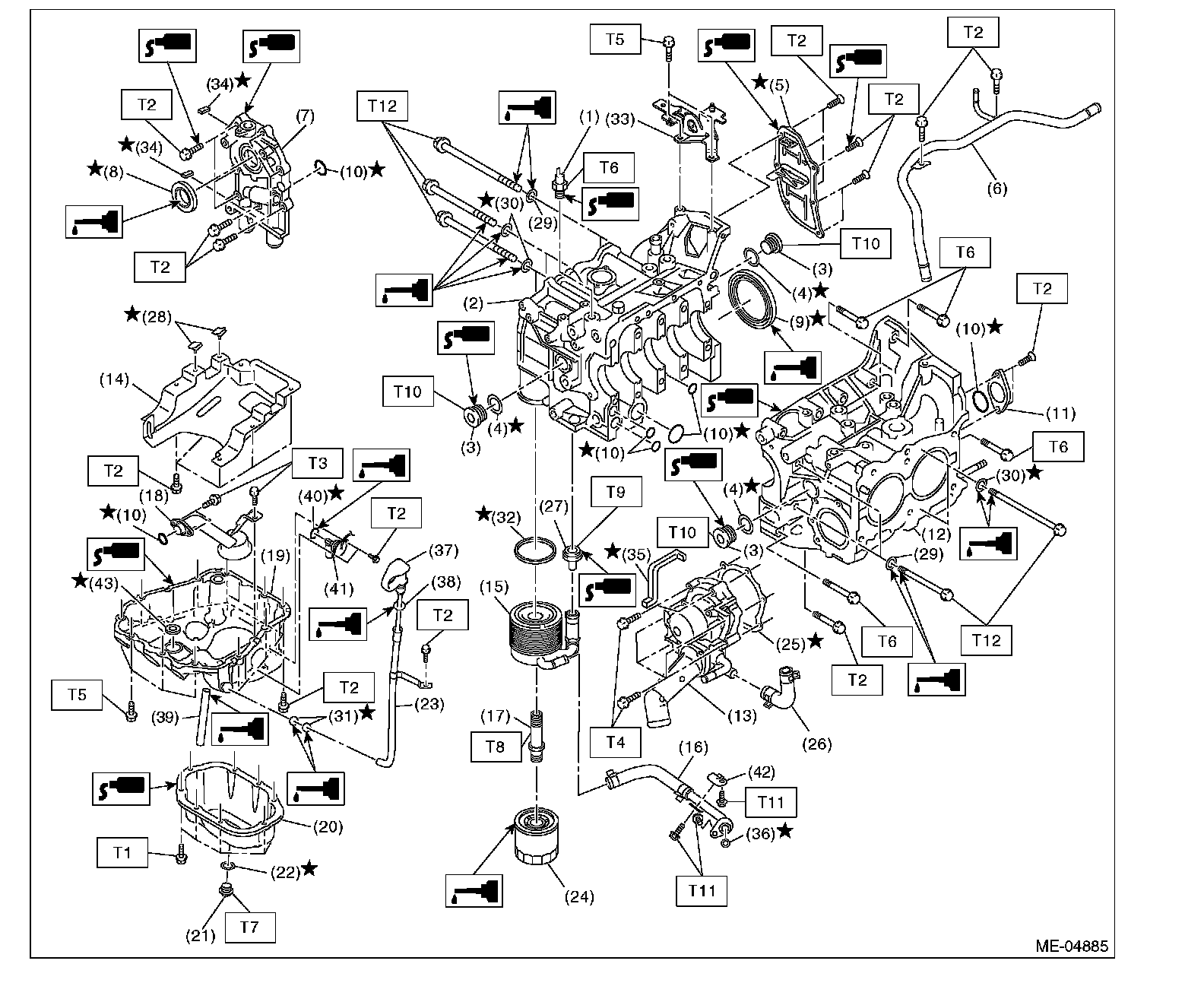

CYLINDER BLOCK

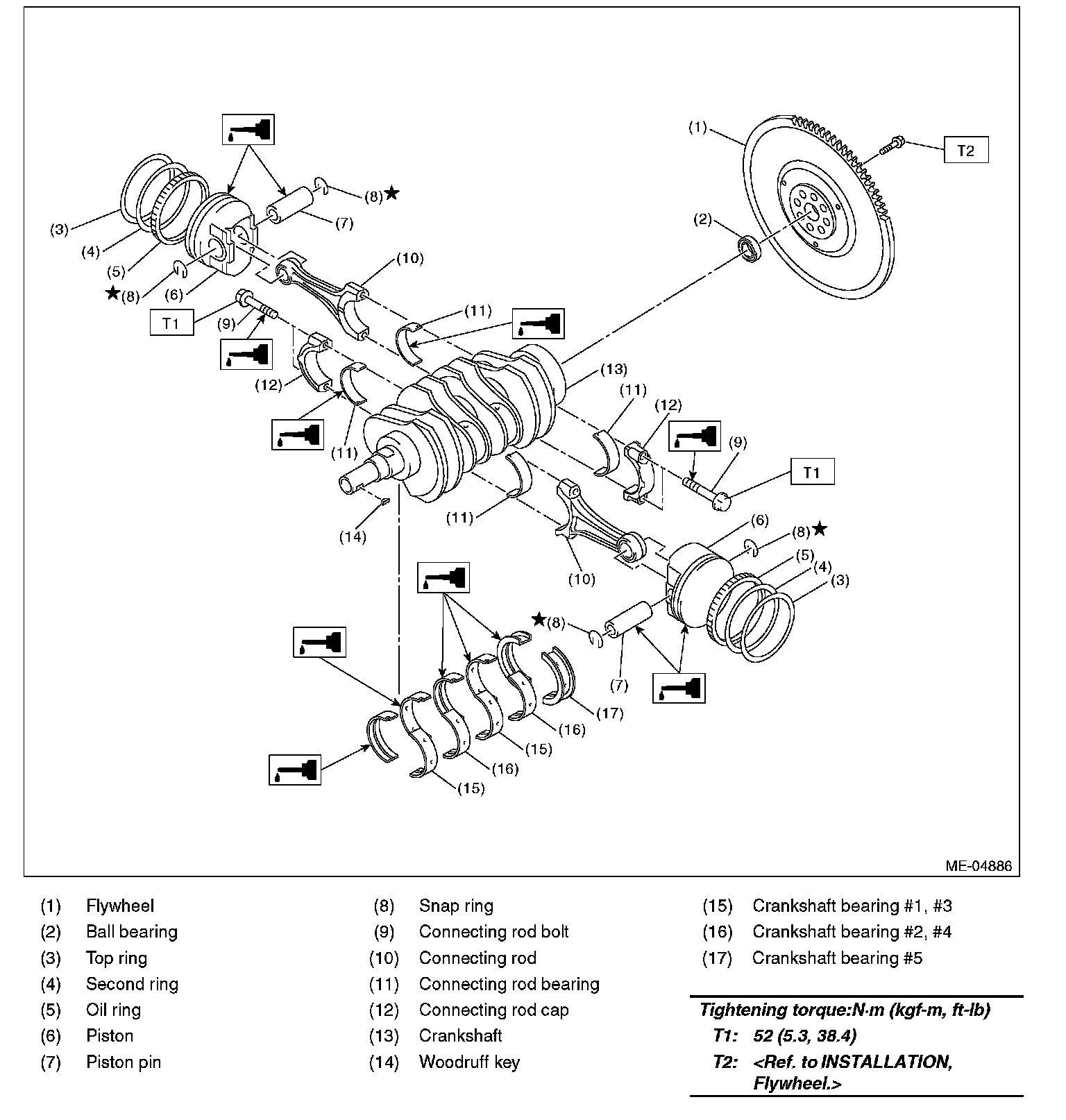

CRANKSHAFT AND PISTON

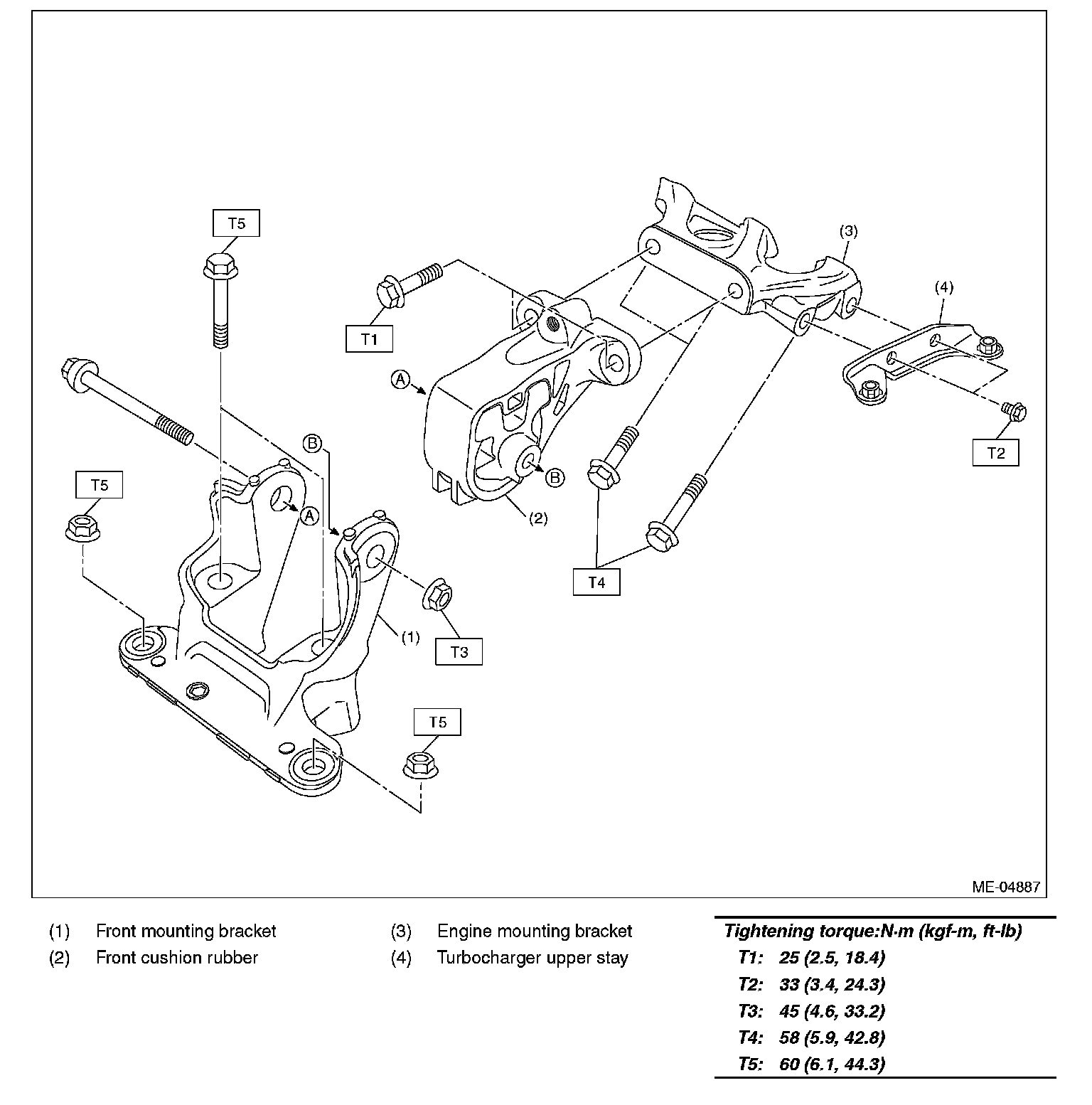

ENGINE MOUNTING
