Differential Assembly
>>
Rear Differential (VA1-Type)
Rear Differential (VA1-Type)

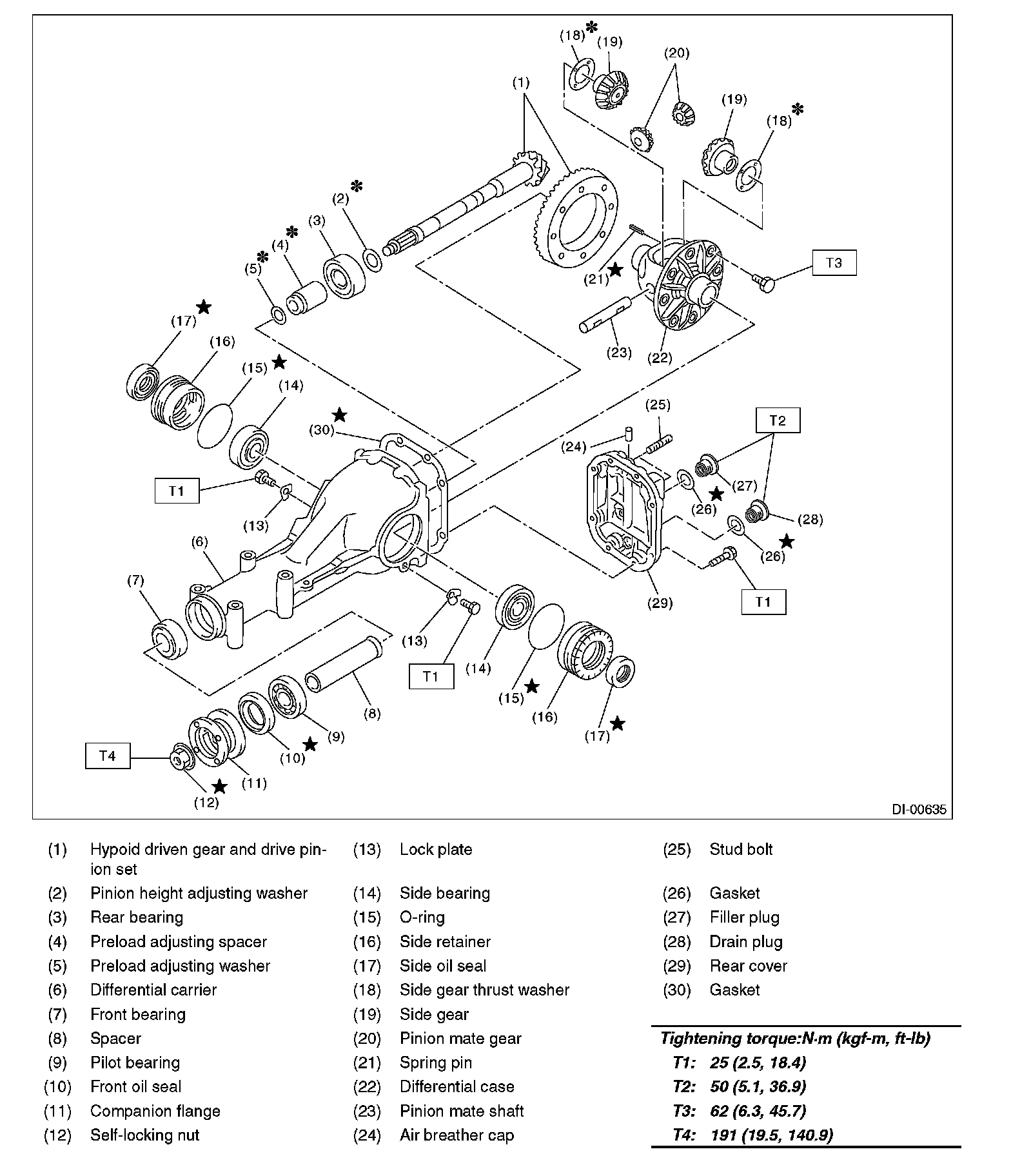

REAR DIFFERENTIAL (VA1-TYPE)
