Home >> Subaru >> 2011 >> Legacy F4-2.5L DOHC Turbo >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Diagram Information and Instructions >> Abbreviations In Wiring Diagrams

Abbreviations In Wiring Diagrams

Basic Diagnostic Procedure

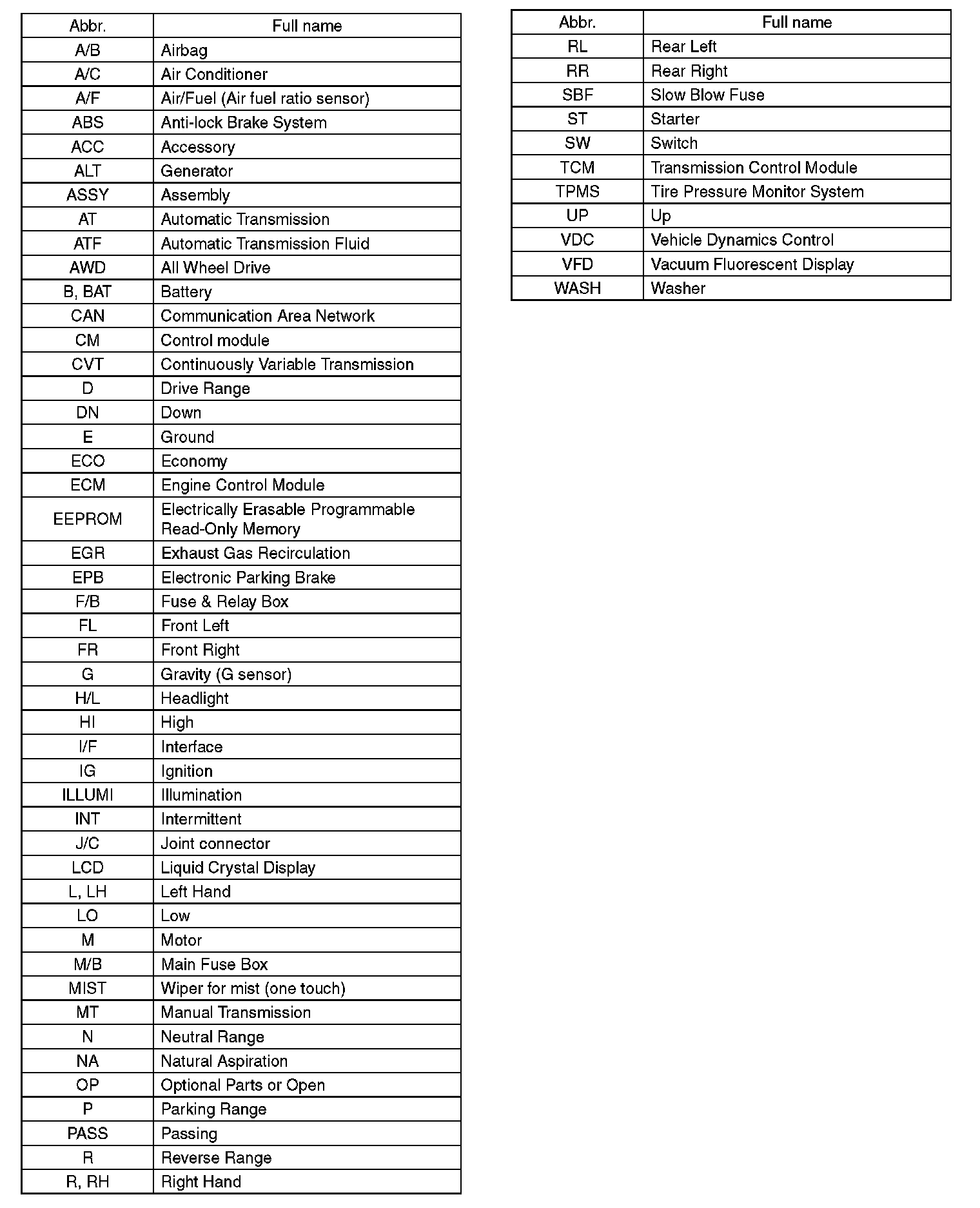

ABBREVIATION IN WIRING DIAGRAMS
