Home >> Subaru >> 2010 >> Tribeca F6-3.6L DOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> R2-R287 & AB17-AB52

R2-R287 & AB17-AB52

Rear Wiring Harness

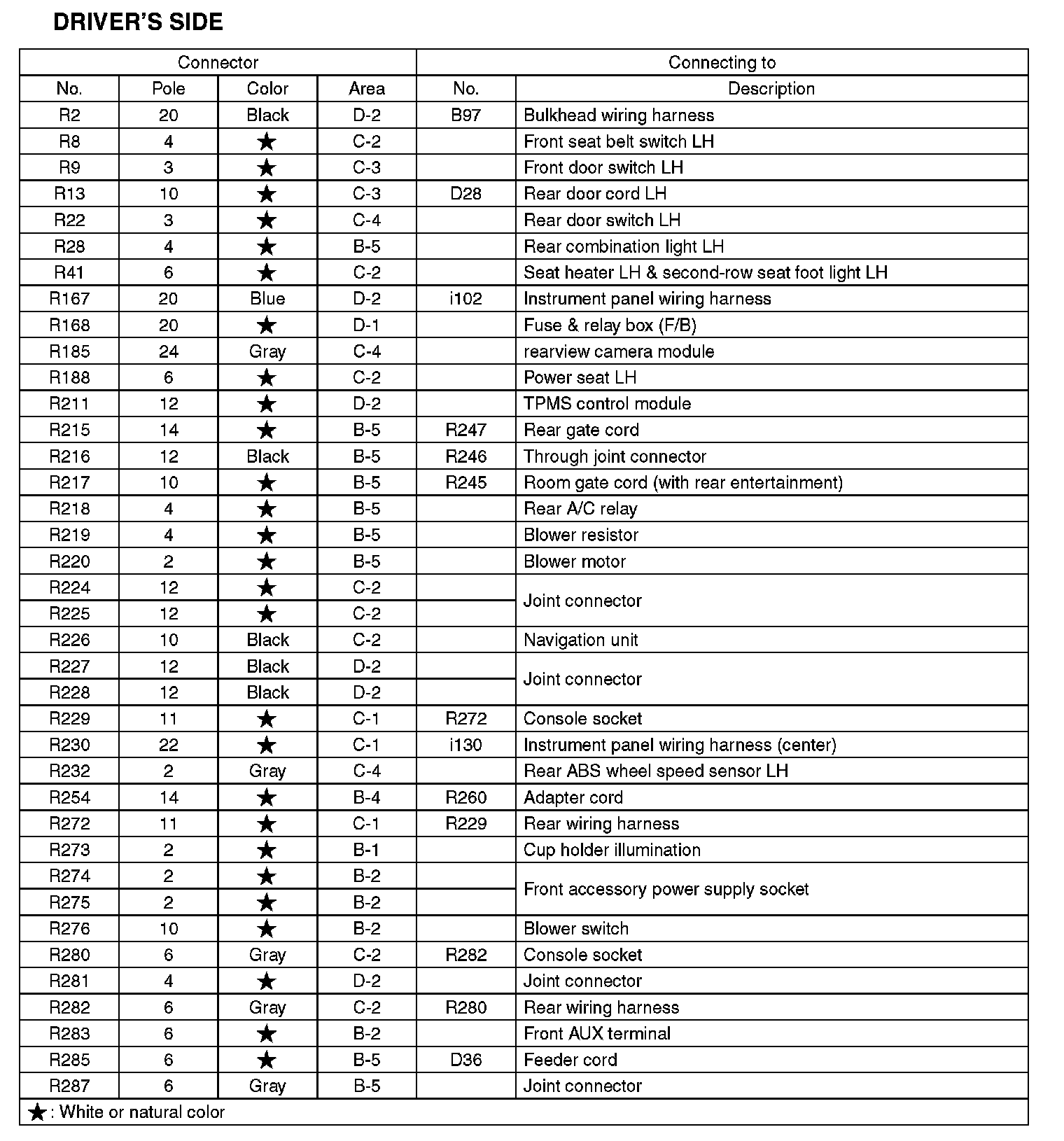

Driver's Side

R2-R287:




AB17-AB52:

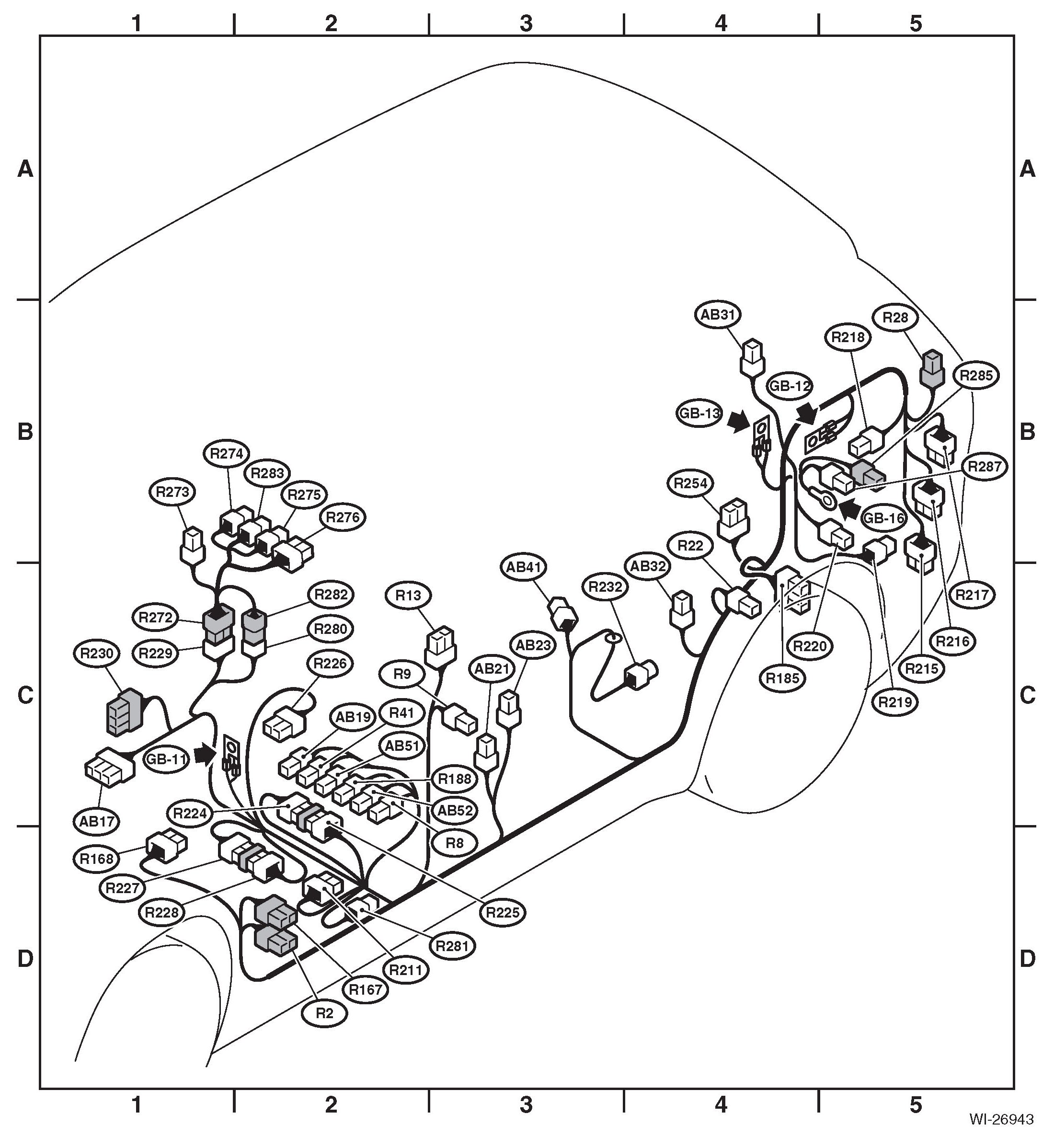

Area View:
