Shift Interlock Switch
>>
Locations
Shift Interlock Switch: Locations

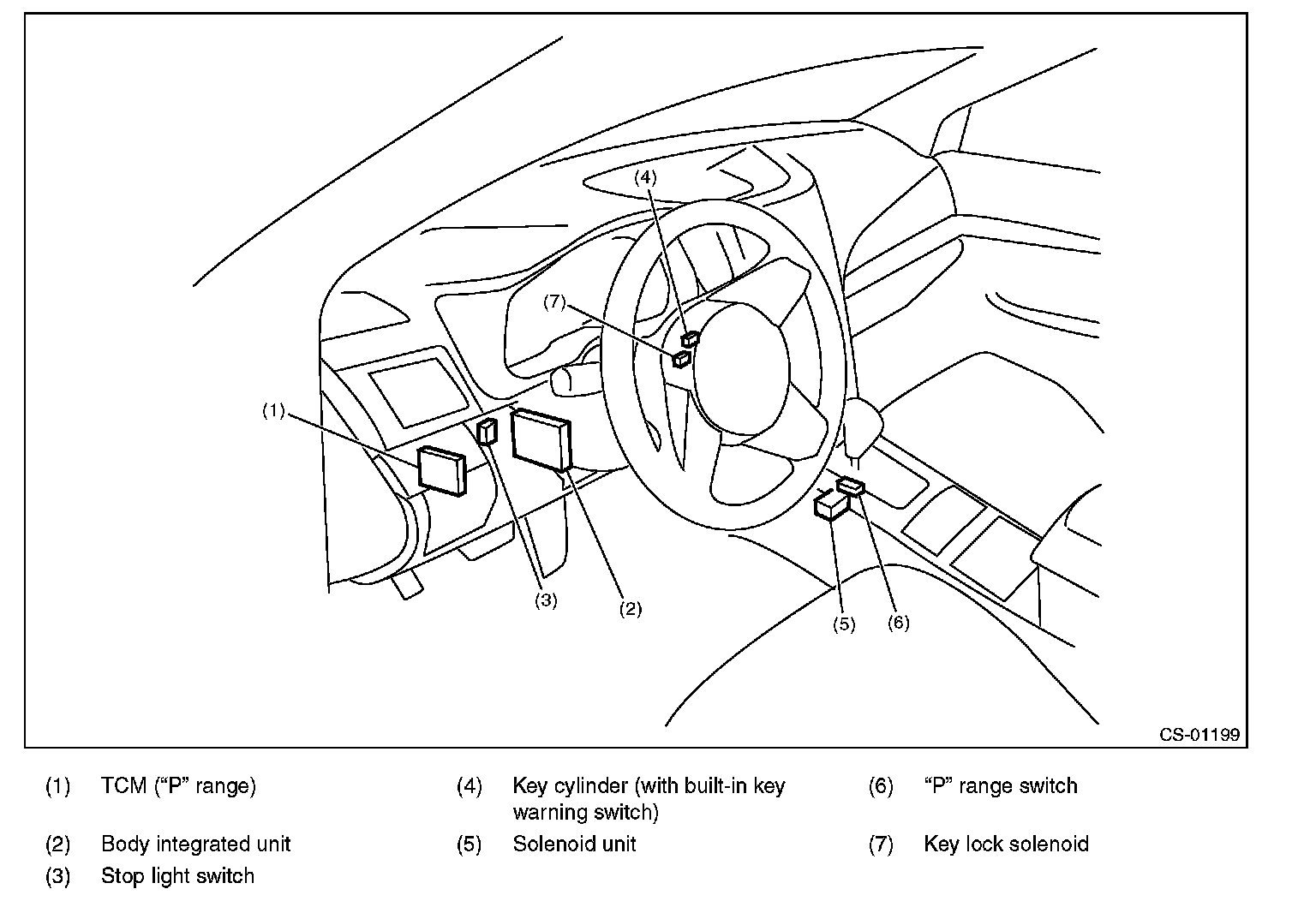

AT Shift Lock Control System

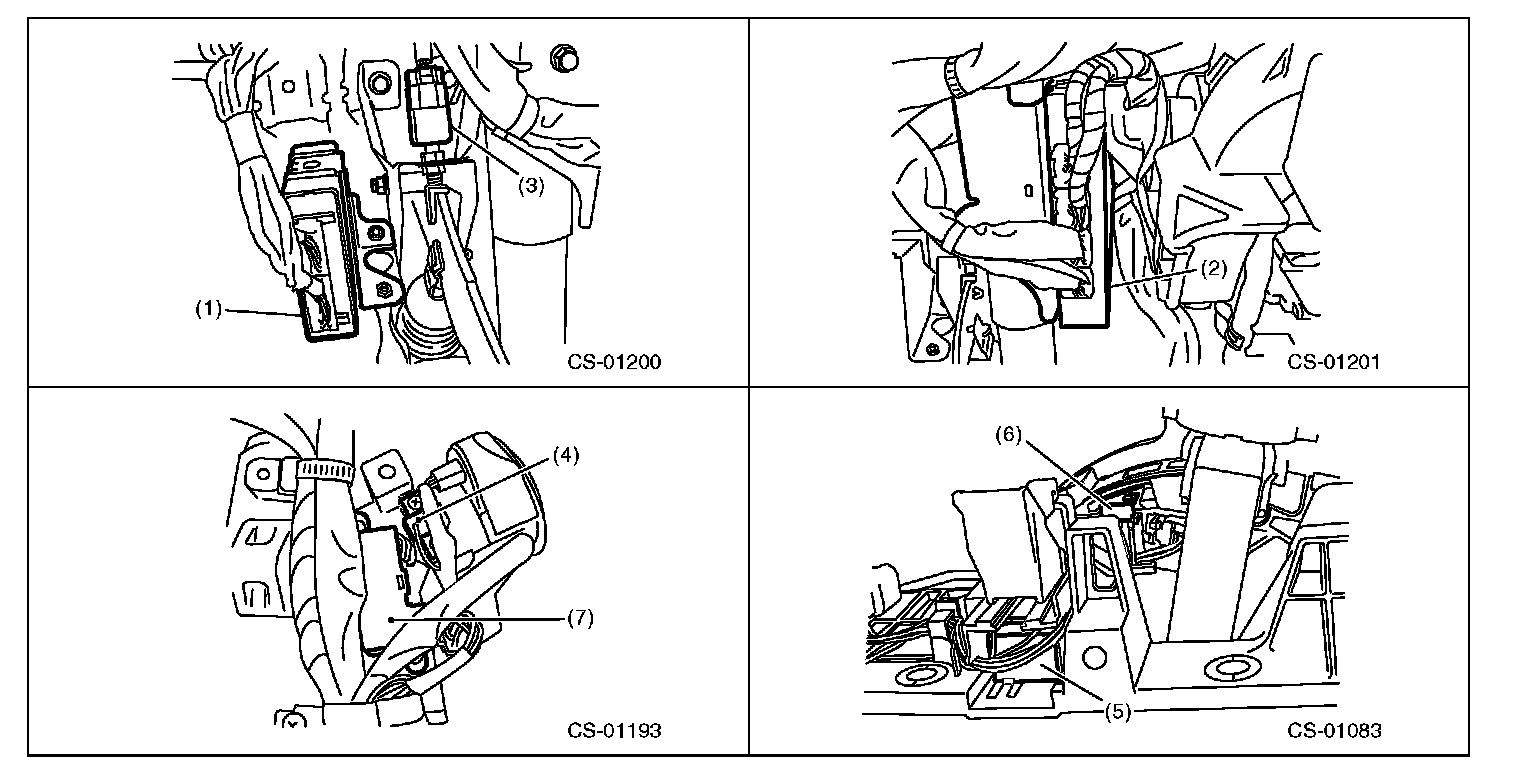

A/T Shift Lock Control System Components (Part 1):
A/T Shift Lock Control System Components (Part 2):
