Removal

M/T Gear Shift Cable

REMOVAL
1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
3) Lift up the vehicle.
4) Remove the center exhaust pipe and rear exhaust pipe. (non-turbo model)
5) Remove the center exhaust pipe (rear) and rear exhaust pipe. (turbo model)

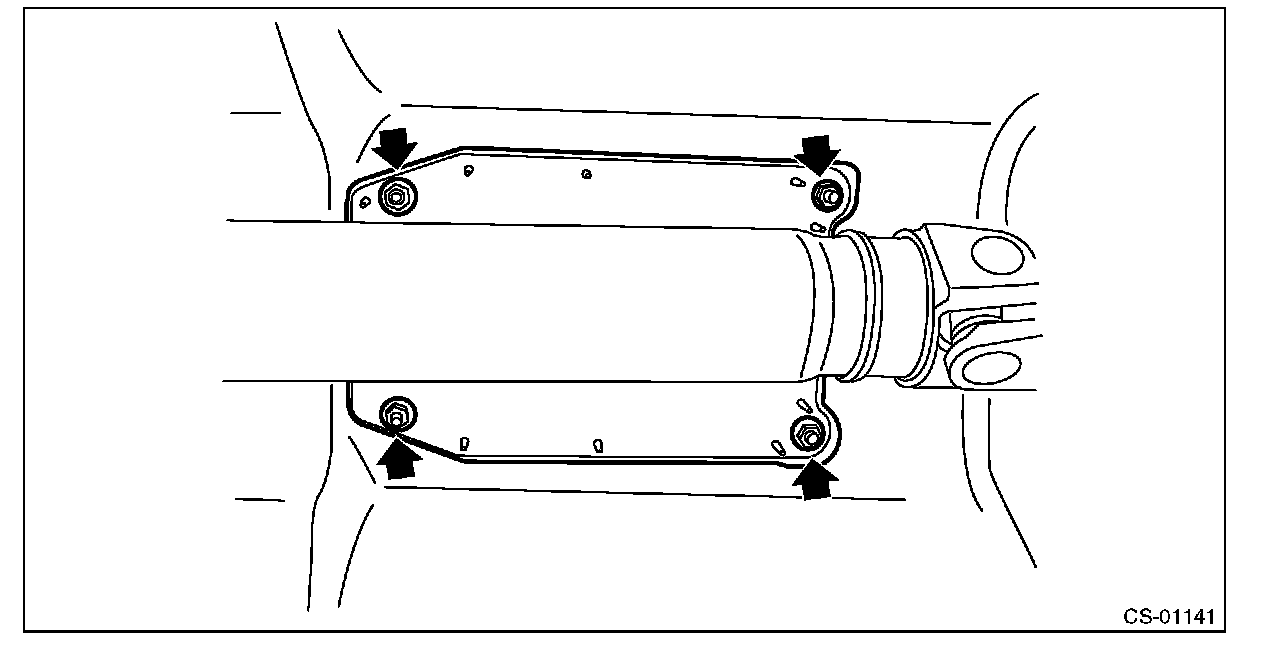

6) Remove the heat shield cover.

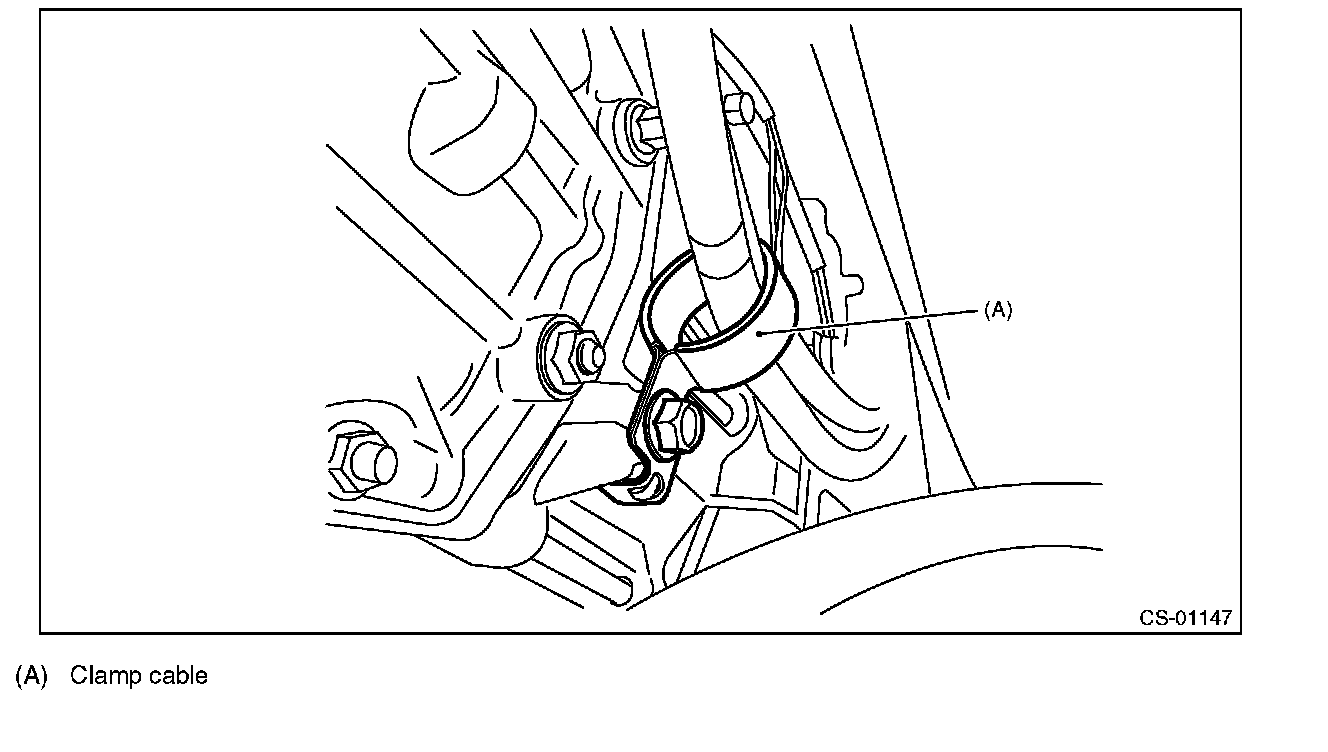

7) Remove the clamp cable and take out the MT gear shift cable from the clamp.

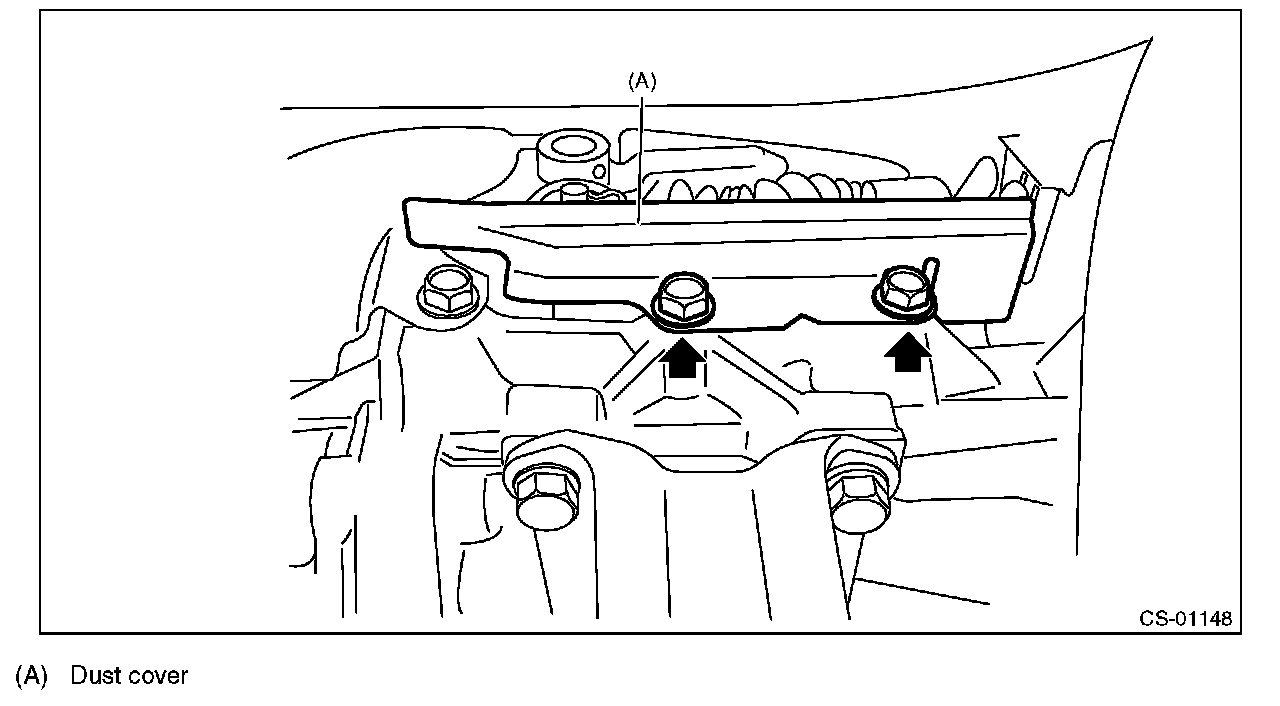

8) Remove the dust cover from transmission body.

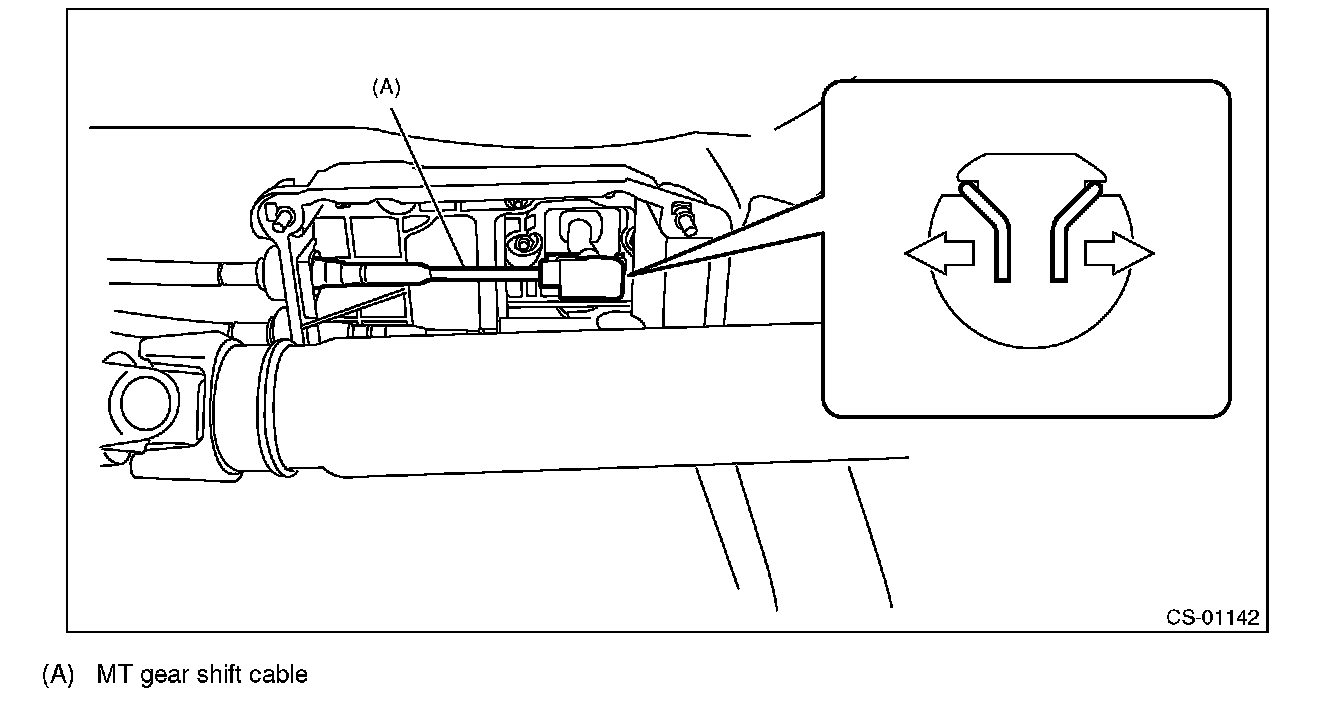

9) Apply a mark on the top end of the MT gear shift cable.

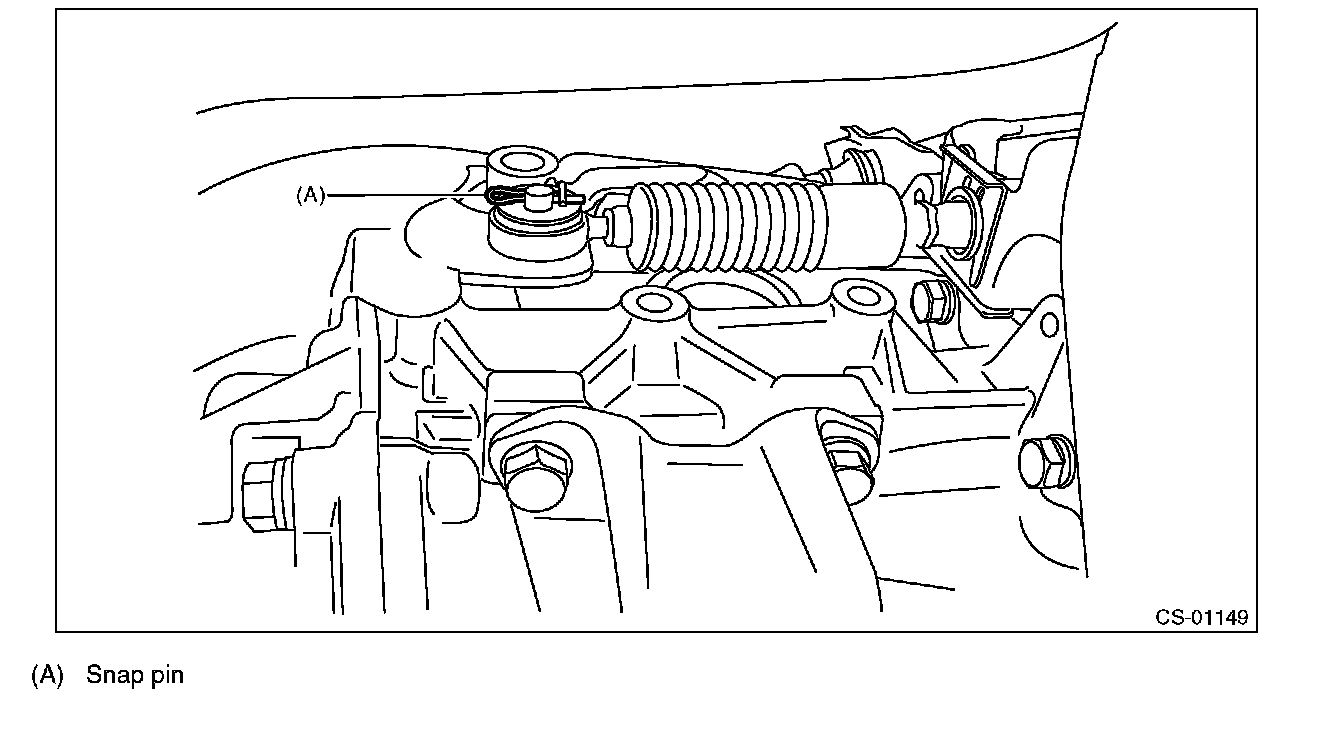

10) Remove the snap pin from the shift lever COMPL.

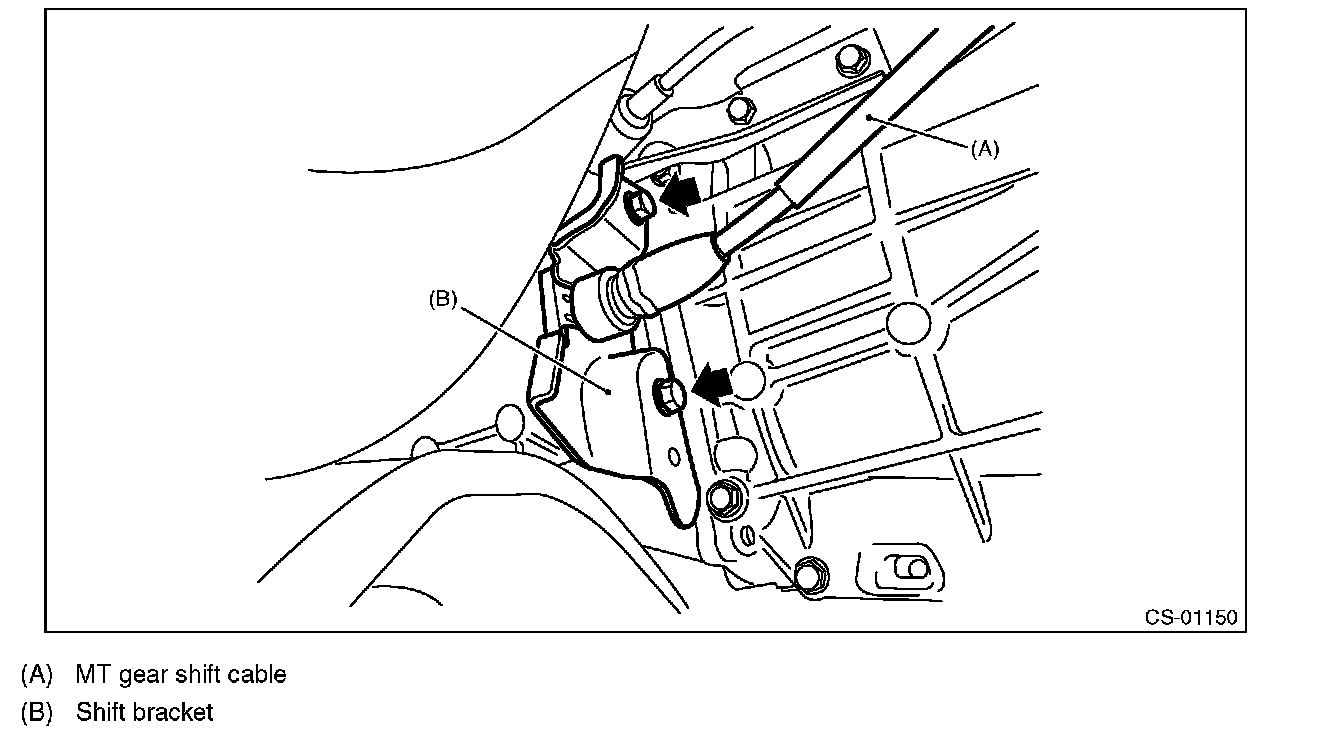

11) Remove the shift bracket and MT gear shift cable as a single unit from the transmission body.





12) Remove the plate cable assembly.





13) Remove the spring at the MT gear shift cable by expanding it and pulling down, and remove the MT gear shift cable from the gear shift lever assembly.

CAUTION:
Be careful not to deform the cable inner.

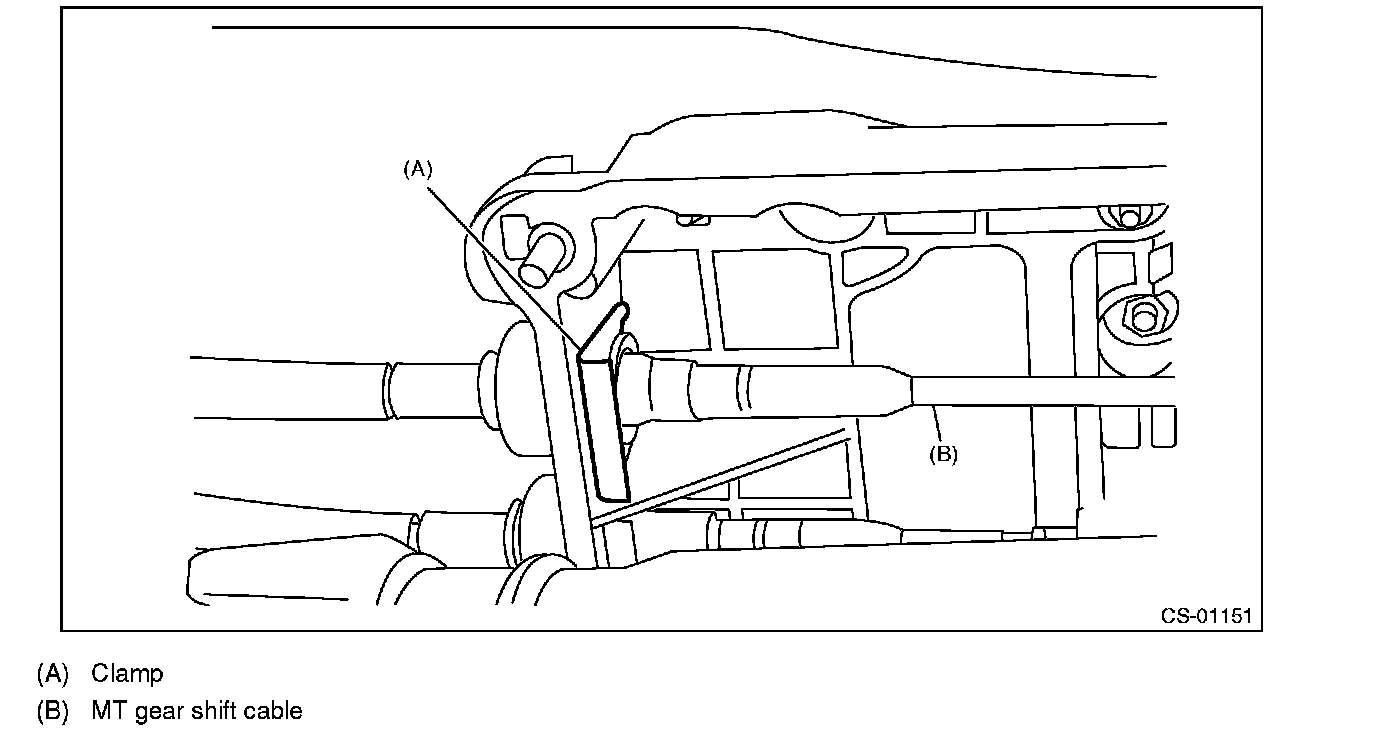

14) Remove the clamp which holds the MT gear shift cable.





15) Pull out the MT gear shift cable from cover cable assembly.
