Installation

M/T Gear Shift Cable

INSTALLATION

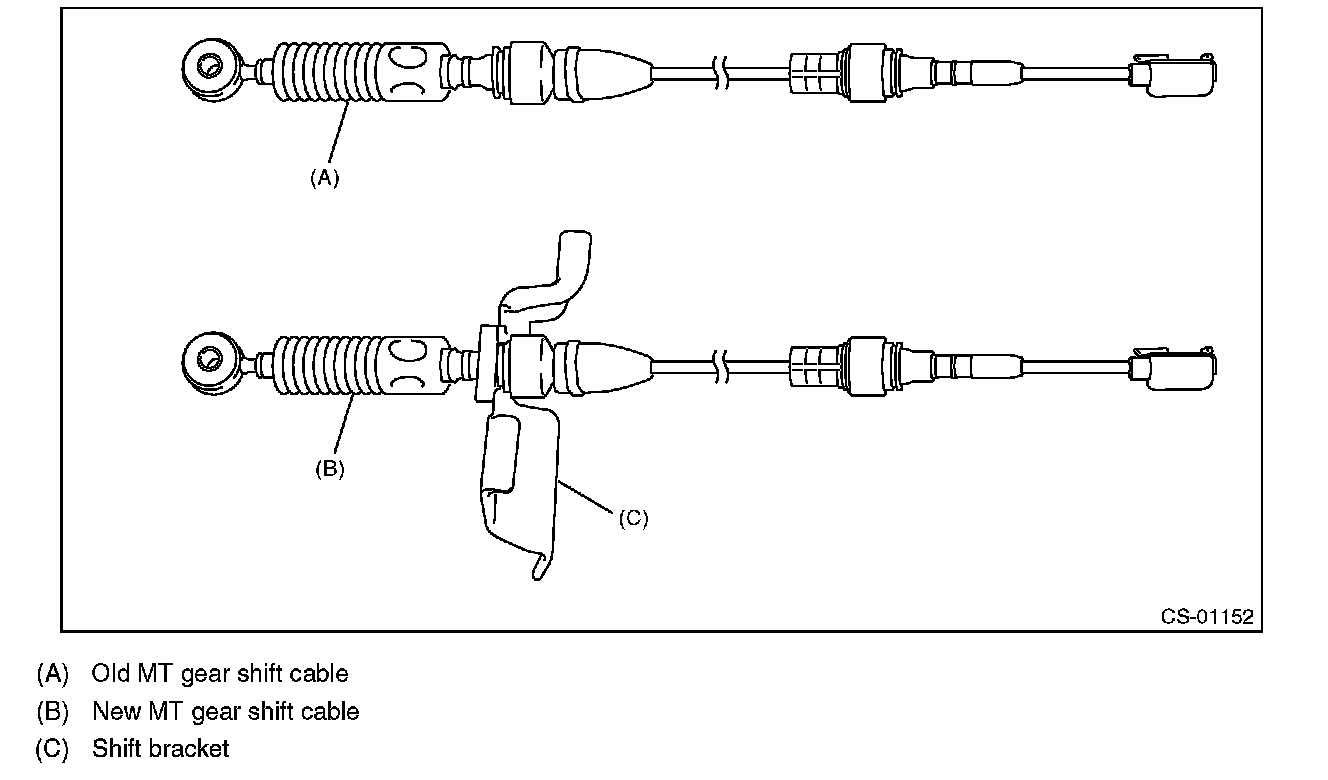

1) When replacing the new MT gear shift cable, secure it to shift bracket with the clamps, be careful not to mistake the installing direction.





2) Install the MT gear shift cable and shift bracket as a single unit onto transmission.

CAUTION:
^ Do not bend MT gear shift cable at a sharp angle.
^ Do not twist the cable inner excessively.

NOTE:

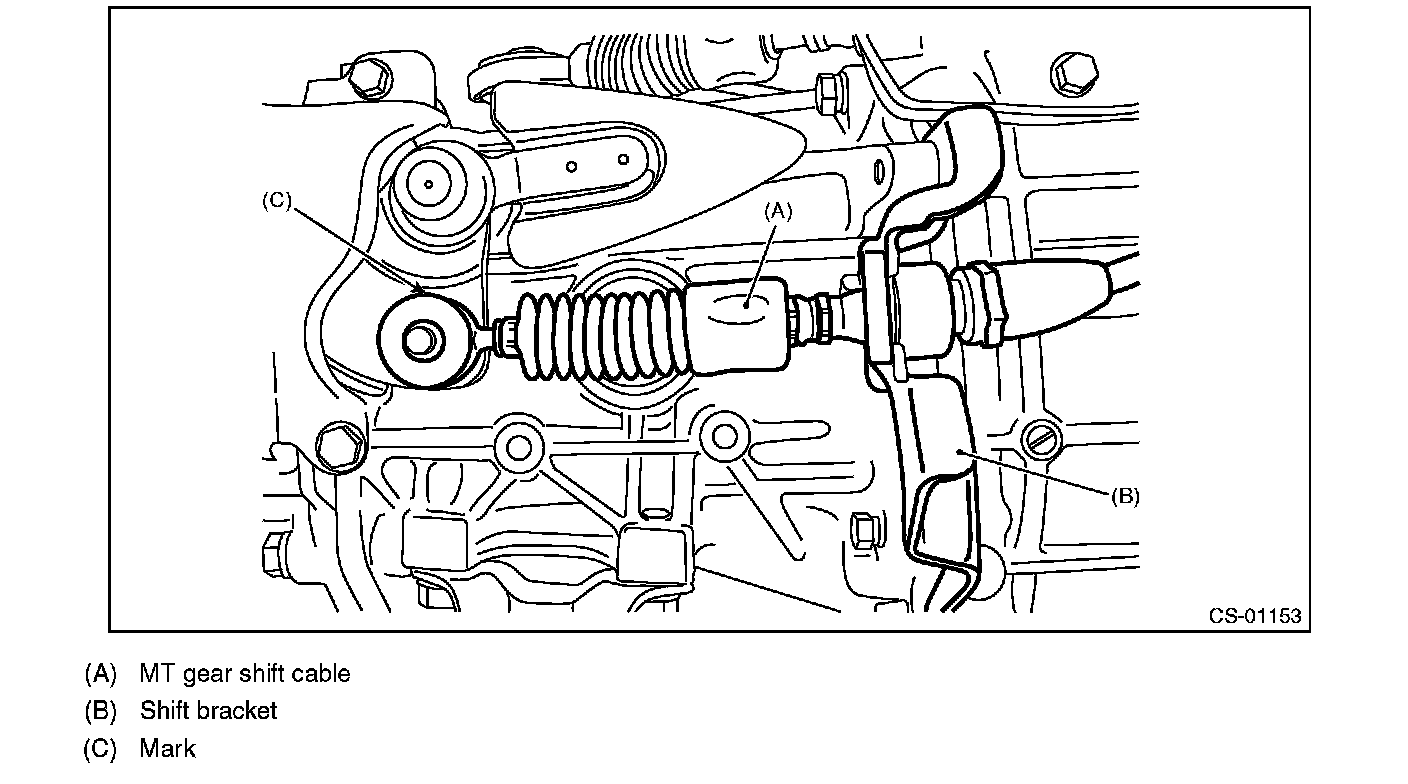

When installing the MT gear shift cable, make sure that the mark or blue mark on the cable faces up.

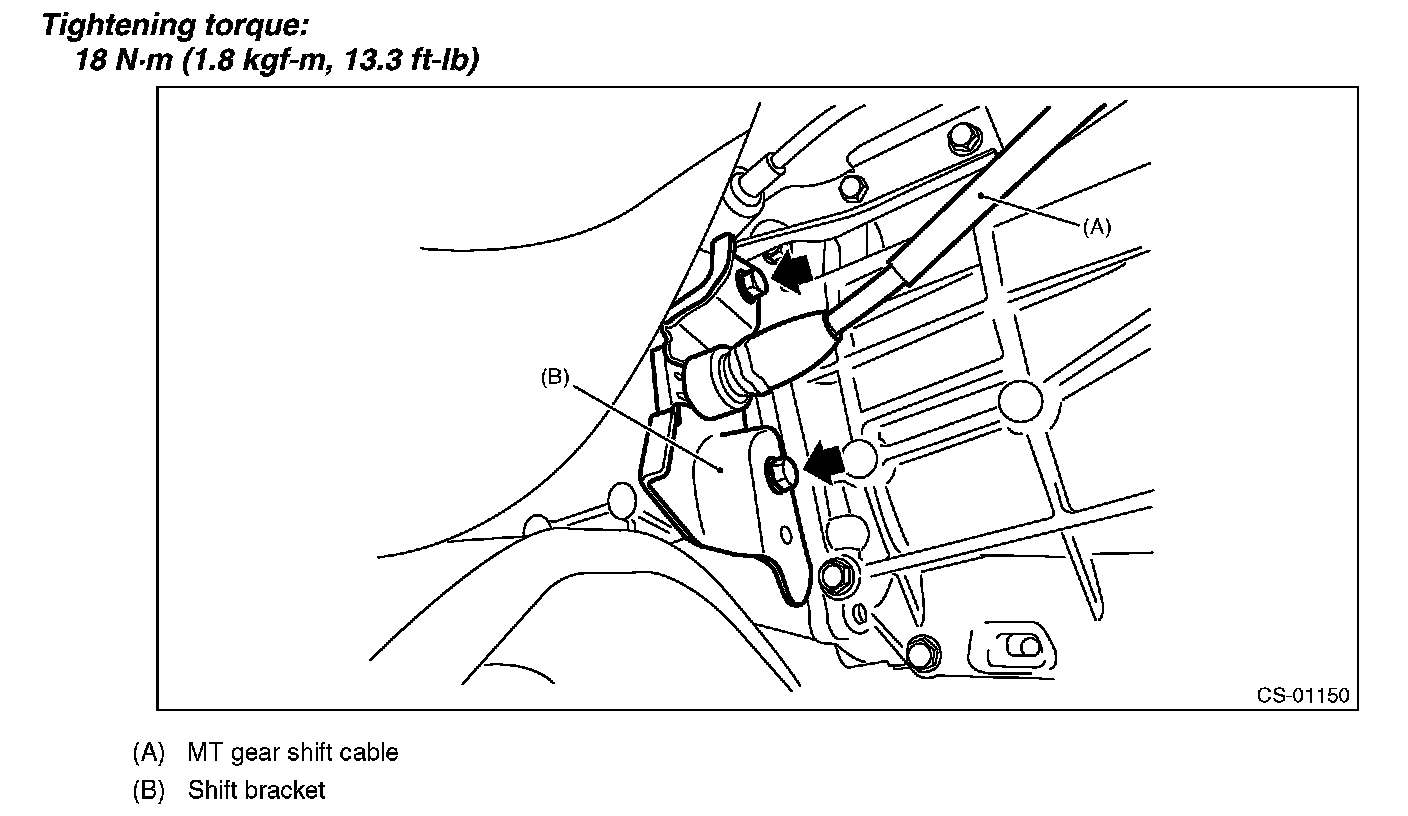

3) Tighten the shift bracket with specified torque.

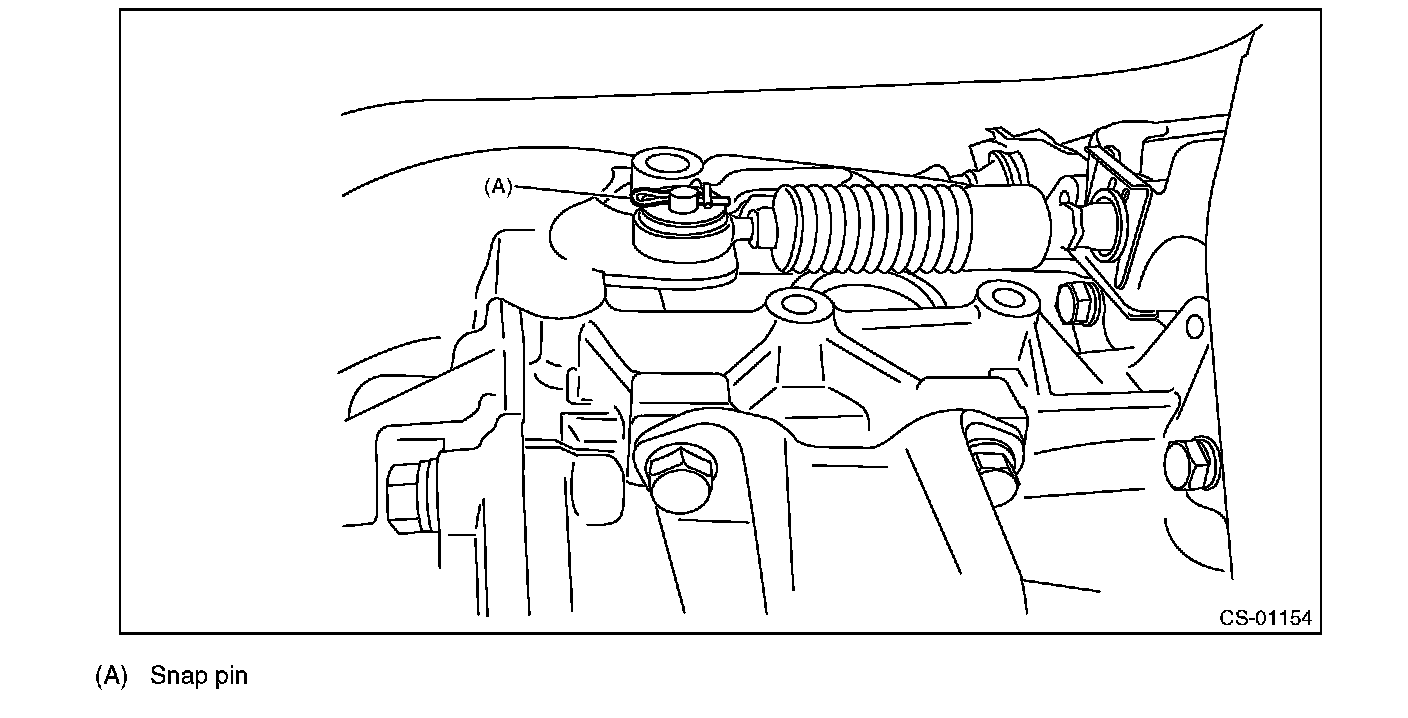

4) Install the snap pin.

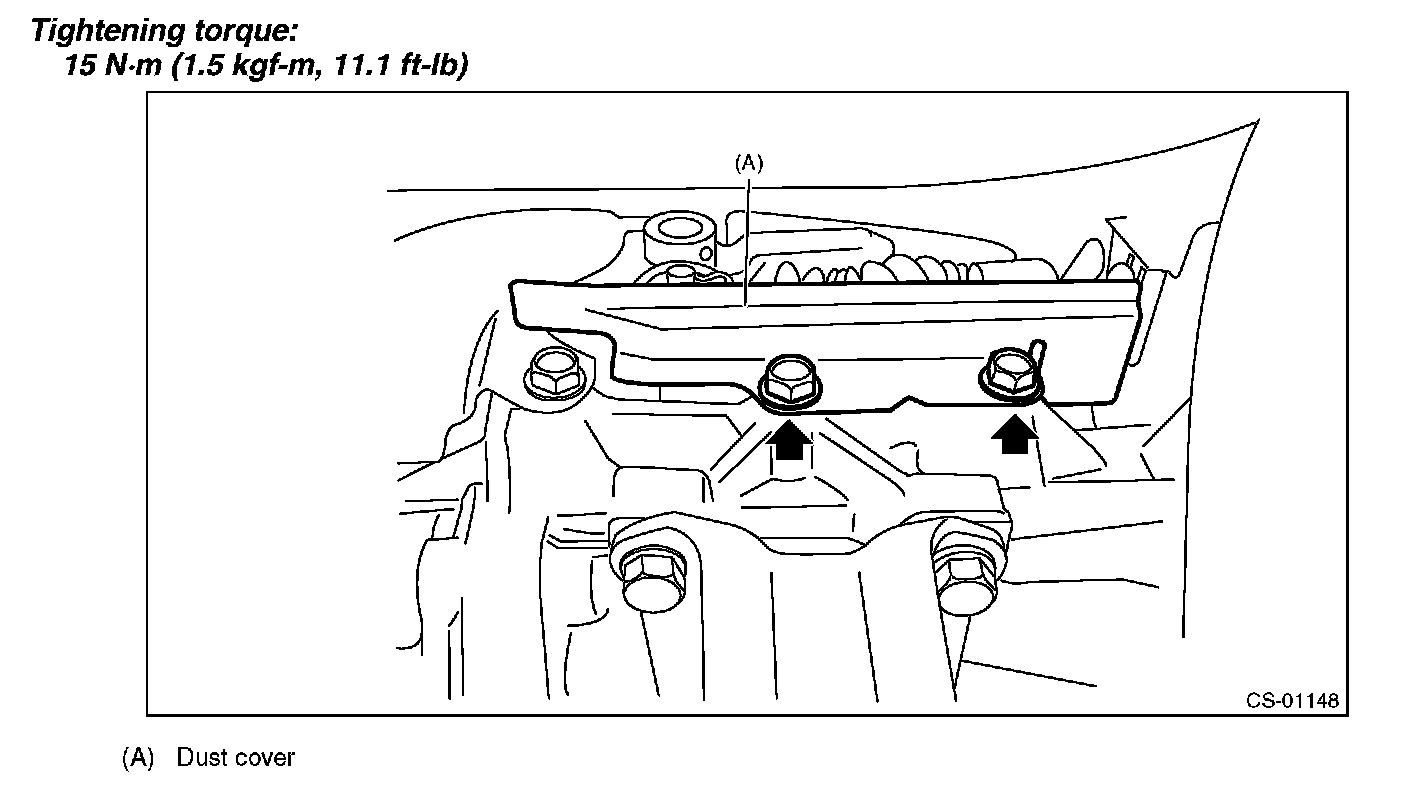

5) Install the dust cover to the transmission body.

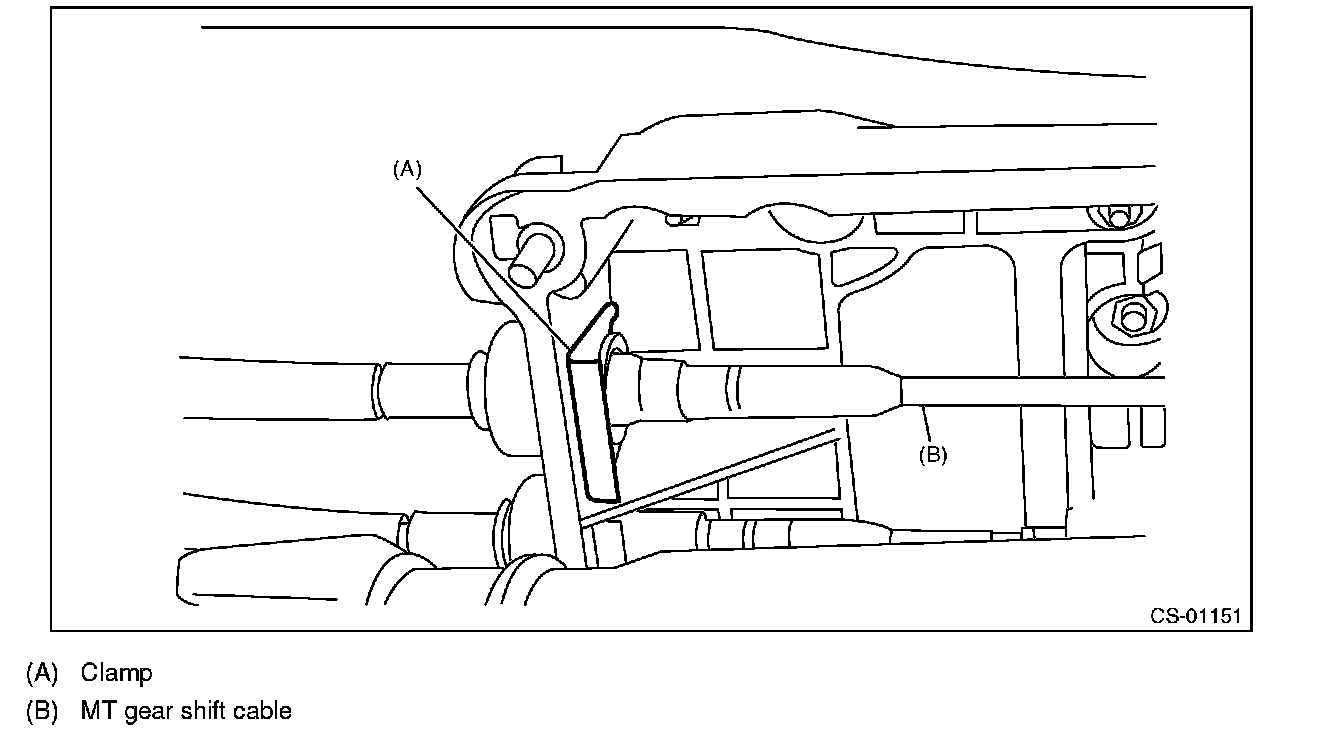

6) Insert the MT gear shift cable into the cover cable assembly, and secure it with the clamp.





7) Connect the MT gear shift cable.

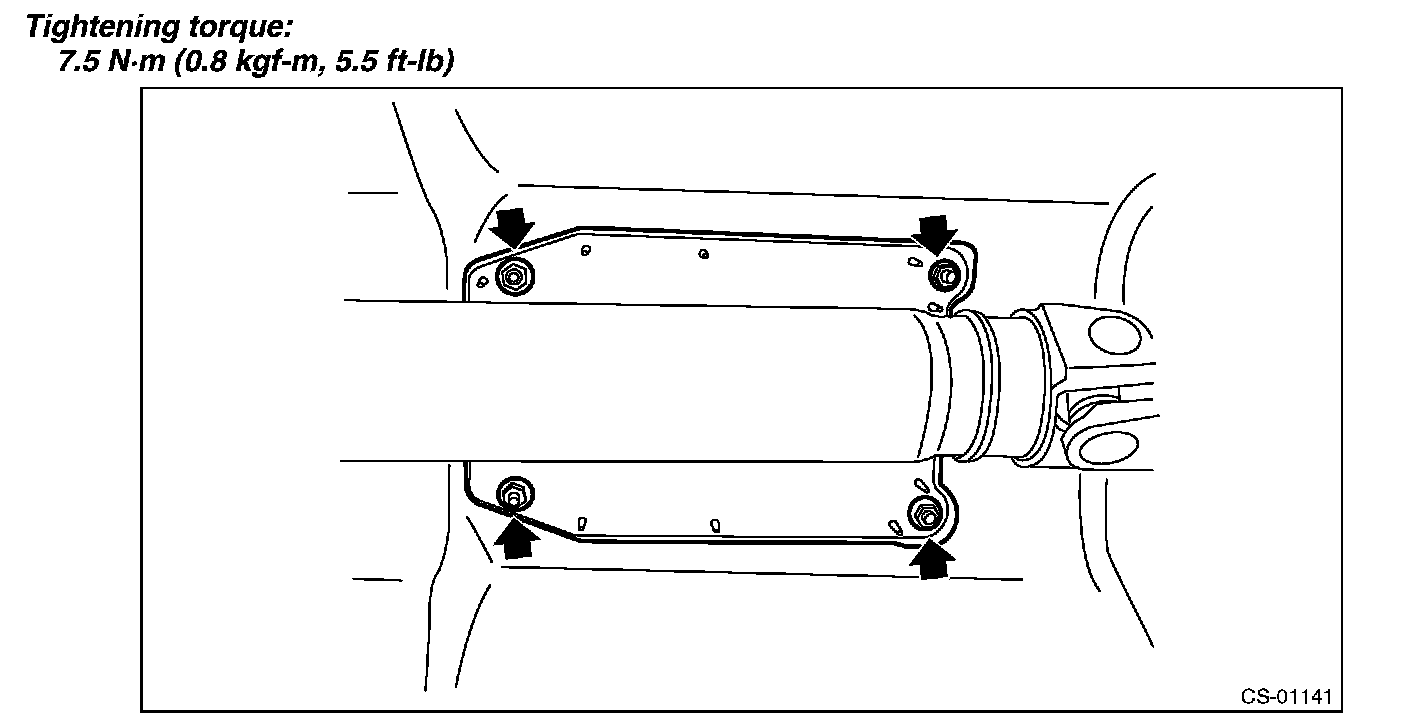

8) Install the plate cable assembly.

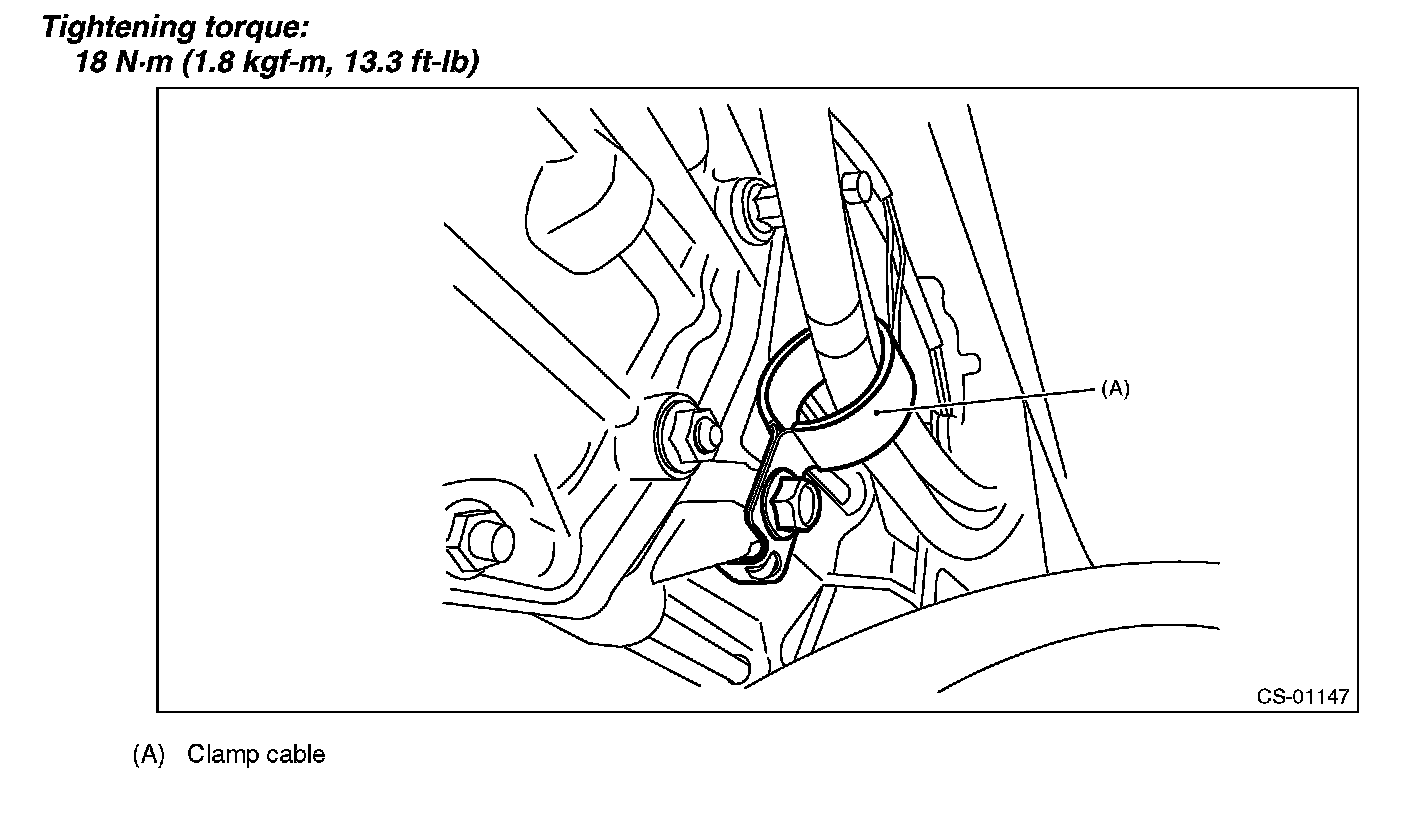

9) Insert the MT gear shift cable into clamp cable, and install to the transmission.

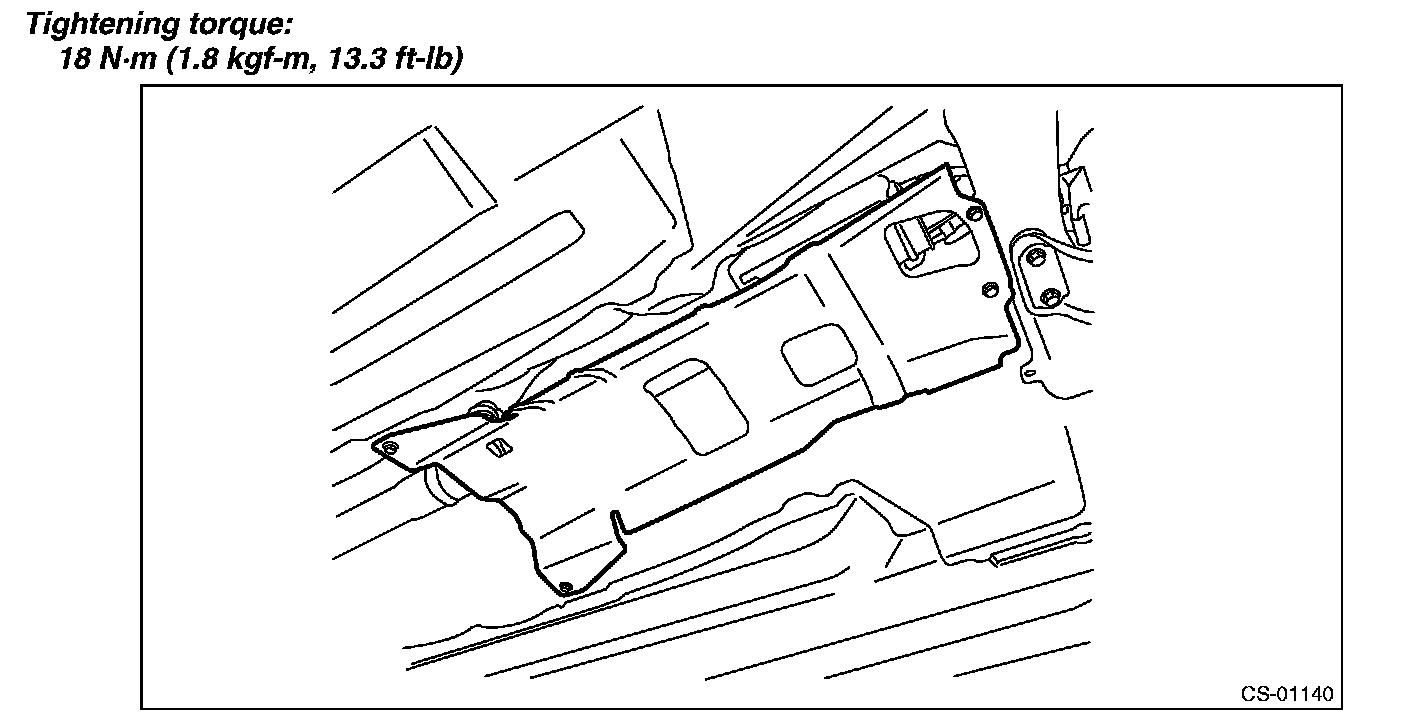

10) Install the heat shield cover.





11) Install the center exhaust pipe and rear exhaust pipe. (non-turbo model)
12) Install the center exhaust pipe (rear) and rear exhaust pipe. (turbo model)
13) Lower the vehicle.
14) Make sure the gears can be shifted accurately into each gear.
