Installation

M/T Gear Select Cable

INSTALLATION

CAUTION:
^ Do not reuse the MT gear select cable which removed from select lever COMPL.
^ Do not bend the MT gear select cable sharply.
^ Do not twist the inner cable excessively.

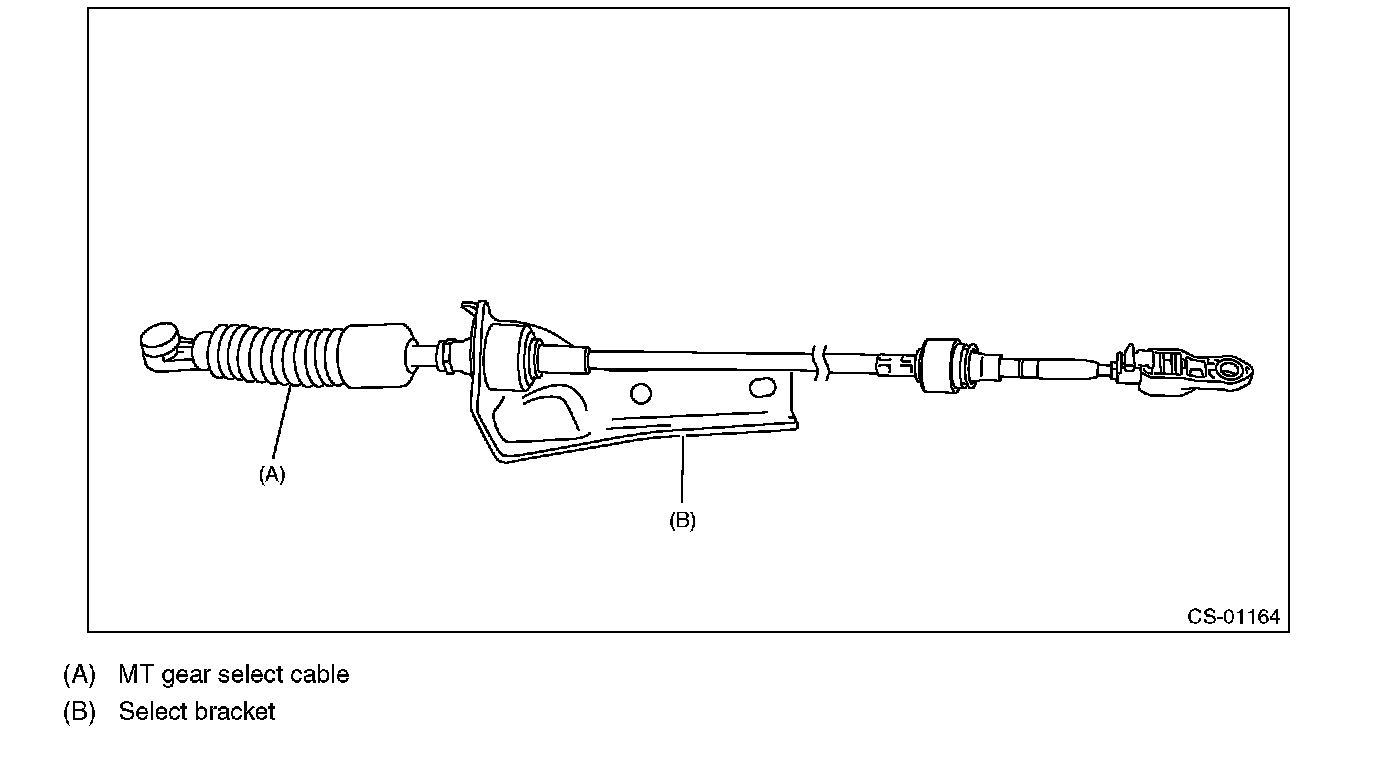

1) Remove the MT gear select cable from the select bracket.

CAUTION:
Check for assembling position before removing the MT gear select cable from the select bracket.

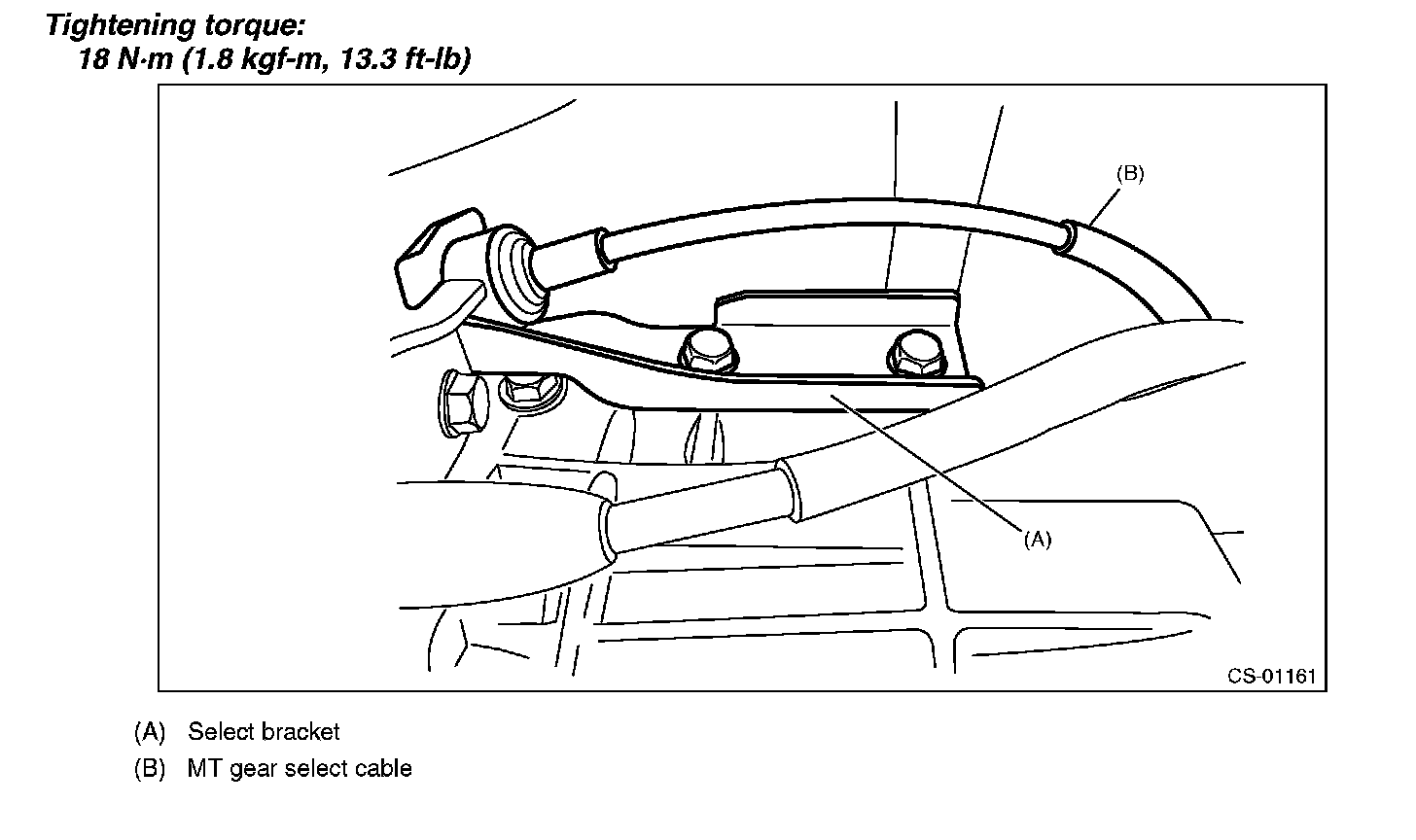

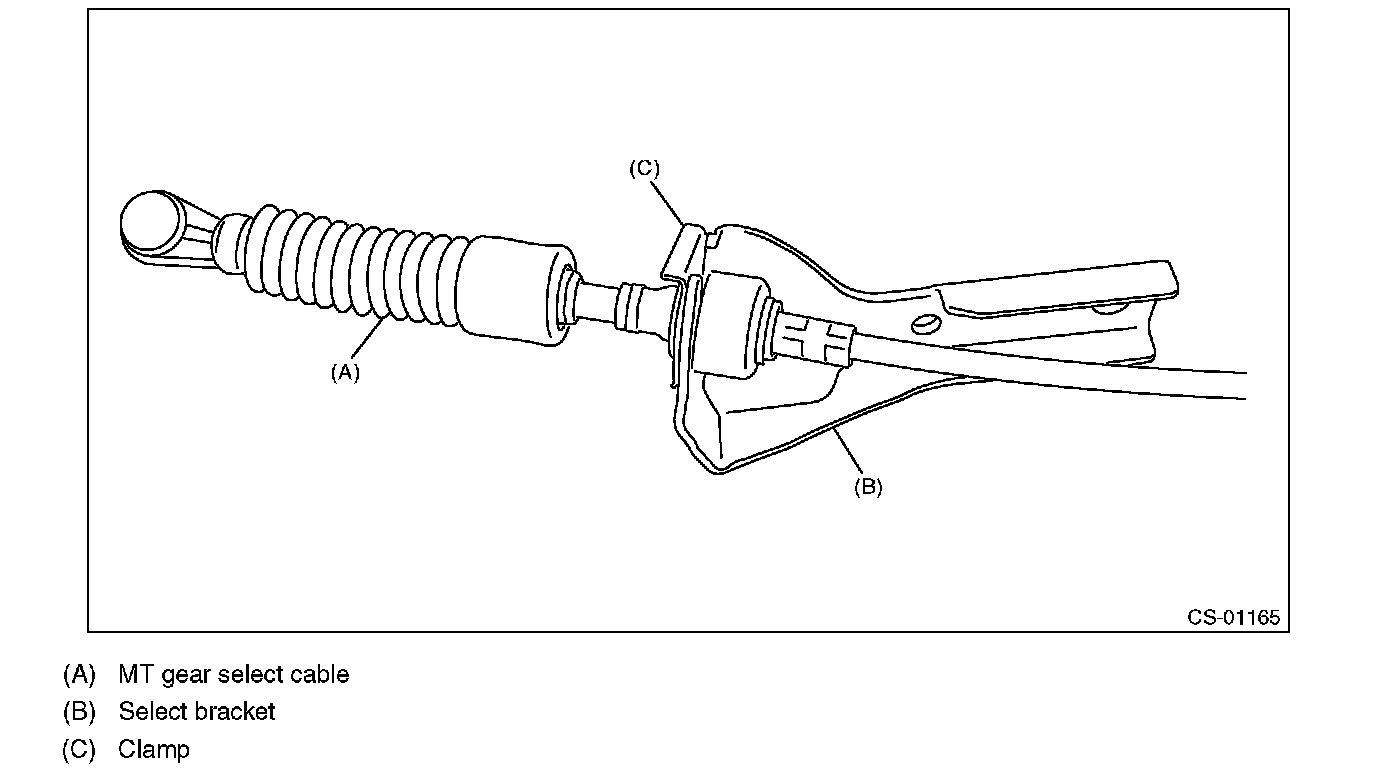

2) Set to the new MT gear select cable to the select bracket and secure it with the clamp.

CAUTION:
Be careful not to mistake the MT gear select cable installing direction.





3) Install the MT gear select cable and select bracket as a single unit to the transmission body.

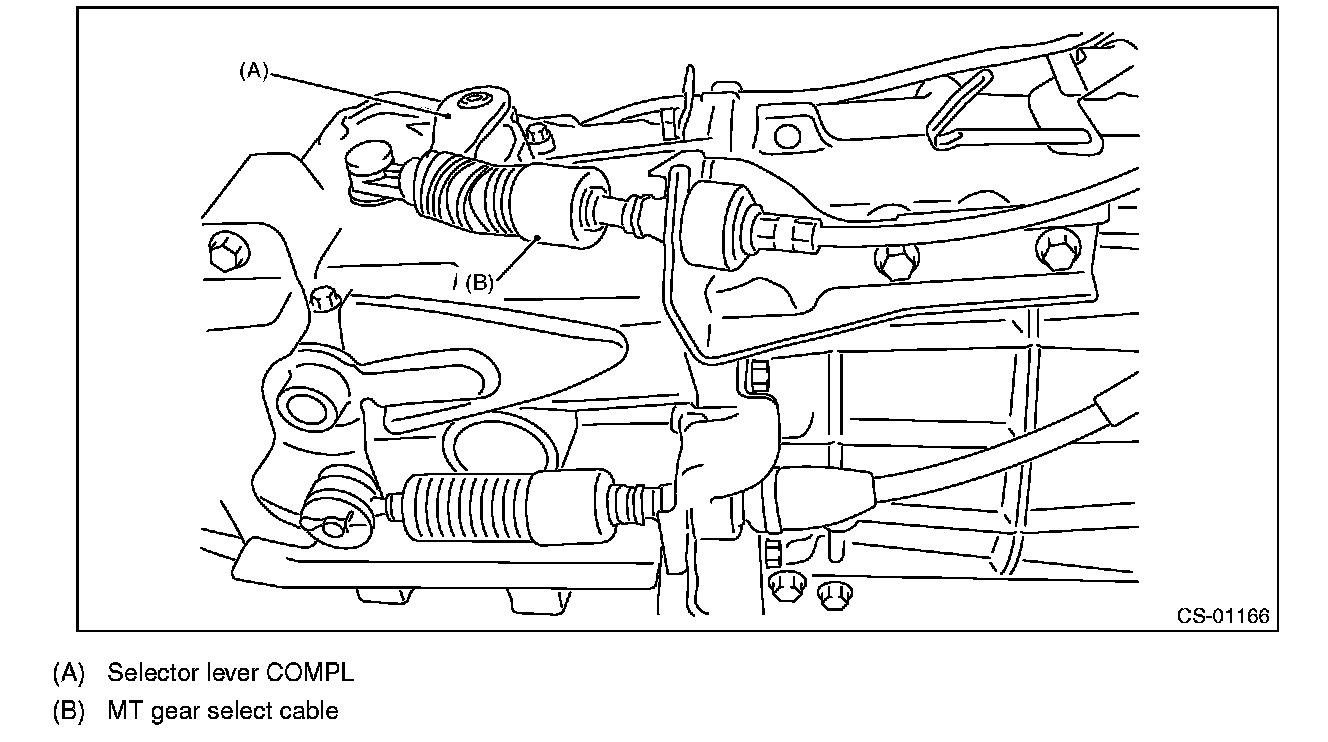

4) Install the MT gear select cable to the select lever COMPL.

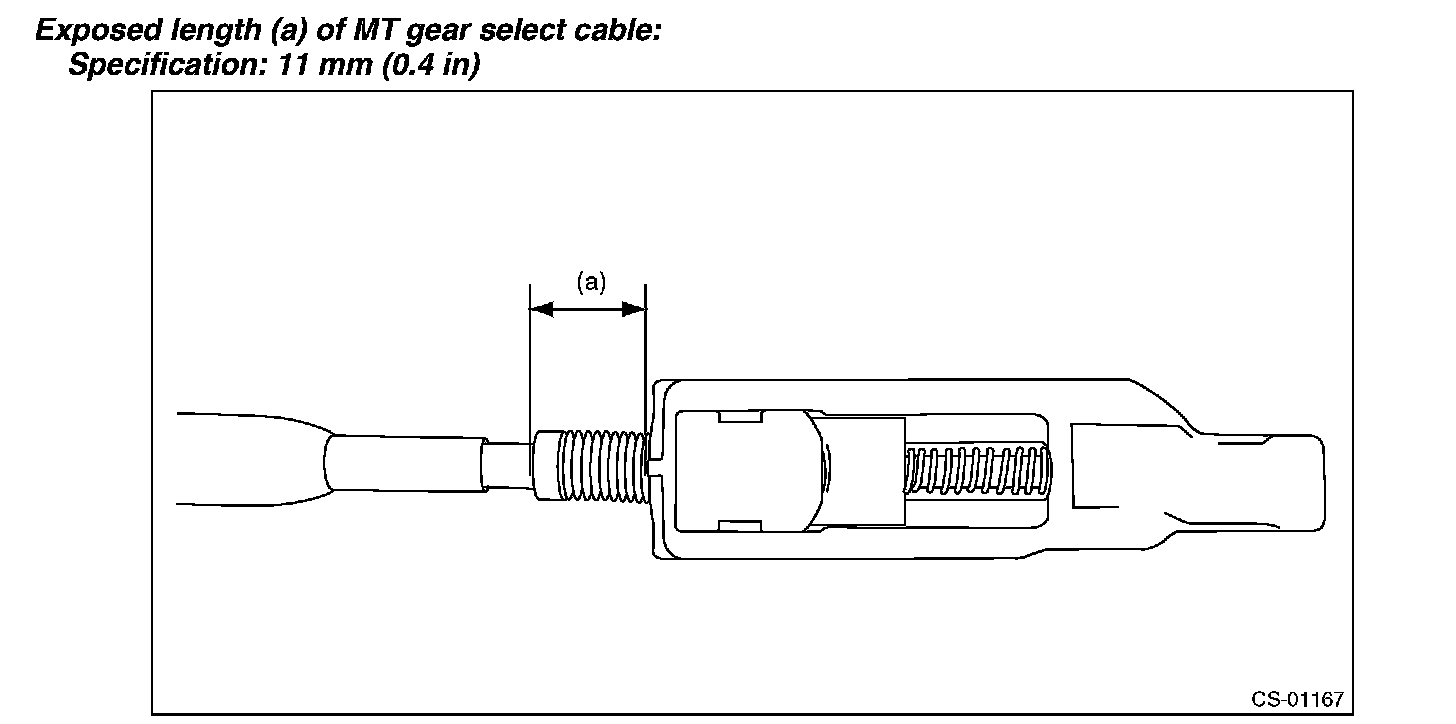

5) Measure the exposed length (a) of MT gear select cable. If out of specification, adjust the MT gear select cable.





6) Connect the MT gear select cable.

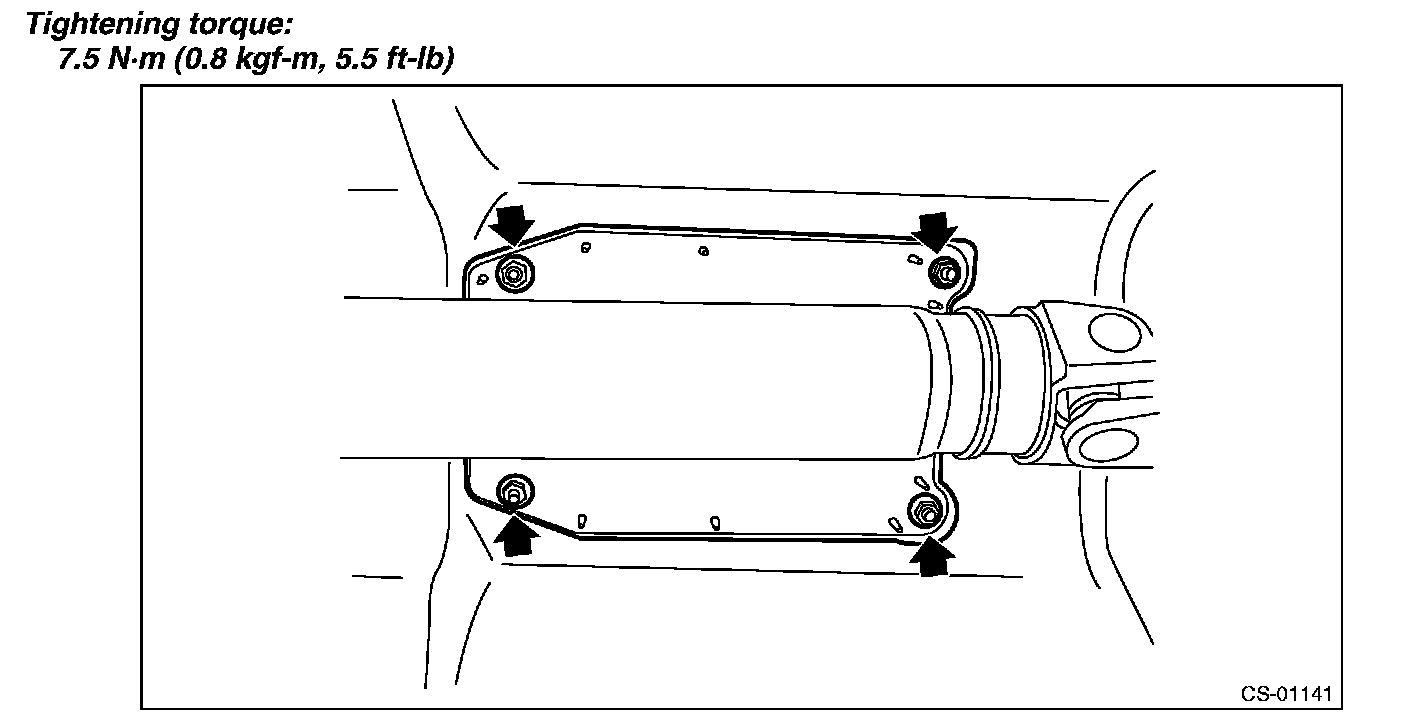

7) Install the plate cable assembly.

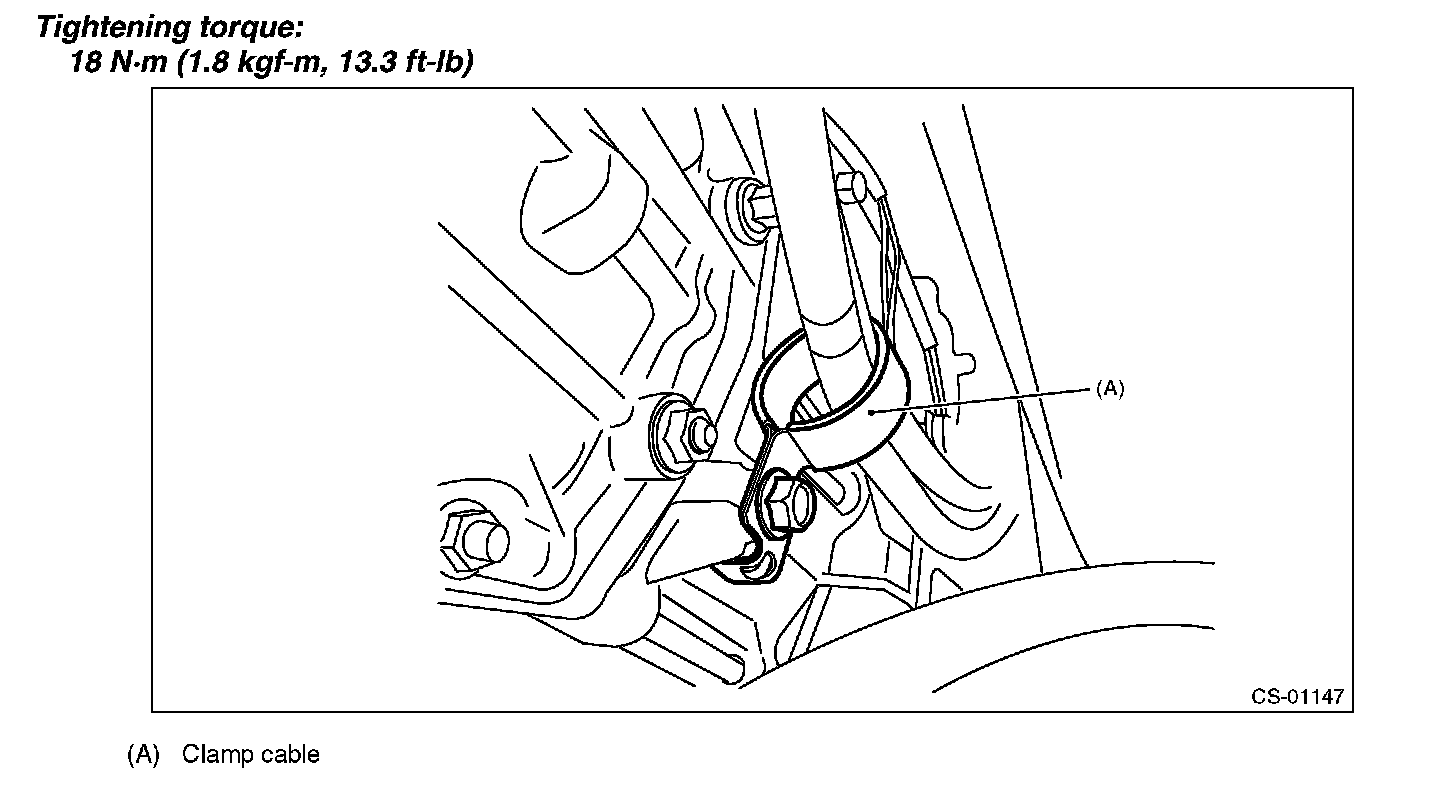

8) Insert the MT gear select cable into clamp cable, and install to the transmission.

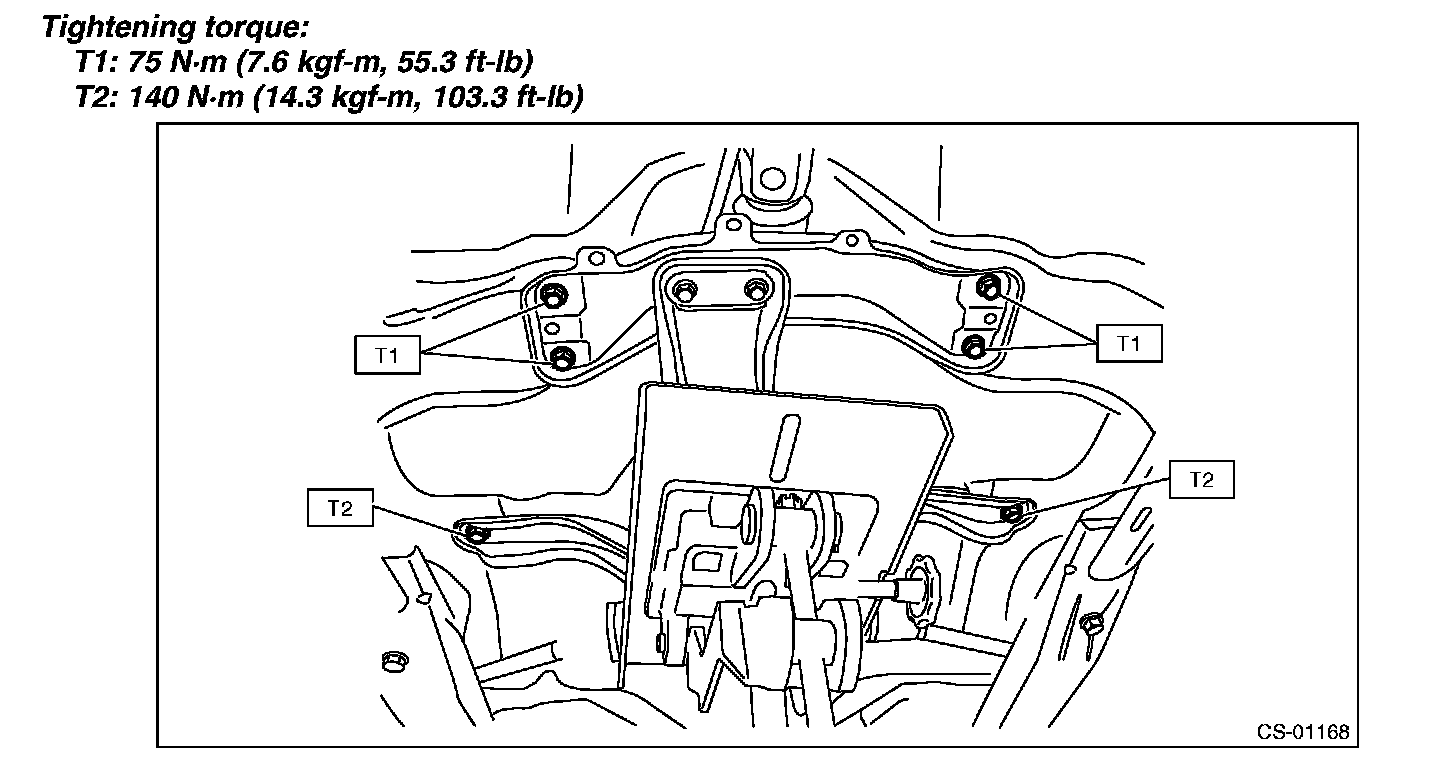

9) Raise the transmission jack, install the front crossmember and rear crossmember.





10) Take out the transmission jack.

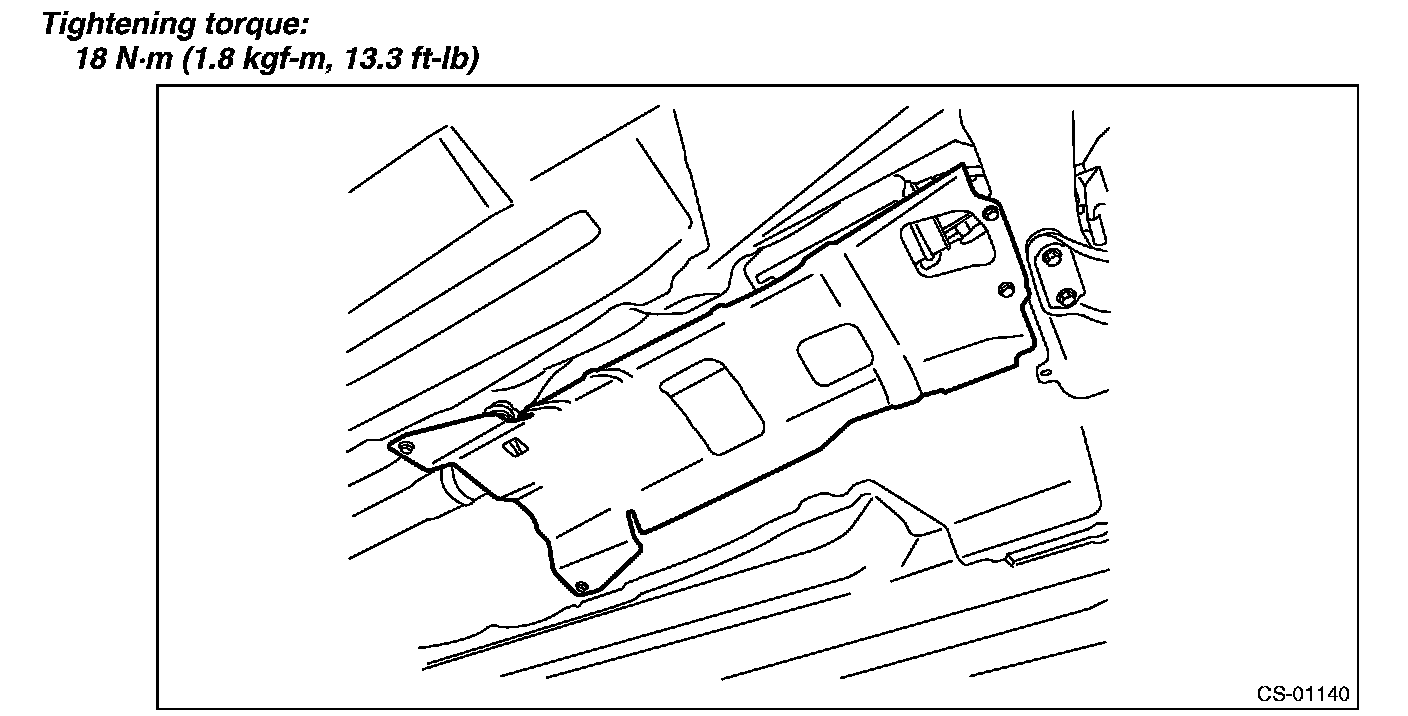

11) Install the heat shield cover.





12) Install the center exhaust pipe and rear exhaust pipe. (non-turbo model)
13) Install the center exhaust pipe (rear) and rear exhaust pipe. (turbo model)
14) Lower the vehicle.

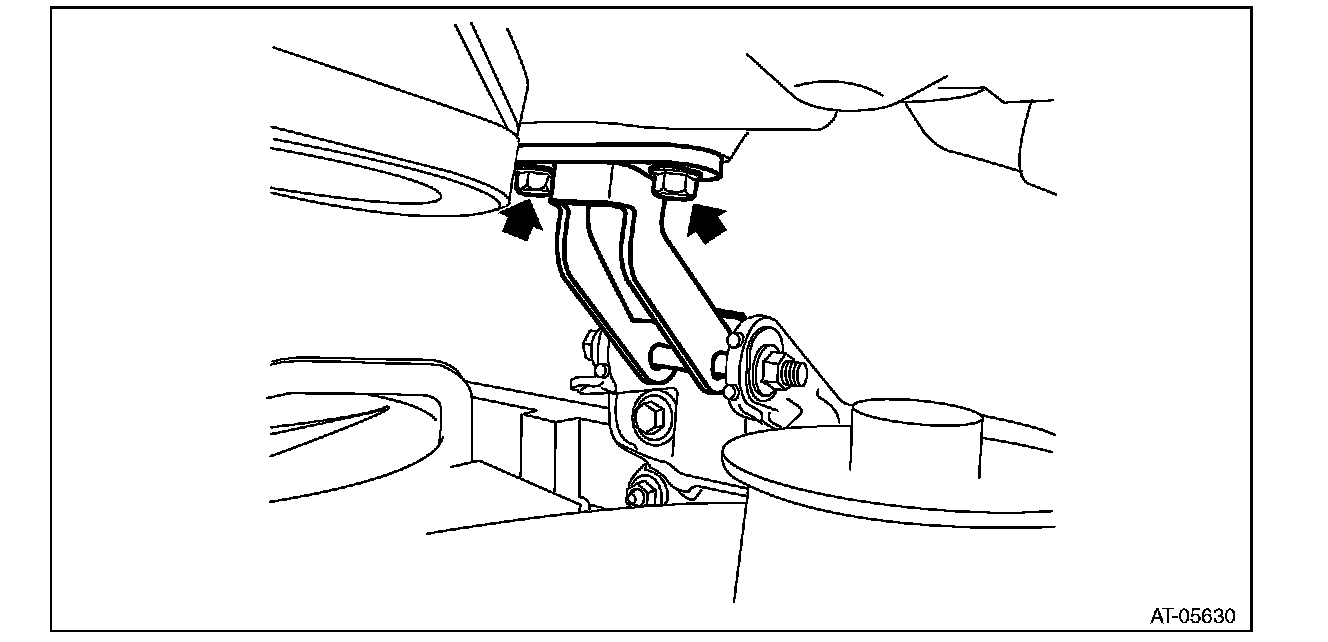

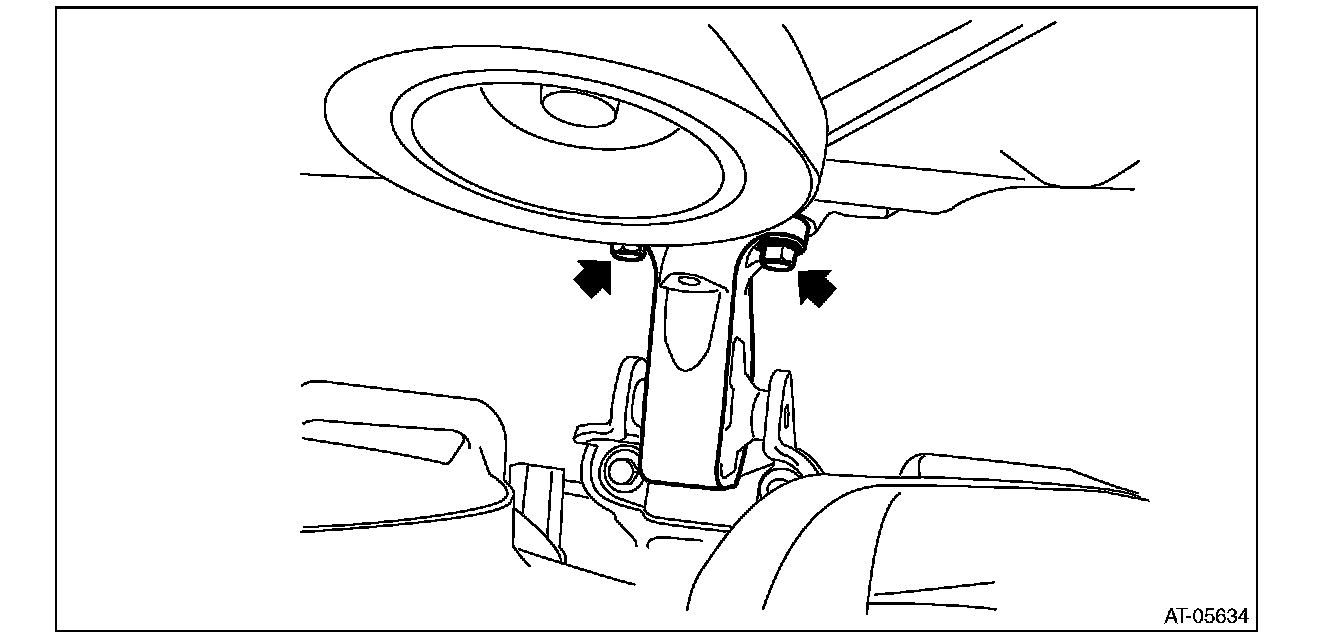

15) Lift the engine slightly and remove the bolts from the ST (FRONT MOUNTING H4).





16) Remove the bolts and nuts, and remove the ST (FRONT MOUNTING H4).

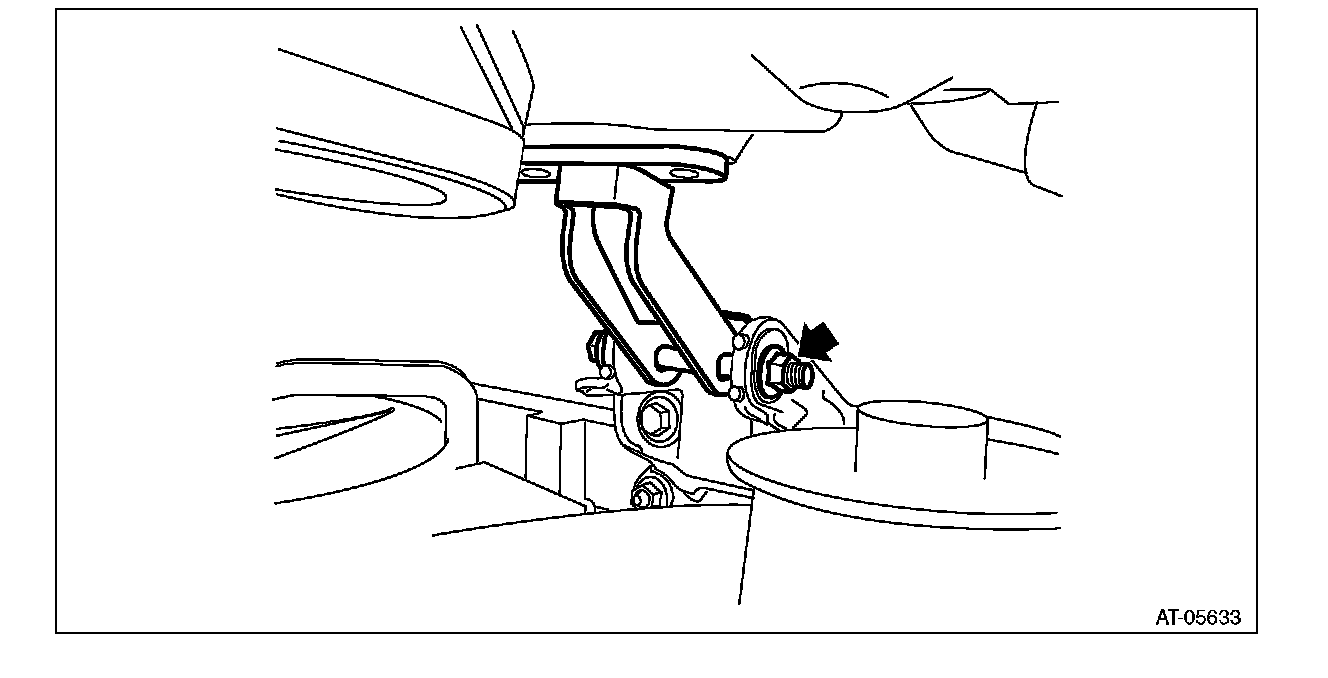

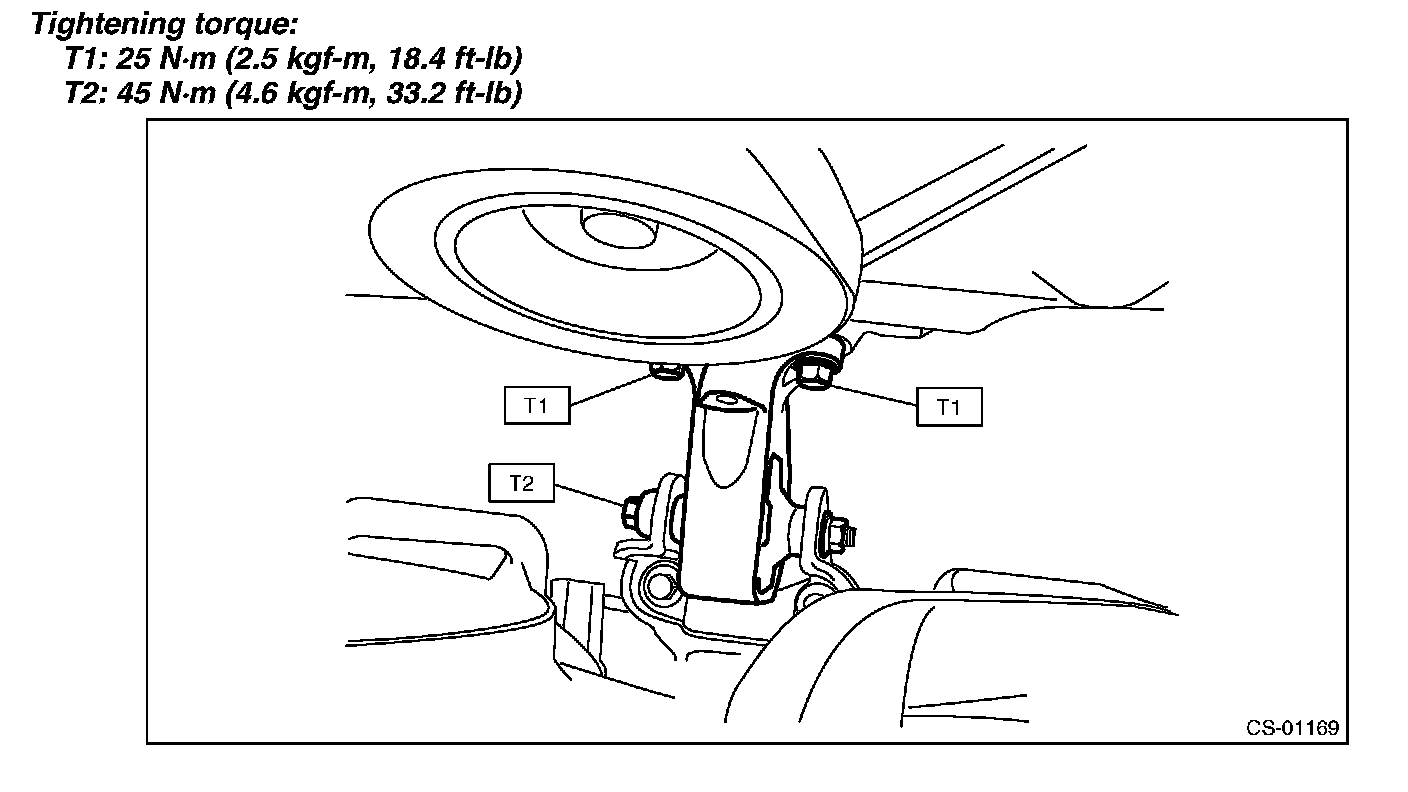

17) Place and temporarily attach the front engine mounting with bolts.





18) Tighten the bolts and nuts of front engine mounting.

NOTE:
Always start tightening from the bolts on the engine side.

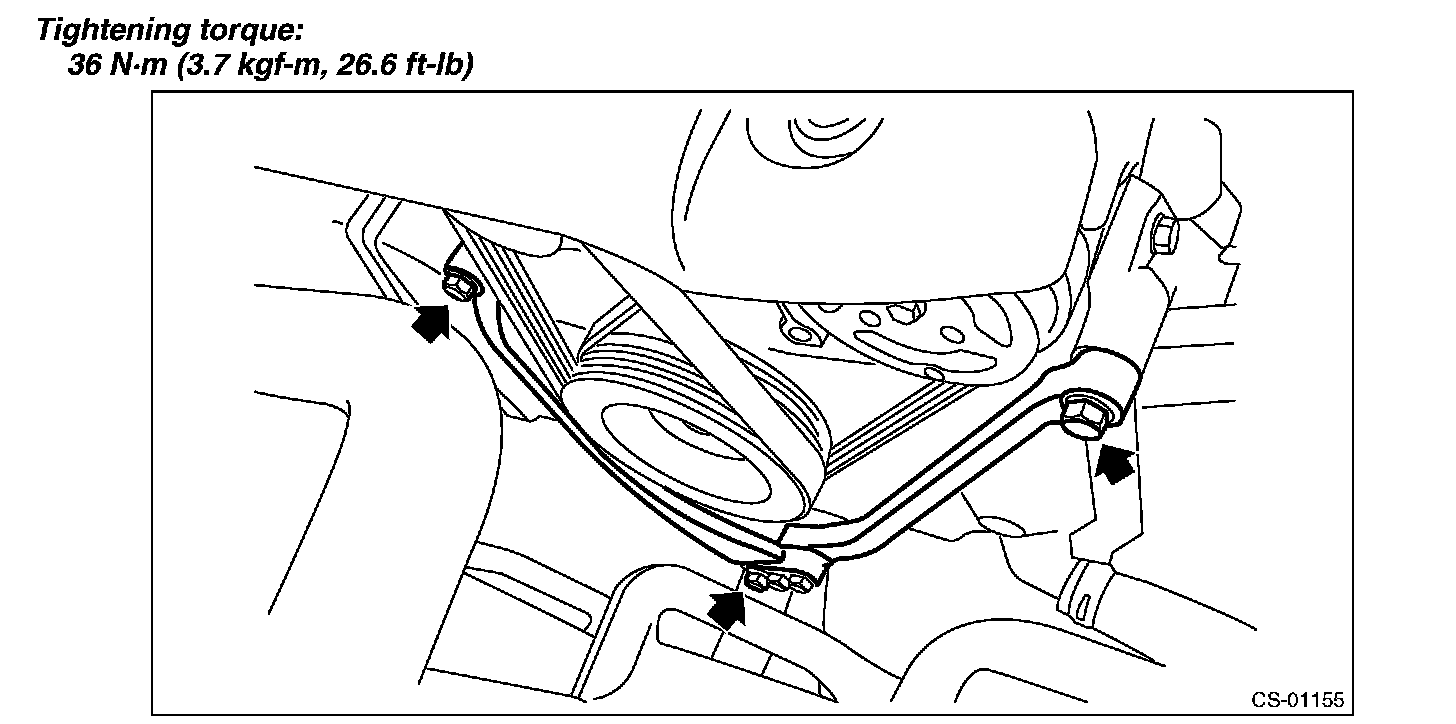

19) Install the stopper rod.

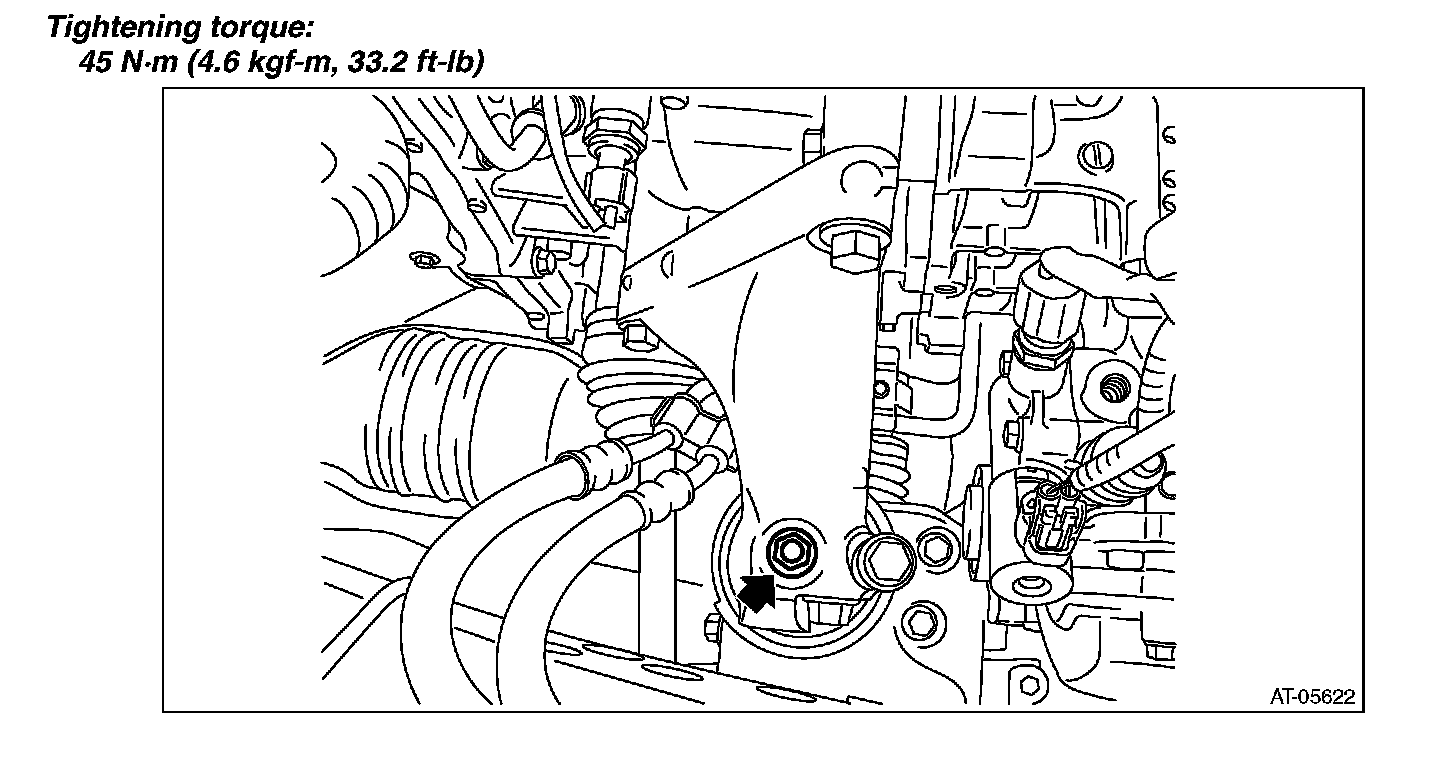

20) Attach the nuts to the left and right transmission mounting brackets.





21) Remove the engine hanger rear for turbo model and install the engine hanger rear for non-turbo model. (non-turbo model)





22) Install the throttle body. (non-turbo model)
23) Install the engine harness connectors to the engine hanger rear. (non-turbo model)

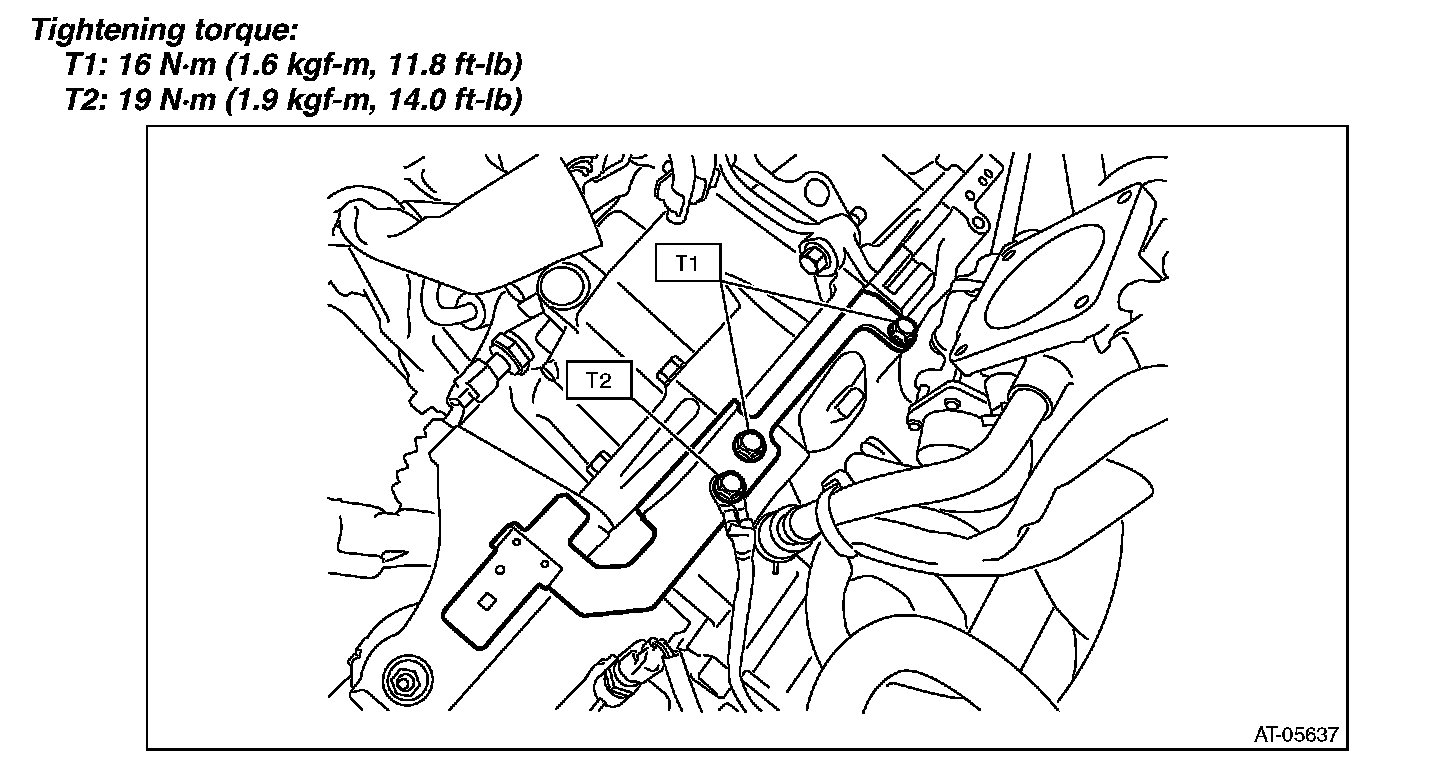

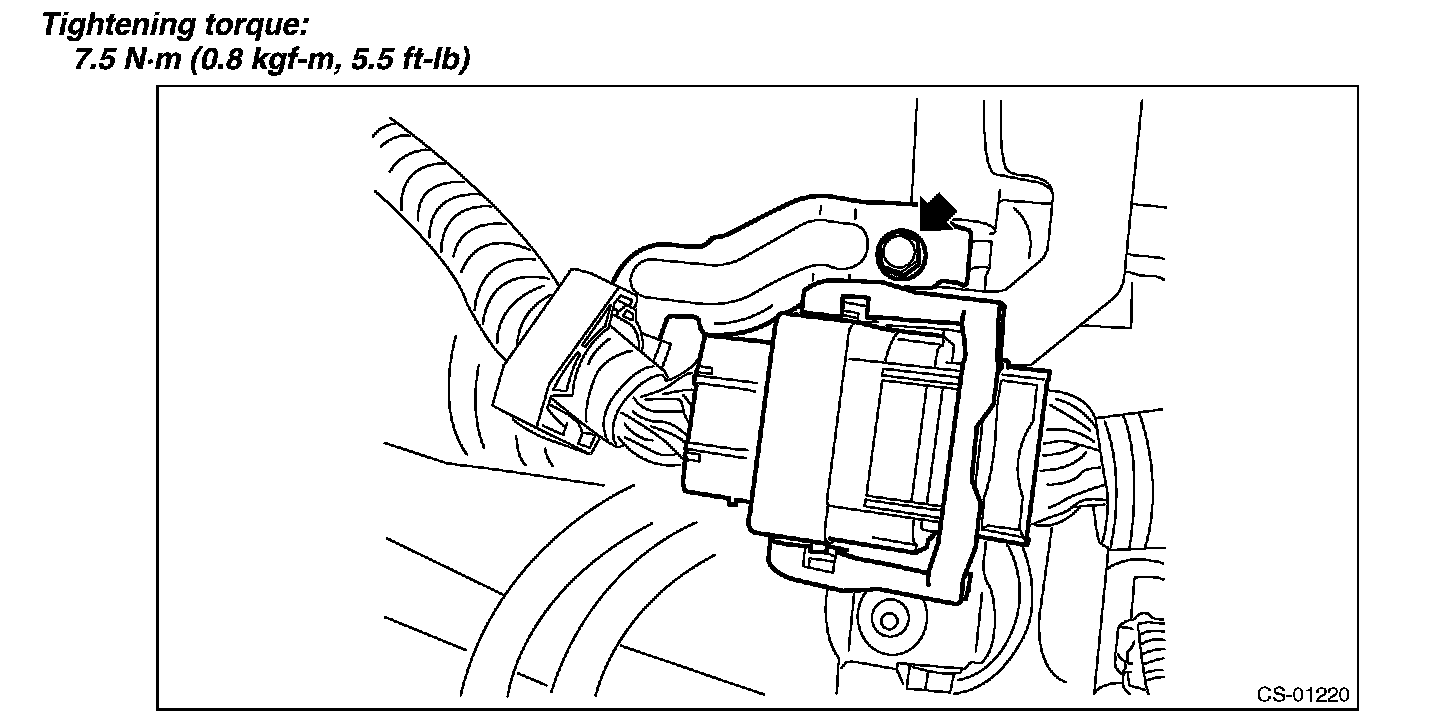

24) Connect the engine harness connectors, and install harness bracket to the engine hanger rear. (non-turbo model)





25) Install the air intake boot assembly. (non-turbo model)
26) Install the intercooler stay and the intercooler. (turbo model)
27) Install the air intake duct.
^ Non-turbo model

^ Turbo model

28) Make sure the gears can be shifted accurately into each gear.
