Home >> Subaru >> 2010 >> Outback F6-3.6L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General Specifications

General Specifications

General Description

SPECIFICATION

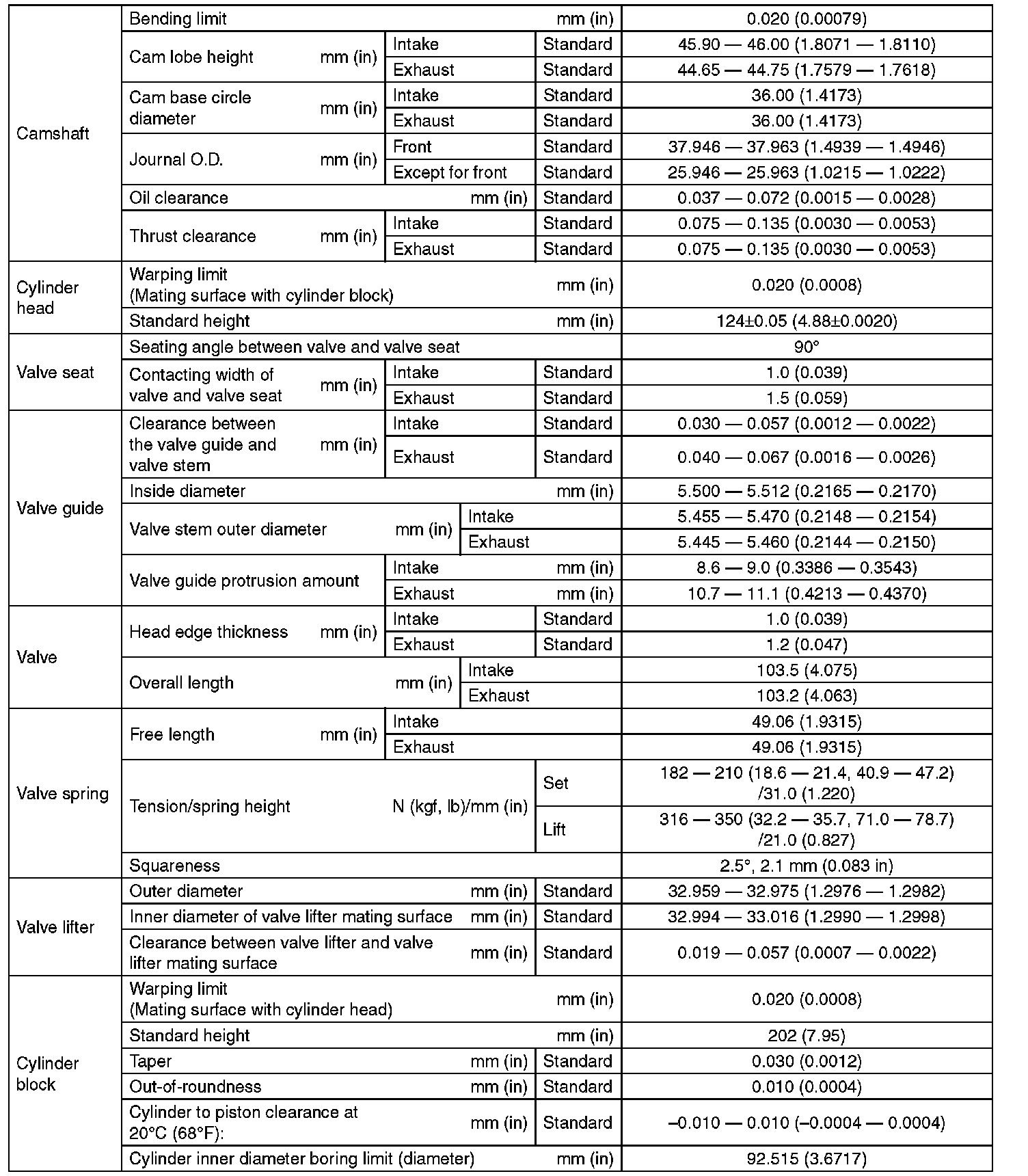

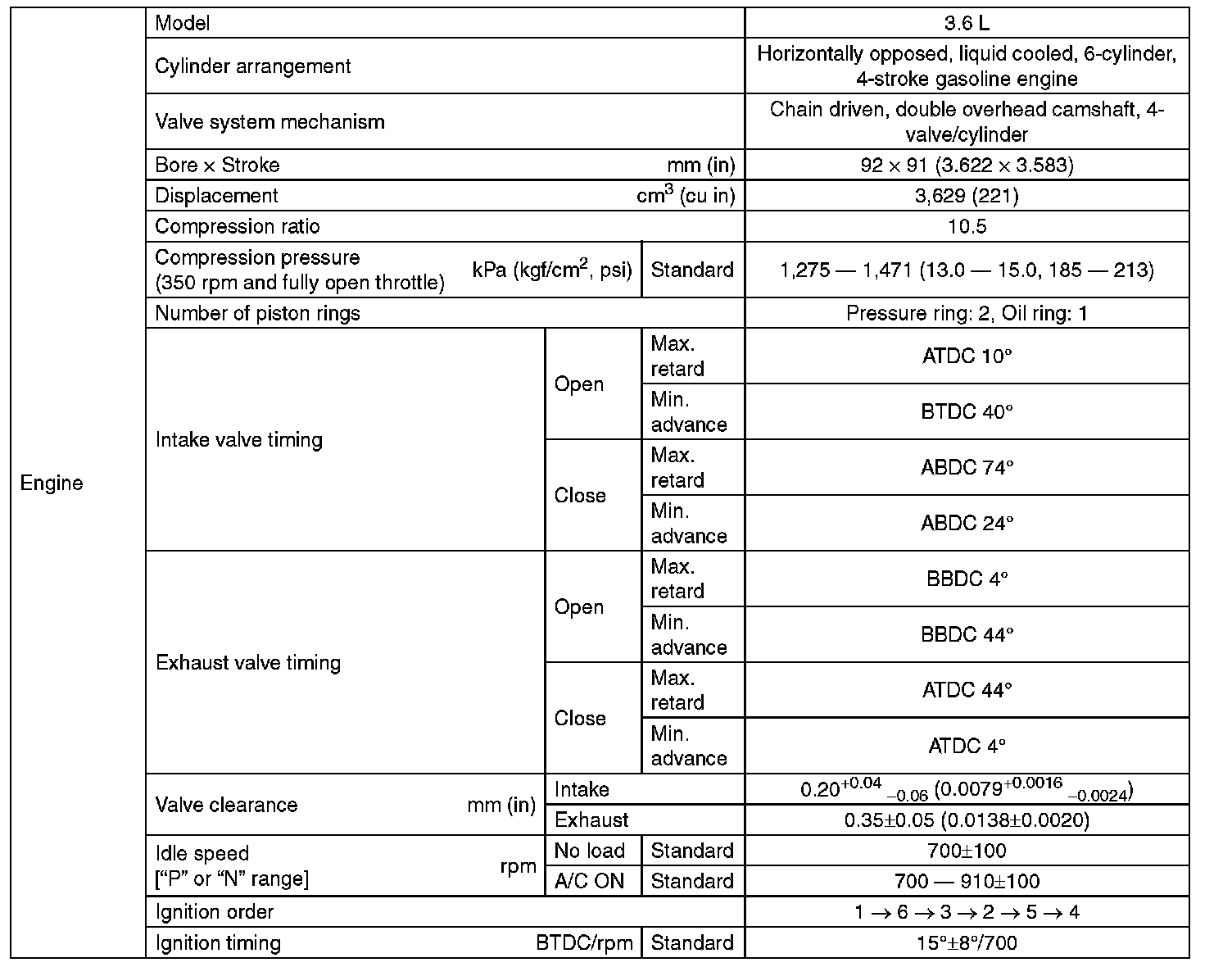

Specification (Part 1):





NOTE:
OS: Oversize
US: Undersize

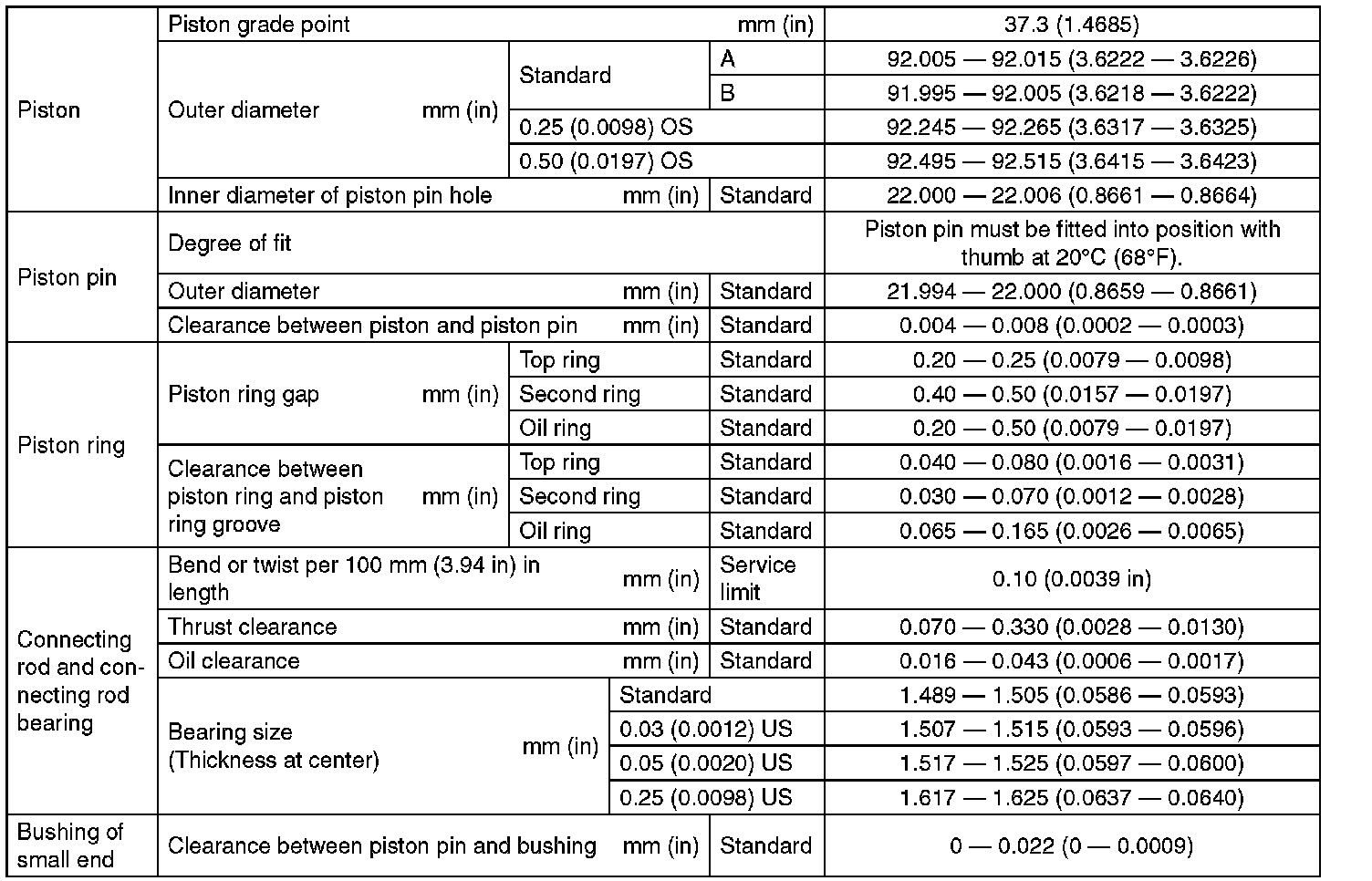

Specification (Part 2):




Specification (Part 3):




Specification (Part 4):
