Front Drive Shaft Dimensions
FRONT DRIVE SHAFT ASSEMBLY

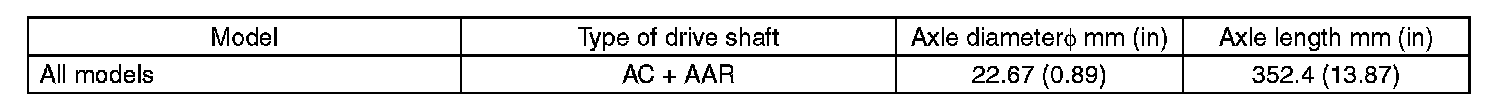

Front Drive Shaft Dimensions (Part 1):

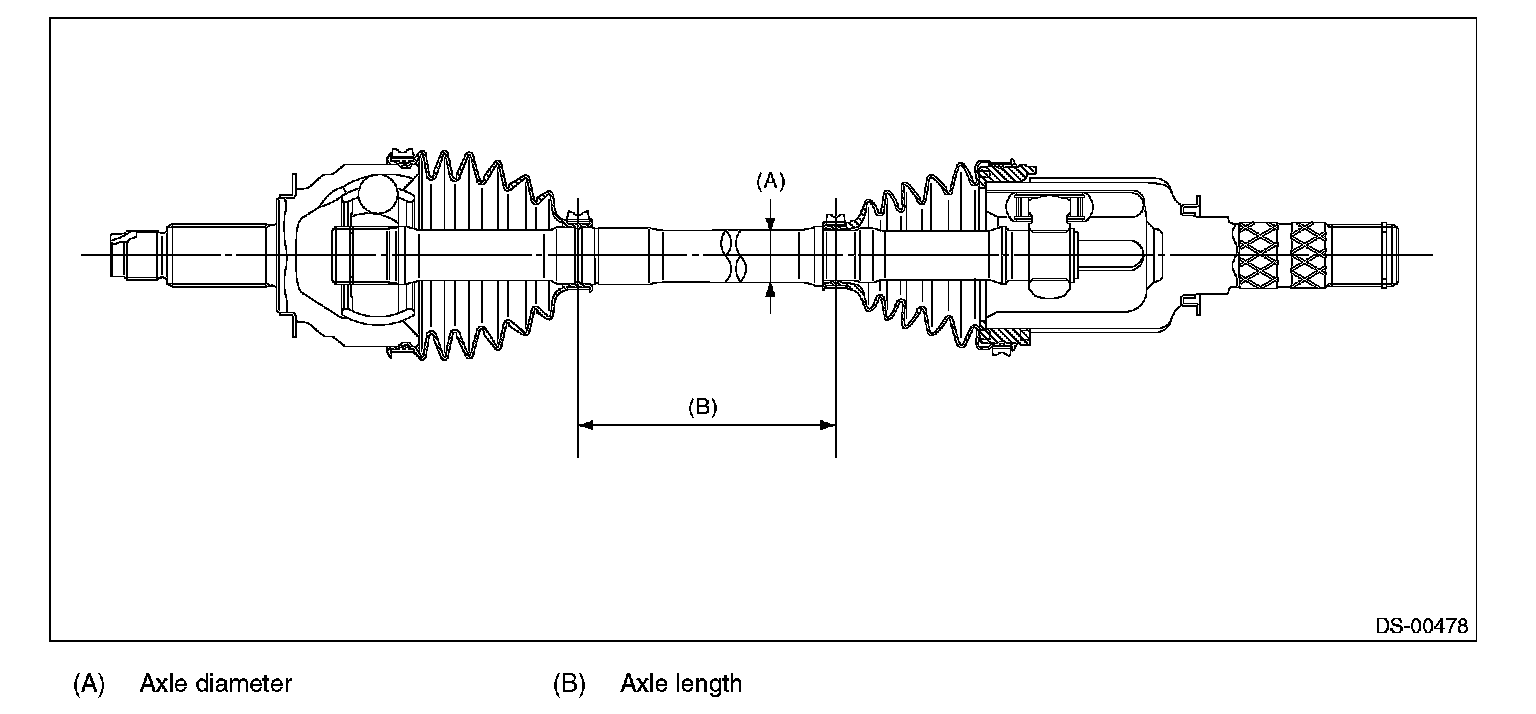

Front Drive Shaft Dimensions (Part 2):
