Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor

REMOVAL

1. INTAKE SIDE
1. Remove the collector cover.

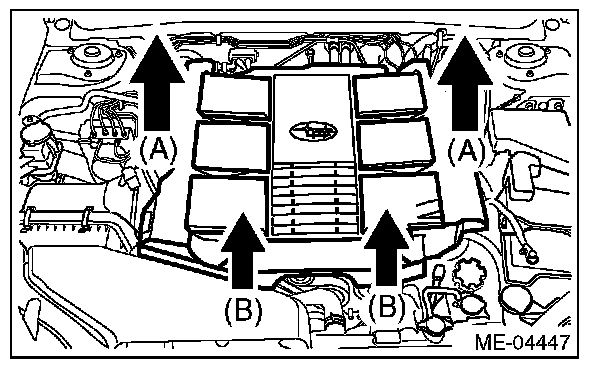

NOTE: Follow these procedures for removal of the collector cover.

1. Lift up the rear side holding two positions (A).
2. Lift up the front side holding two positions (B) while moving it in the forward direction of the vehicle.






2. Disconnect the ground cable from battery.

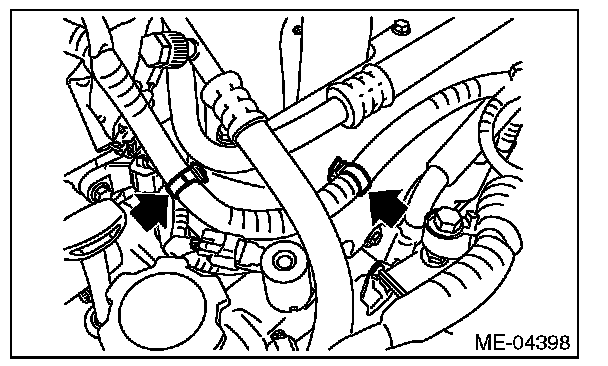

3. Remove the securing clips from the two locations on the fuel pipe protector LH.

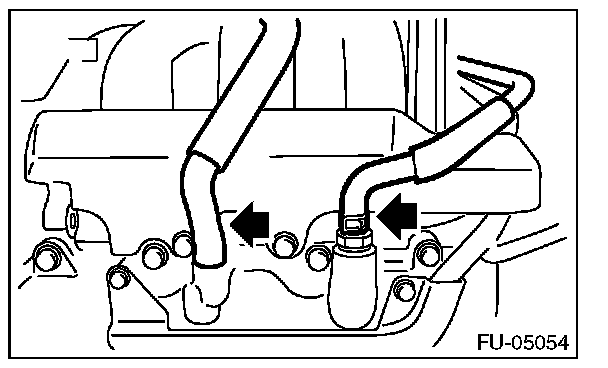

4. Disconnect the PCV hose and blow-by hose.

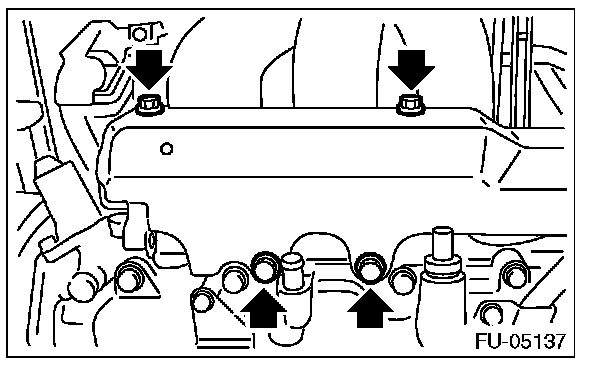

5. Remove the fuel pipe protector LH.

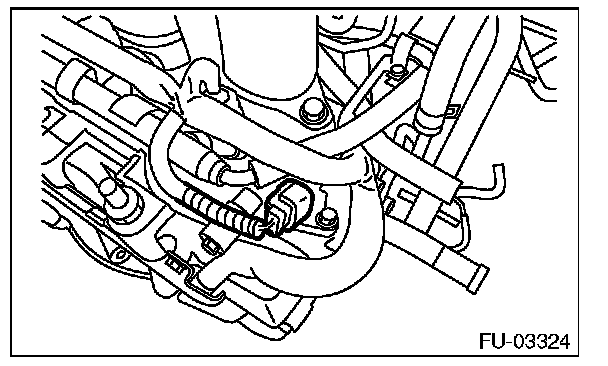

6. Disconnect the connector from intake camshaft position sensor LH.

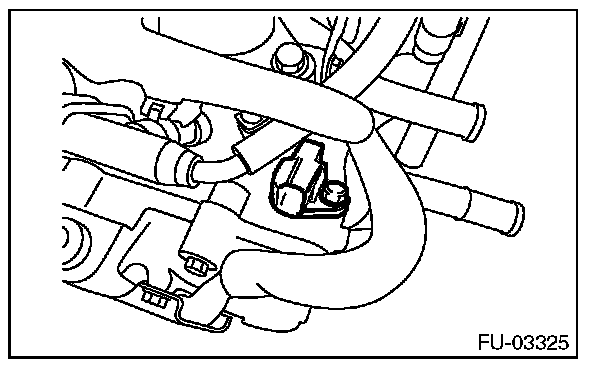

7. Remove the intake camshaft position sensor LH.






8. Remove the intake camshaft position sensor RH in the same procedure as LH side.

2. EXHAUST SIDE
1. Disconnect the ground cable from battery.
2. Lift up the vehicle.
3. Remove the under cover.

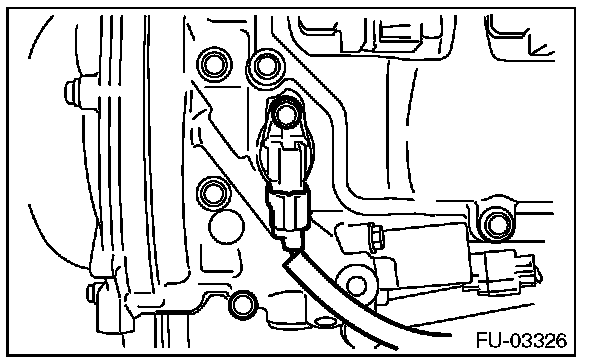

4. Disconnect the connector from exhaust camshaft position sensor LH.






5. Remove the exhaust camshaft position sensor LH.






6. Remove the exhaust camshaft position sensor RH in the same procedure as LH side.

INSTALLATION

1. INTAKE SIDE
Install in the reverse order of removal.

Tightening torque:
Intake camshaft position sensor 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
Fuel pipe protector 19 N.m (1.9 kgf.m, 14.0 ft.lb)

2. EXHAUST SIDE

Tightening torque:
Exhaust camshaft position sensor 6.4 N.m (0.7 kgf.m, 4.7 ft.lb)
