Rear Seat Belt

Rear Seat Belt

INSPECTION

1. VISUAL INSPECTION
Check for the following, and replace with new parts if necessary.
- Seat belt is slackened, bent or worn.
- Seat belt is abnormally wound or extended.
- Inner belt ASSY is deformed or damaged.
- Seat belt buckle cannot be engaged properly.

2. ELR LOCK MECHANISM INSPECTION
1. Hold the retractor upright (as installed in the vehicle) and check the ELR lock mechanism.
2. Tilt the retractor from the upright posture and check the following points.

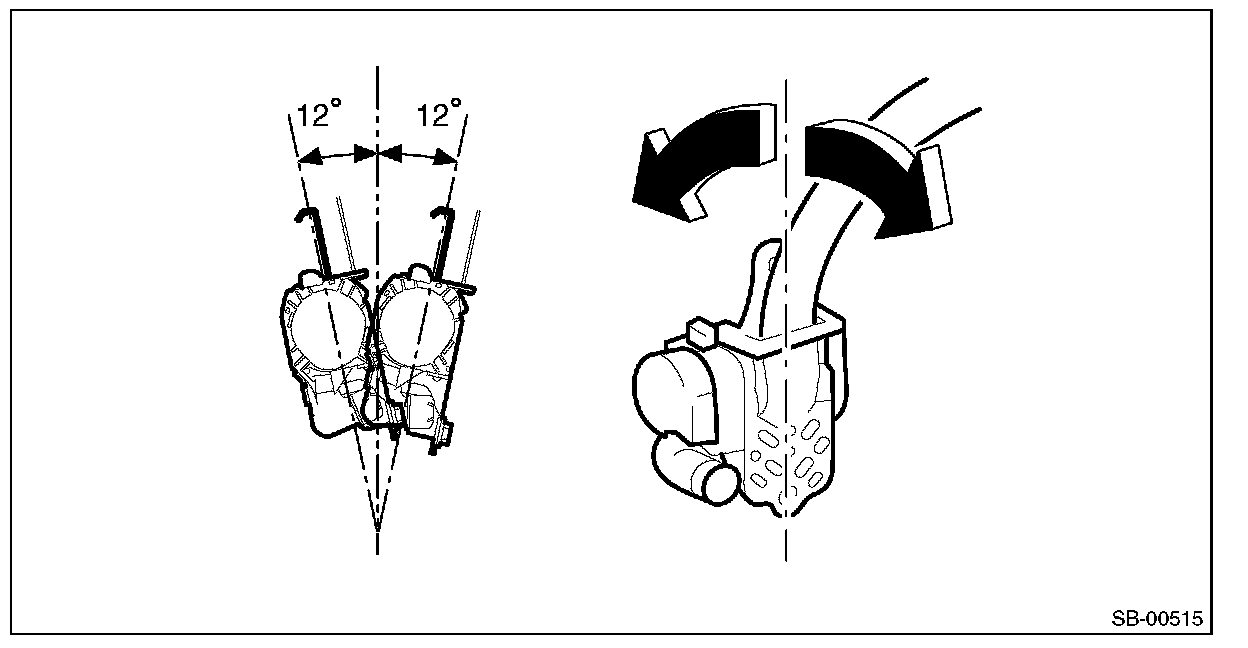

- It does not lock if the inclination angle is 12° or less.

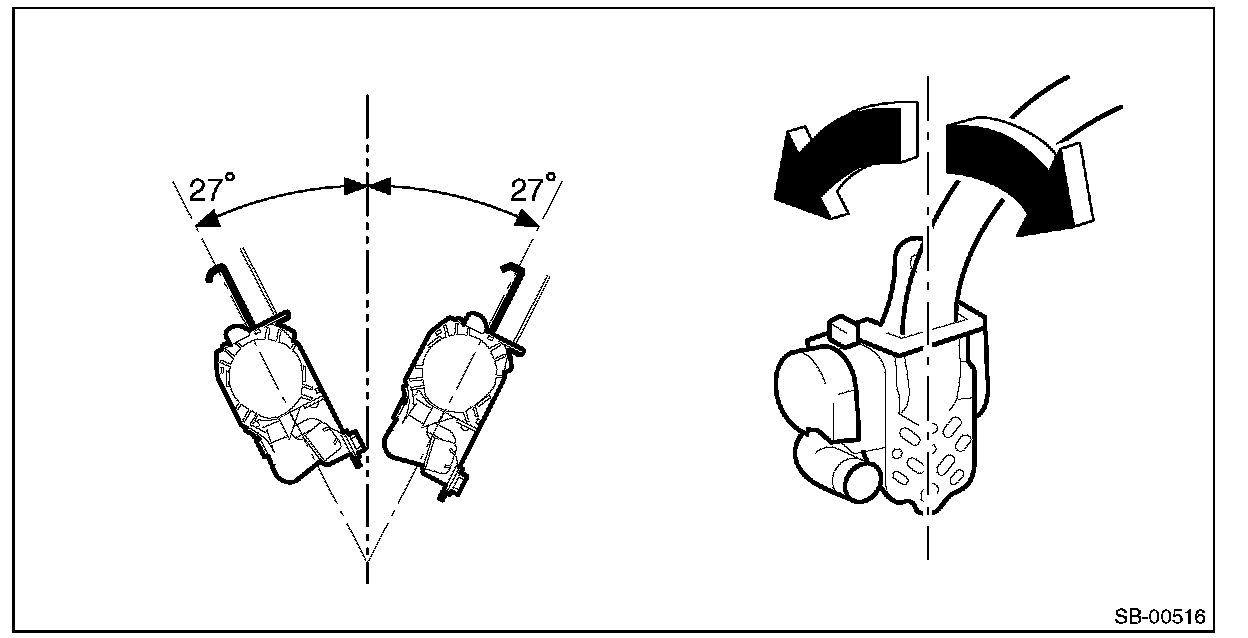

- It remains locked if the inclination angle is 27° or more.






3. If the ELR lock mechanism does not operate correctly, replace the outer belt assembly with a new part.
