Crankshaft Position Sensor: Service and Repair
Crankshaft Position SensorREMOVAL
1. Remove the collector cover.

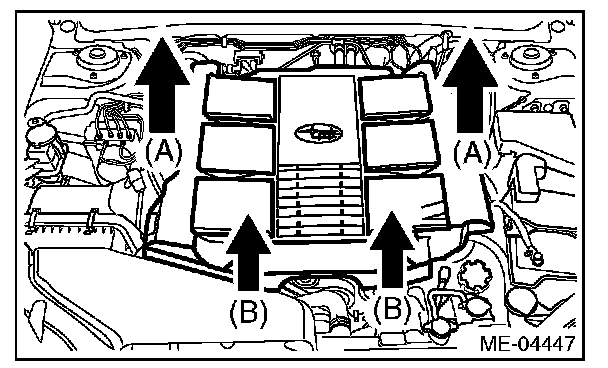

NOTE: Follow these procedures for removal of the collector cover.
1. Lift up the rear side holding two positions (A).
2. Lift up the front side holding two positions (B) while moving it in the forward direction of the vehicle.
2. Disconnect the ground cable from battery.
3. Remove the air intake boot assembly.
4. Remove the throttle body from the intake manifold.
NOTE: Do not disconnect the inlet and outlet hoses of engine coolant.

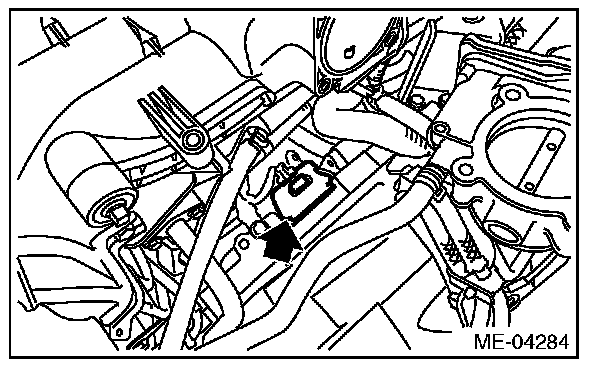

5. Remove the service hole plug.
6. Remove the crankshaft position sensor.
7. Disconnect the connector from crankshaft position sensor.
INSTALLATION

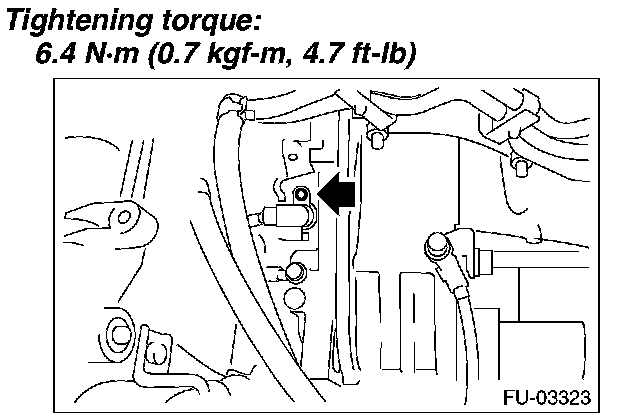

Install in the reverse order of removal.
