Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DETECTING CONDITION:
Defective harness connector

TROUBLE SYMPTOM
Communication is impossible between the tire inflation pressure monitoring control module and the Subaru Select Monitor.

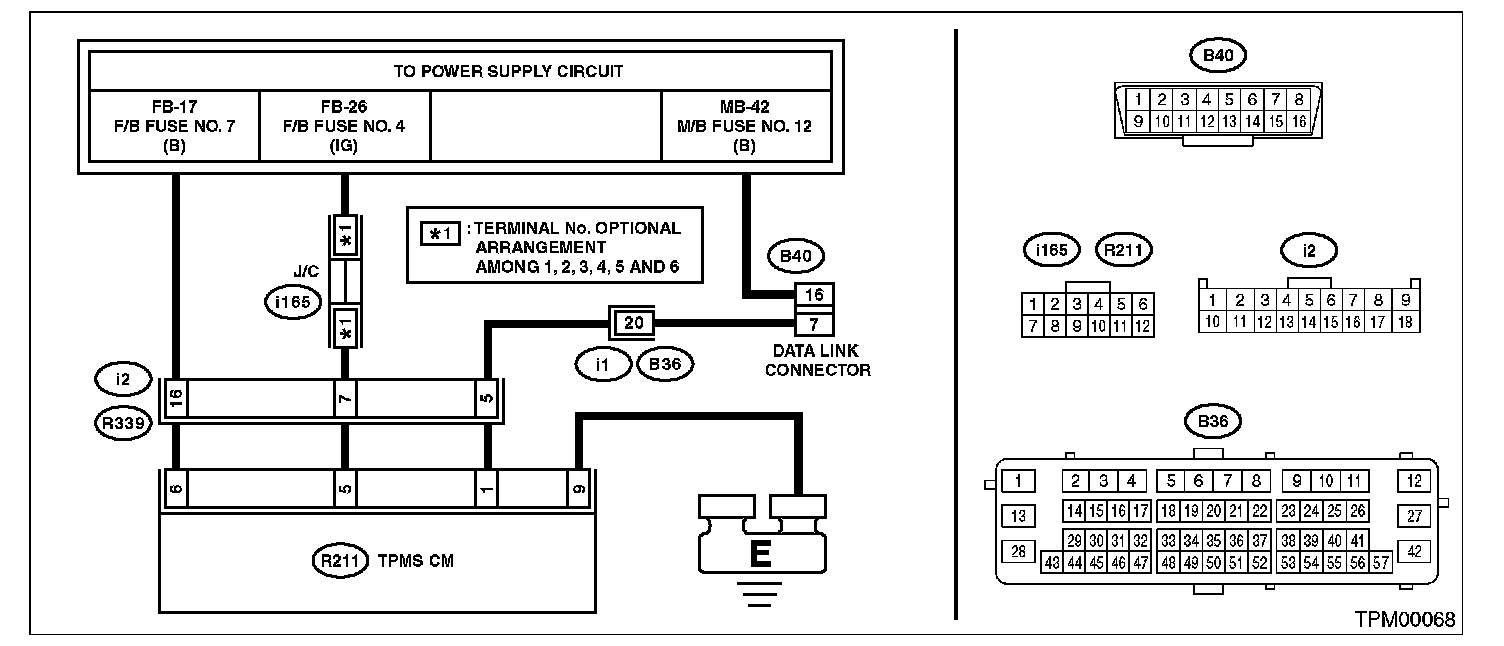

Wiring Diagram:




Step 1-5:

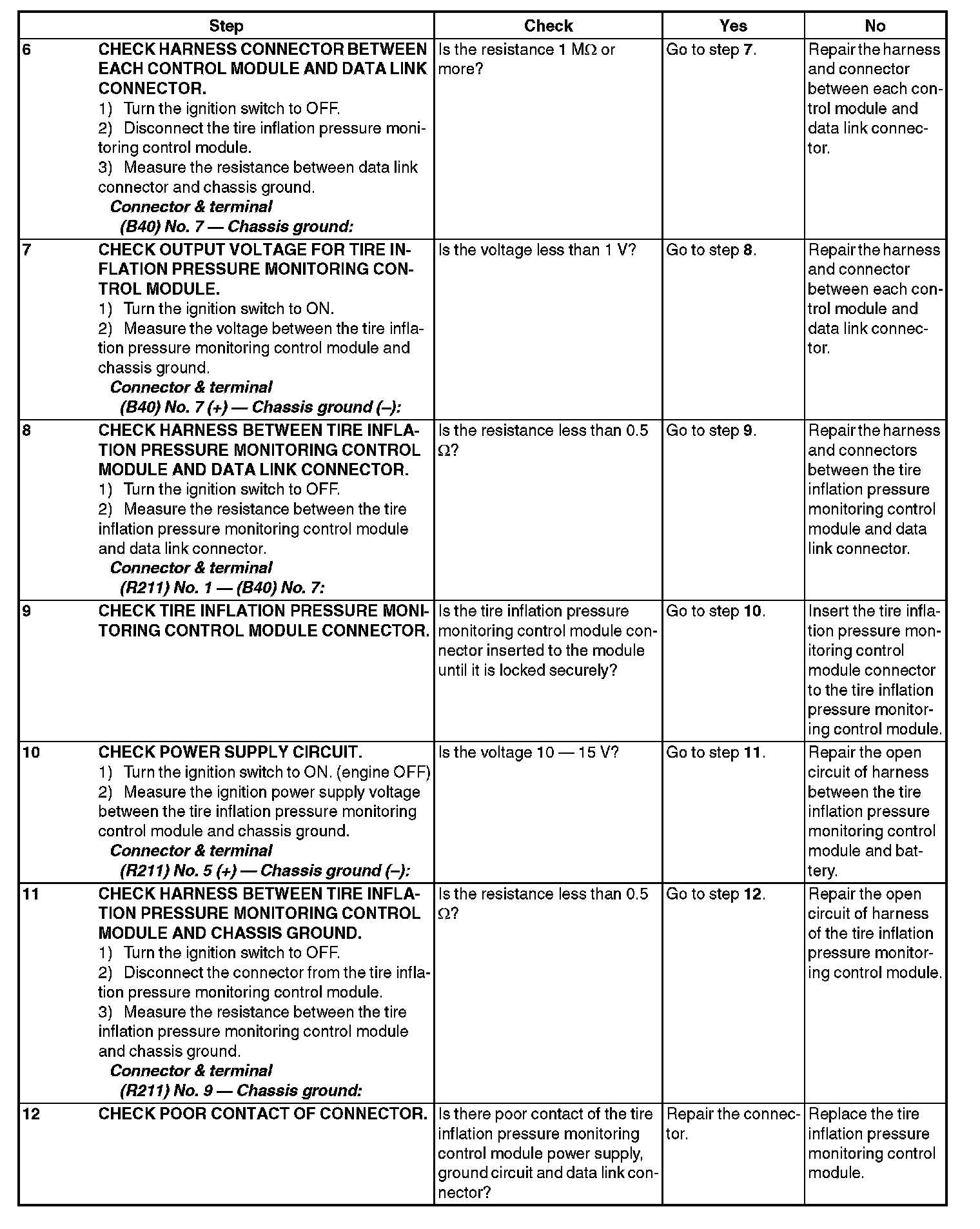

Step 6-12:
