Tire Monitoring System: Service and Repair

Register Transmitter (ID)

OPERATION
Transmitter registration is required in the following cases.
^ A transmitter is replaced.
^ Tire inflation pressure monitoring control module is replaced.

NOTE:
^ If registration of the transmitter ID is not possible after two attempts, replace the tire inflation pressure monitoring control module.
^ During the registration, turn the ignition switch to OFF and end the Subaru Select Monitor. Or if the registration is not performed for 5 minutes or more, the registration mode is cancelled.
^ When rotating tires, there is no effect on the performance or functions of the tire inflation pressure monitoring control module even if the transmitter (ID) is not registered, however, the tire position displayed on the Subaru Select Monitor will be incorrect.

1) Adjust all tire inflation pressures to the specifications.
2) Connect Subaru Select Monitor and select the (2. Each System Check) on the [[Main Menu]].
3) On the [[System Selection Menu]] display, select the (Tire pressure monitor).
4) After the (Tire pressure monitor) is displayed, select [OK].
5) On the [[Tire pressure monitor diagnosis]] display, select the (Transmitter ID regist confirm).
6) [ID registration mode When execute Registered ID is deleted. Continue?} is displayed, select [OK].

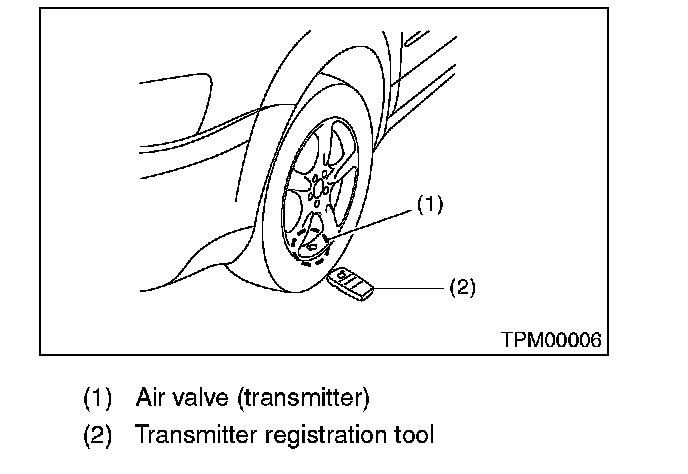

7) Touch the transmitter registration tool to the side wall area near the air valve on the front left tire, and press the switch. The transmitter ID is sent to the tire inflation pressure monitoring control module. (At that time, the tire inflation pressure warning light blinks to confirm that the registration has started.)





NOTE:
^ The registration order of transmitter ID is not specified.
^ The transmitter registration tool is used by touching the side wall area near the transmitter.
^ When registration of each tire is completed, the hazard light will blink and [ID registration completed] is displayed on the Select Monitor screen.
^ If registration procedure stops in the halfway (turning ignition switch to OFF, wrong registration order, etc), proceed from step 5).

8) When ID registration is completed, the tire inflation pressure warning light remains lit for approximately 2 seconds, to end the registration. Switch to the screen displaying the transmitter ID on the Subaru Select Monitor display.
9) Check the transmitter ID that was registered, then perform a driving test.
