Home >> Subaru >> 2010 >> Outback F6-3.6L DOHC >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Testing and Inspection

Daytime Running Lamp: Testing and Inspection

Day Time Running Light System

INSPECTION

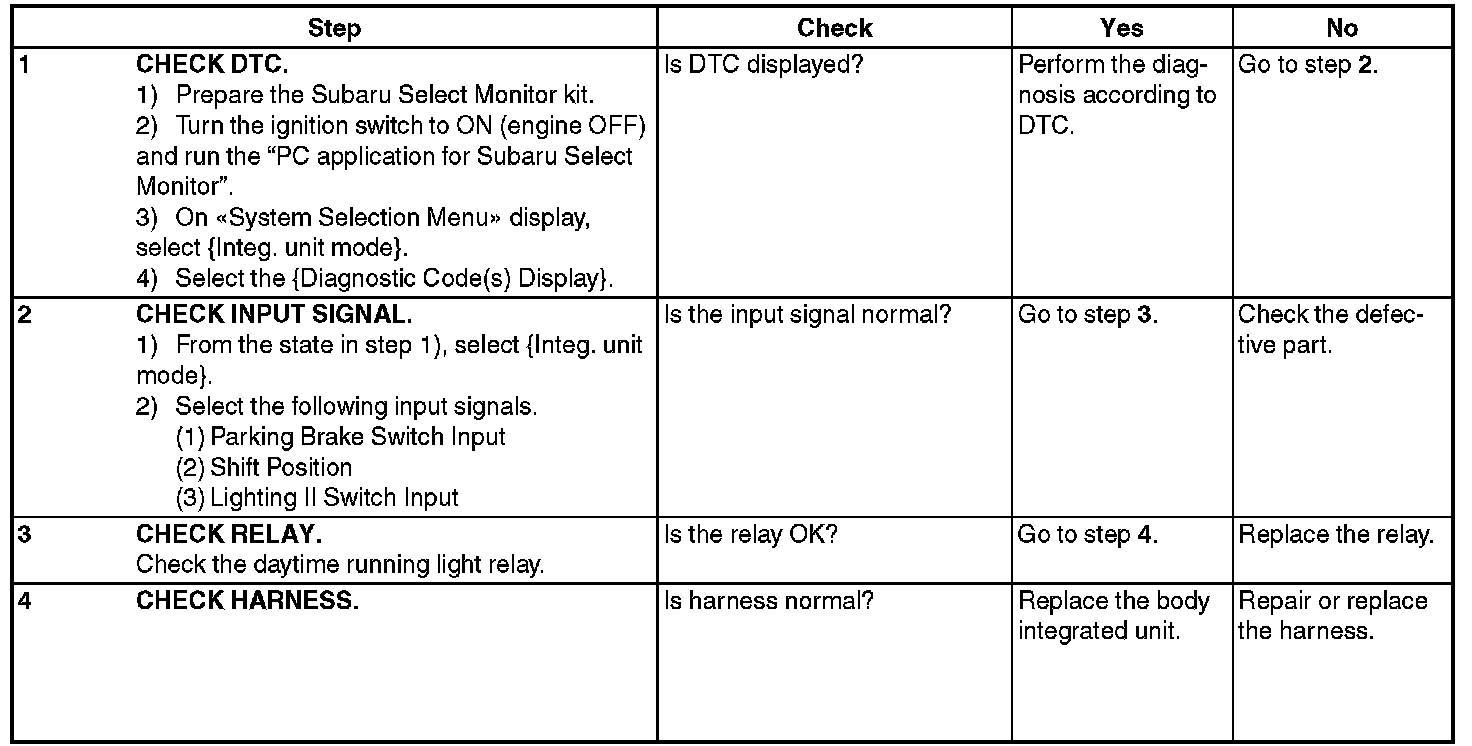

1. DAYTIME RUNNING LIGHT SYSTEM CHECK

Step 1-4:
