Diagnostic Procedure For Sensors
Diagnostic Procedure For Sensors
Diagnostic Procedure for Sensors
AMBIENT SENSOR

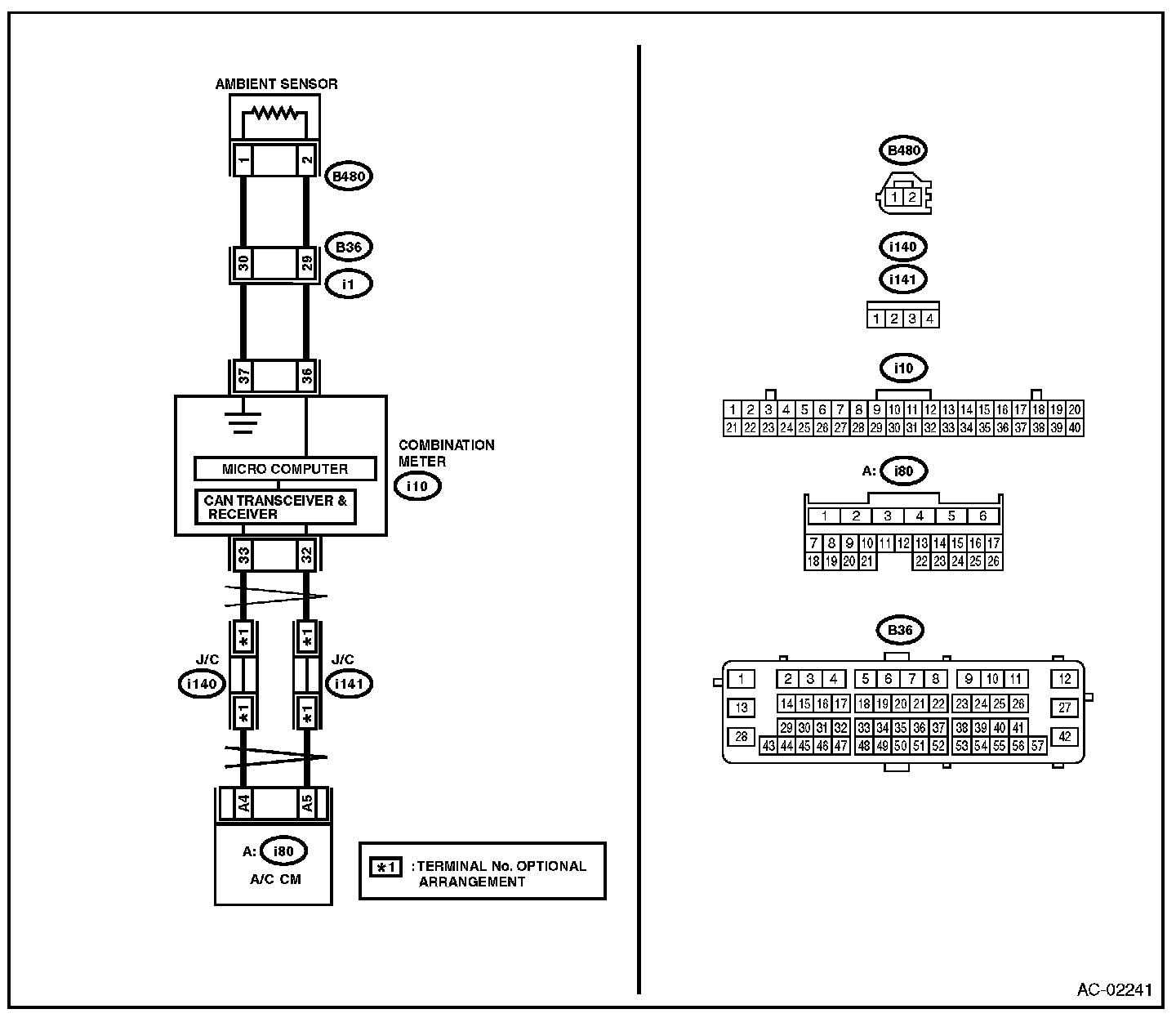

WIRING DIAGRAM:
Wiring Diagram:

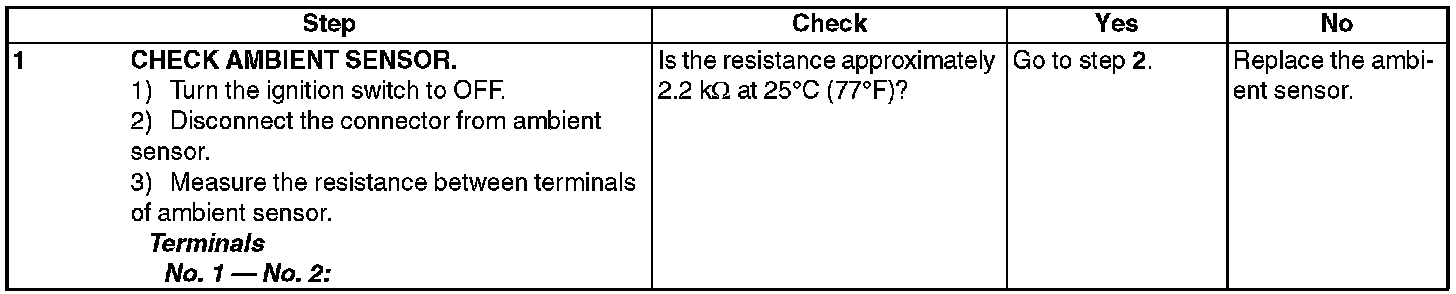

Step 1:

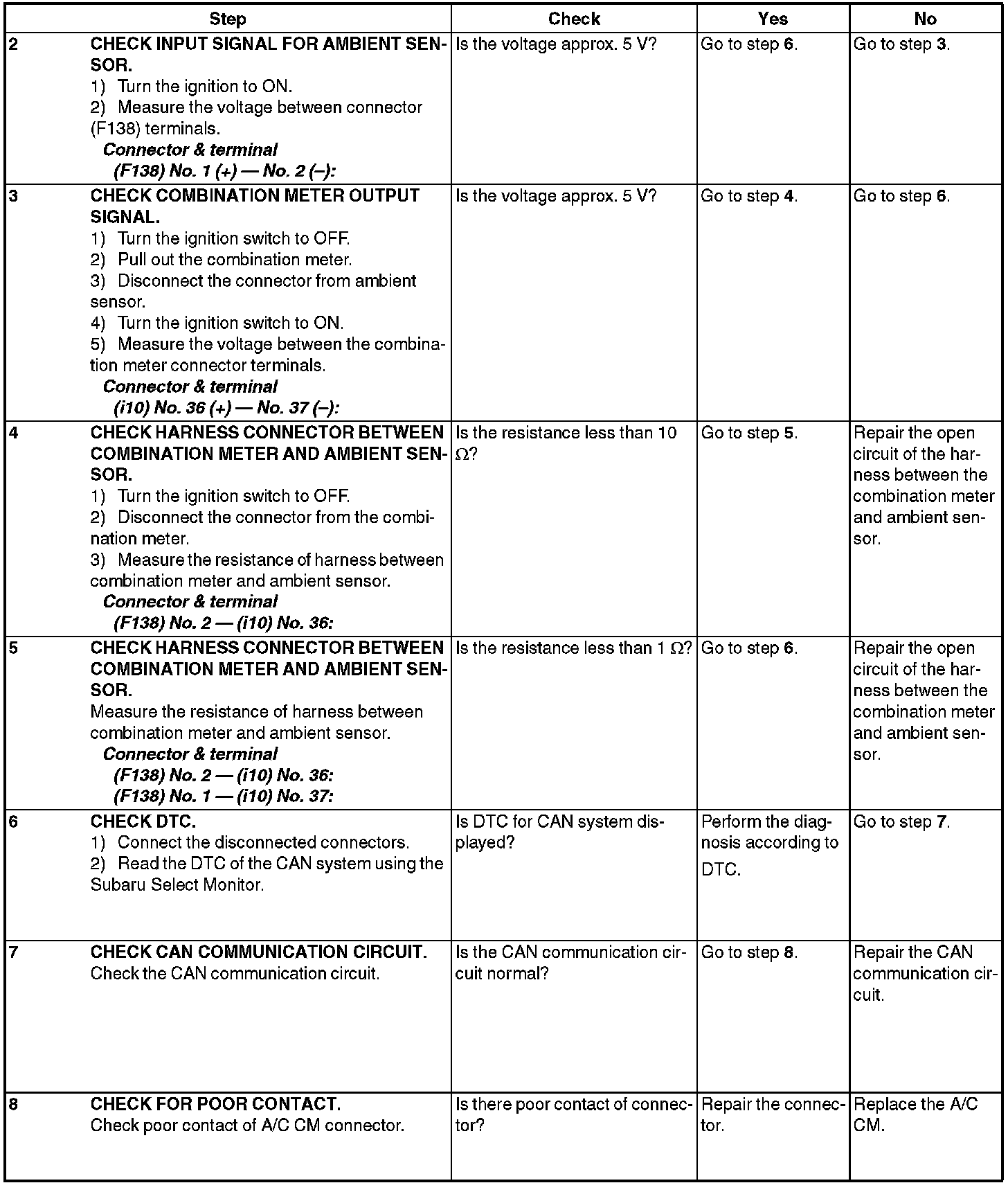

Step 2-8:
