Engine Trouble In General
Engine Trouble in General
INSPECTION
NOTE:
The "RANK" shown in the chart shows the possibilities of the cause of trouble in order from "Very often" to
"Rarely".
A - Very often
B - Sometimes
C - Rarely

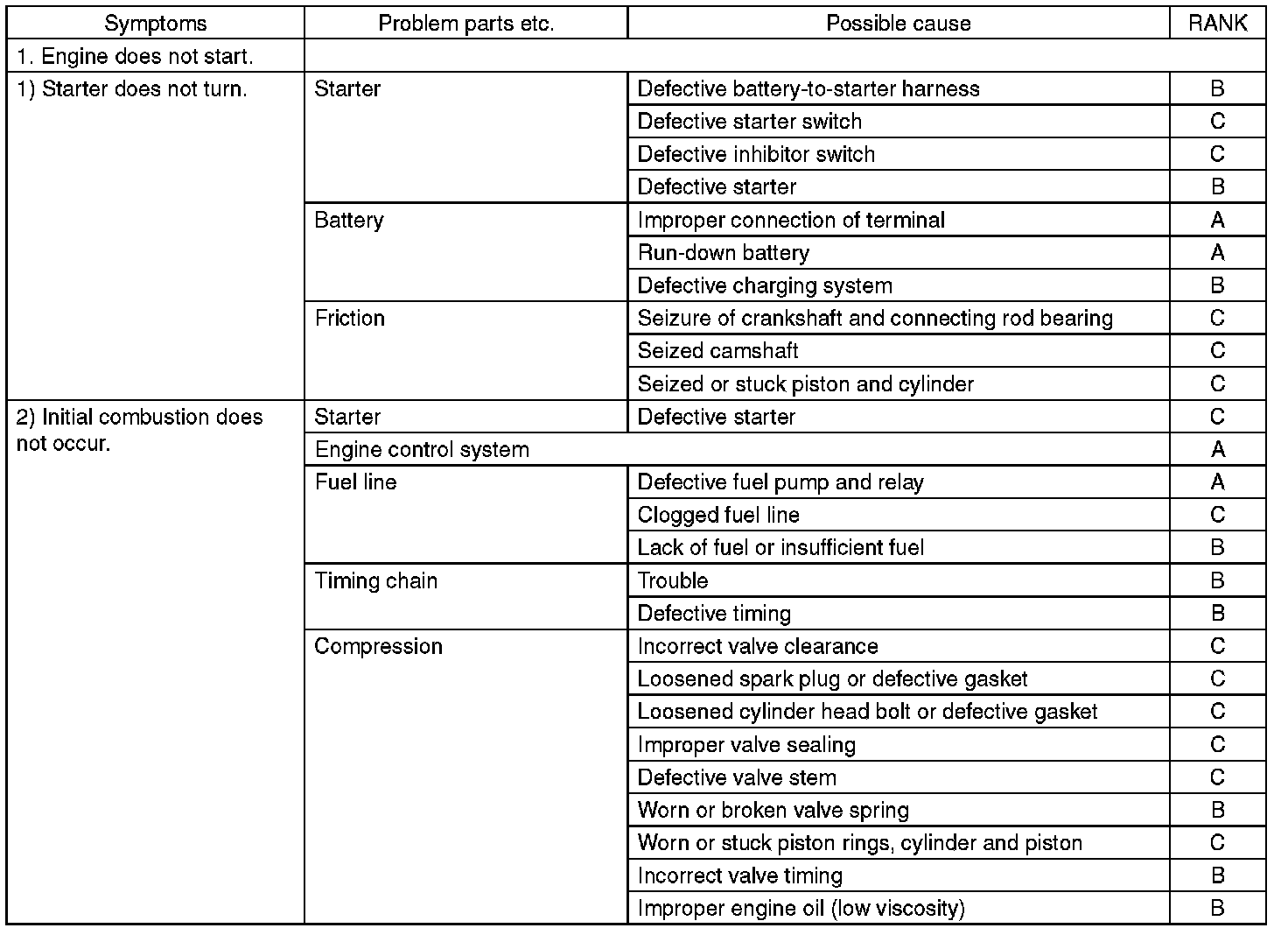

Step 1:

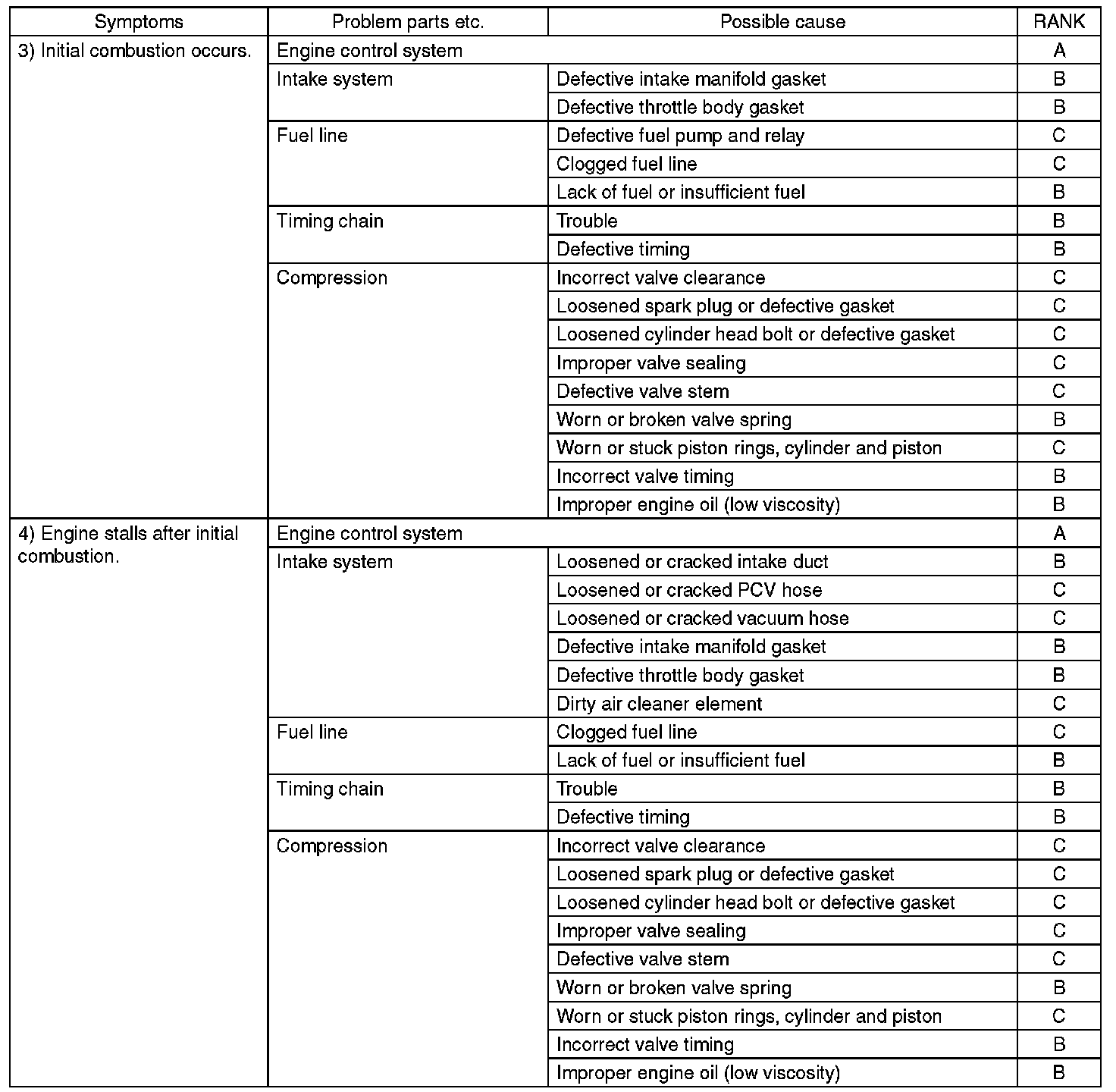

Step 1 (Continued):
Step 2:

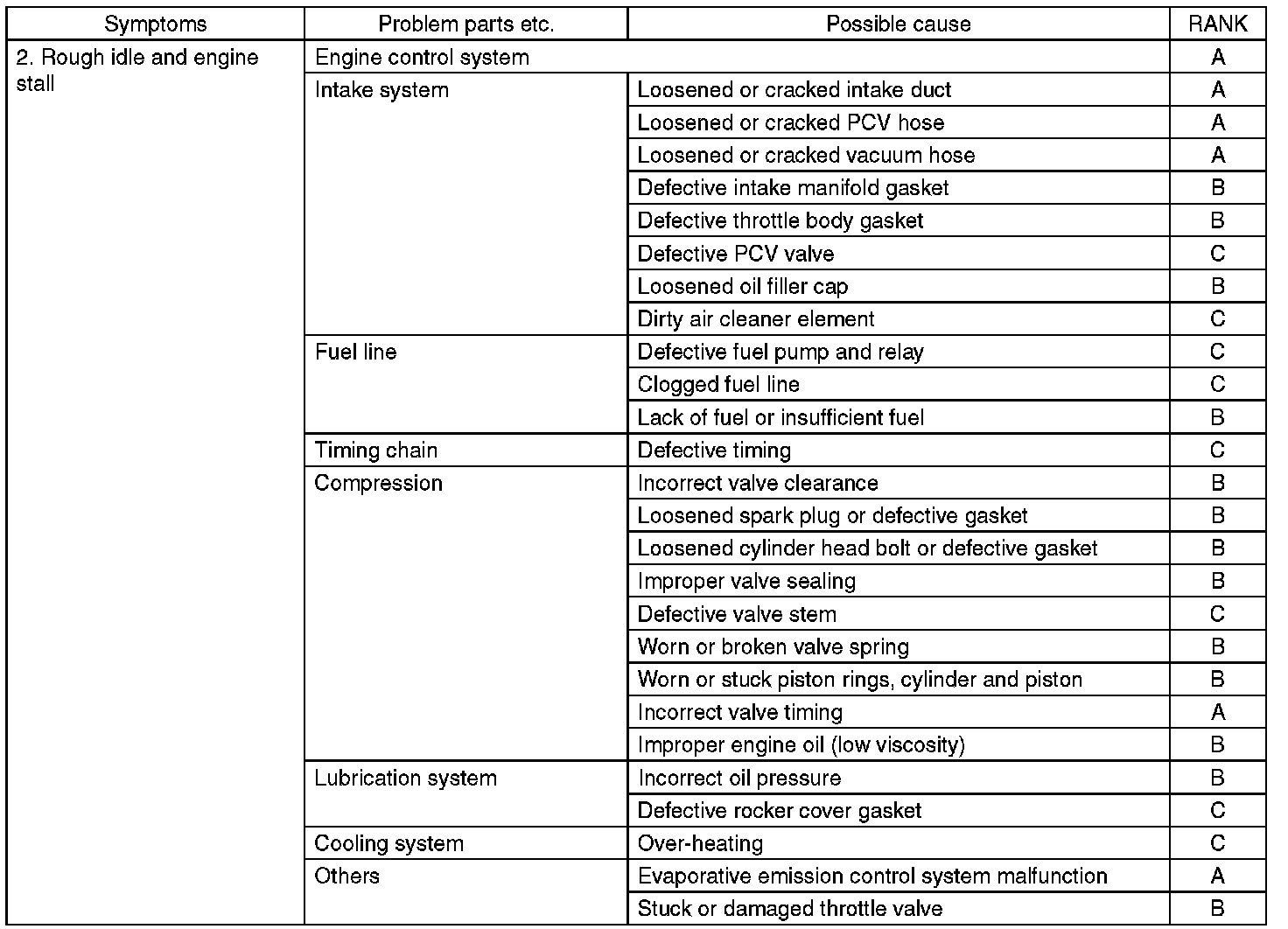

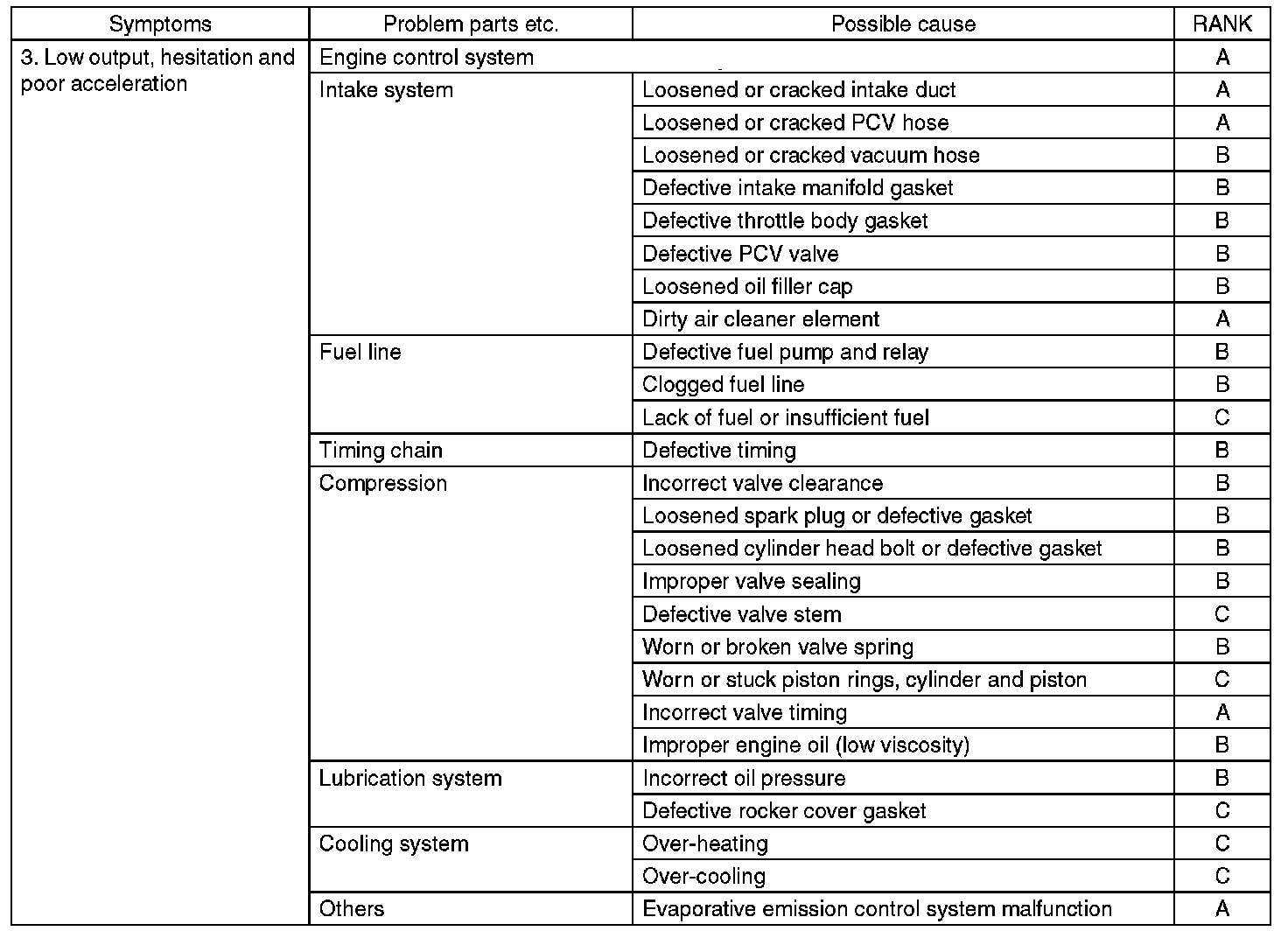

Step 3:

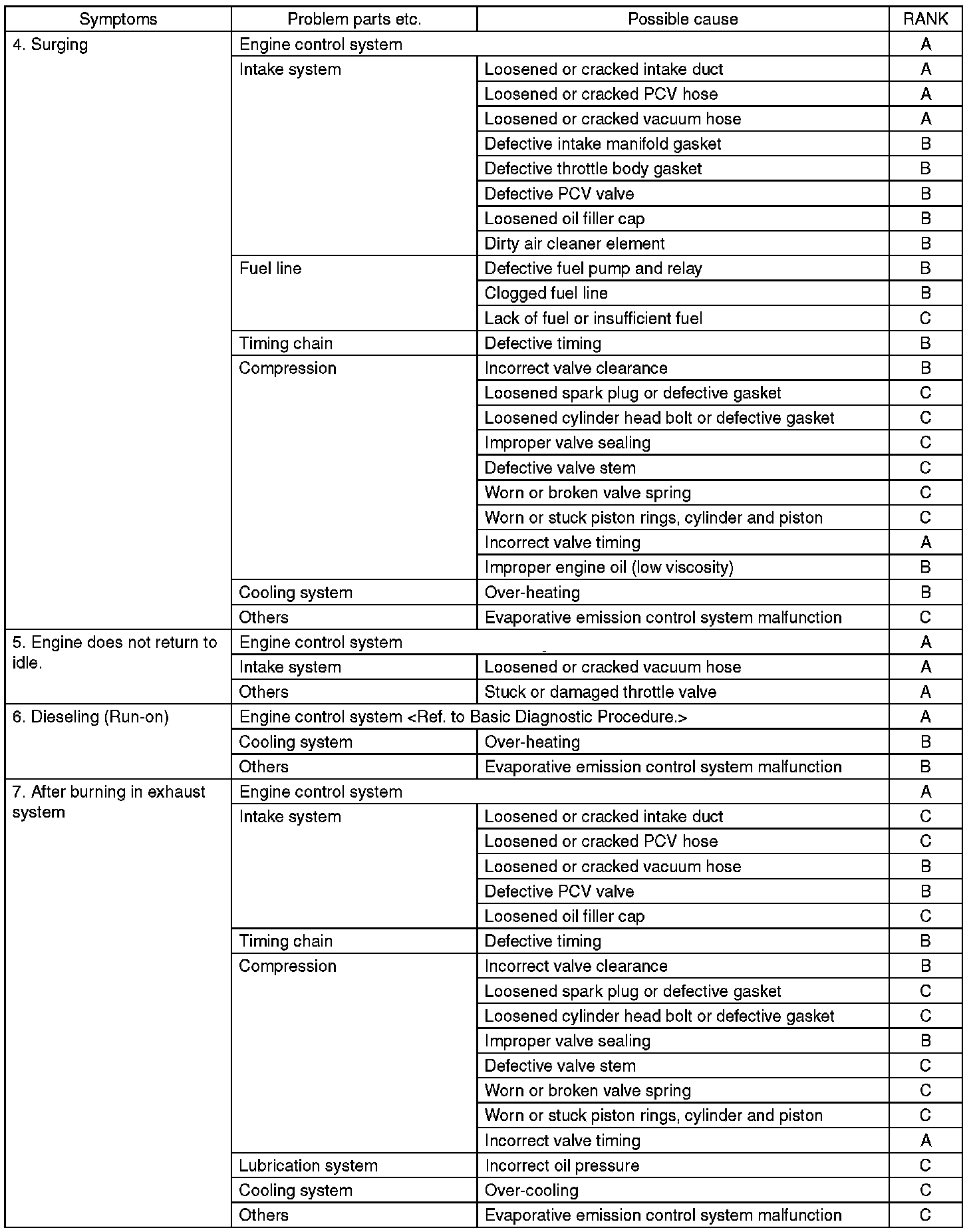

Step 4-7:

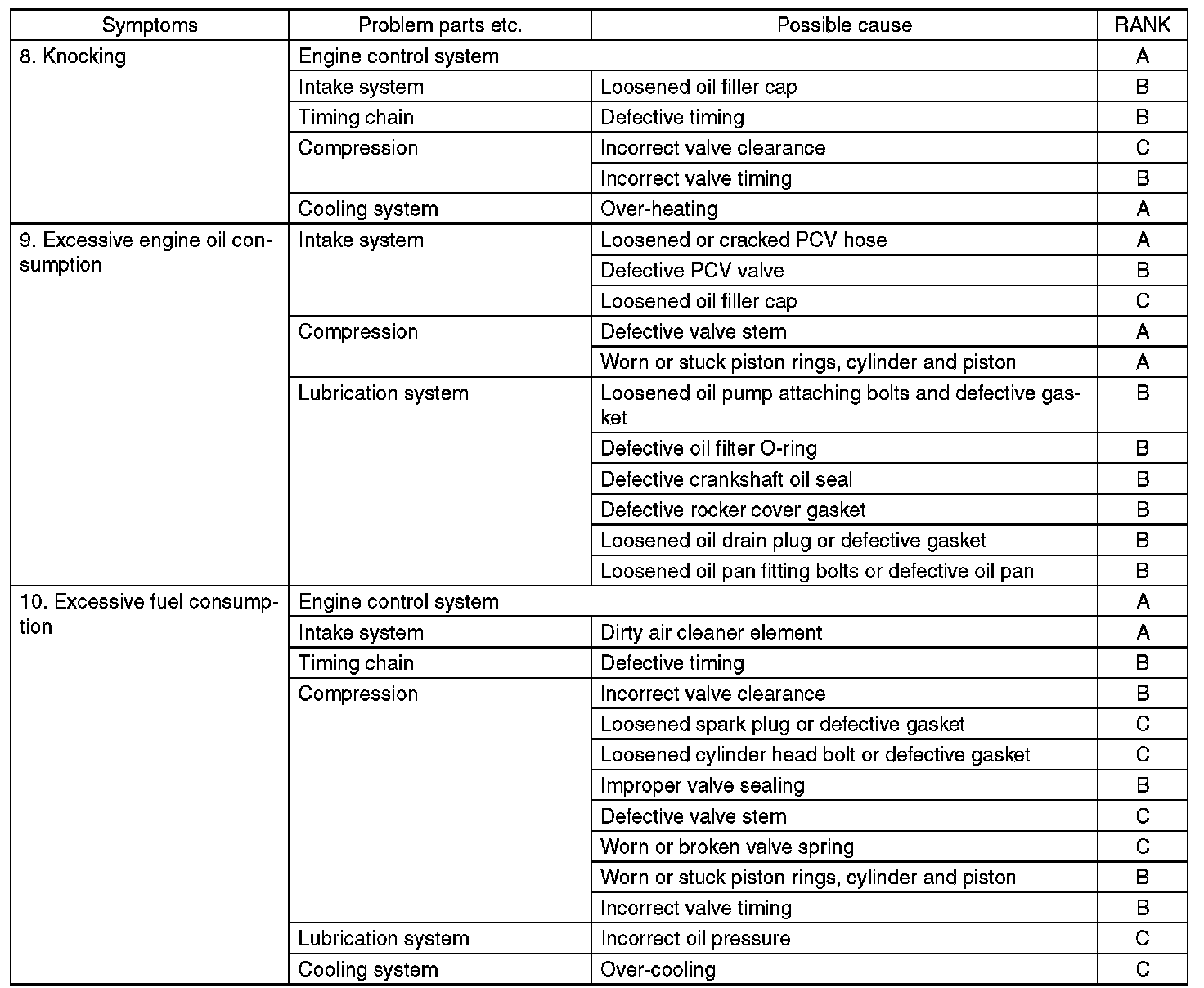

Step 8-10:
