Cylinder Head and Camshaft
Cylinder Head and Camshaft
CYLINDER HEAD AND
CAMSHAFT

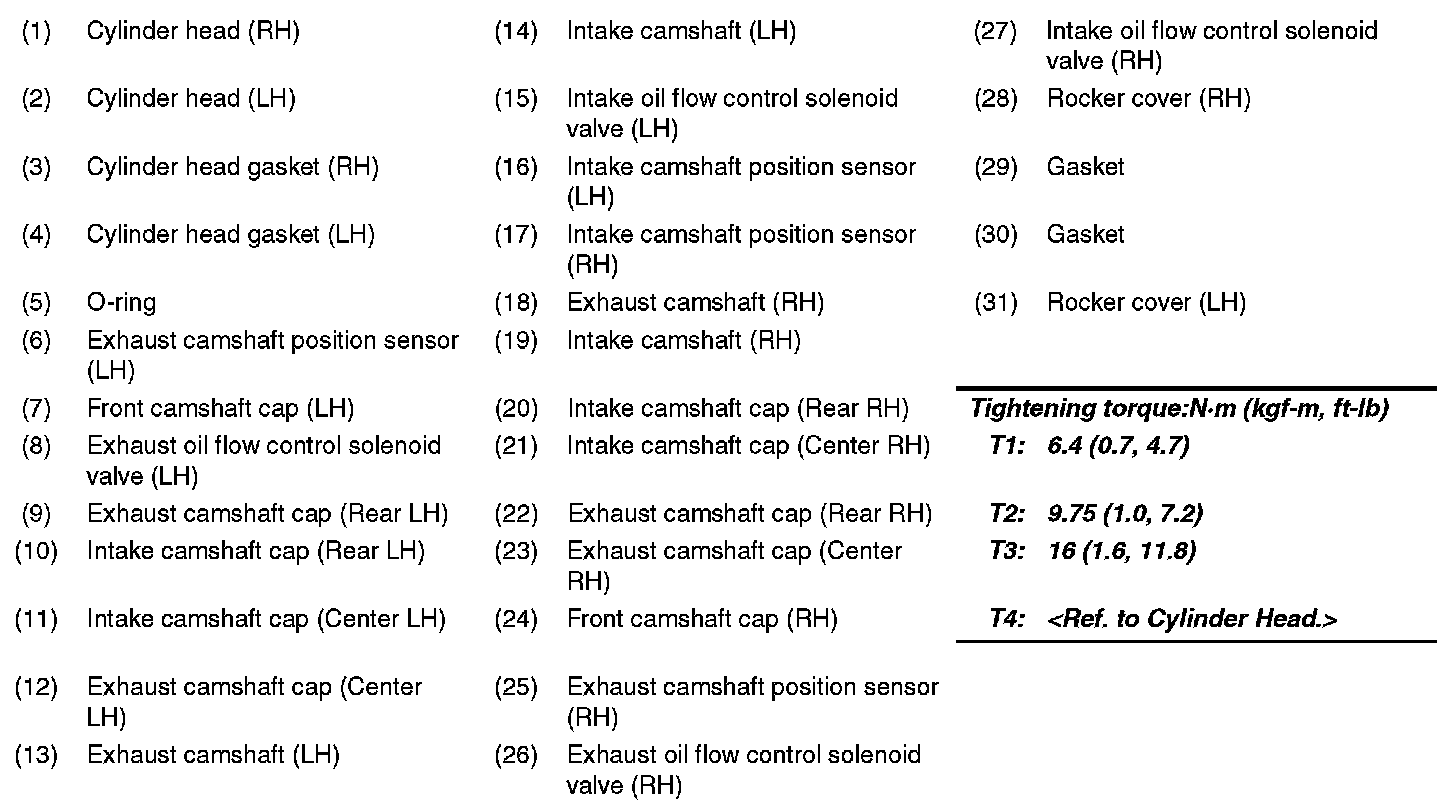

Cylinder Head and Camshaft (Part 1):

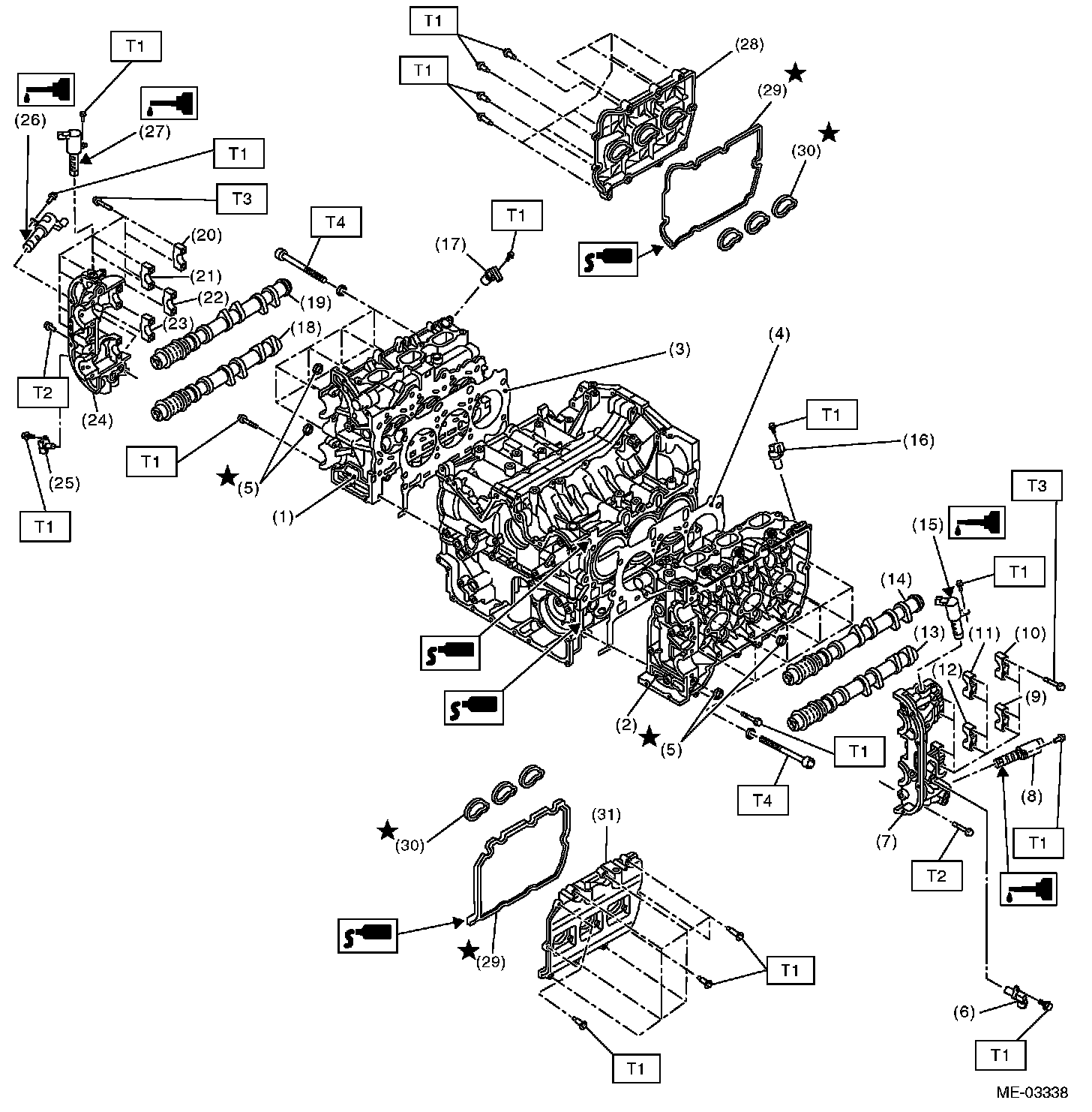

Cylinder Head and Camshaft (Part 2):
