Torque Converter Clutch & Transmission Assembly

TORQUE CONVERTER CLUTCH & TRANSMISSION ASSEMBLY

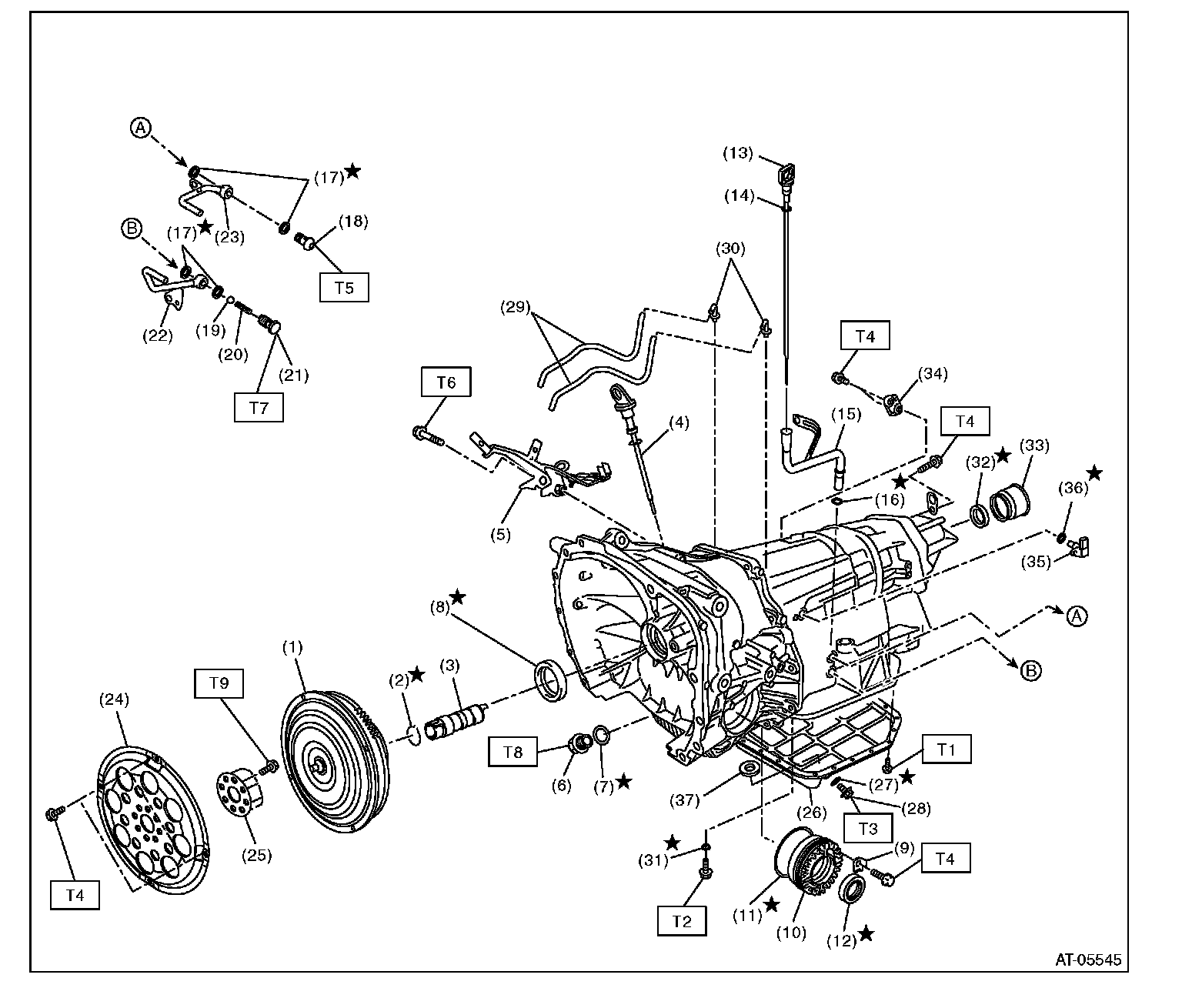

Torque Converter Clutch and Transmission Assembly Components (Part 1):

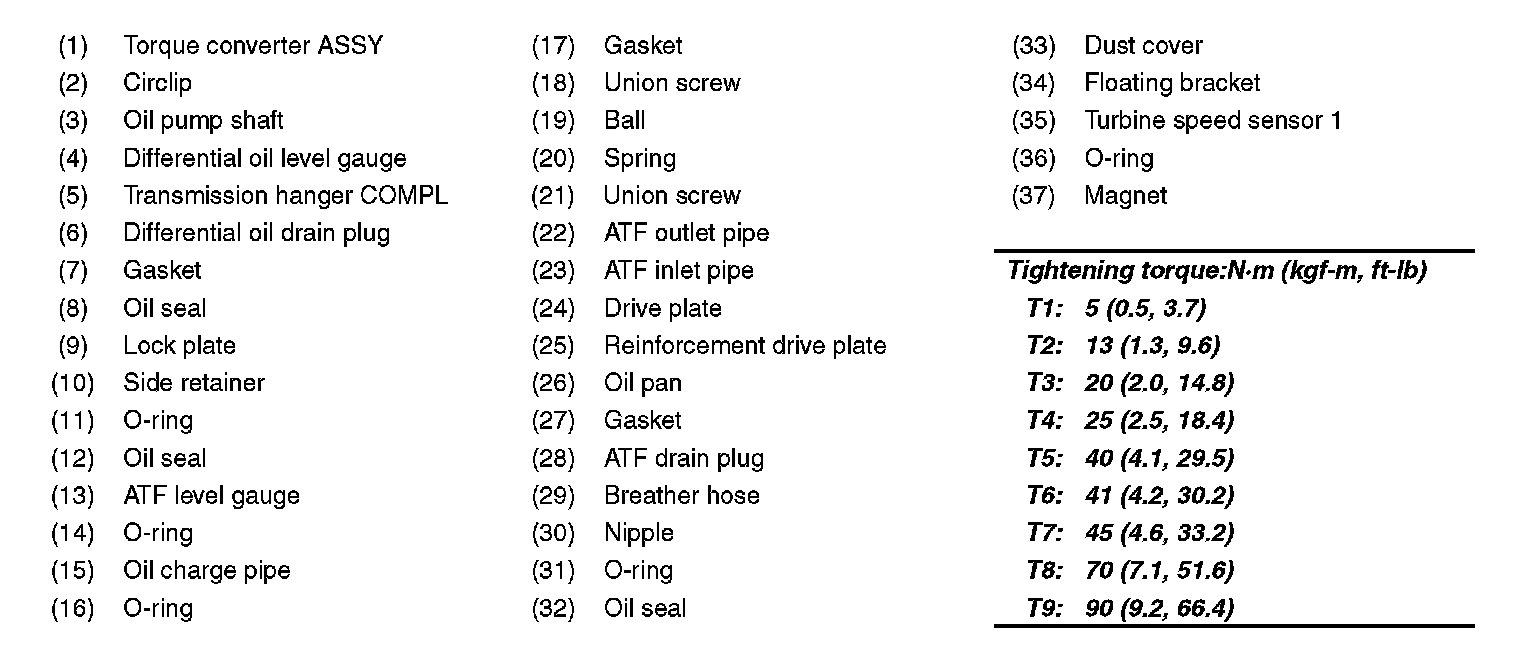

Torque Converter Clutch and Transmission Assembly Components (Part 2):
