Read Diagnostic Trouble Code (DTC)

Read Diagnostic Trouble Code (DTC)

OPERATION

NOTE:
^ For detailed operation procedures, refer to "PC application help for Subaru Select Monitor". Scan Tool Testing and Procedures
^ For details concerning DTCs, refer to "List of Diagnostic Trouble Code (DTC)". List of Diagnostic Trouble Code (DTC)

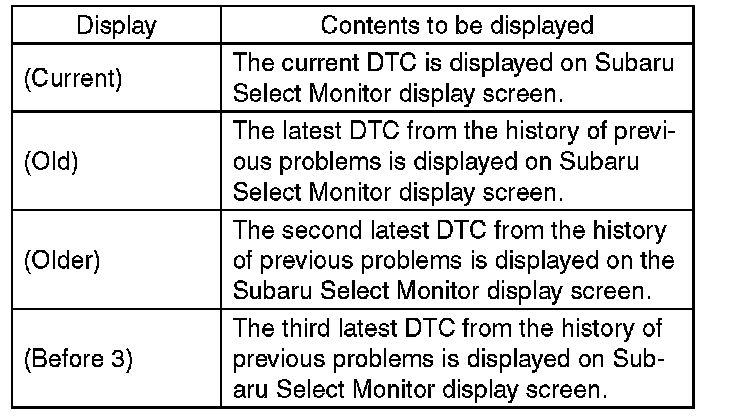

^ Up to 3 DTCs are displayed in the order of detection.





Inspection Mode

PROCEDURE
Reproduce the malfunction occurrence condition as much as possible. Drive the vehicle at least 10 minutes, and operate and release the parking brake a few times.
