INSPECTION

1. VISUAL INSPECTION
Check for the following, and replace with new parts if necessary.
- Pretensioner is cracked or deformed.
- Belt tension sensor is cracked or deformed.
- Adjustable anchor assembly is cracked or deformed.
- Seat belt is slackened, bent or worn.
- Seat belt is abnormally wound or extended.
- Inner belt ASSY is deformed or damaged.
- Seat belt buckle cannot be engaged properly.

2. ELR LOCK MECHANISM INSPECTION
1. Hold the retractor upright (as installed in the vehicle) and check the ELR lock mechanism.
2. Tilt the retractor from the upright posture and check the following points.

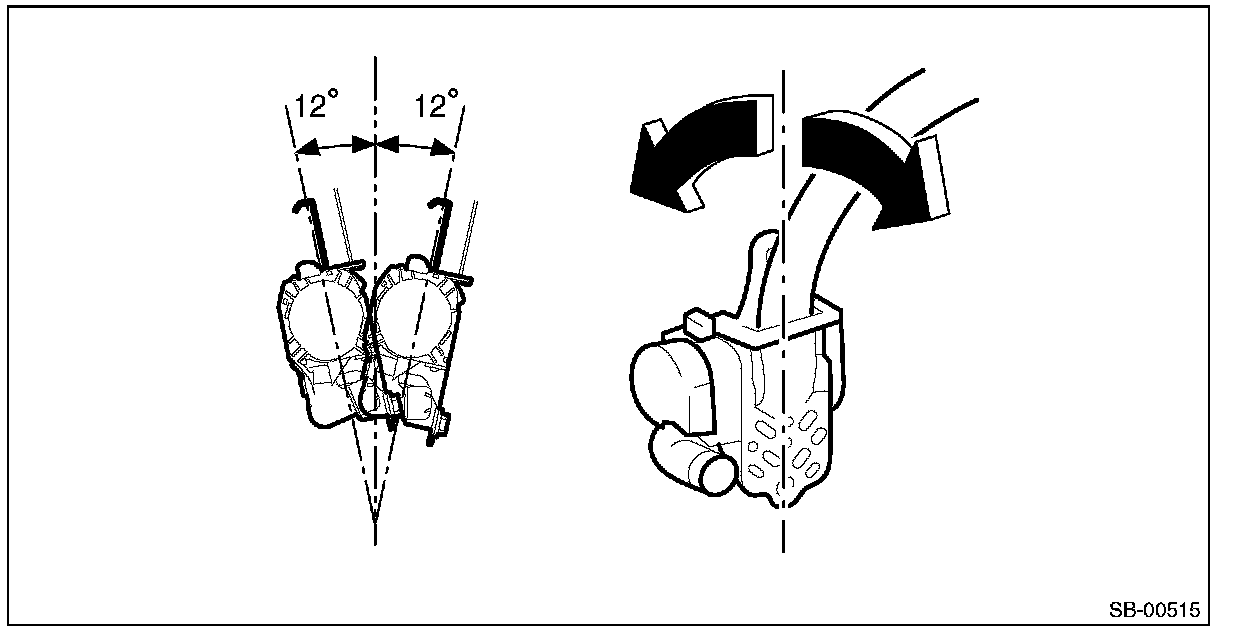

- It does not lock if the inclination angle is 12° or less.

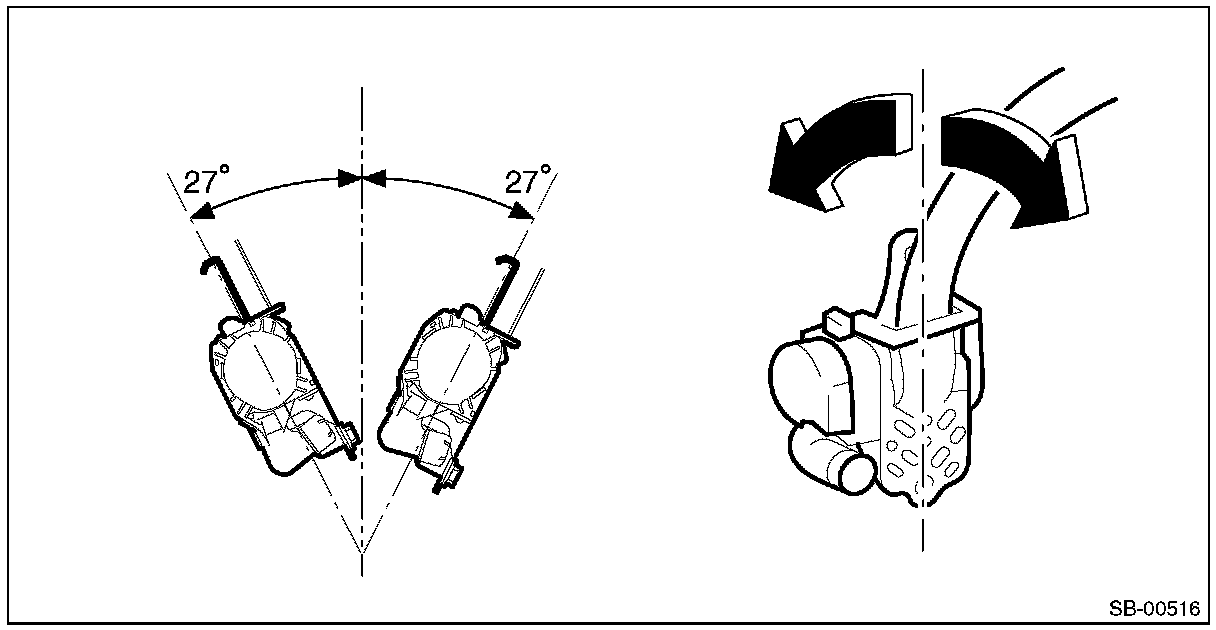

- It remains locked if the inclination angle is 27° or more.






3. If the ELR lock mechanism does not operate correctly, replace the outer belt assembly with a new part.

3. SEAT BELT SWITCH INSPECTION
Preparation tool: Circuit tester

- Driver's side

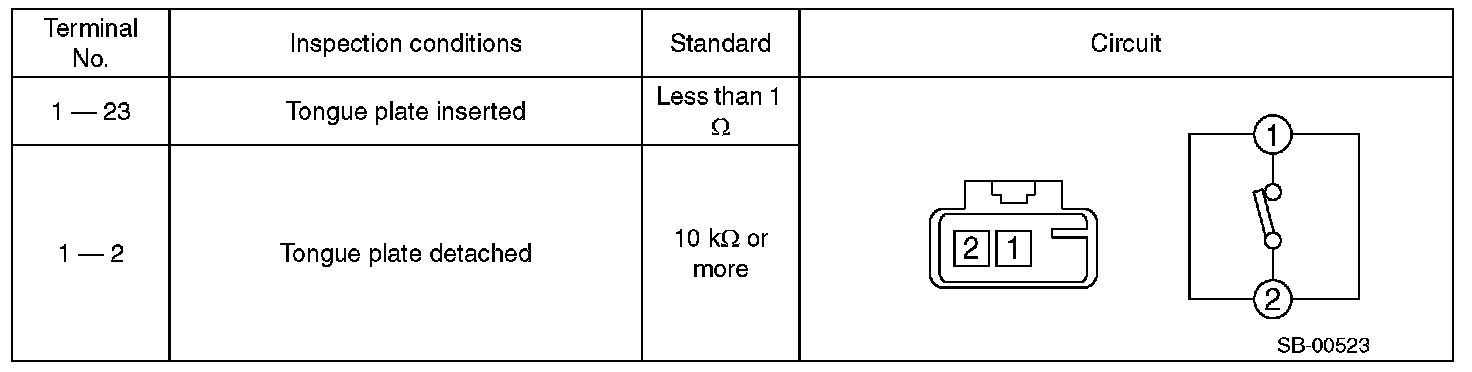

Check the resistance between the terminals when the inner belt ASSY is in each of the following operation conditions.






Replace the inner belt assembly if the inspection result is not within the standard value.

- Passenger's side

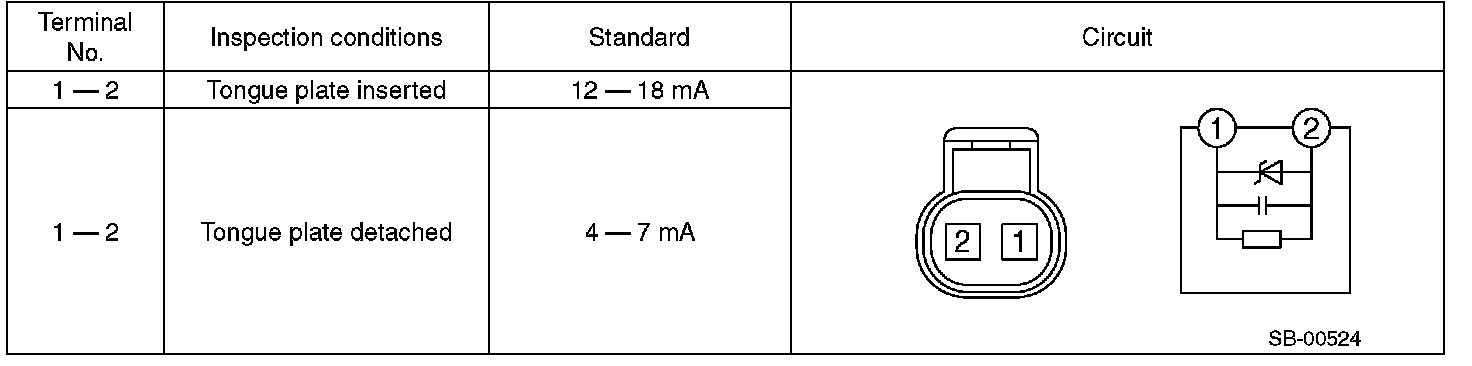

Check the current value between the terminals when the inner belt ASSY is in each of the following operation conditions.






Replace the inner belt assembly if the inspection result is not within the standard value.
