Home >> Subaru >> 2010 >> Outback F6-3.6L DOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Check Power Supply and Ground Circuit

Check Power Supply and Ground Circuit

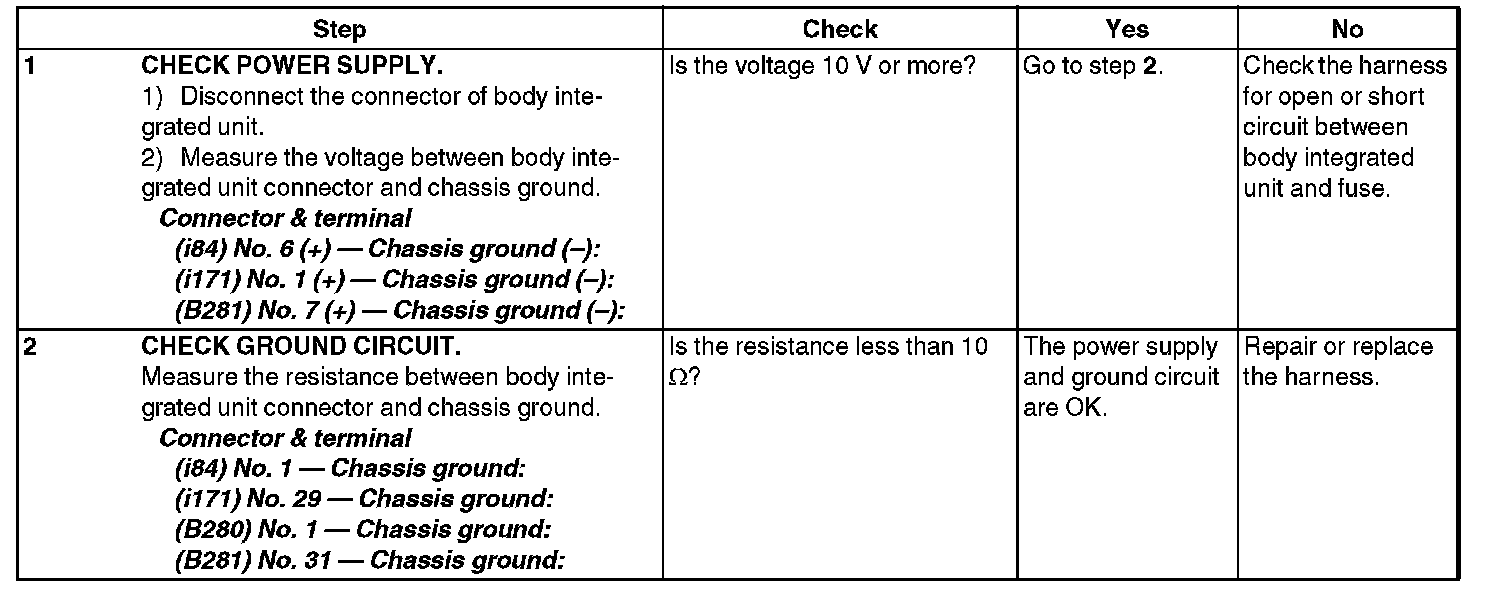

CHECK POWER SUPPLY AND GROUND CIRCUIT

Step 1-2:
