Home >> Subaru >> 2010 >> Outback F6-3.6L DOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Check Door Lock Actuator and Circuit

Check Door Lock Actuator and Circuit

CHECK DOOR LOCK ACTUATOR AND CIRCUIT.

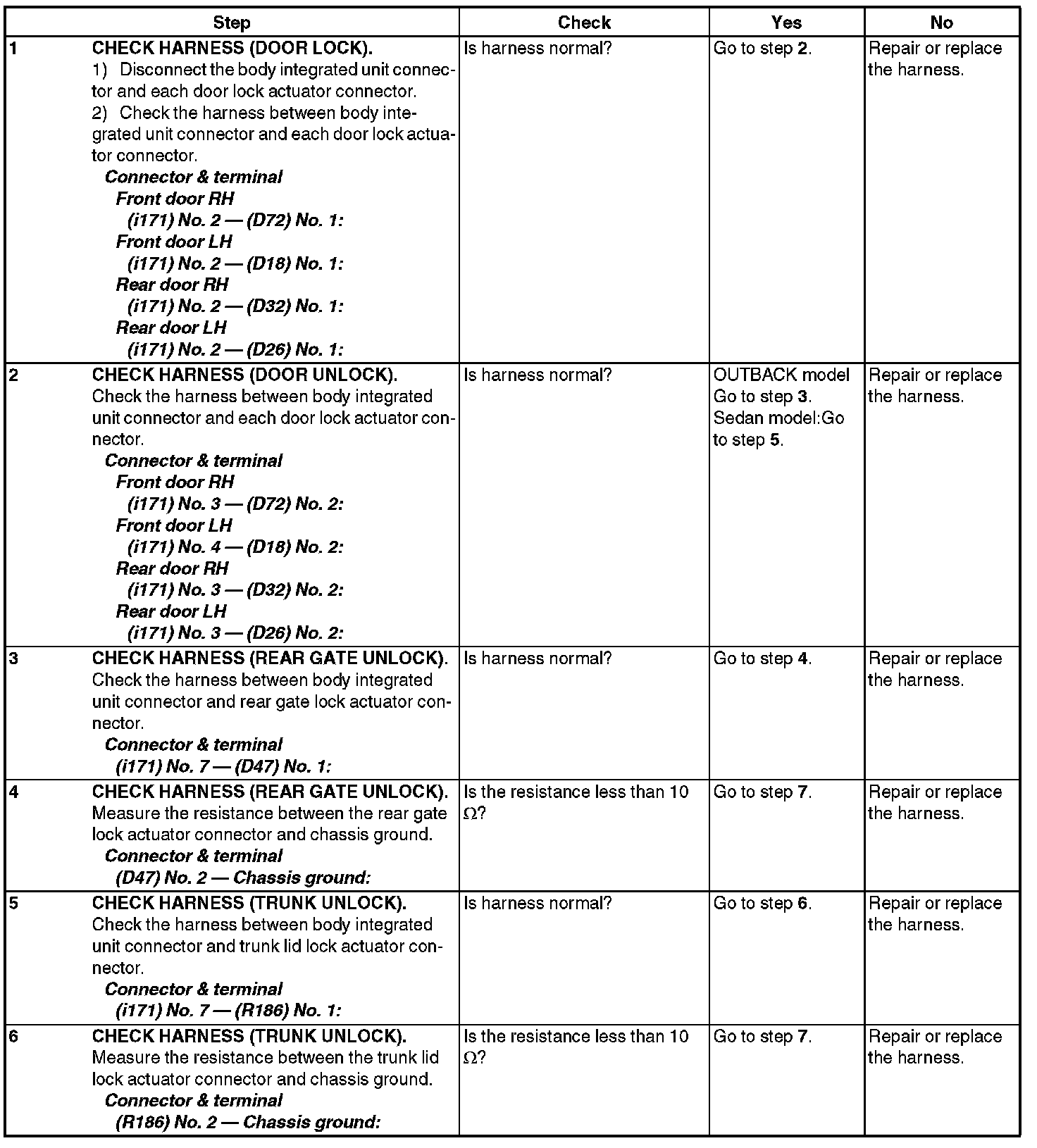

Step 1-6:

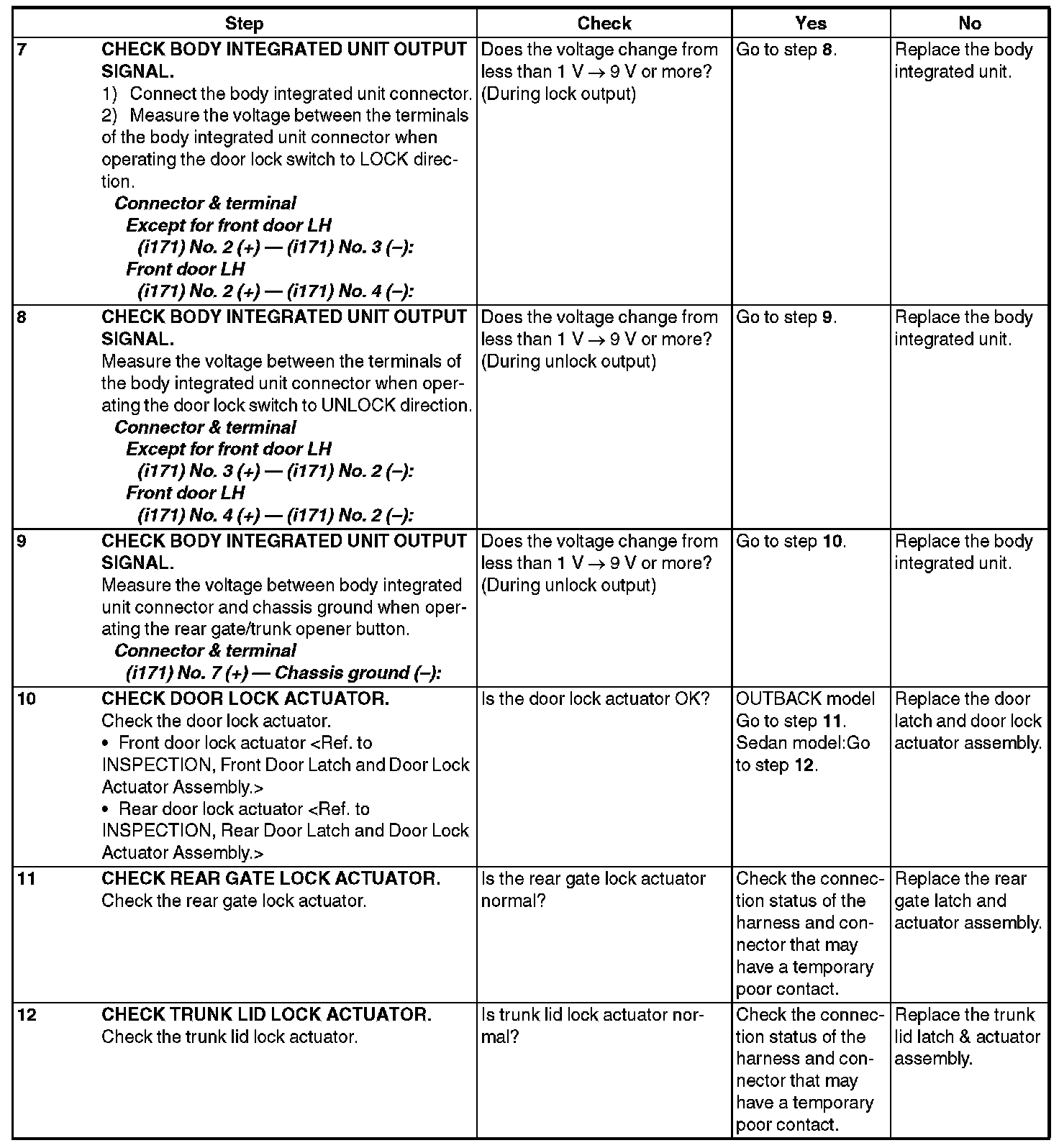

Step 7-12:
