Pinout Values and Diagnostic Parameters
Control Module I/O SignalELECTRICAL SPECIFICATION

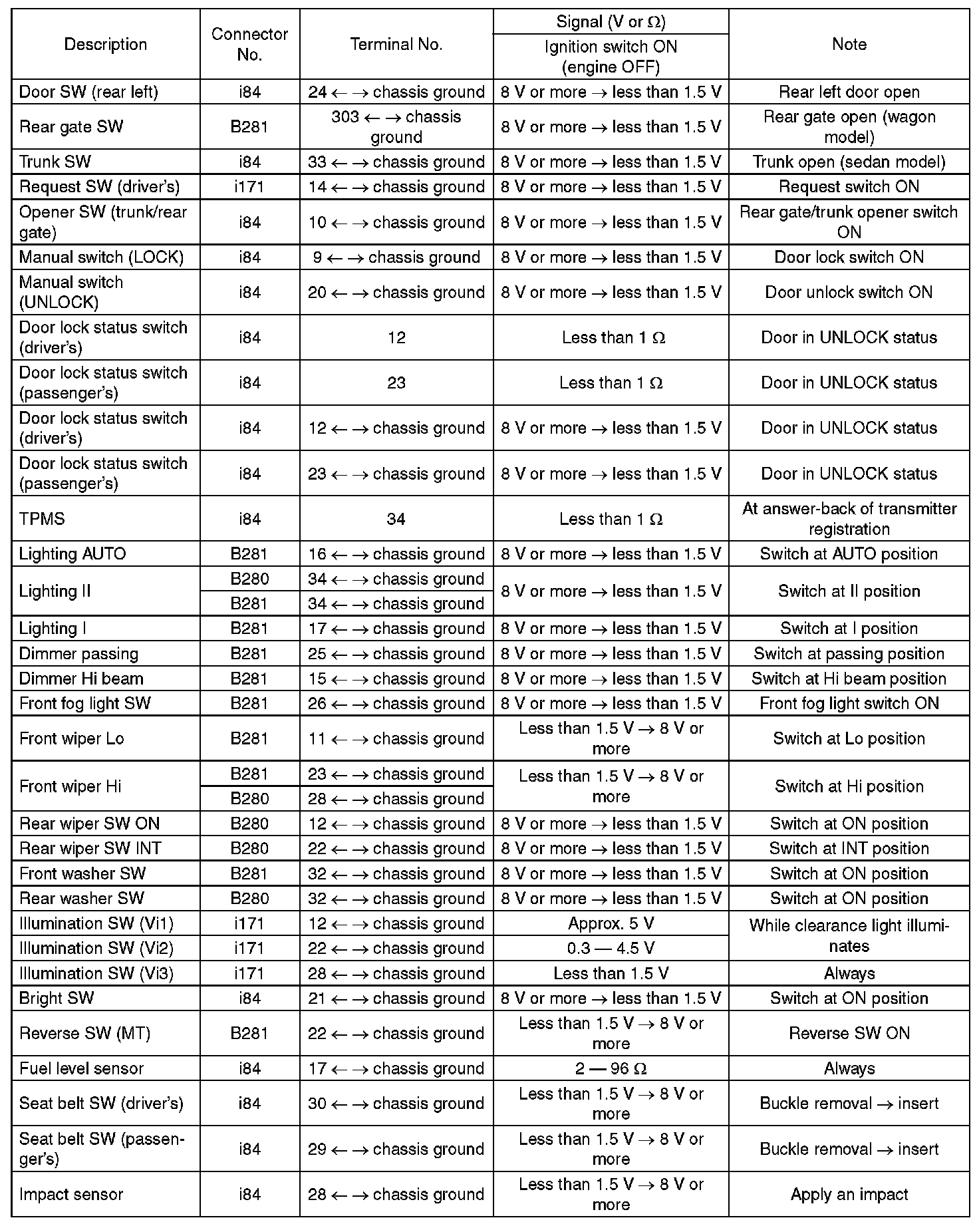

Control Module I/O Signal (Part 1):

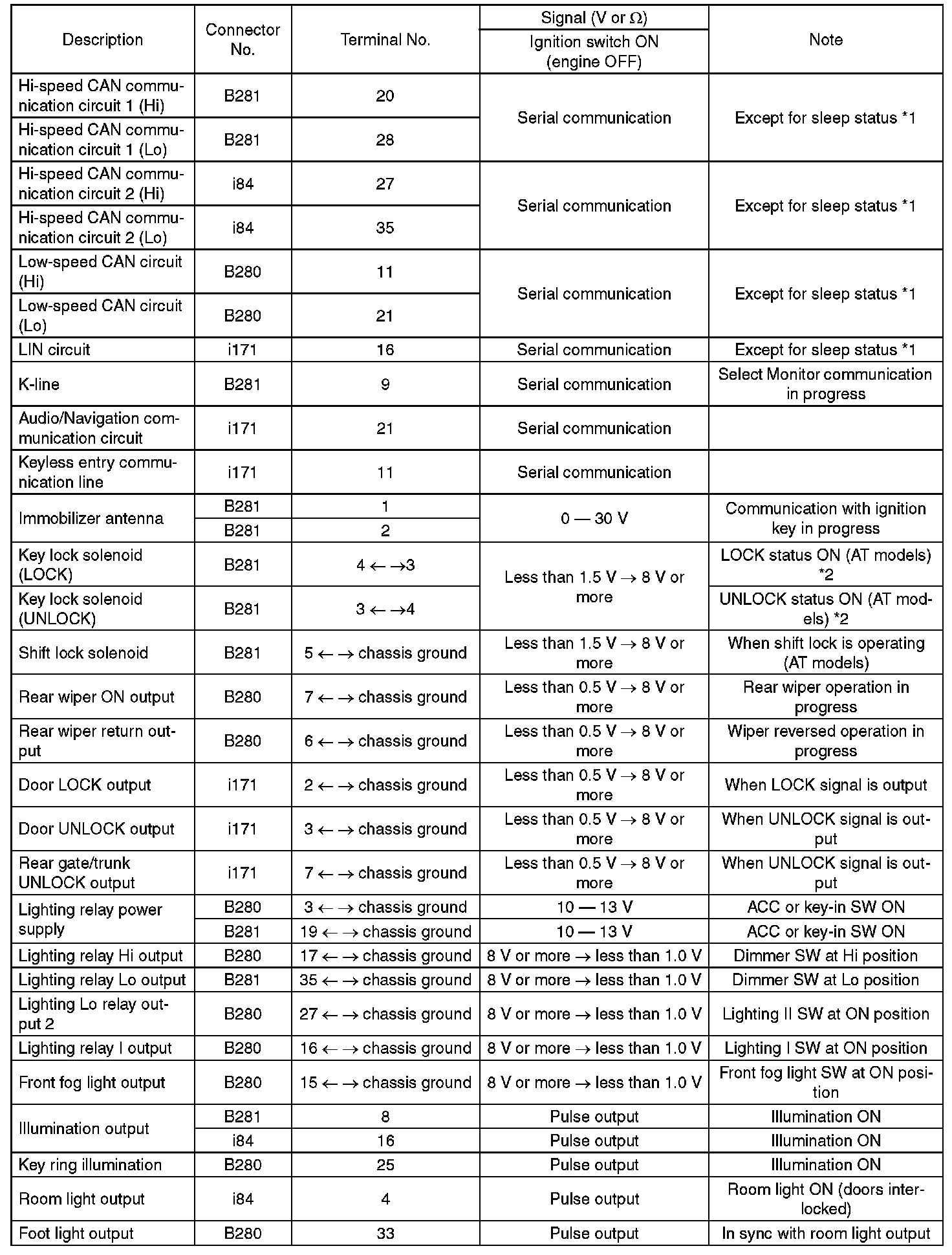

Control Module I/O Signal (Part 2):

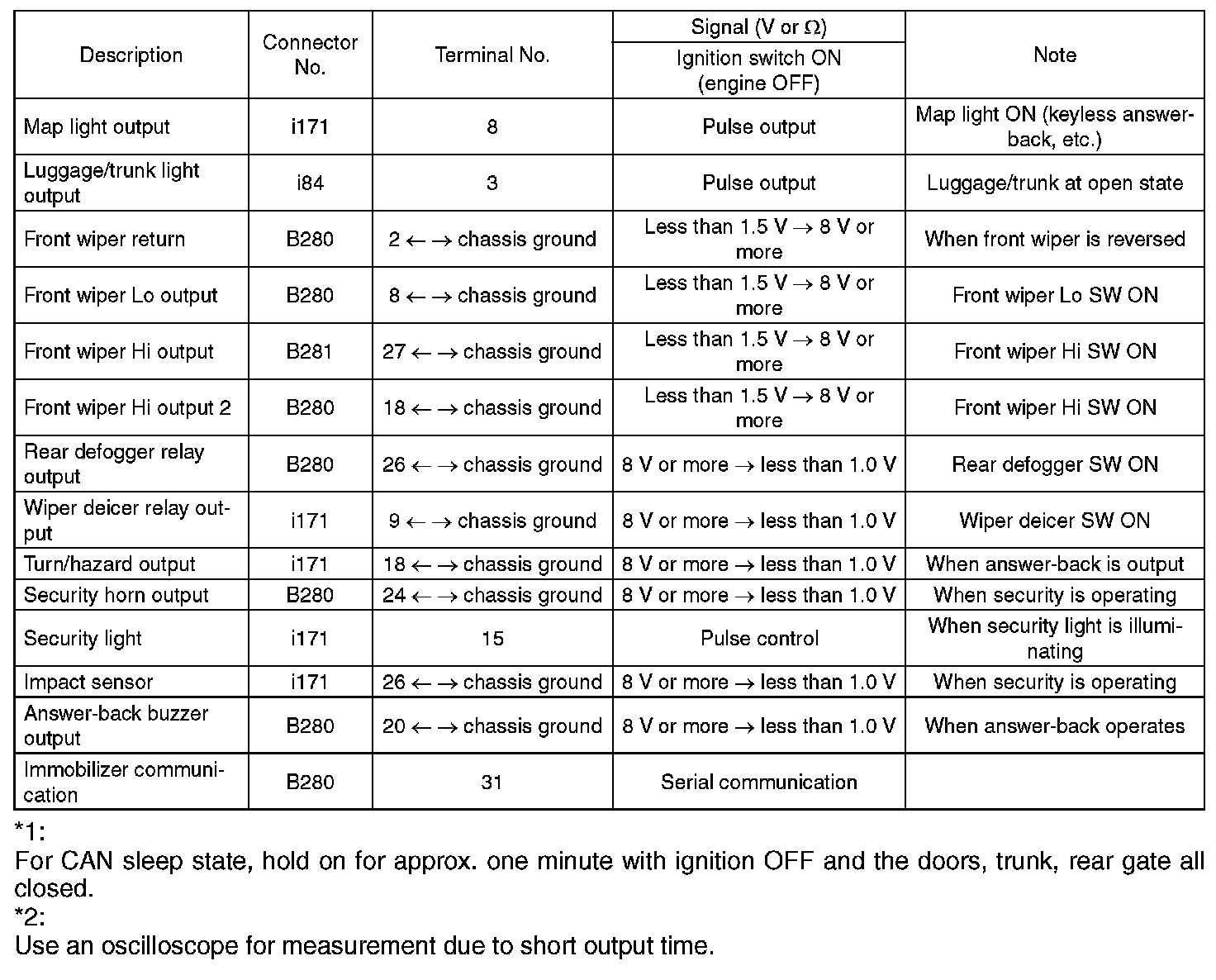

Control Module I/O Signal (Part 3):

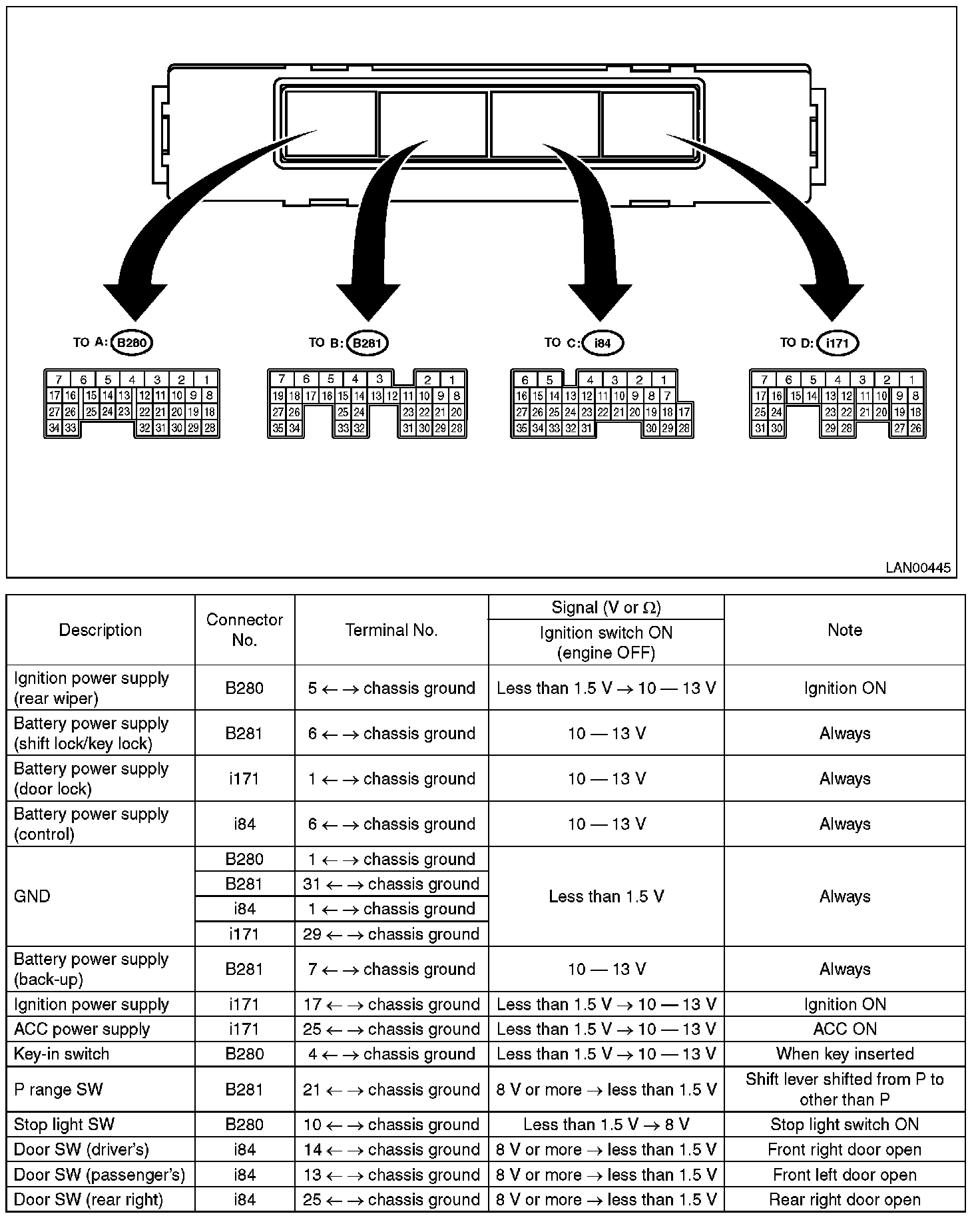

Control Module I/O Signal (Part 4):
ELECTRICAL SPECIFICATION
