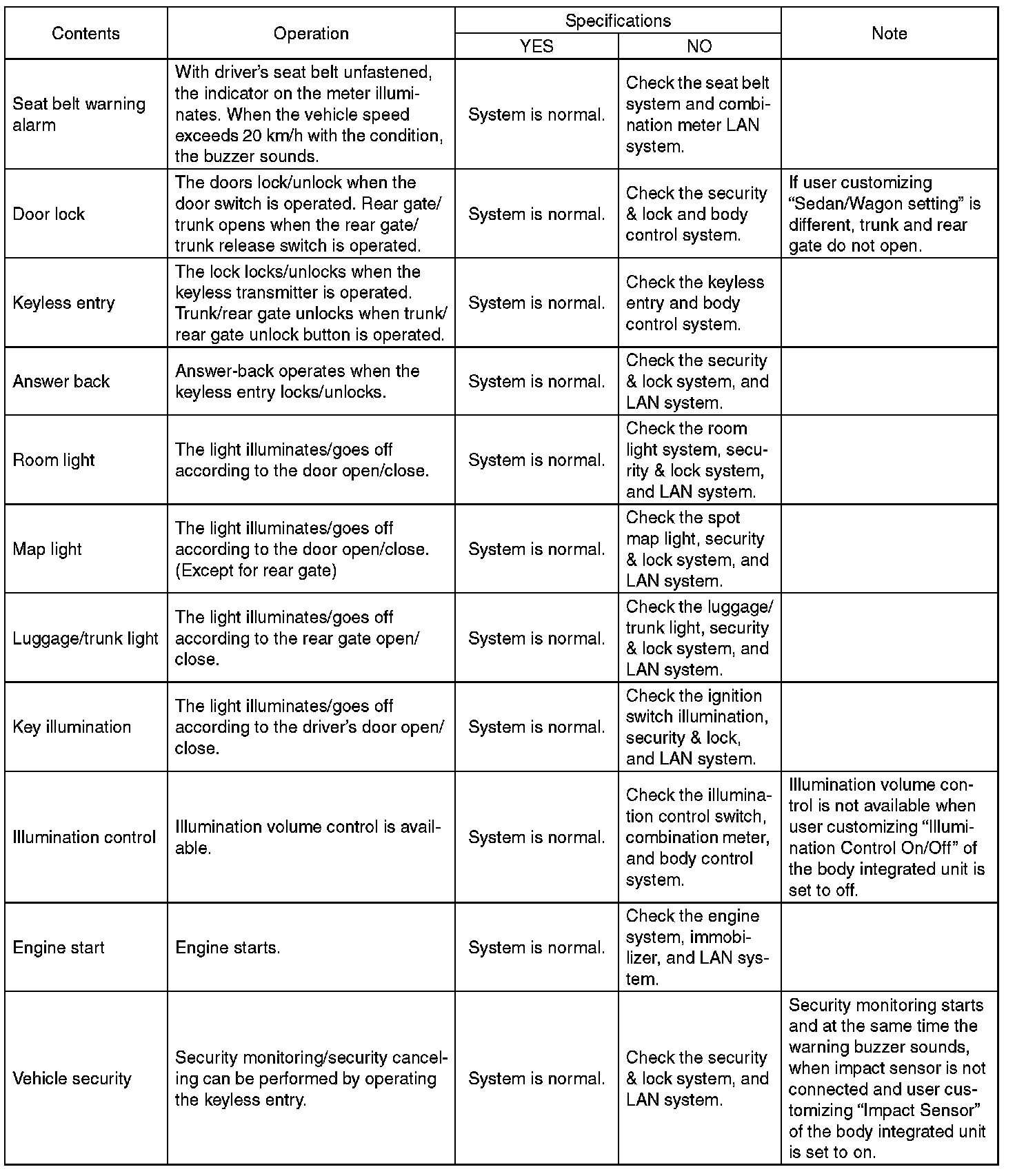

General Diagnostic Table
General Diagnostic Table
General Diagnostic Table
INSPECTION
Using the Subaru Select Monitor, read DTC, or check the following data on the current data display to make judgements.
