Immobilizer (Diagnostics)

Diagnostics Chart for Security Indicator Light

INSPECTION

1. CHECK SECURITY INDICATOR LIGHT CIRCUIT

WIRING DIAGRAM:

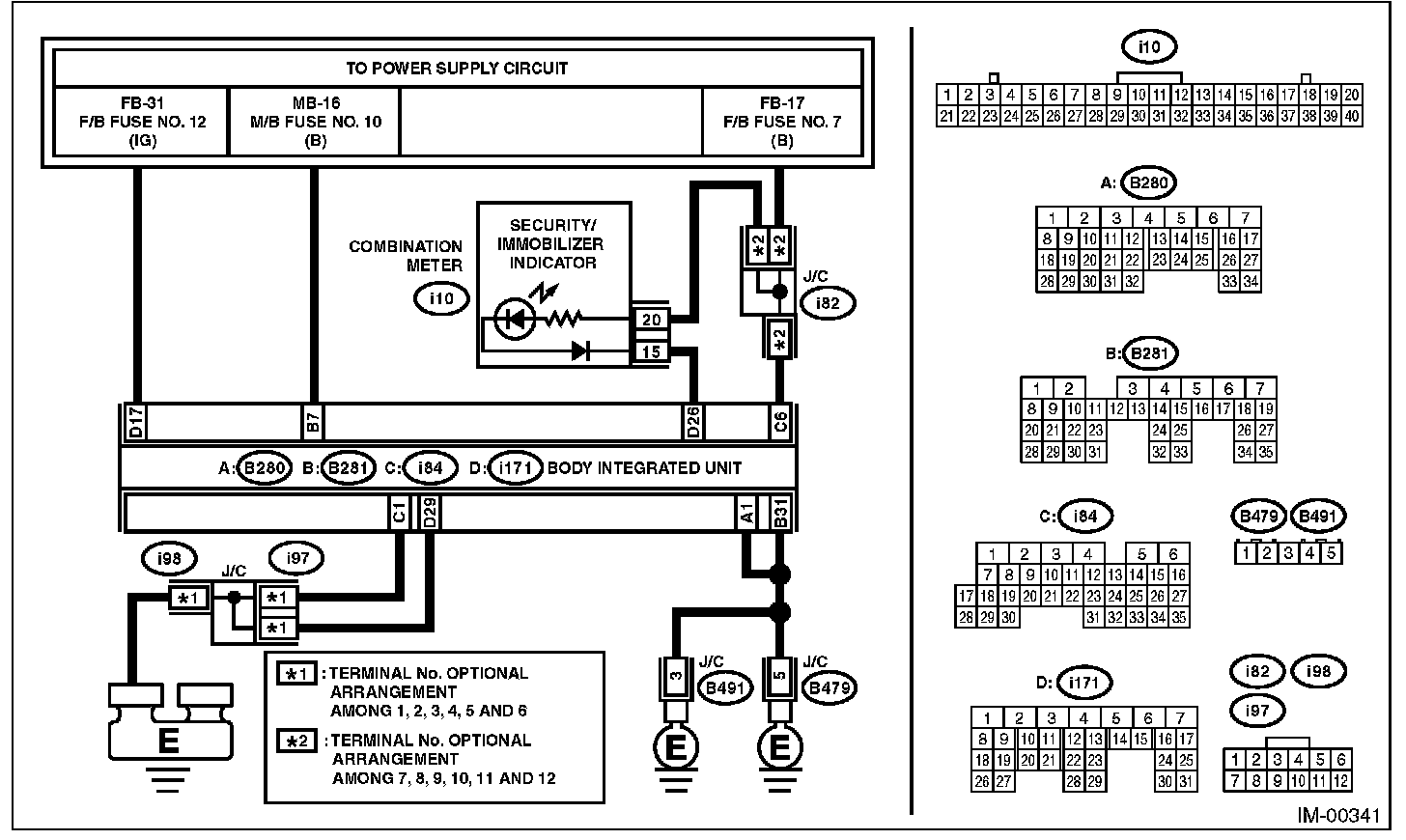

Wiring Diagram:

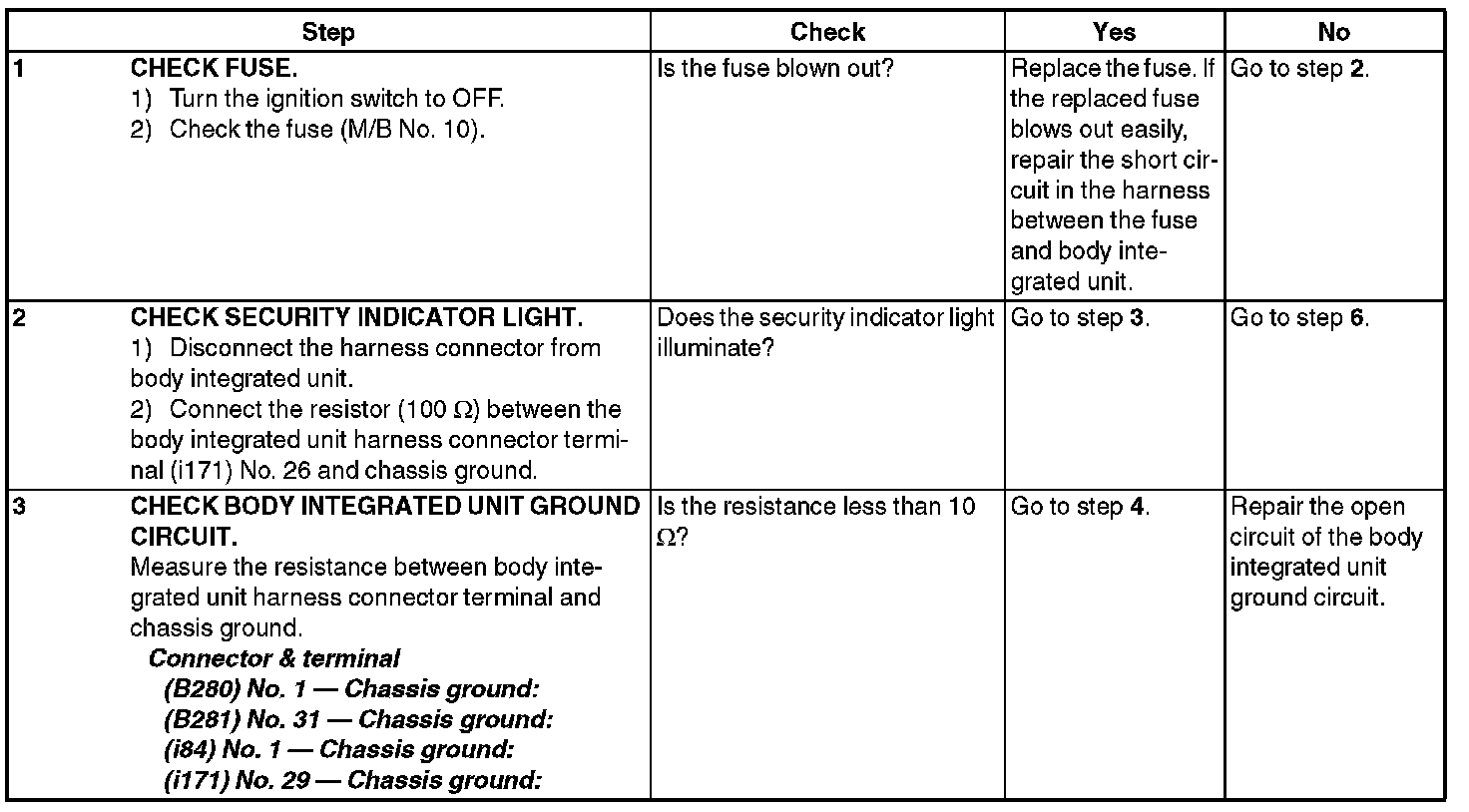

Step 1-3:

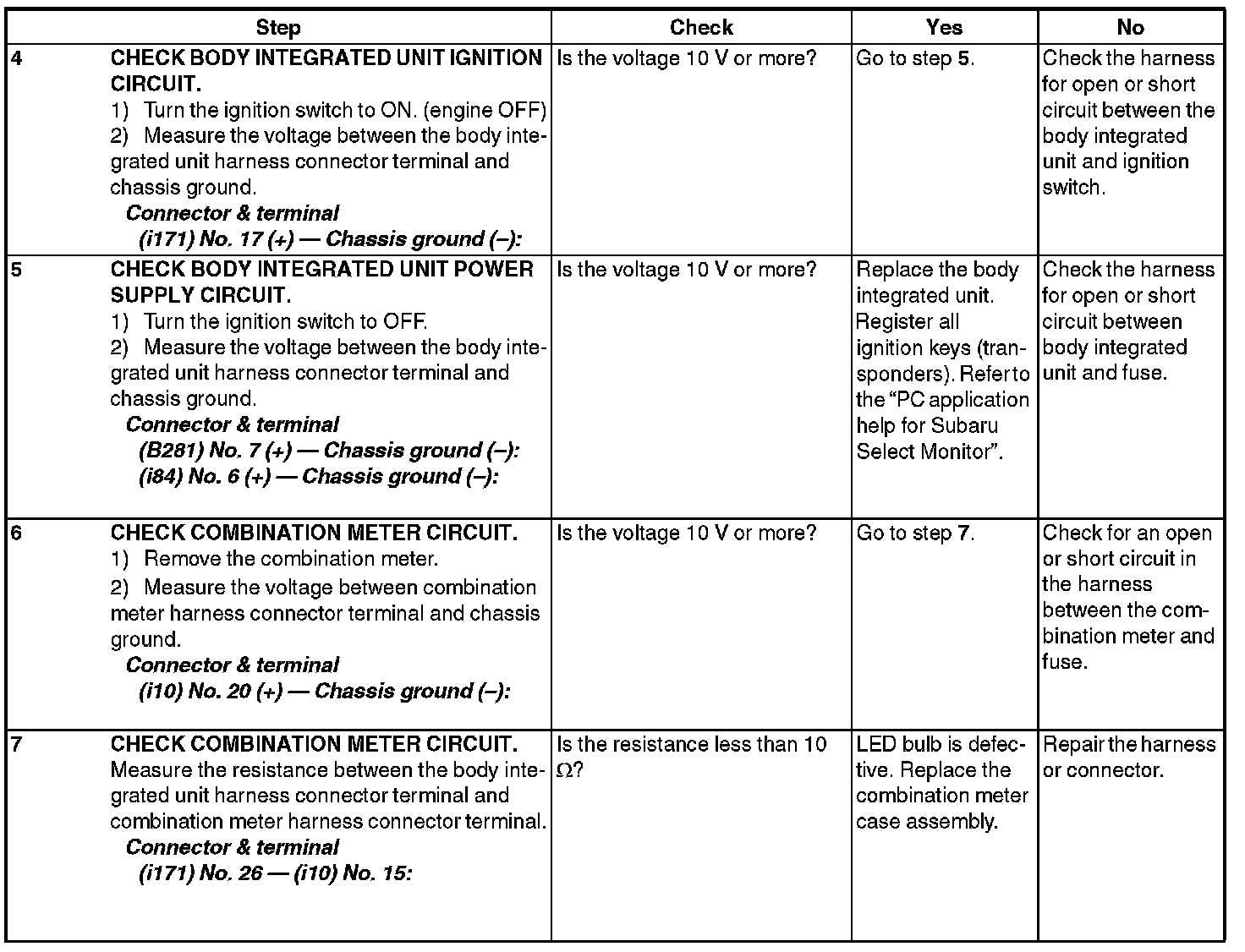

Step 4-7:






2. CHECK KEY SWITCH CIRCUIT

WIRING DIAGRAM:

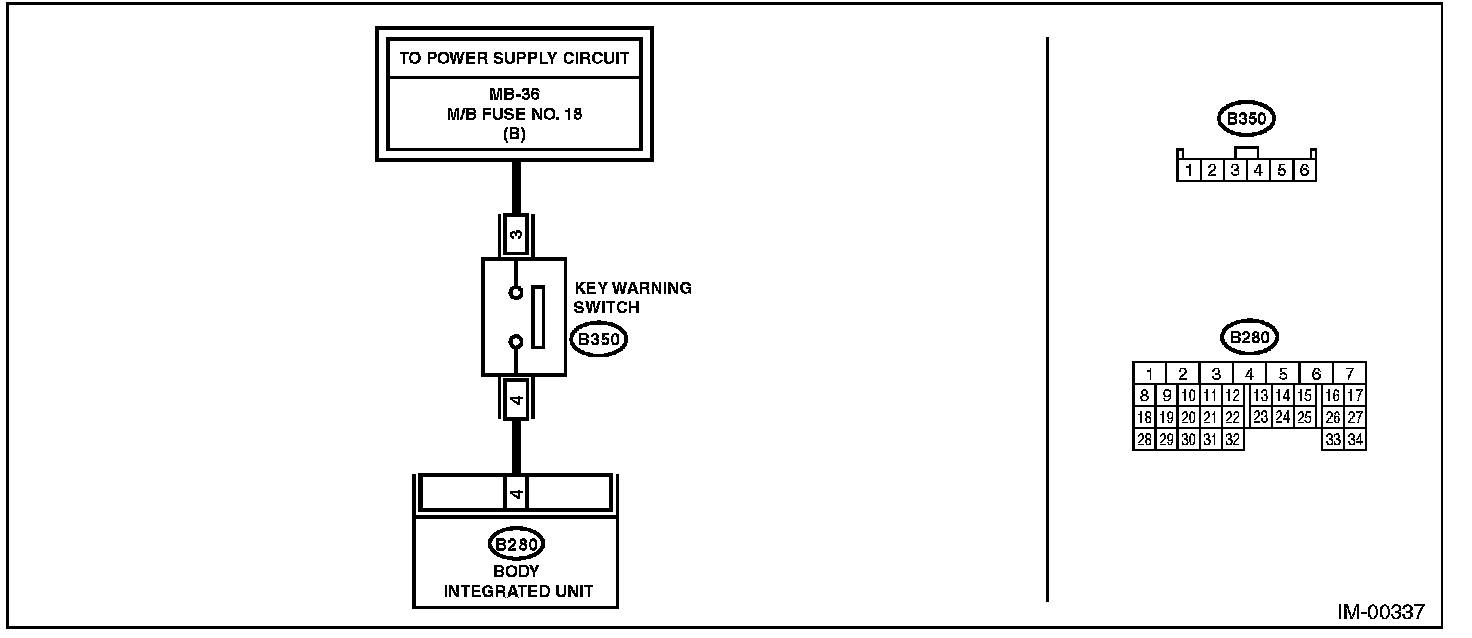

Wiring Diagram:

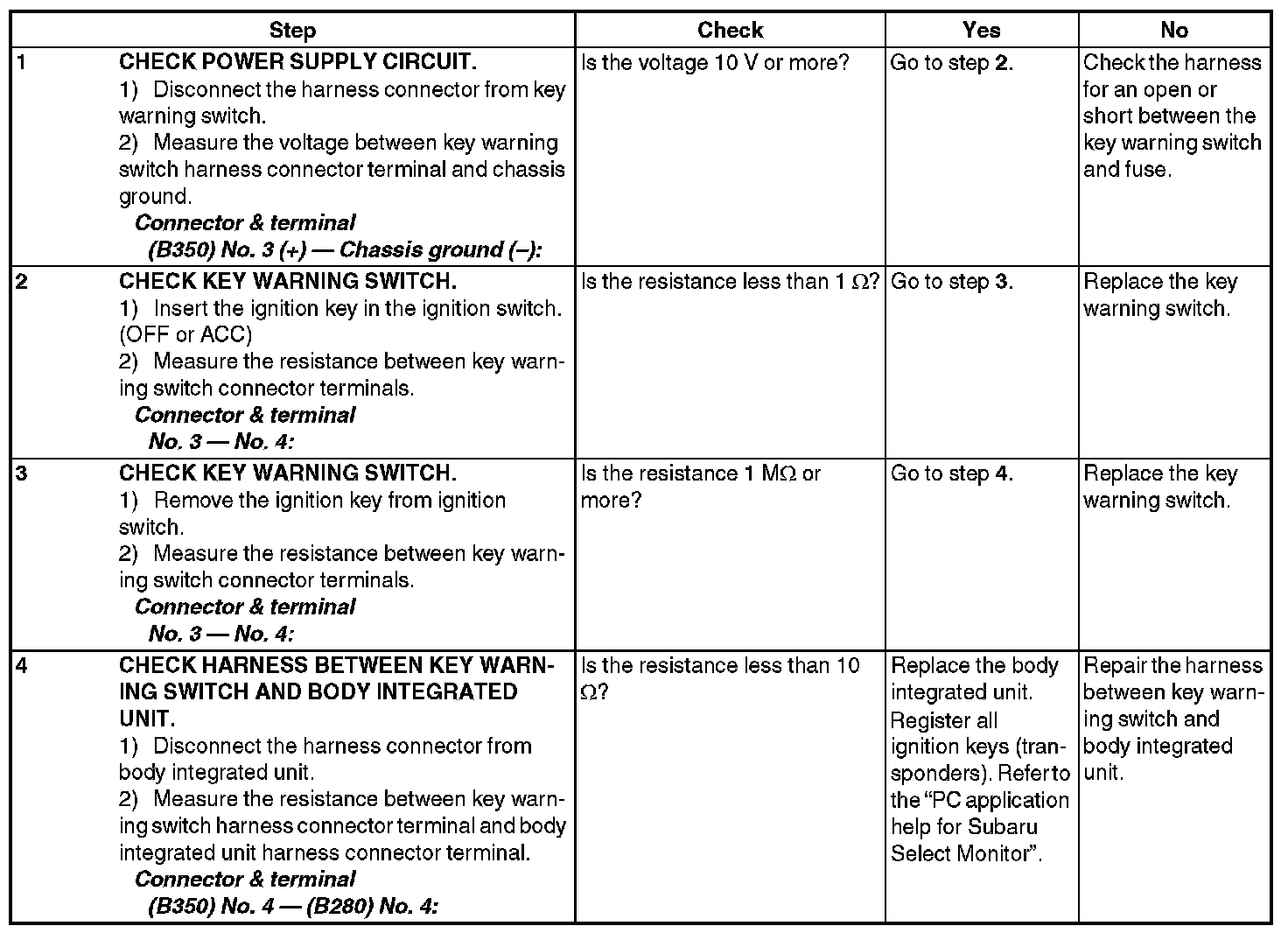

Step 1-4:
