Keyless Entry Transmitter: Service and Repair

Keyless Transmitter

REMOVAL

1. KEYLESS TRANSMITTER BATTERY

CAUTION: To prevent static electricity damage to the keyless transmitter printed circuit board, touch the steel area of building with hand to discharge static electricity carried on body or clothes before disassembling the keyless transmitter.

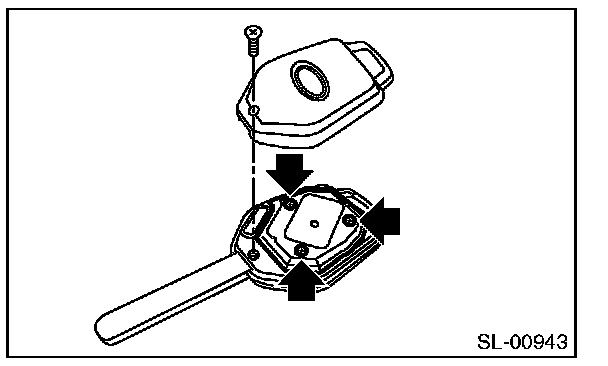

Remove the screw from the keyless transmitter, then remove the keyless transmitter battery.






INSTALLATION

1. KEYLESS TRANSMITTER BATTERY

Install each part in the reverse order of removal.
