U1212

DTC U1212 CAN-HS TCM DATA ABNORMAL

DTC DETECTING CONDITION:
Received error data from TCM.

TROUBLE SYMPTOM:
SPORT indicator light blinks.

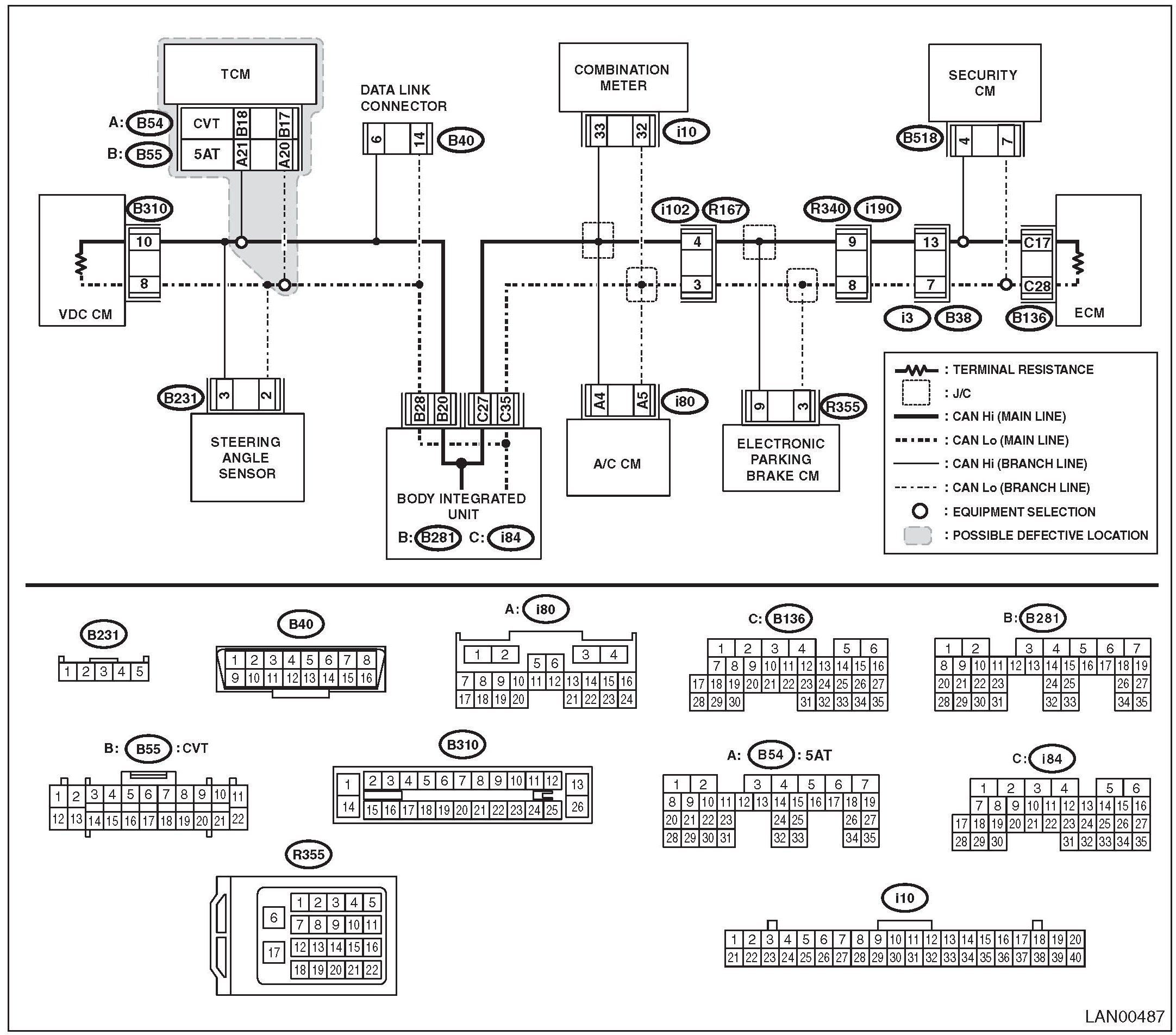

WIRING DIAGRAM:

Wiring Diagram:

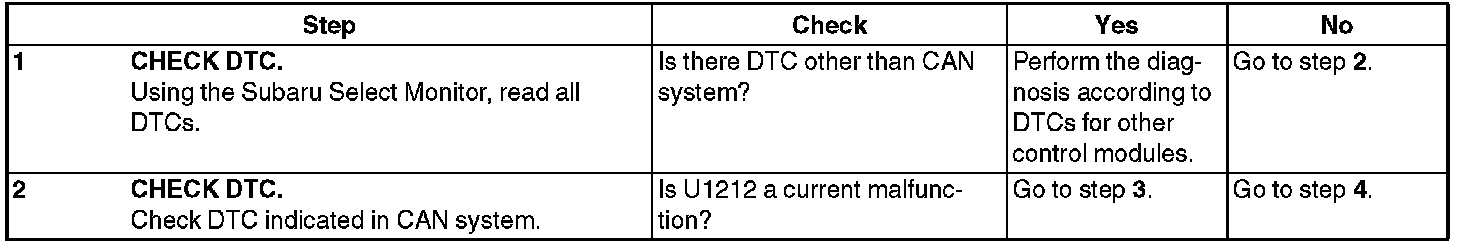

Step 1-2:

Step 3-5:
