U1211

DTC U1211 CAN-HS ECM DATA ABNORMAL

DTC DETECTING CONDITION:
Defective data from ECM.

TROUBLE SYMPTOM:
Defective data on CAN communication occurs.

WIRING DIAGRAM:

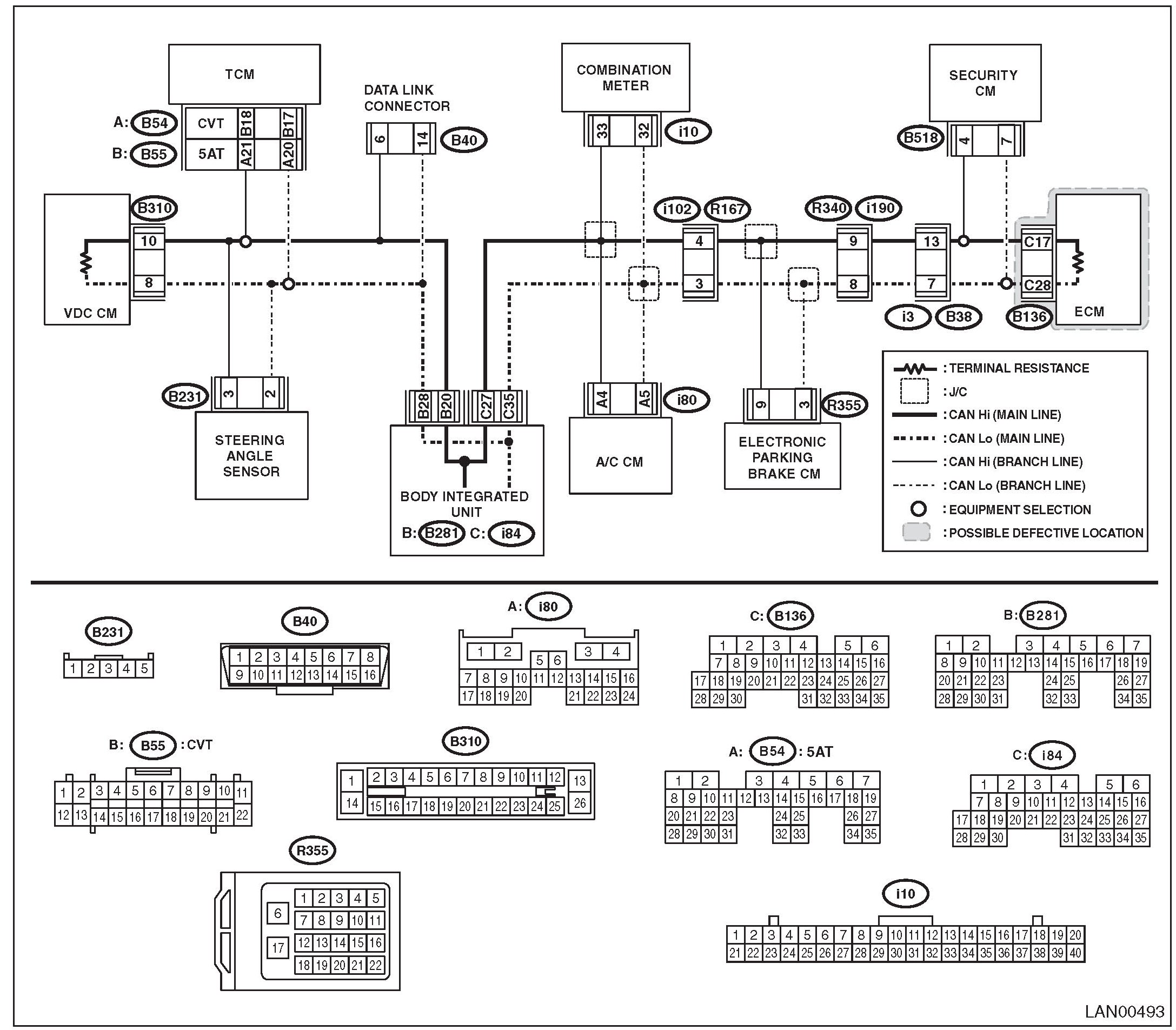

Wiring Diagram:

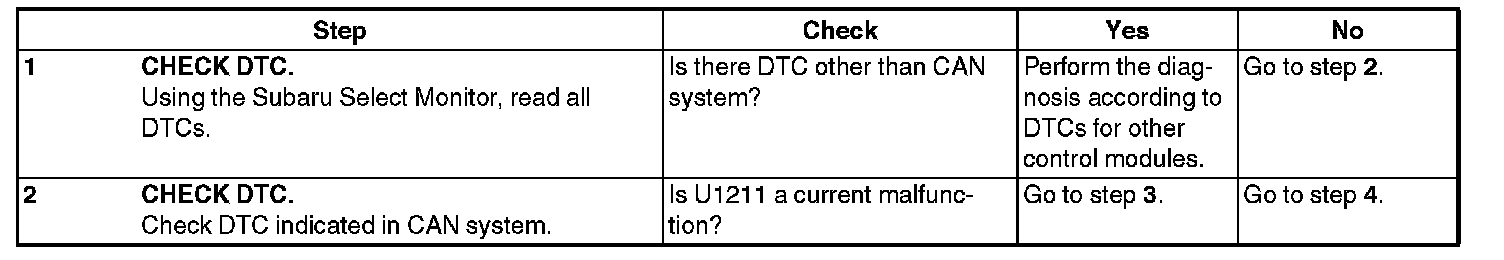

Step 1-2:

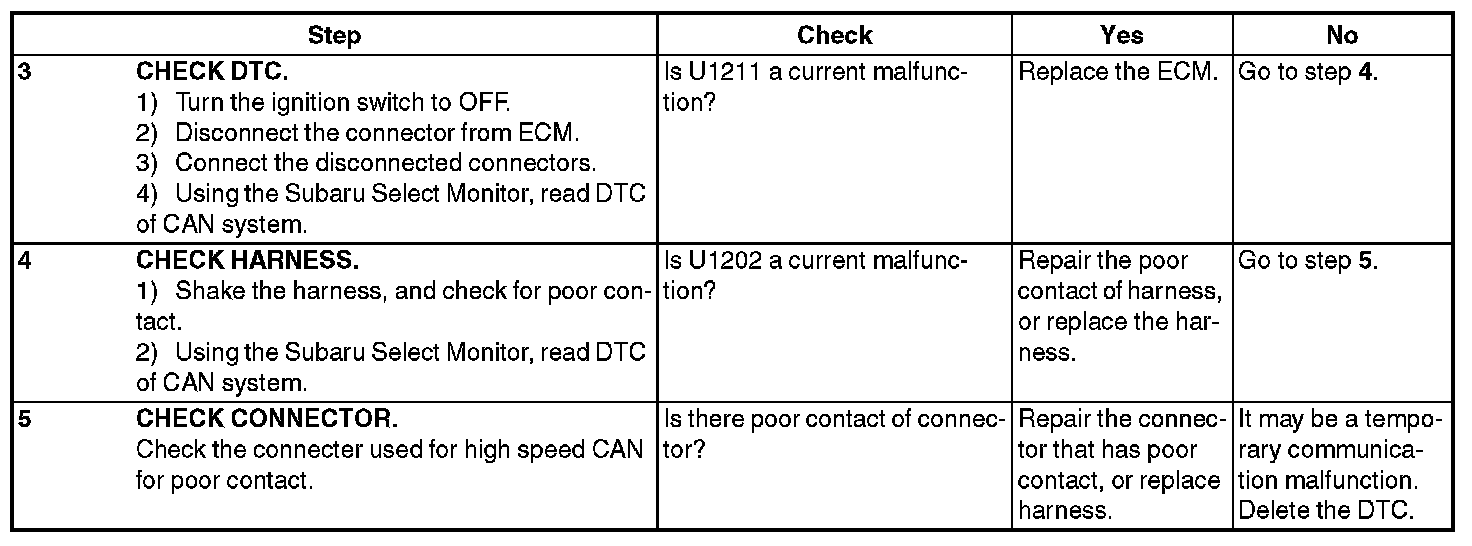

Step 3-5:
