P1817

DTC P1817 SPORTS MODE SWITCH CIRCUIT (MANUAL SWITCH)

DTC DETECTING CONDITION:
Input signal circuit of manual mode switch is open or shorted.

TROUBLE SYMPTOM
^ Manual mode can not be set.
^ Shift indicator light displays when "N" -> "D" is selected.

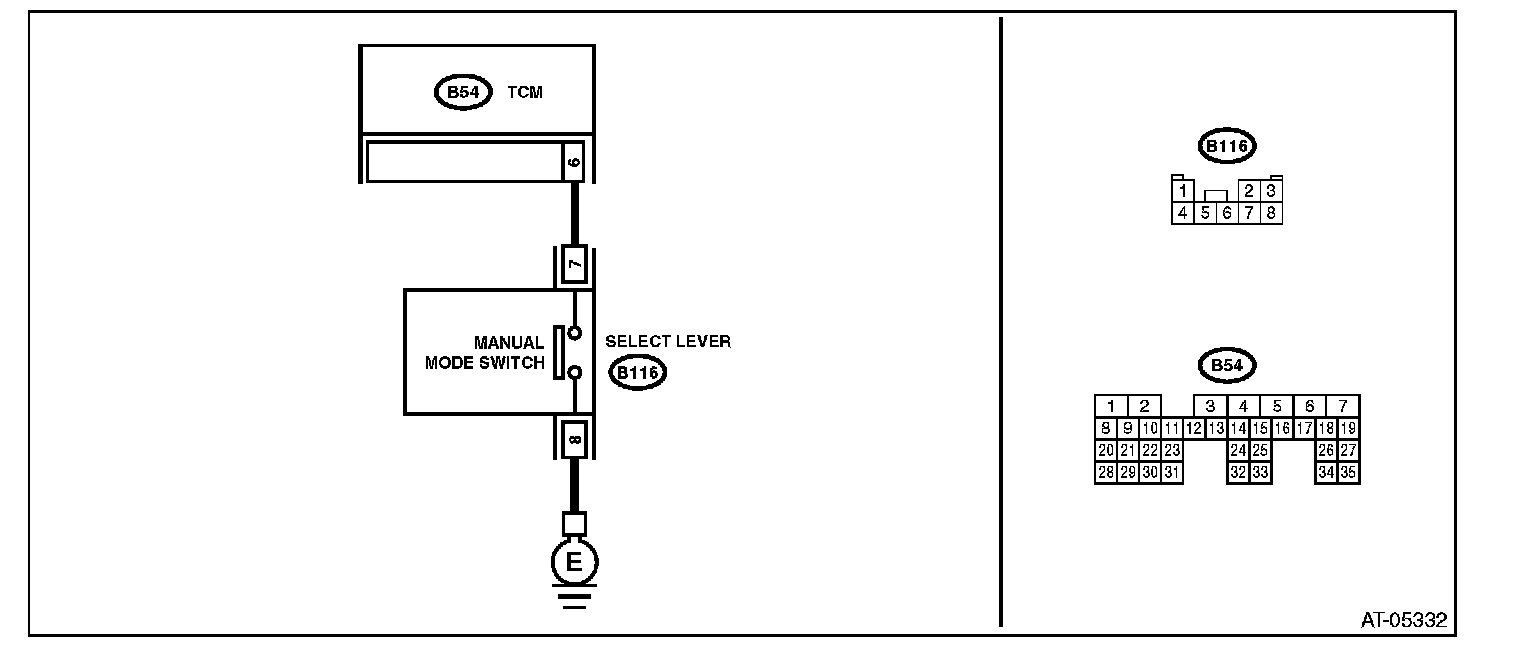

Wiring Diagram:

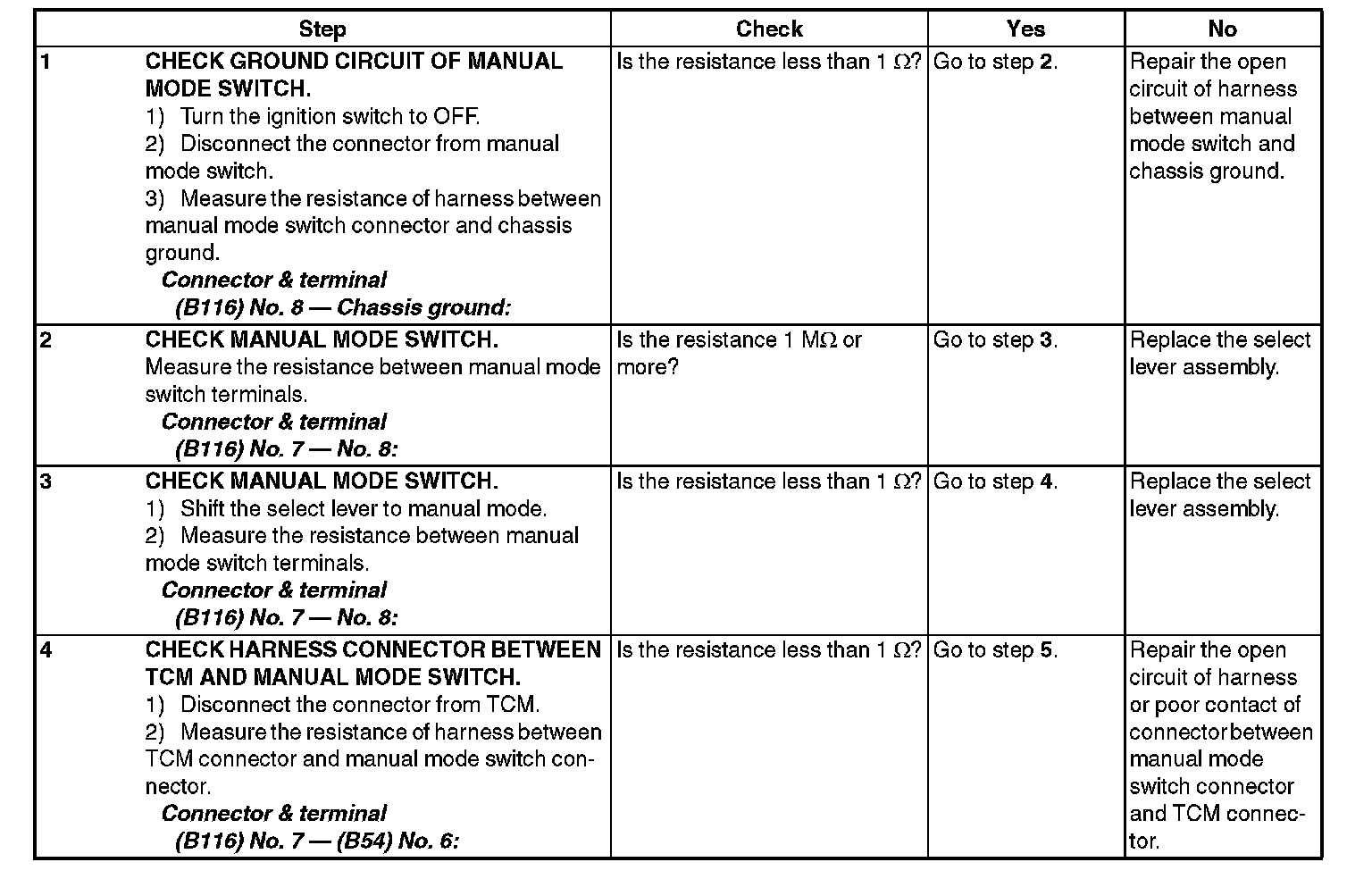

Step 1-4:

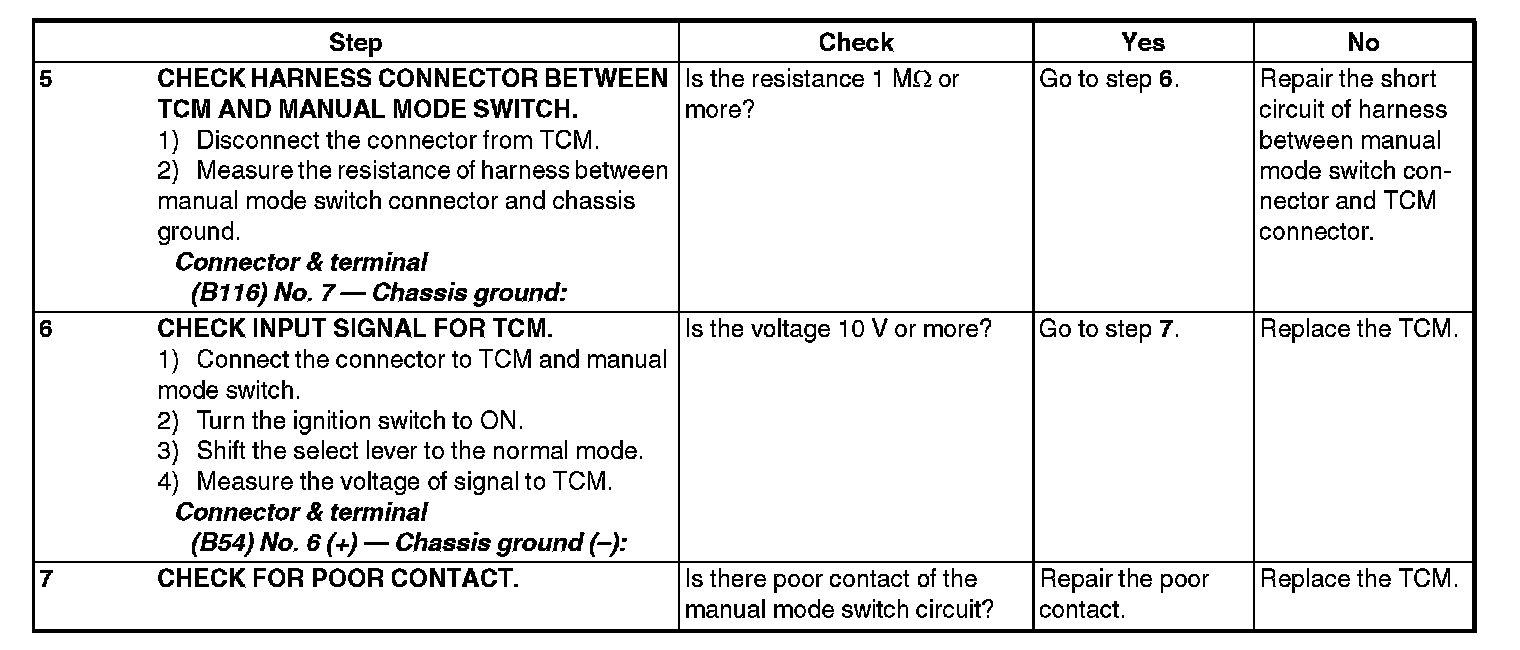

Step 5-7:
