P1602

DTC P1602 CONTROL MODULE PROGRAMMING ERROR

DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION P1602

TROUBLE SYMPTOM:
- Engine keeps running at higher speed than specified idle speed.
- Engine keeps running at a lower speed than the specified idle speed.
- Engine stalls.

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode, and Inspection Mode Preparation For the Inspection Mode

WIRING DIAGRAM:

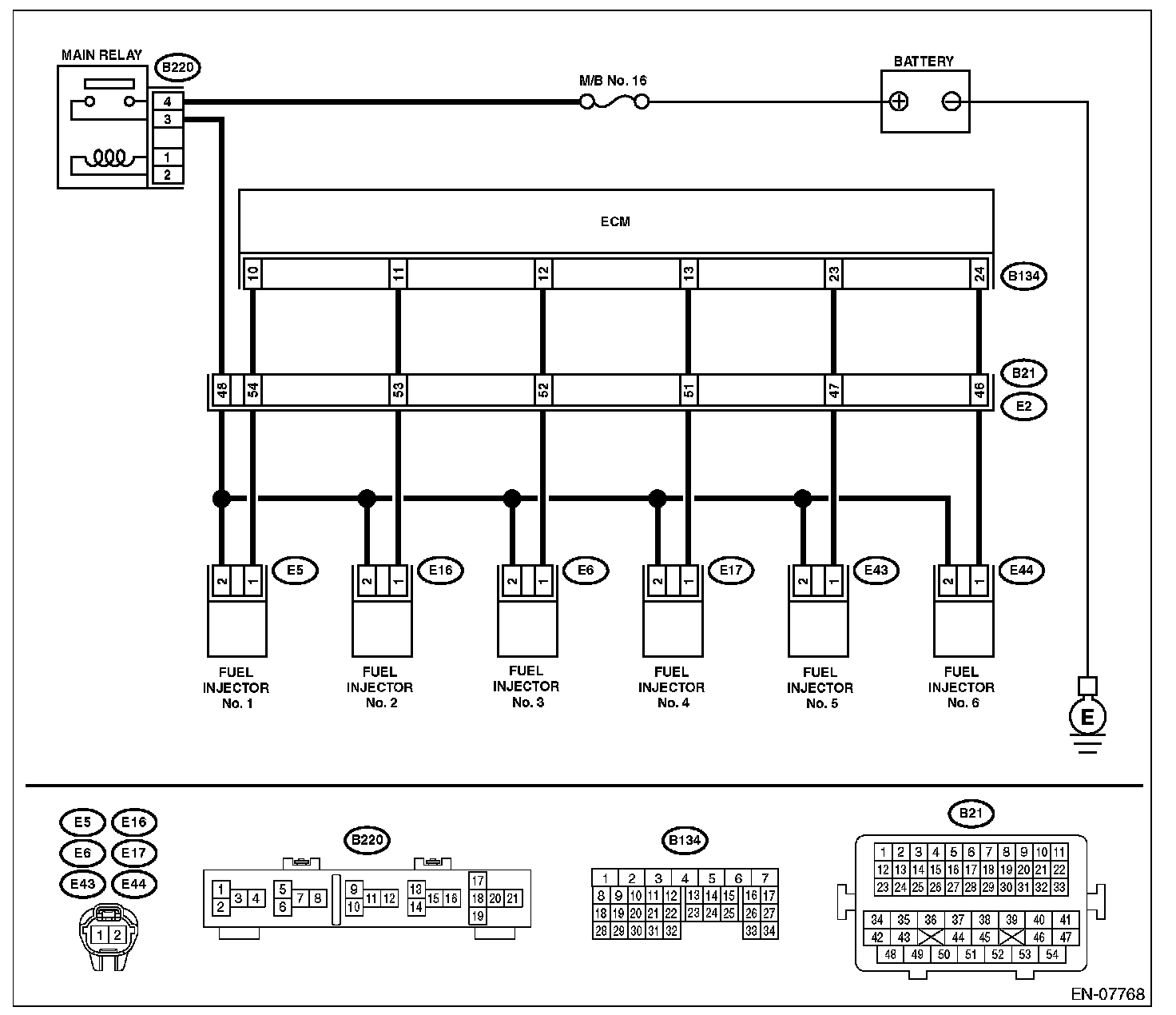

Wiring Diagram (Part 1):

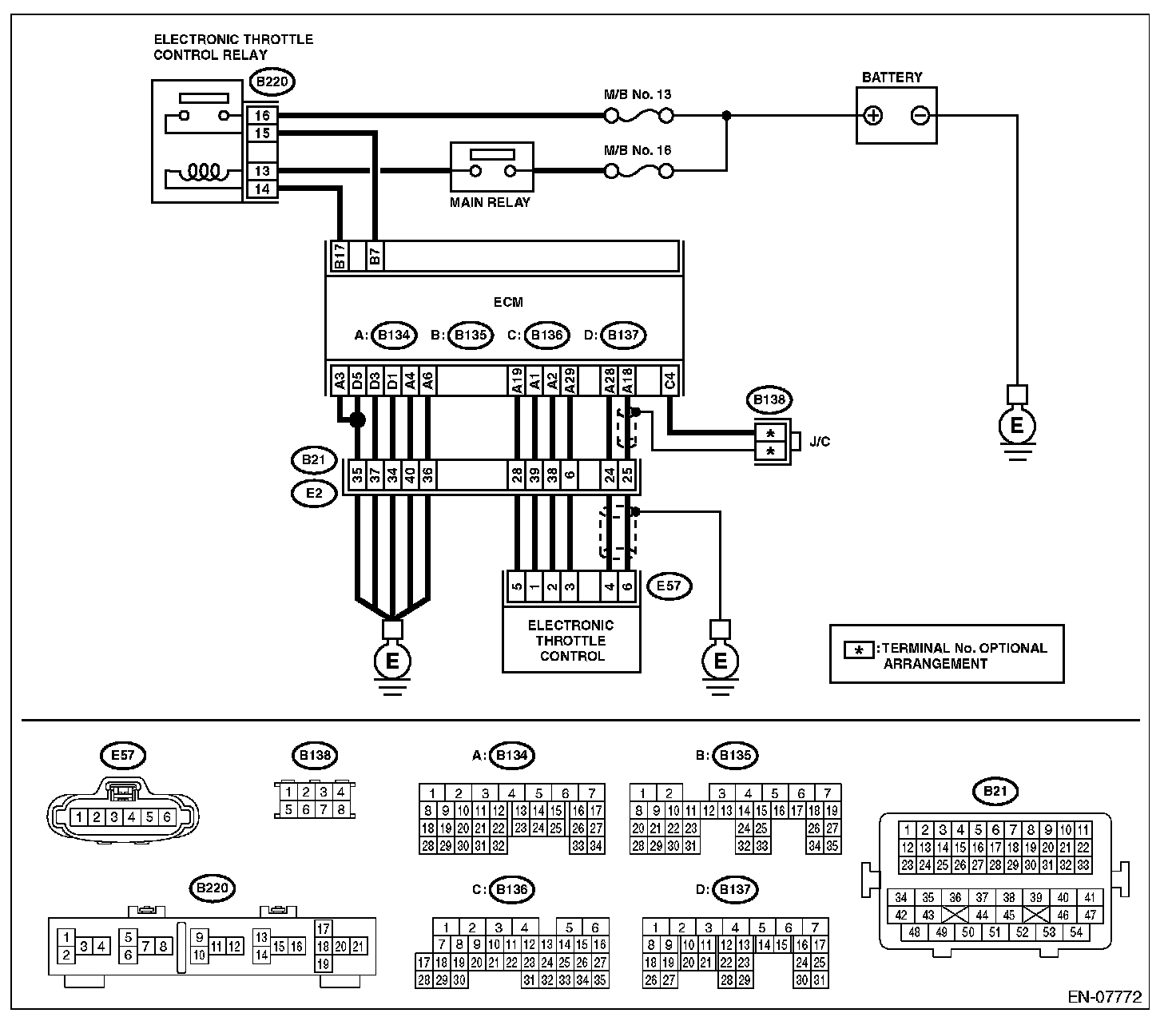

Wiring Diagram (Part 2):

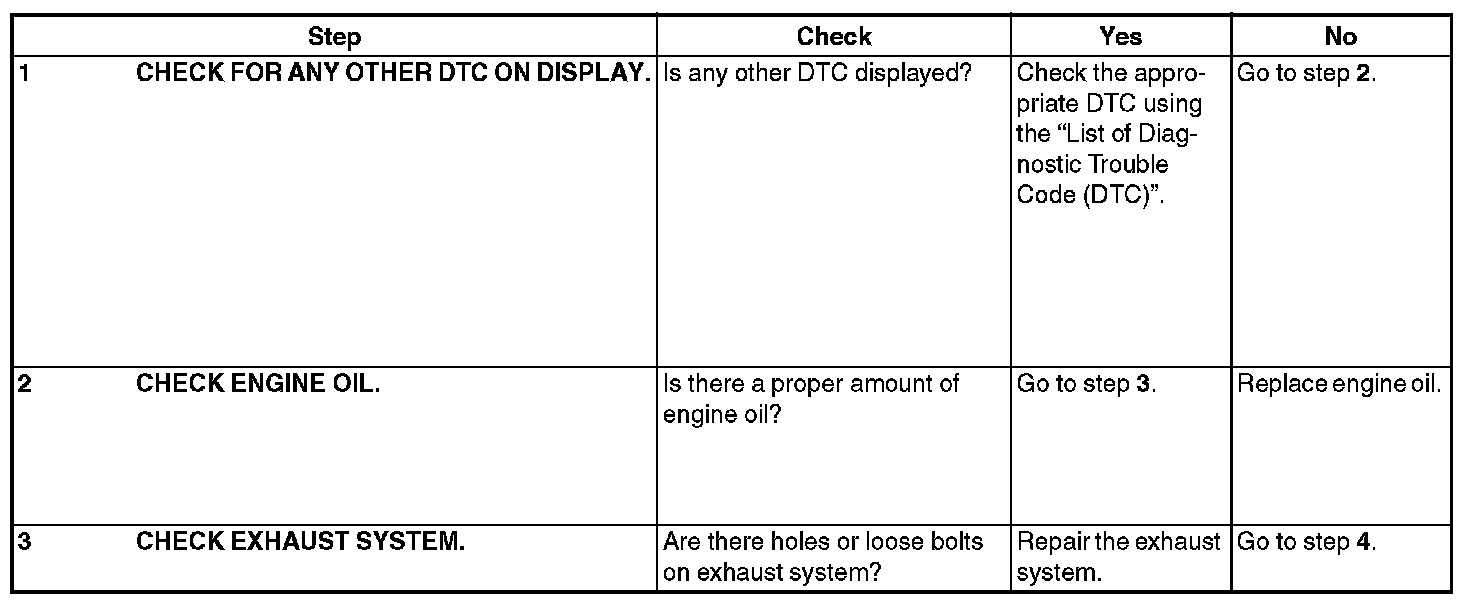

Step 1-3:

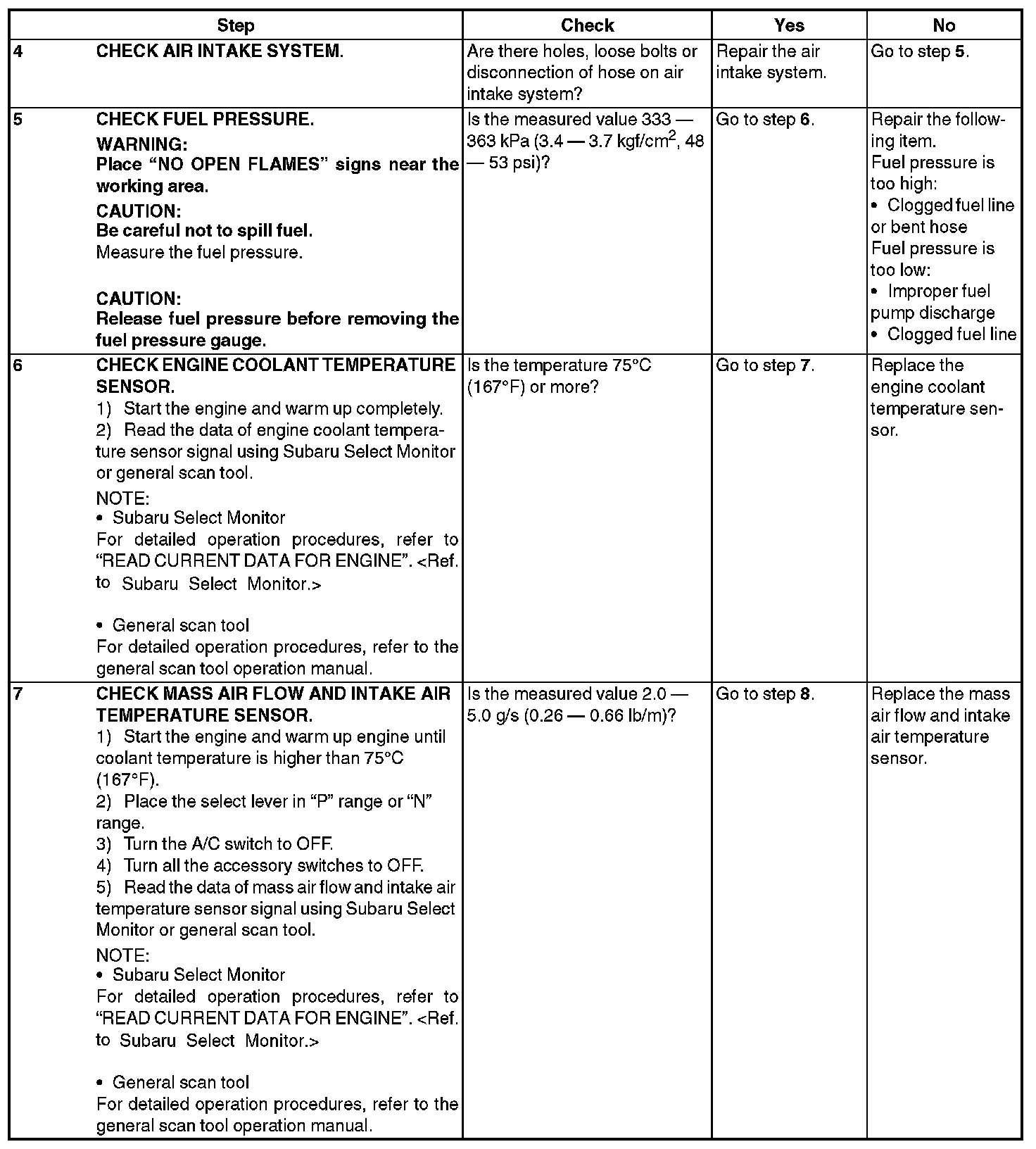

Step 4-7:

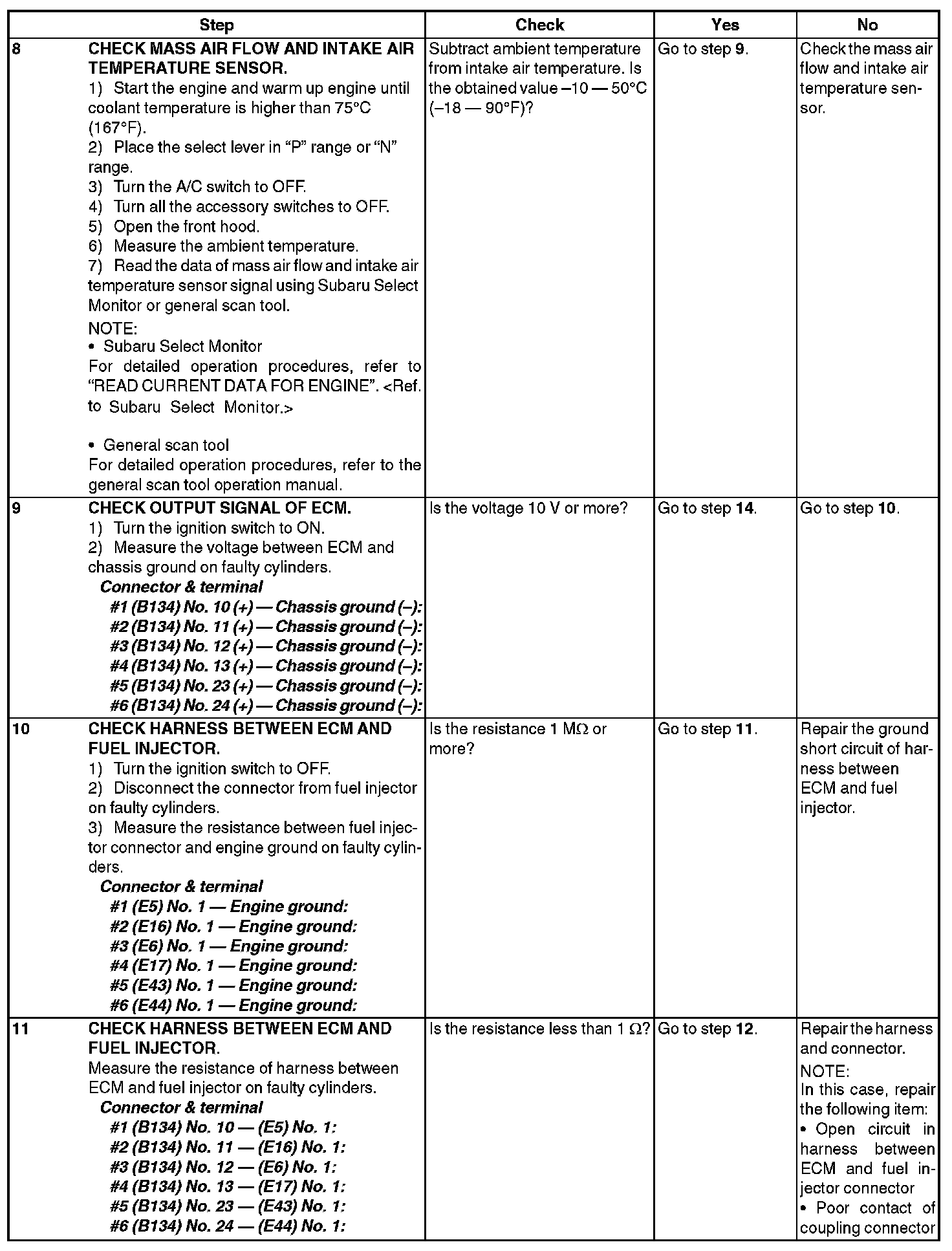

Step 8-11:

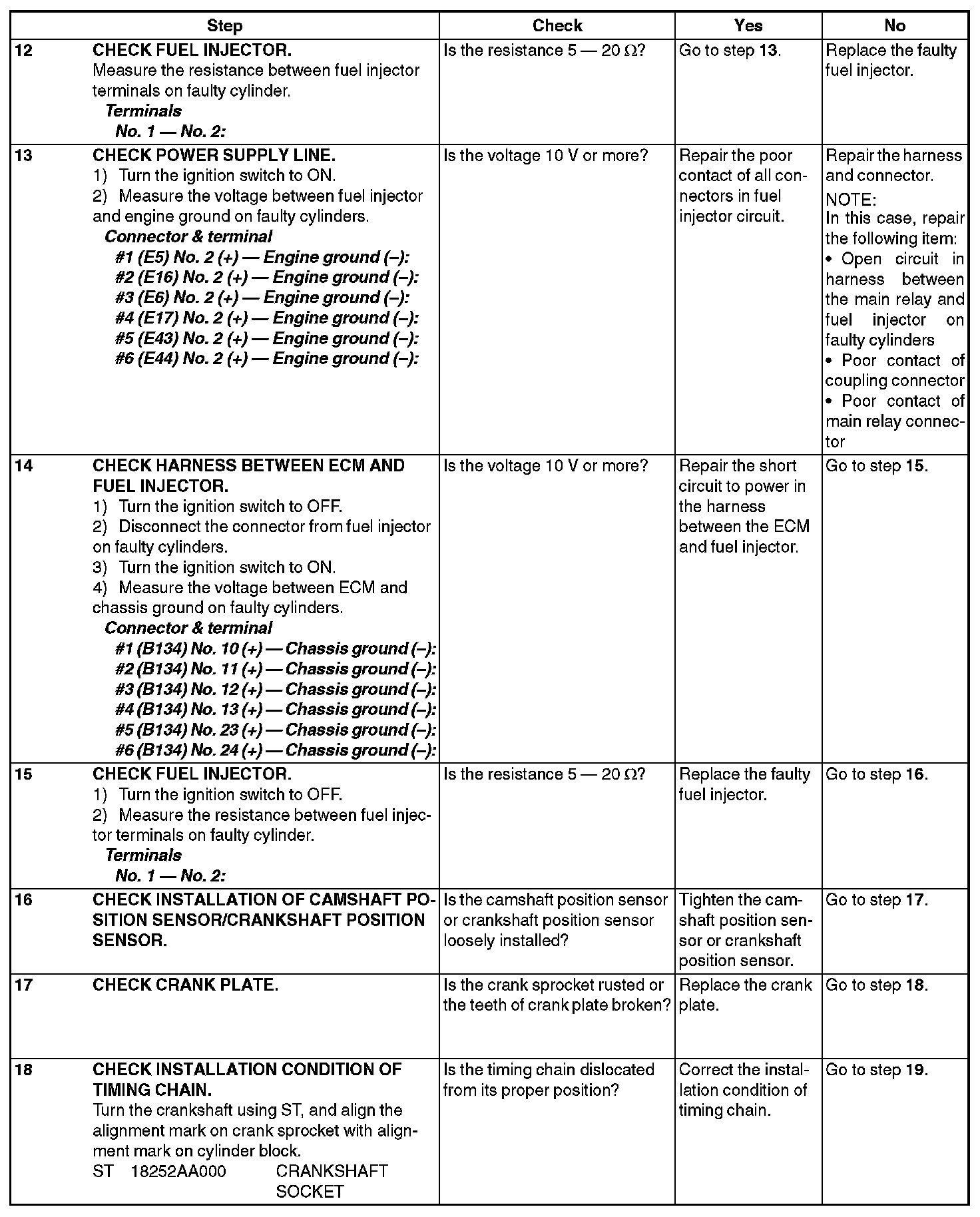

Step 12-18:

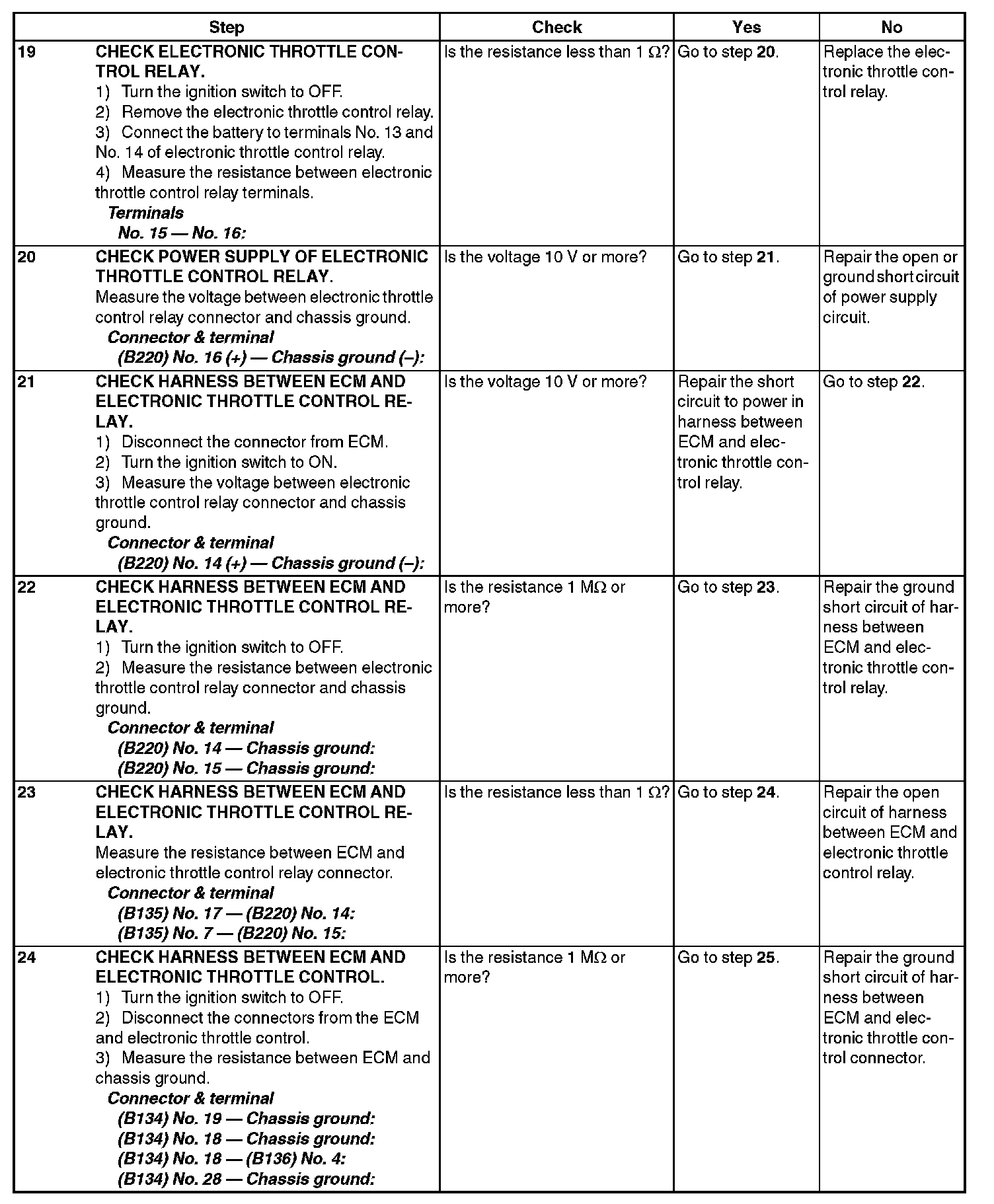

Step 19-24:

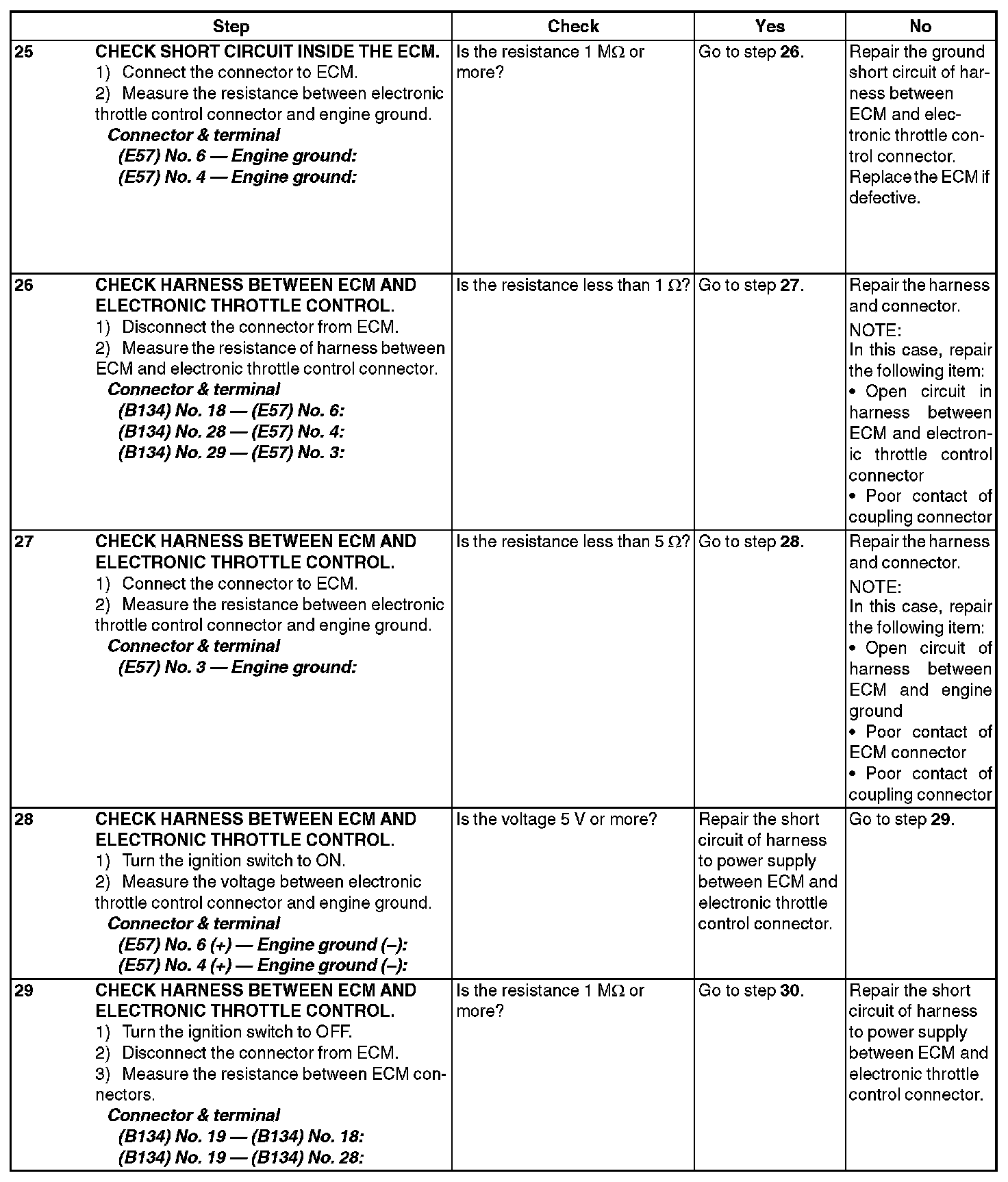

Step 25-29:

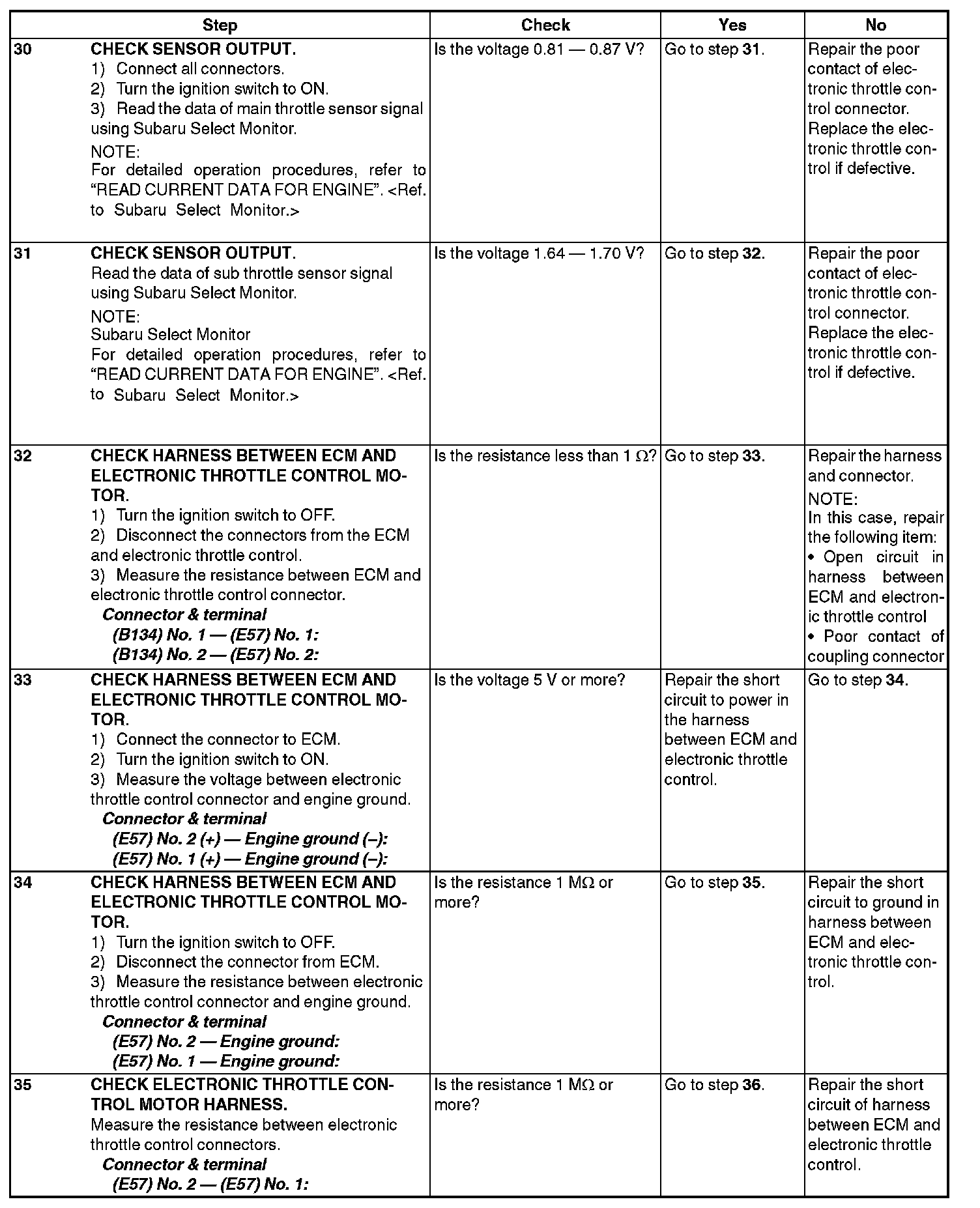

Step 30-35:

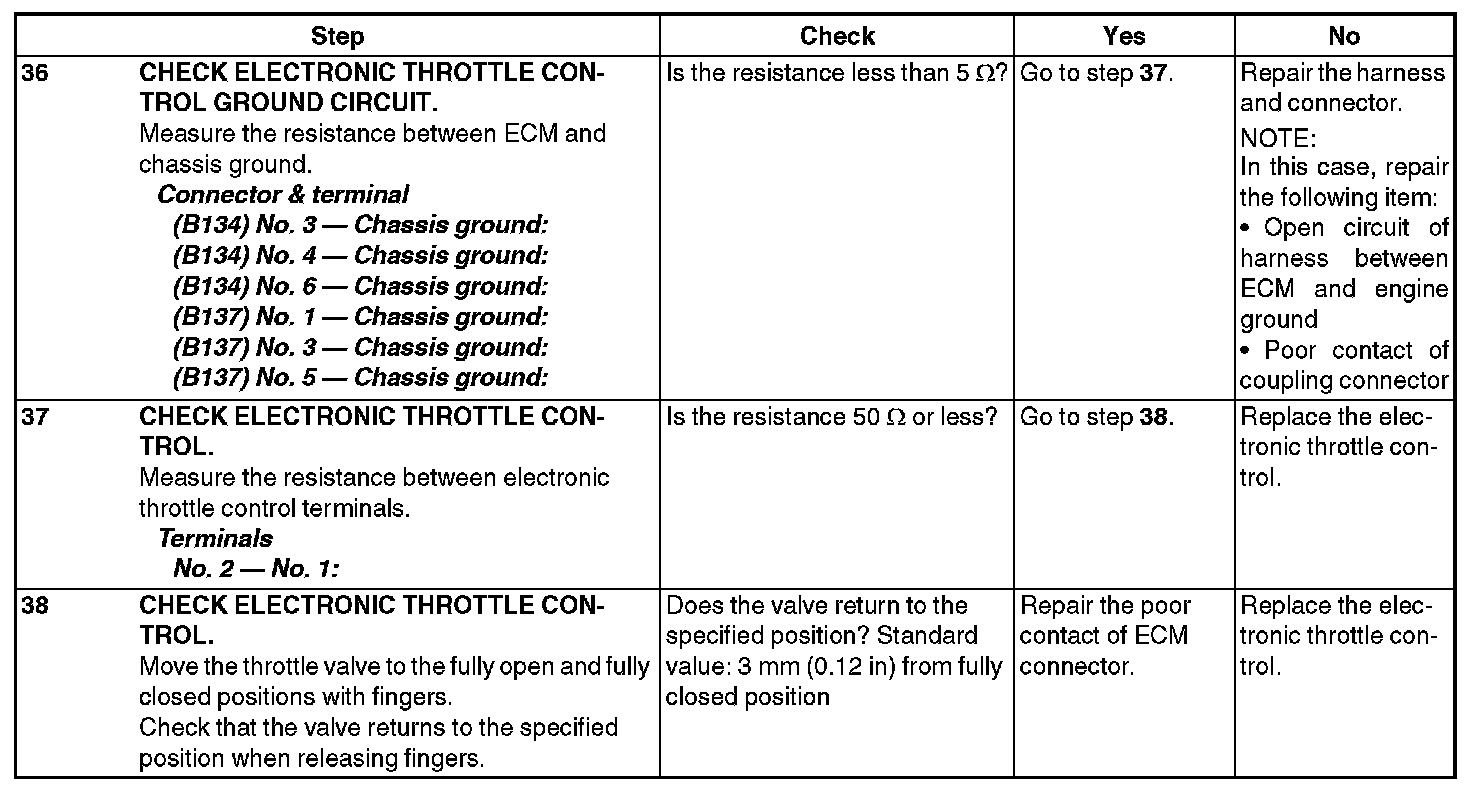

Step 36-38:
