P1560

DTC P1560 BACK-UP VOLTAGE CIRCUIT MALFUNCTION

DTC DETECTING CONDITION:
- Immediately at fault recognition
- GENERAL DESCRIPTION P1560

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode, and Inspection Mode Preparation For the Inspection Mode

WIRING DIAGRAM:

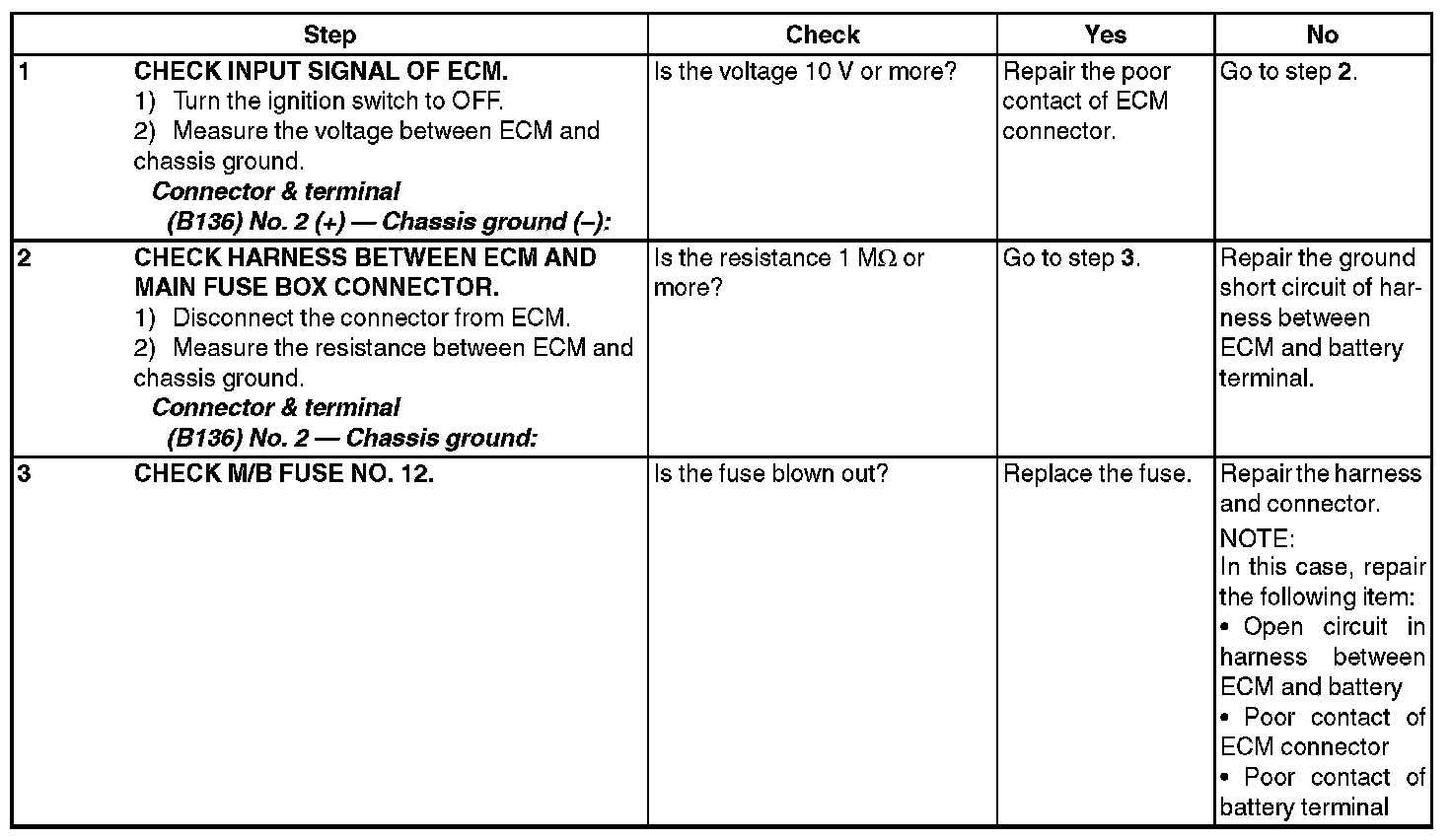

Step 1-3:
