P0763
DTC P0763 SHIFT SOLENOID "C" ELECTRICALDTC DETECTING CONDITION:
Output signal circuit of high & low reverse clutch solenoid is open or shorted.
TROUBLE SYMPTOM
Locked to 1st gear.

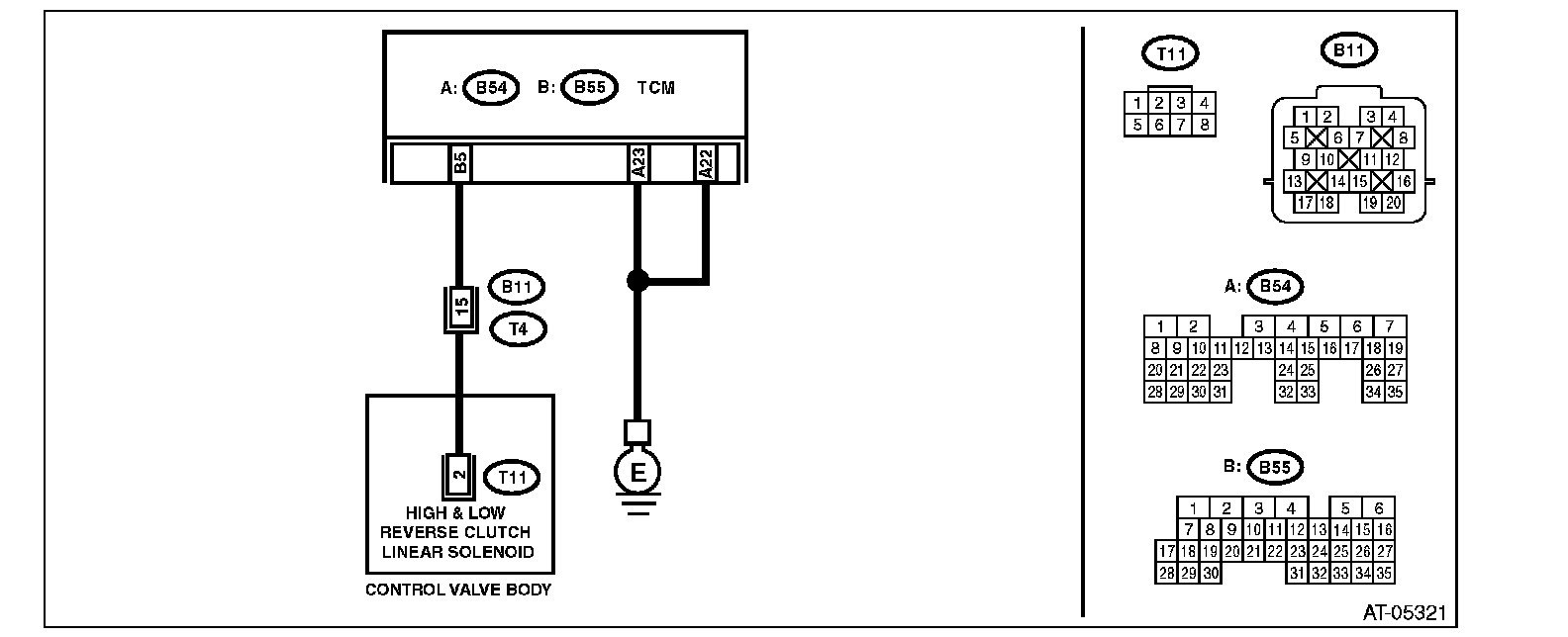

Wiring Diagram:

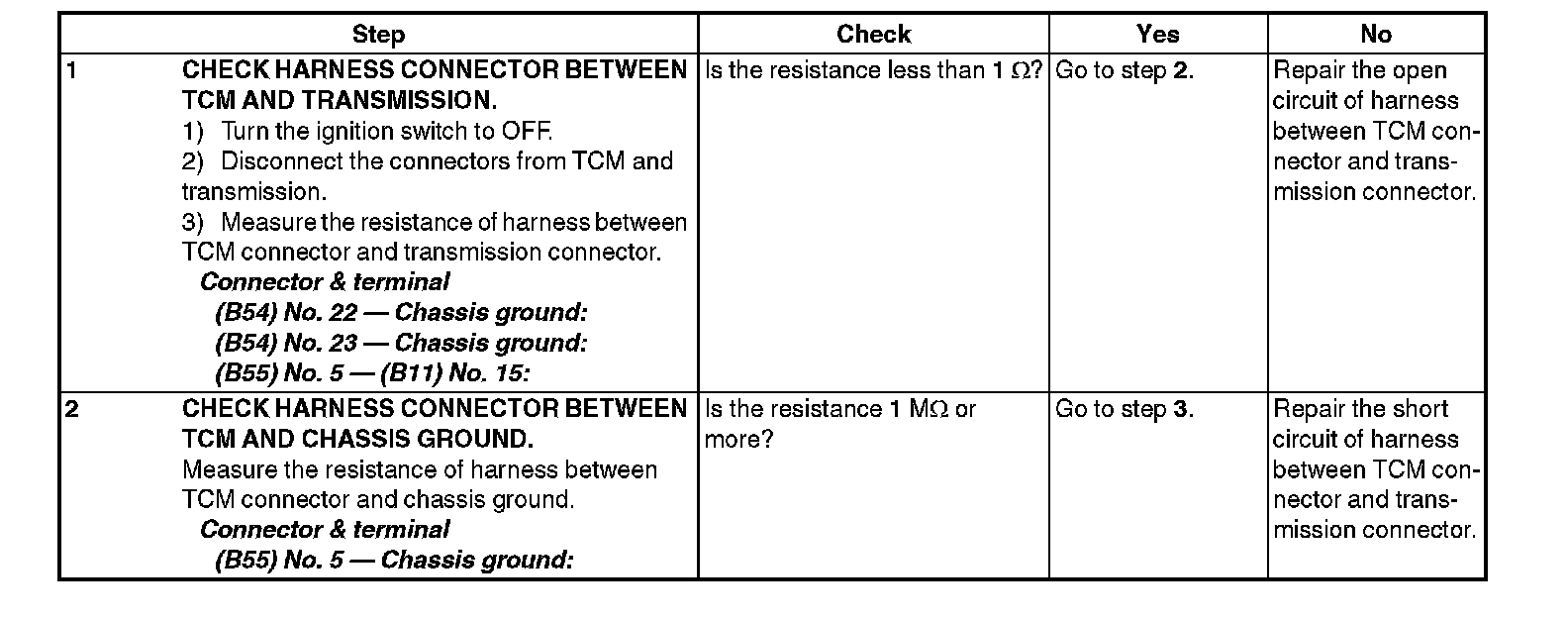

Step 1-2:

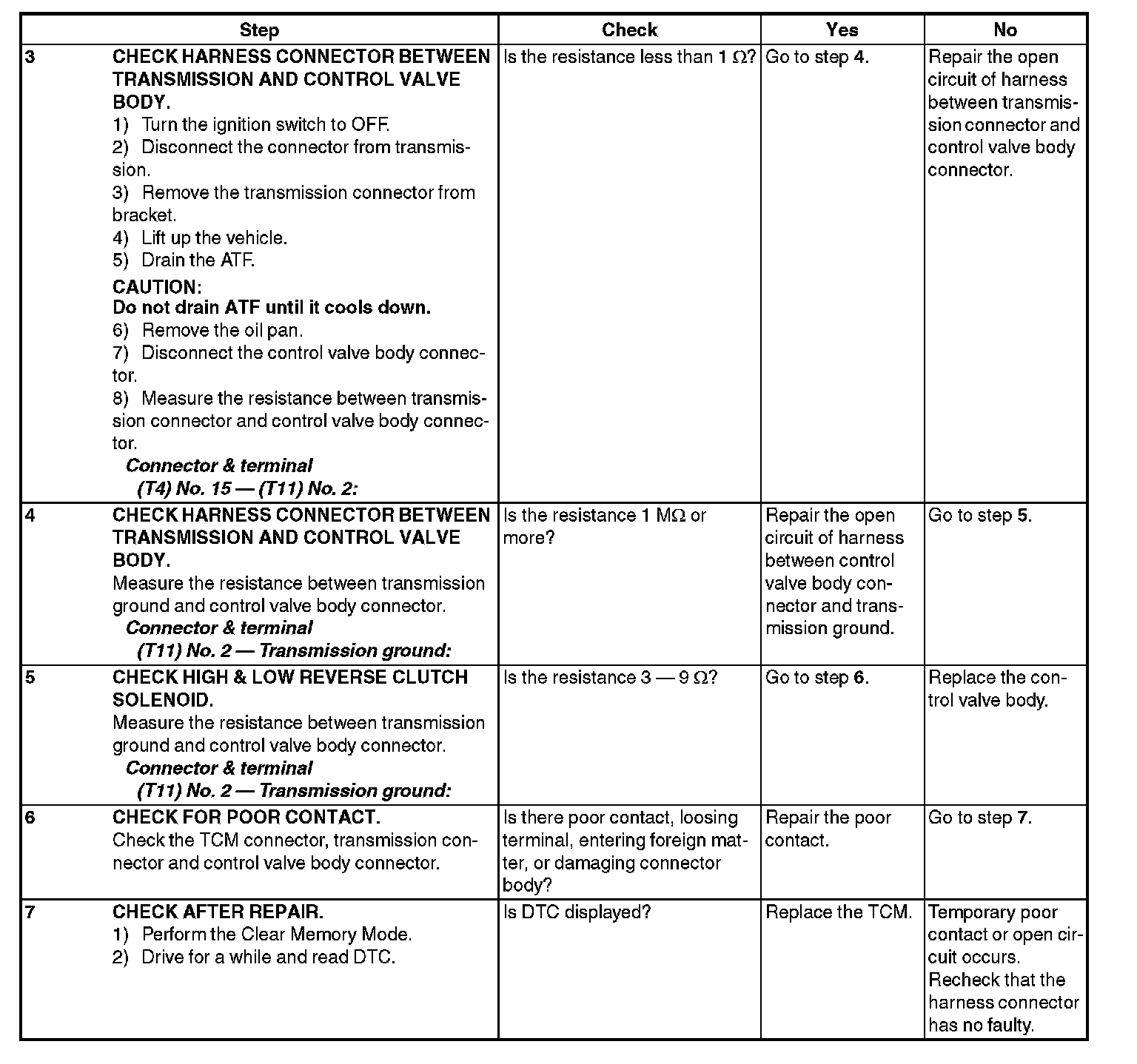

Step 3-7:
DTC DETECTING CONDITION:
Output signal circuit of high & low reverse clutch solenoid is open or shorted.
TROUBLE SYMPTOM
Locked to 1st gear.
