P0743
DTC P0743 TORQUE CONVERTER CLUTCH CIRCUIT ELECTRICALDTC DETECTING CONDITION:
The output signal circuit of lock up solenoid is open or shorted.
TROUBLE SYMPTOM
No lock-up occurs. (After engine is warmed up)

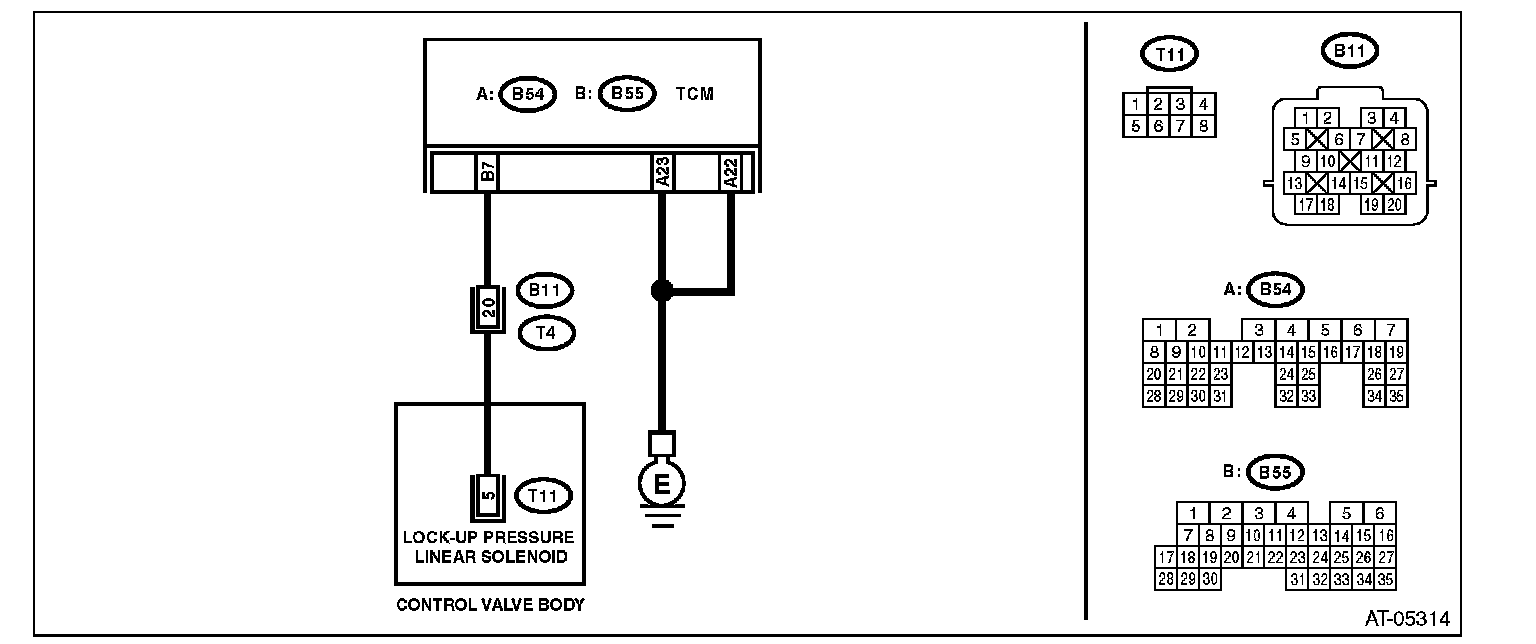

Wiring Diagram:

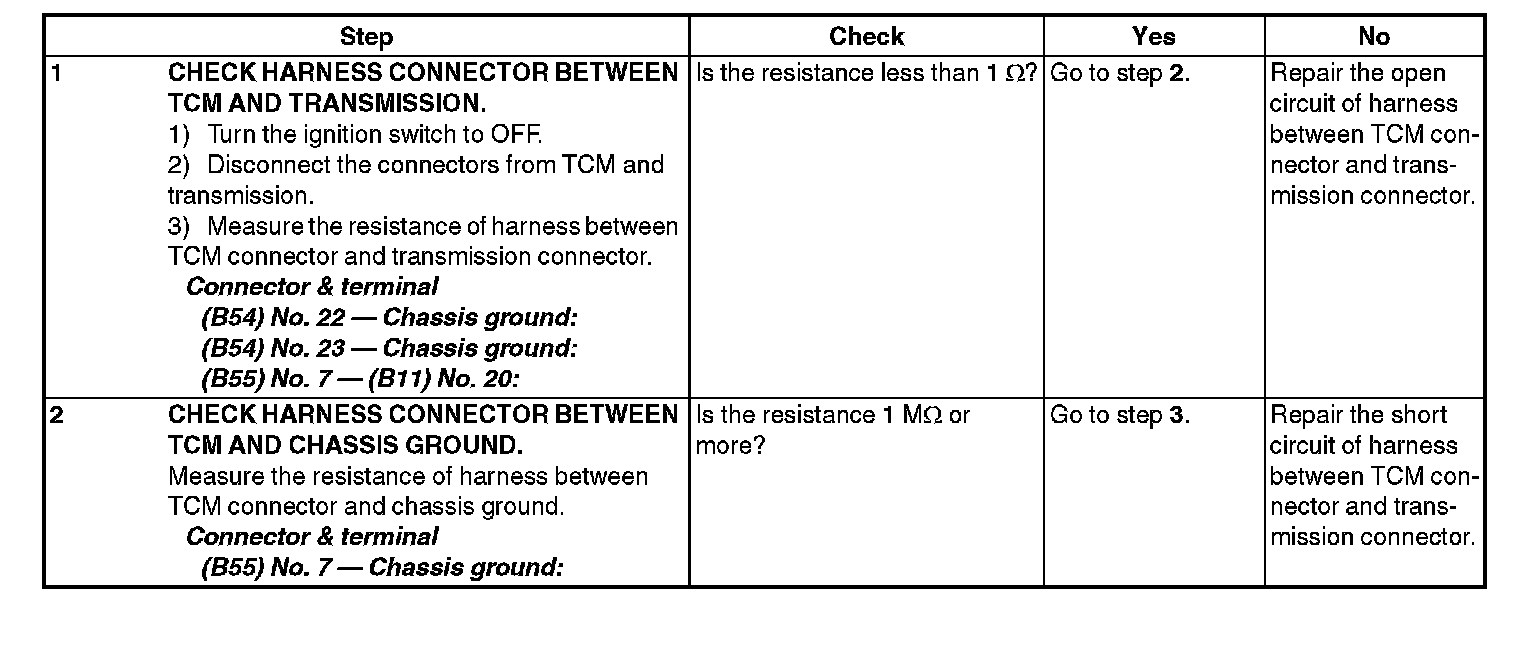

Step 1-2:

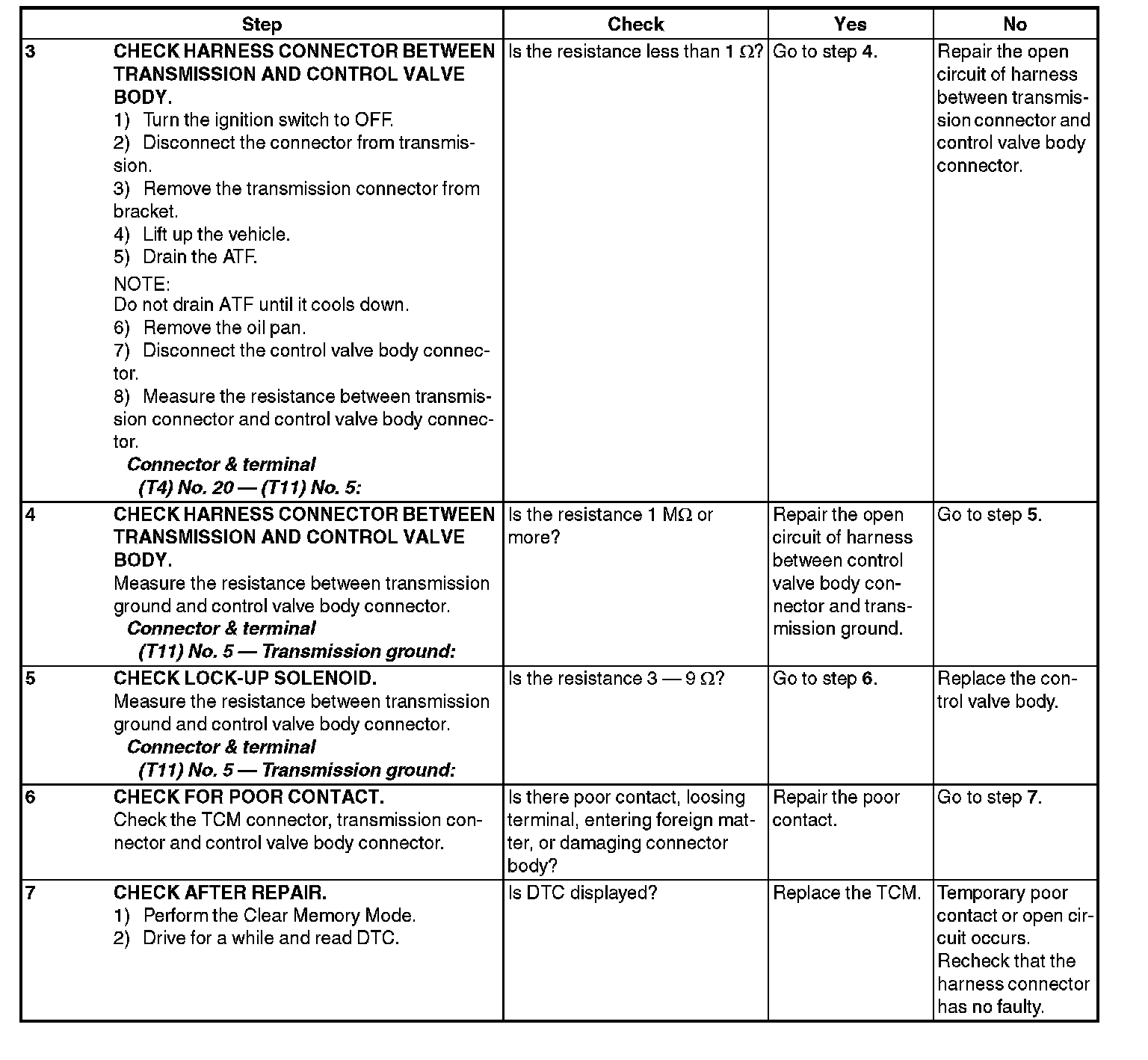

Step 3-7:
DTC DETECTING CONDITION:
The output signal circuit of lock up solenoid is open or shorted.
TROUBLE SYMPTOM
No lock-up occurs. (After engine is warmed up)
