DTC 39

DTC 39 SEAT BELT WARNING FAILURE

DTC DETECTING CONDITION:
- Airbag control module is faulty.
- Body integrated unit is faulty.
- Harness circuit between the body integrated unit and airbag control module is open, shorted or shorted ground.

CAUTION: Before performing diagnosis, refer to "CAUTION" in "General Description". Caution

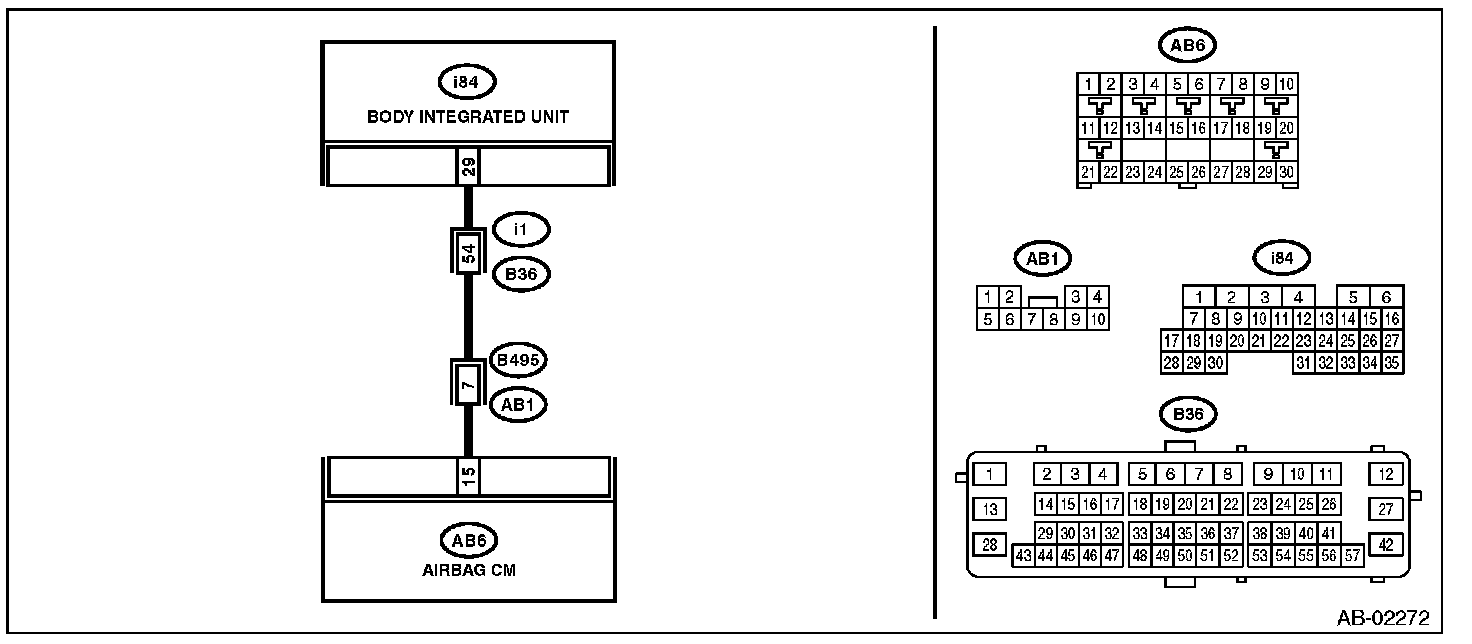

WIRING DIAGRAM:

Wiring Diagram:

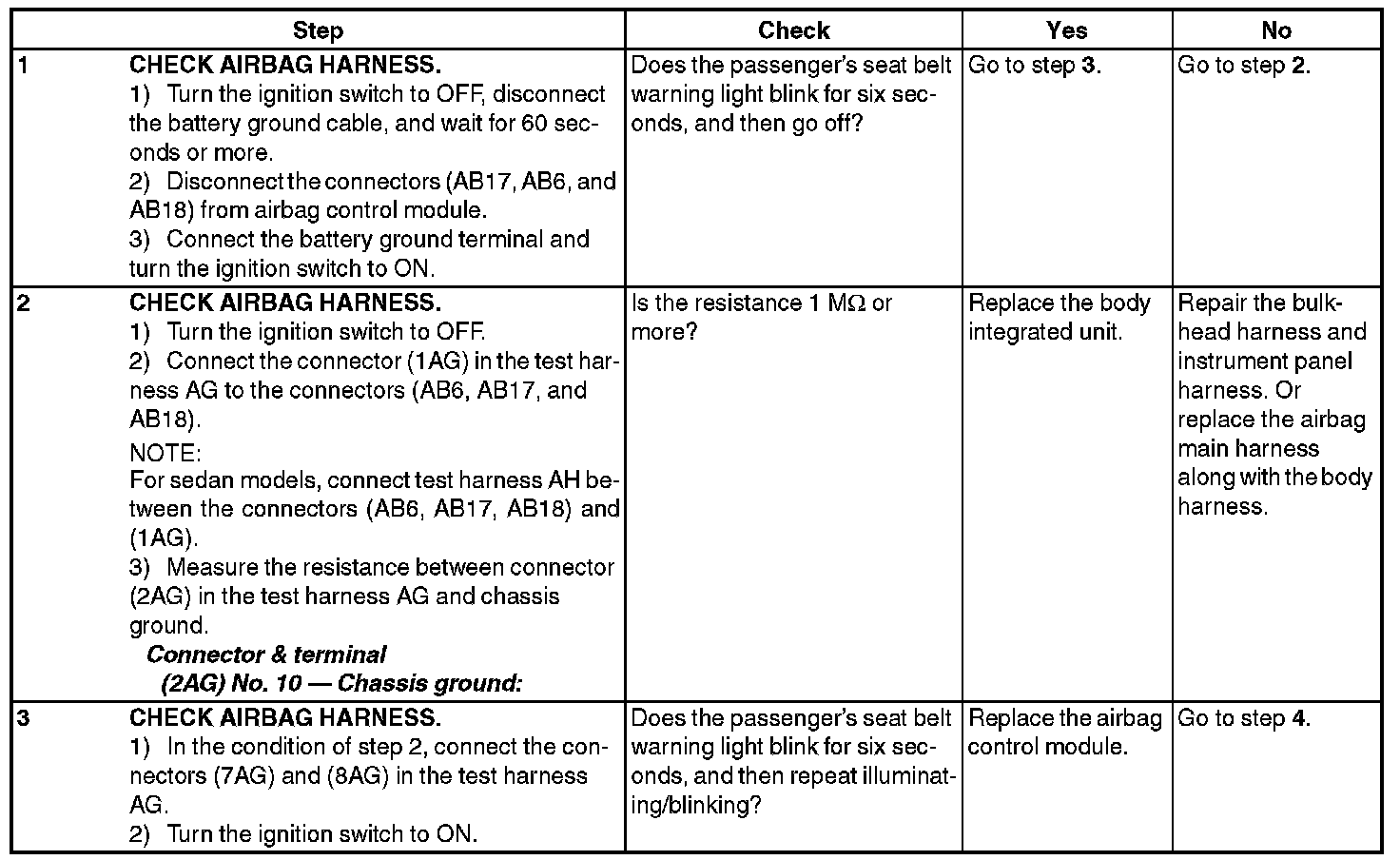

Step 1-3:

Step 4:
