Installation

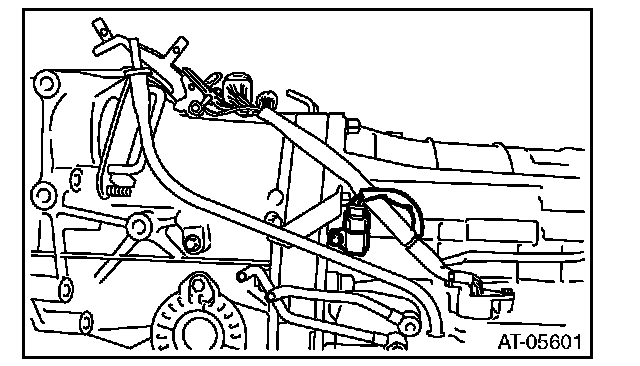

Turbine Speed Sensor 1

INSTALLATION
1) install the turbine speed sensor 1.
Tightening torque:
7 Nm (0.7 kgf-m, 5.2 ft-lb)
2) Connect the turbine speed sensor 1 connector.





3) Install the front exhaust pipe.
4) Lower the vehicle.
5) Connect the ground cable to battery.
