Installation

Rear Vehicle Speed Sensor

INSTALLATION

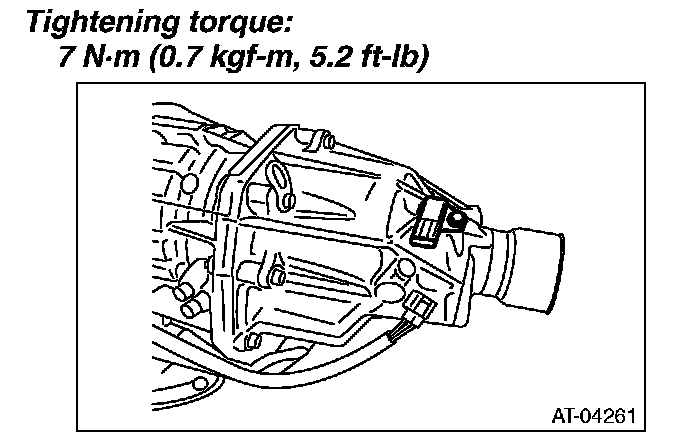

1) Install the rear vehicle speed sensor.

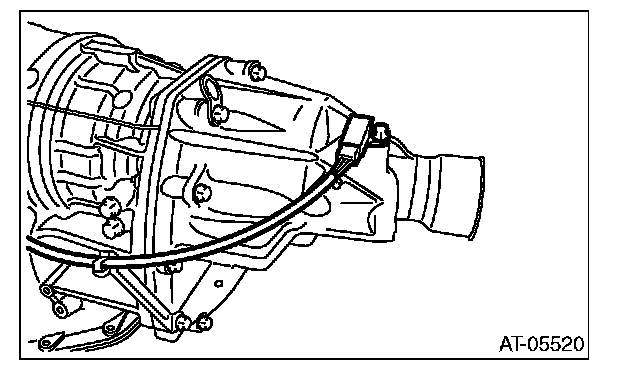

2) Connect the rear vehicle speed sensor connector.





3) Install the heat shield cover.
4) Tighten the bolts which connect the front exhaust pipe and rear exhaust pipe.
Tightening torque:
18 Nm (1.8 kgf-m, 13.3 ft-lb)
5) Lower the vehicle.
