2010
>>
Legacy F6-3.6L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Body Integrated Unit Power Supply and Ground Circuit
Body Integrated Unit Power Supply and Ground Circuit
BODY INTEGRATED UNIT POWER SUPPLY AND GROUND CIRCUIT

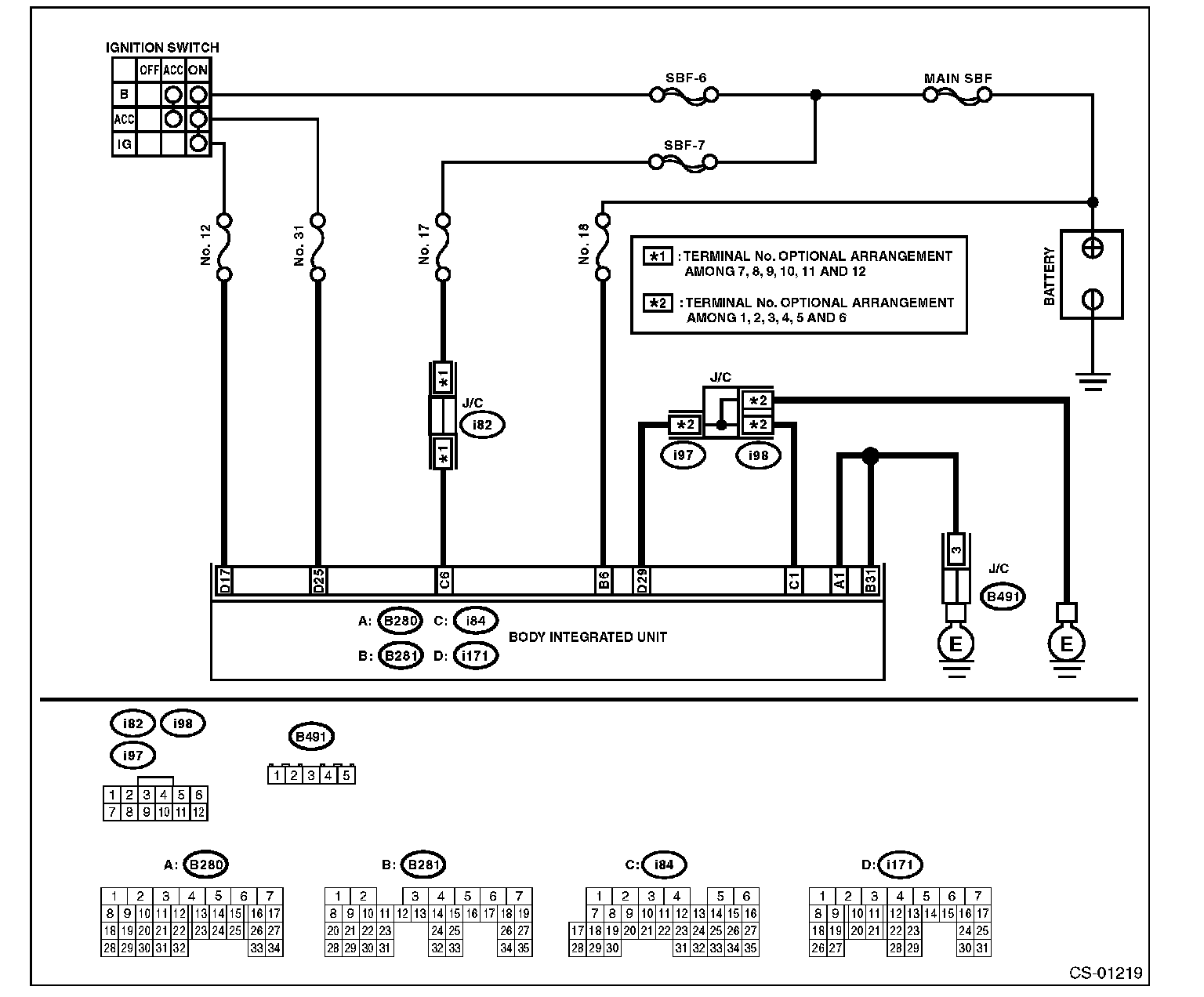

Wiring Diagram:
Step 1-2:

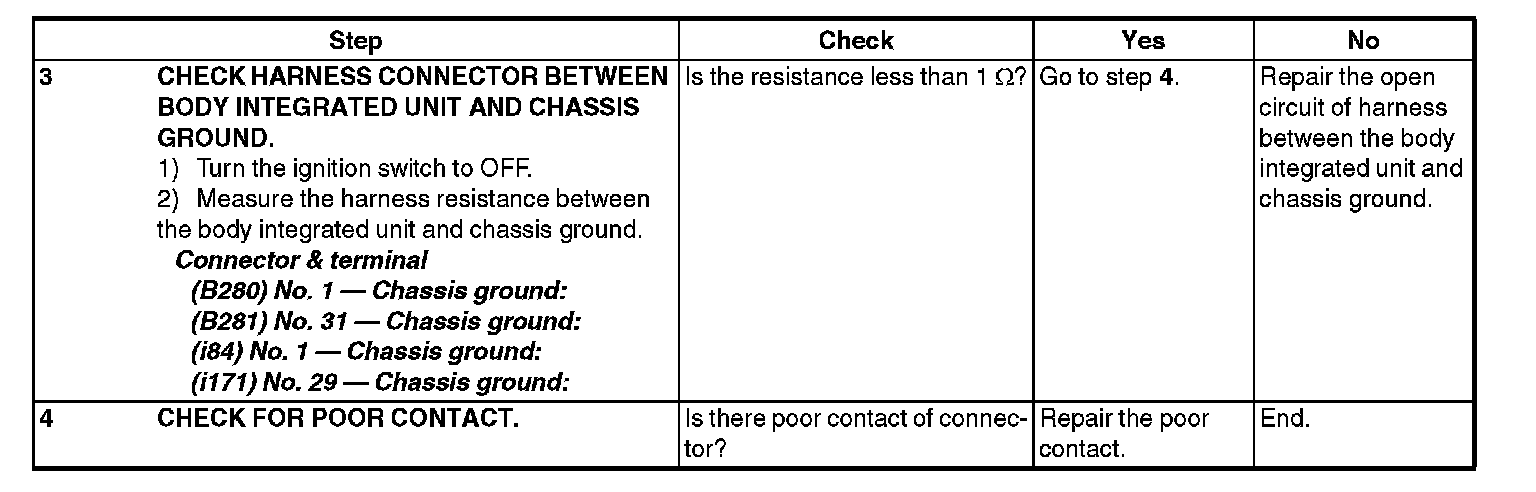

Step 3-4:
