Extension Case Oil Seal
Extension Case Oil SealREPLACEMENT
1) Lift up the vehicle.
2) Clean the transmission exterior.
3) Remove the ATF drain plug to drain ATF.
CAUTION:
Immediately after the vehicle has been running or the engine has been long idle running, the ATF is hot. Be careful not to burn yourself.

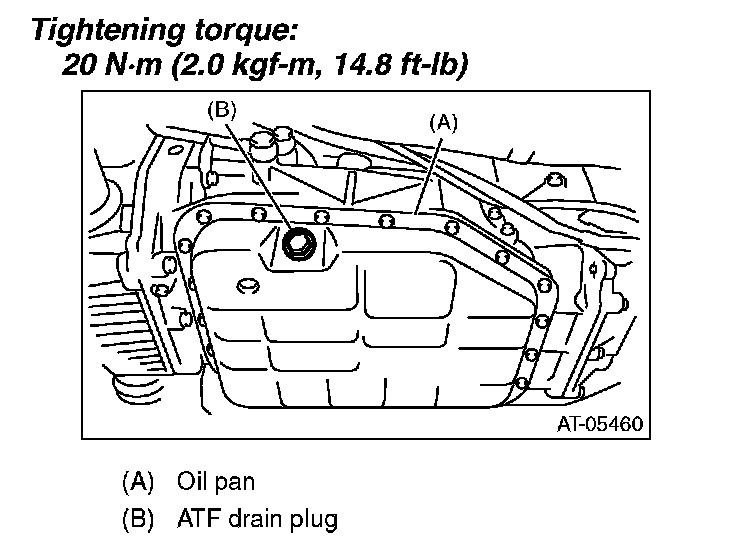

4) Tighten the ATF drain plug.
NOTE:
Use a new gasket.
5) Remove the rear exhaust pipe.
6) Remove the heat shield cover.
7) Remove the propeller shaft.
8) Using the ST, remove the oil seal.
ST 398527700 PULLER ASSY
9) Using the ST, install the oil seal.
ST 498057300 INSTALLER
10) Install the propeller shaft.
11) Install the heat shield cover.
12) Install the rear exhaust pipe.
13) Lower the vehicle.
14) Pour ATF from the oil charge pipe.
15) Check the level and leaks of the ATF.
