System Specifications

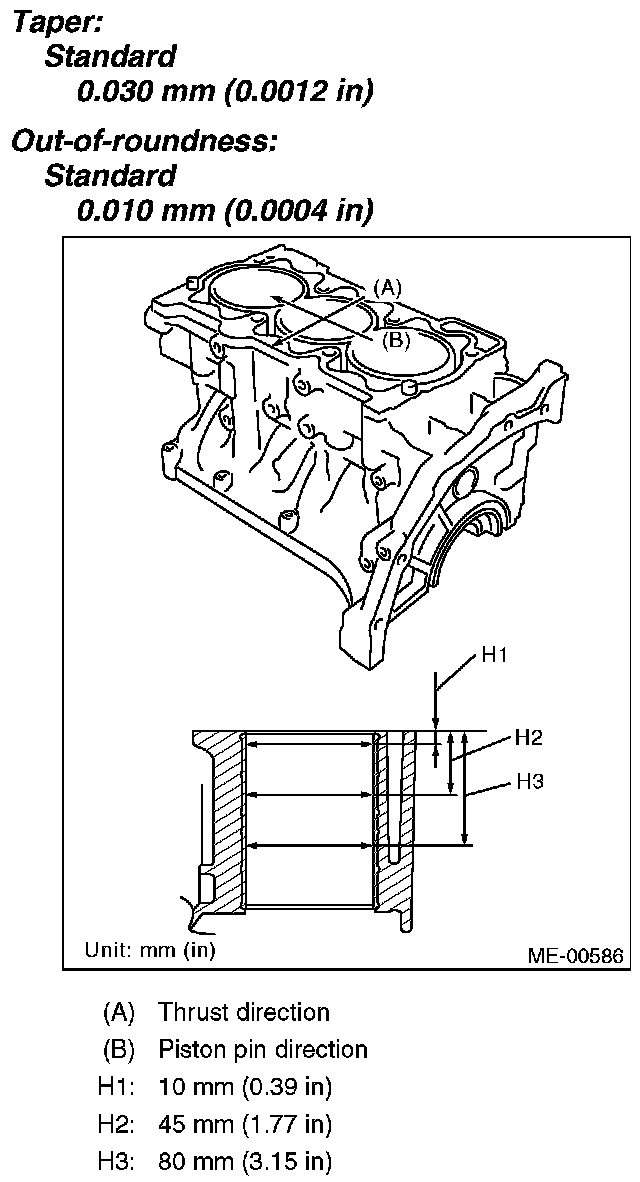

Cylinder Block InspectionWarping limit 0.020 mm (0.0008 in)
Standard height of cylinder block 202 mm (7.95 in)
Cylinder and Piston

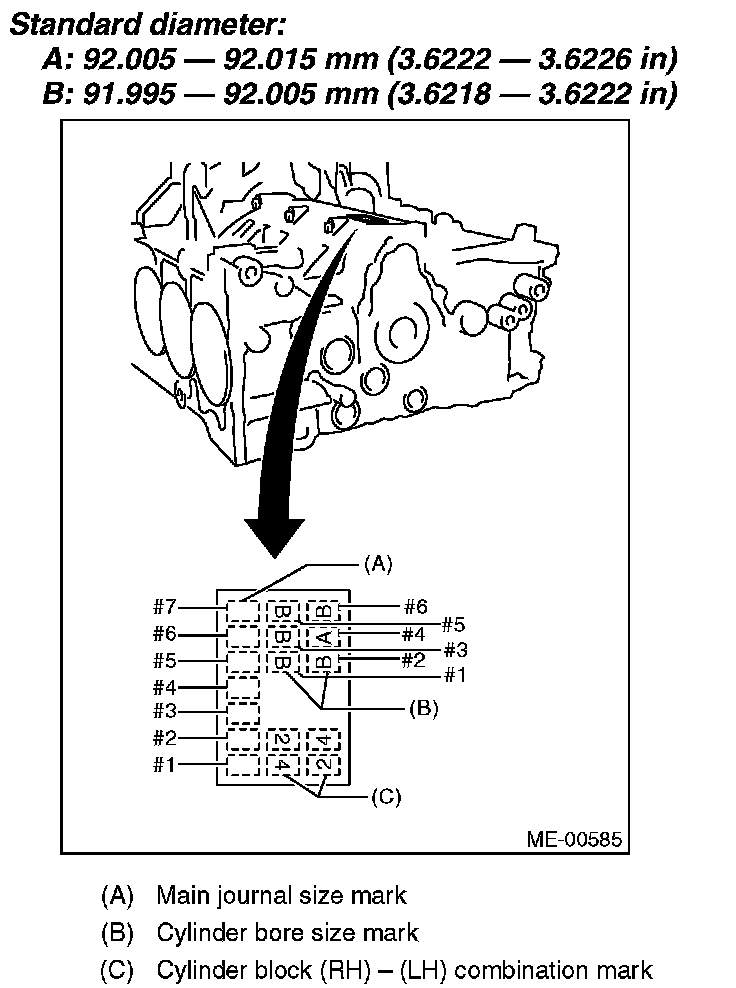

The cylinder bore size is stamped on the front upper face of the cylinder block

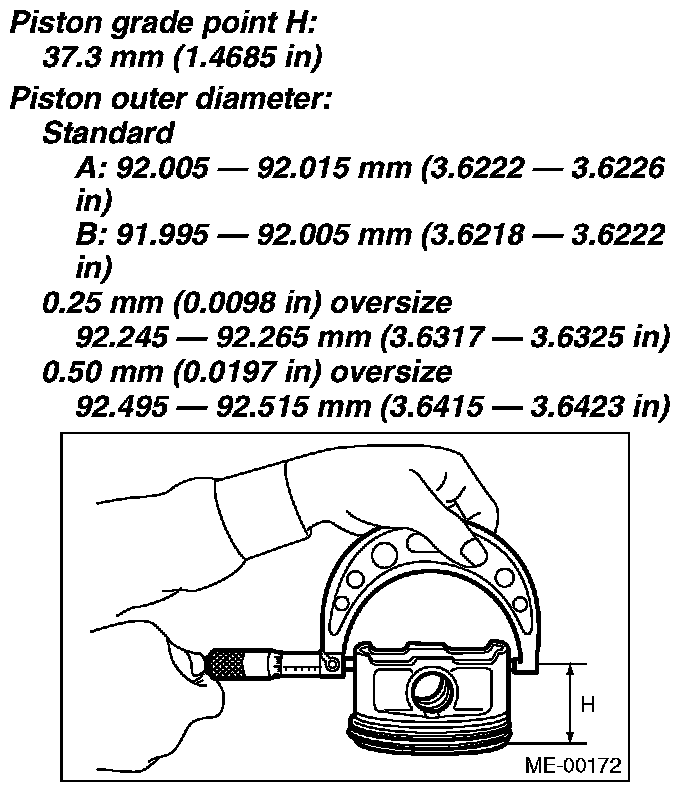

Standard sized pistons are classified into two grades, "A" and "B". These grades should be used as guide lines in selecting a standard piston.
Cylinder to piston clearance at 20 degrees C (68 degrees F) -0.010 - 0.010 mm (-0.0004 - 0.0004 in)
Cylinder inner diameter boring limit (diameter) to 92.515 mm (3.6717 in)

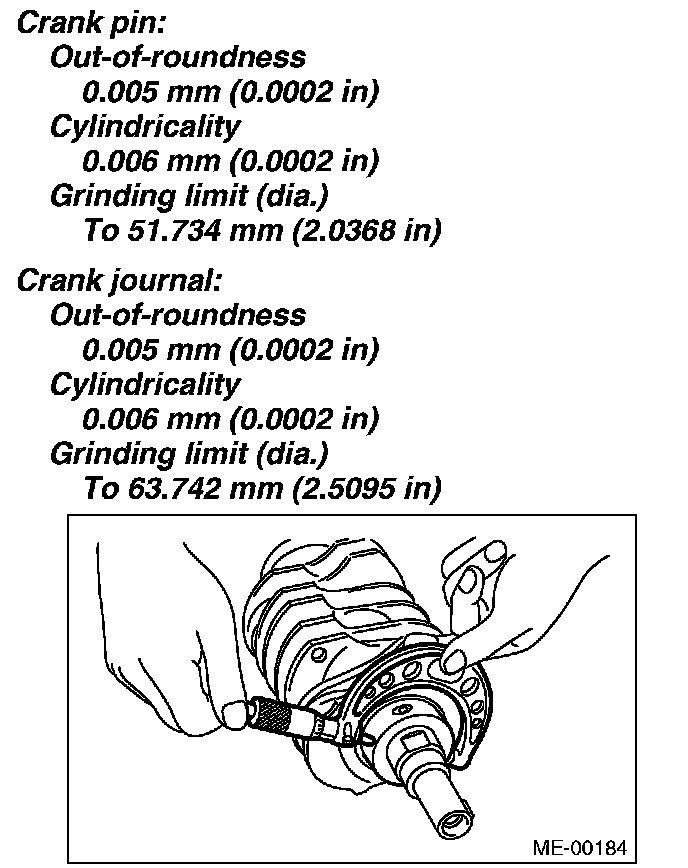

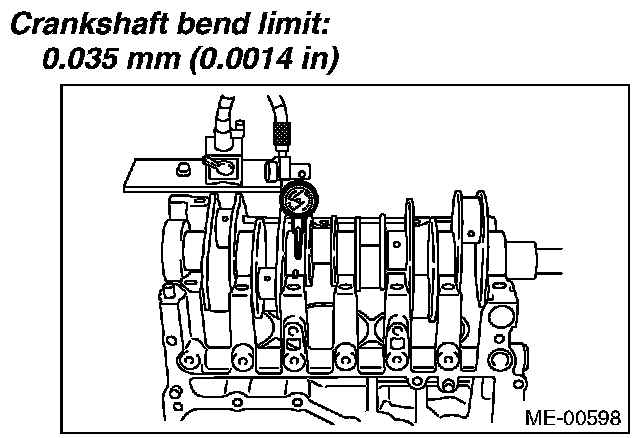

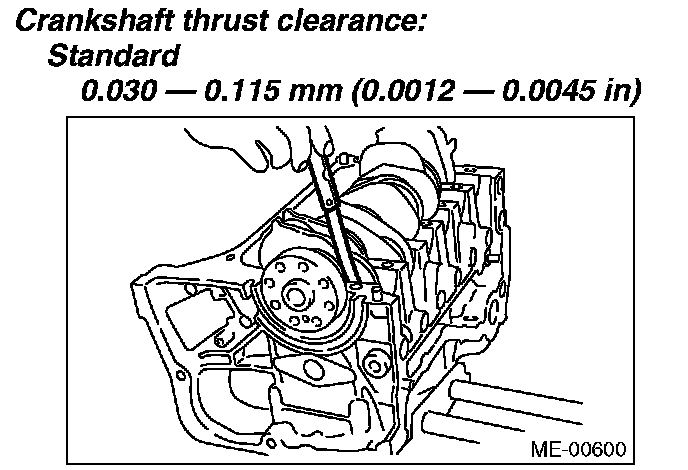

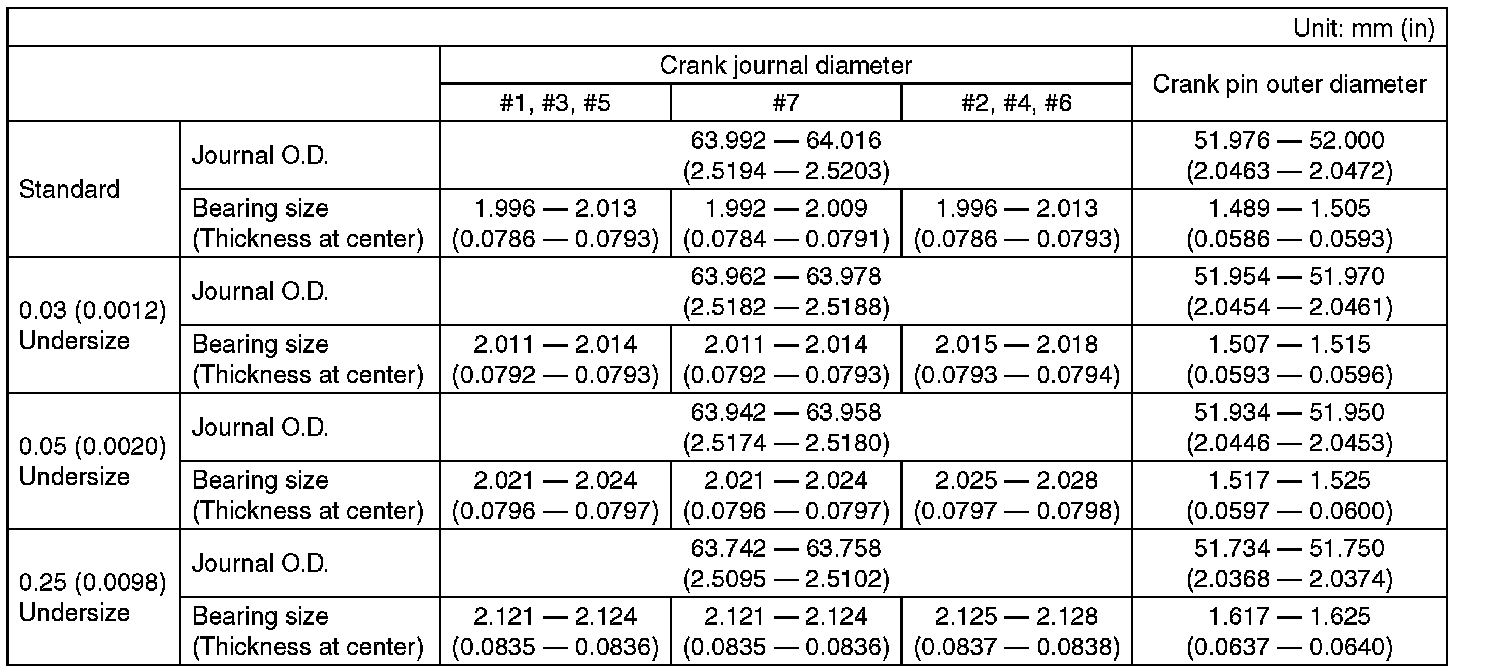

Crankshaft and Main Bearings
Crankshaft oil clearance (standard) 0.010-0.030 mm (0.0004-0.0012 in)
Crankshaft Main Bearing Cap Bolts
Please refer to Cylinder Block Assembly Removal and Replacement for bolt tightening specifications and sequence. Service and Repair

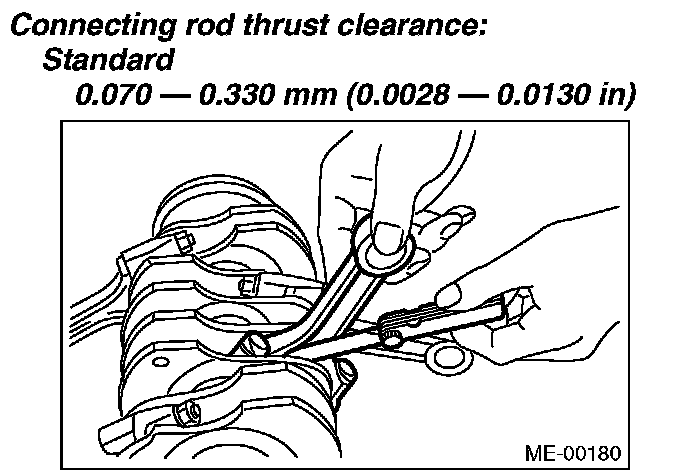

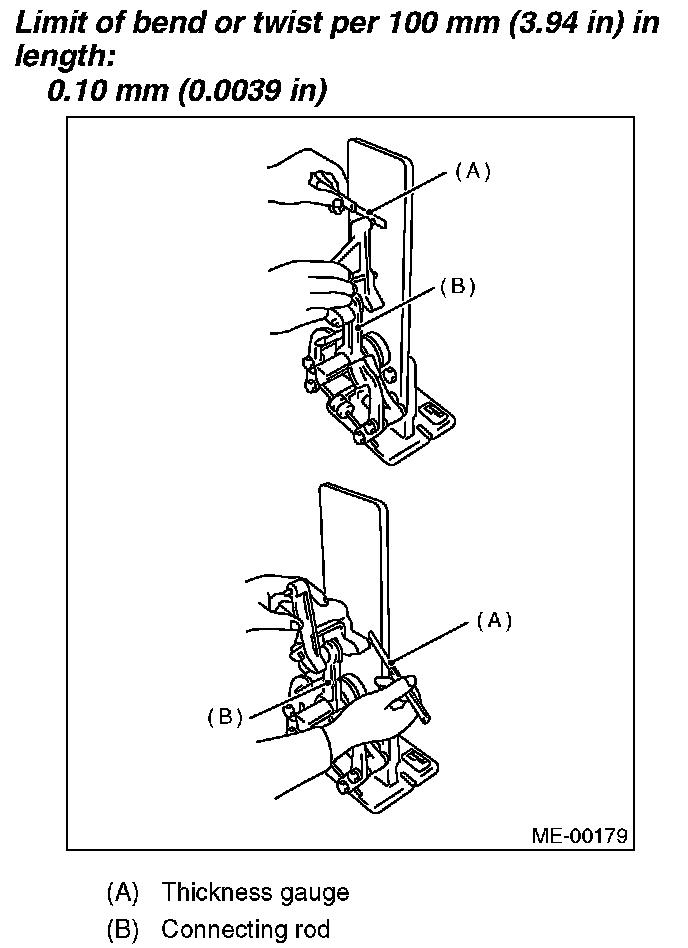

Connecting Rods and Bearings

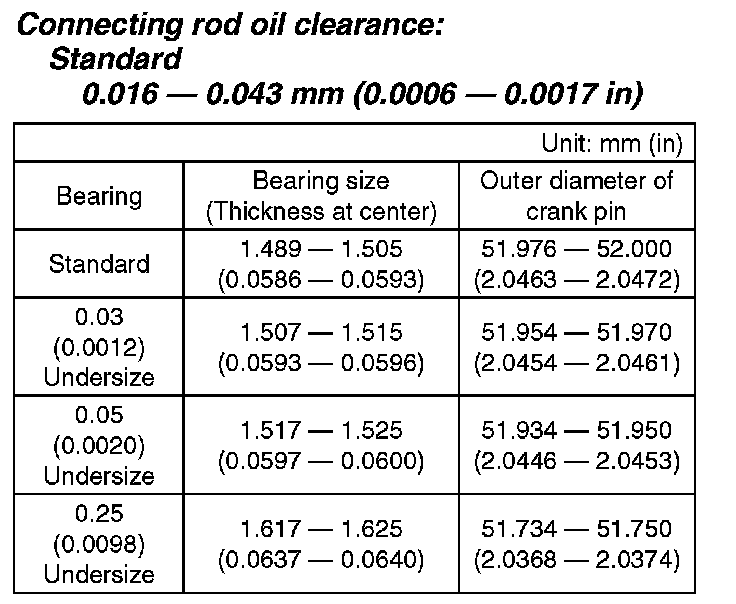

Connecting Rod Cap Bolts 60 Nm (6.1 kgf-m, 44.3 ft-lb)

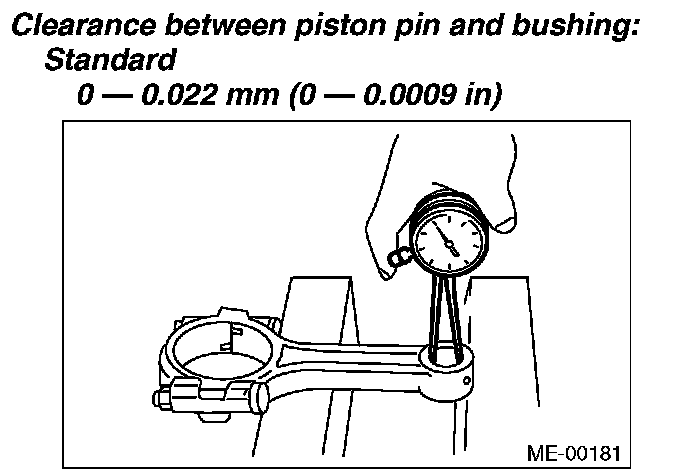

Piston Pin
Make sure piston pin can be inserted into piston pin hole by a thumb at 20° C (68° F)

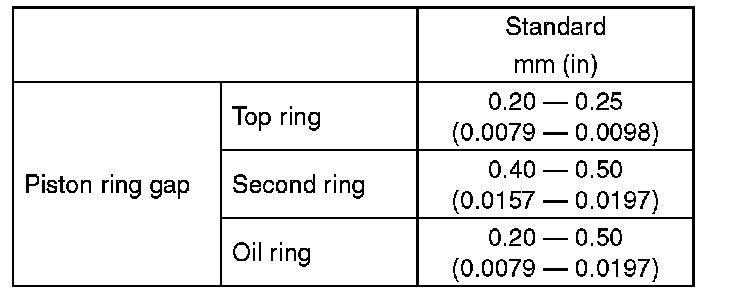

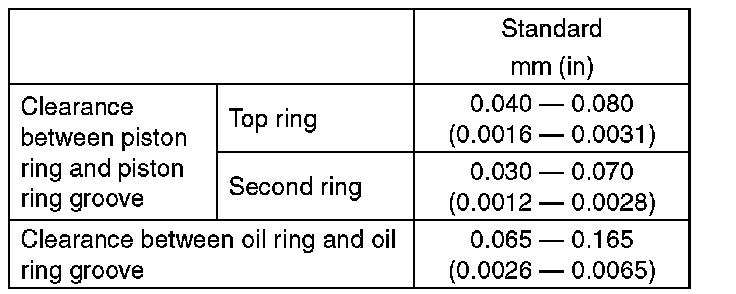

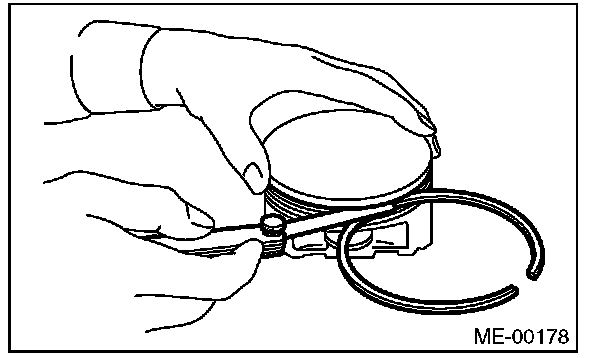

Piston Rings
Crank Pulley Bolt 195 Nm (19.9 kgf-m, 143.8 ft-lb)
