Removal

TRANSMITTER (TIRE INFLATION PRESSURE SENSOR)

REMOVAL
1) Remove the wheels from the vehicle.
2) Remove the tire from the wheel.

CAUTION:
When removing the tire from the wheel, use the tire changer.

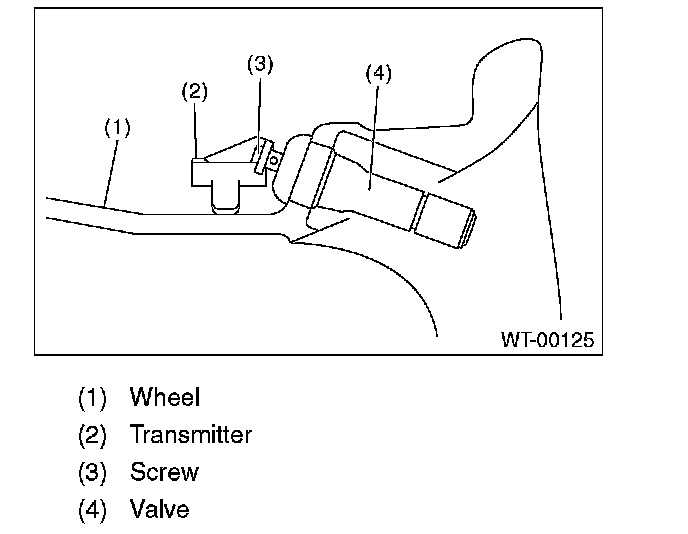

3) Remove the screw, and remove the transmitter from the valve stem.

NOTE:
When reusing the transmitter, replace the valve and screw with new parts.





4) Remove the valve from the wheel.
