Home >> Subaru >> 2010 >> Legacy F6-3.6L DOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Steering and Suspension >> Sensors and Switches - Wheels and Tires >> Tire Pressure Sensor >> Locations

Tire Pressure Sensor: Locations

Electrical Component Location

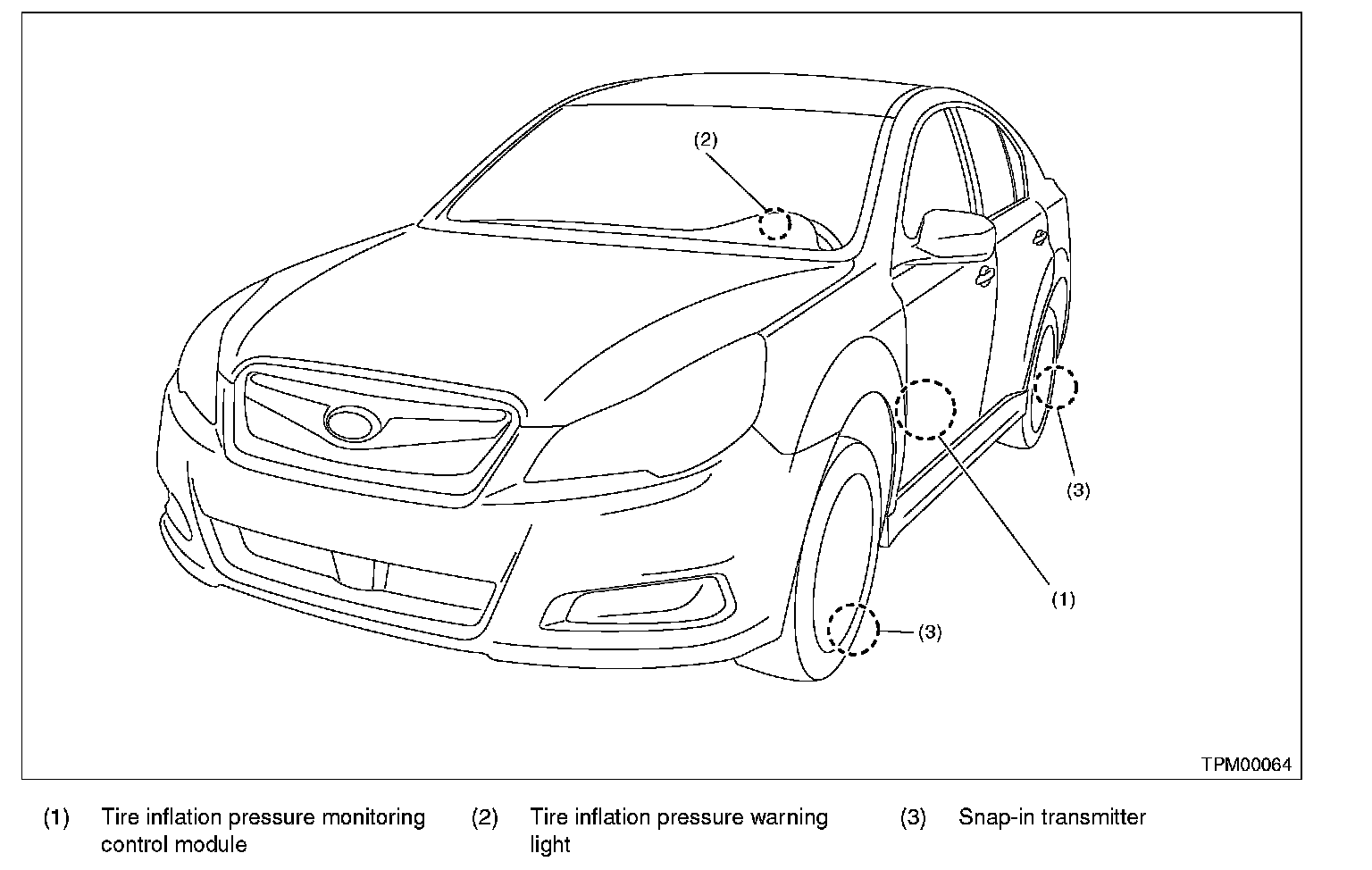

Tire Pressure Monitoring System Component Locations (Part 1):

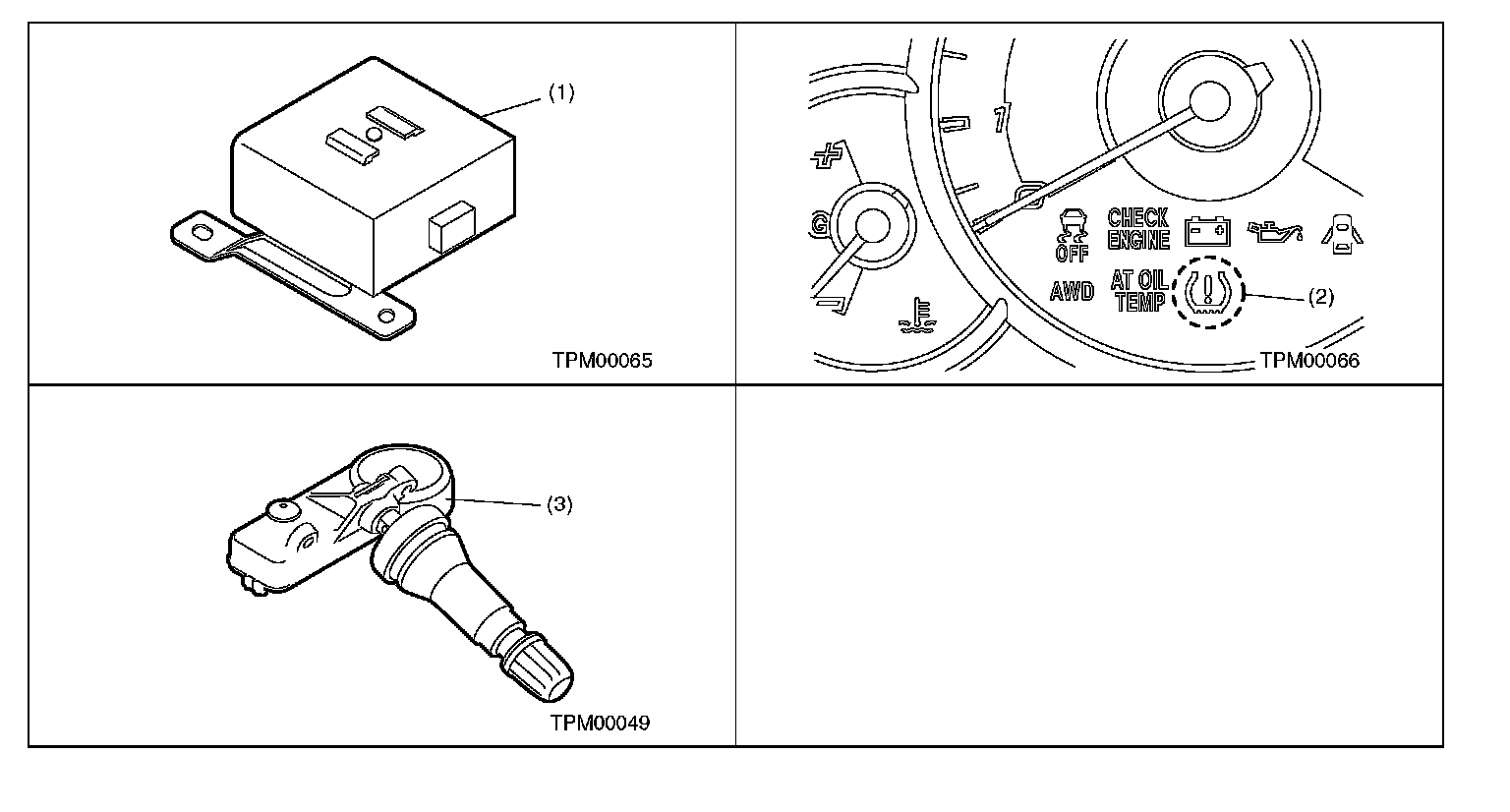

Tire Pressure Monitoring System Component Locations (Part 2):
