Lateral Accelerometer: Service and Repair

Yaw Rate and G Sensor

NOTE
Yaw rate & longitudinal G and lateral G sensor are integrated with the VDC control module.

INSPECTION

YAW RATE & LONGITUDINAL G AND LATERAL G SENSOR SIGNAL

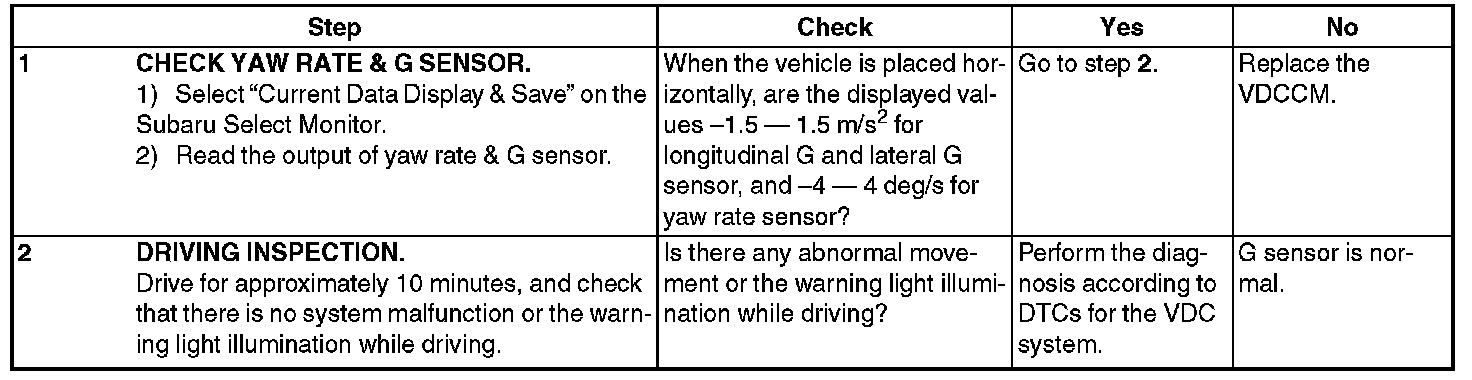

Step 1-2:
